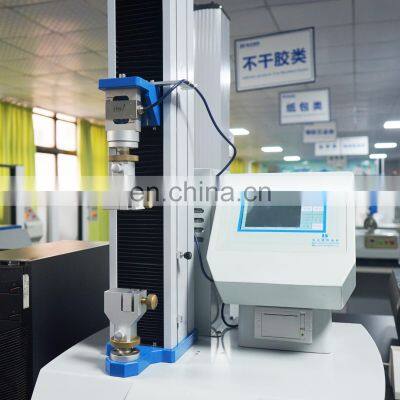

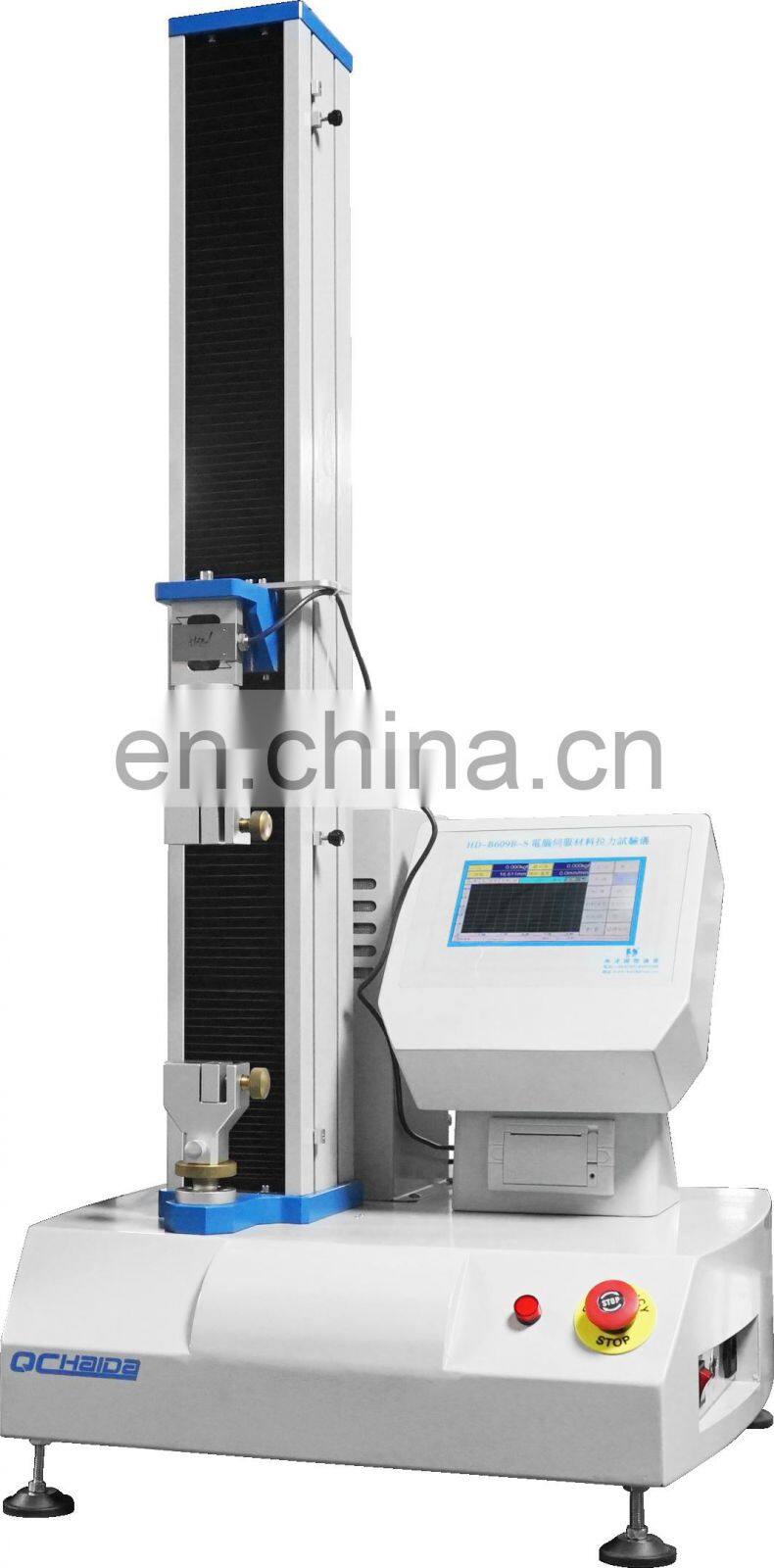

Touch Screen Tensile Strength Tester Universal Material Peel Testing Machine

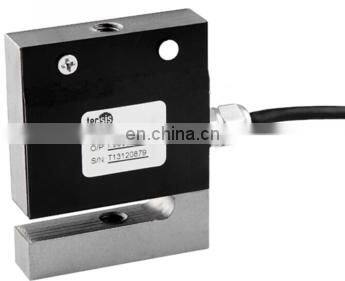

Germany Brand TECSIS Load Cell – S Type

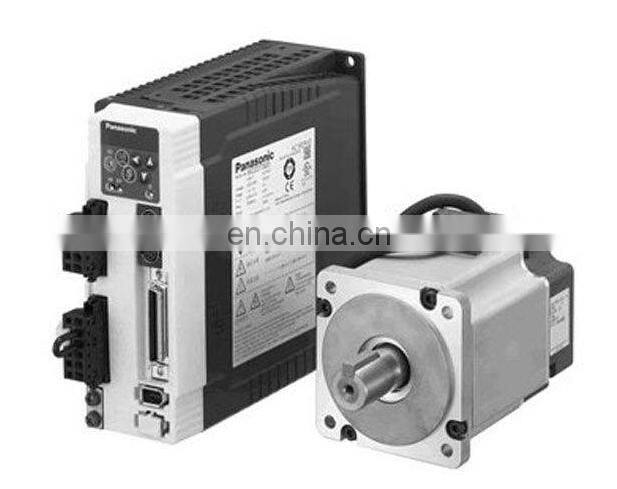

Panasonic Servo Motor
GENERAL SPECIFICATIONS
Estimated Packaging Dimensions: (W*D*H) 630*630*1400mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Estimated Gross Weight: 120kg
HS Code: 9024800000
STANDARD FEATURES
Item |
Description |
Load cell capacity |
200kg(5,10,50,100kg are optional) |
Load cell brand |
Germany brand load cell for high accuracy |
Load accuracy |
0.5% F.S |
Control system |
LCD with build-in printer /PC with windows 7 system |
Motor |
Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
Force reading |
kgf, Ibf, N, KN, T etc |
Vertical test space |
900mm including fixture |
Test speed |
0.1~500mm/min (adjustable) |
Software |
TM 2101 |
Curves display |
Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display |
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
APPLICATIONS
1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.

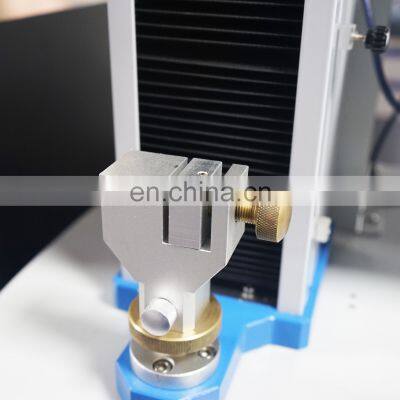

2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

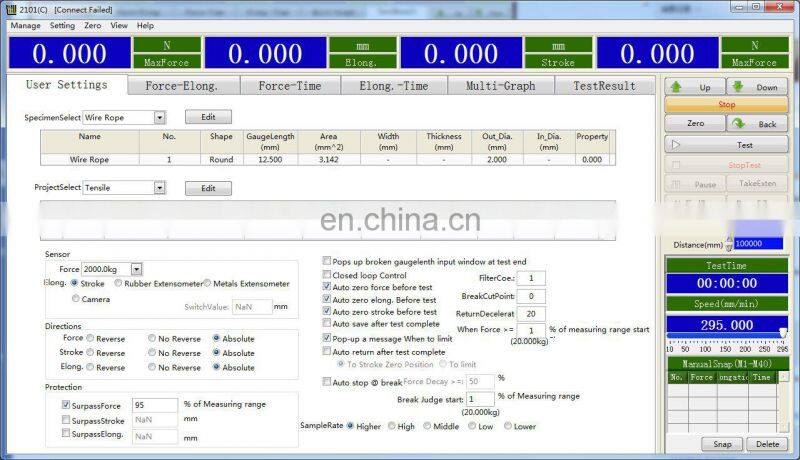

User setting page

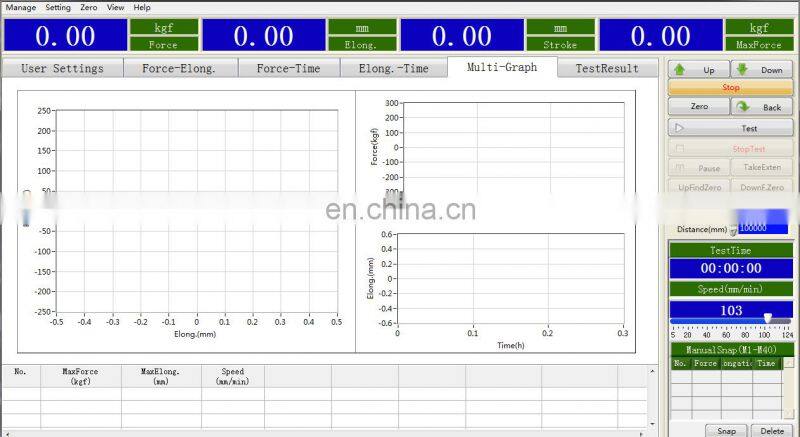

Curves display picture

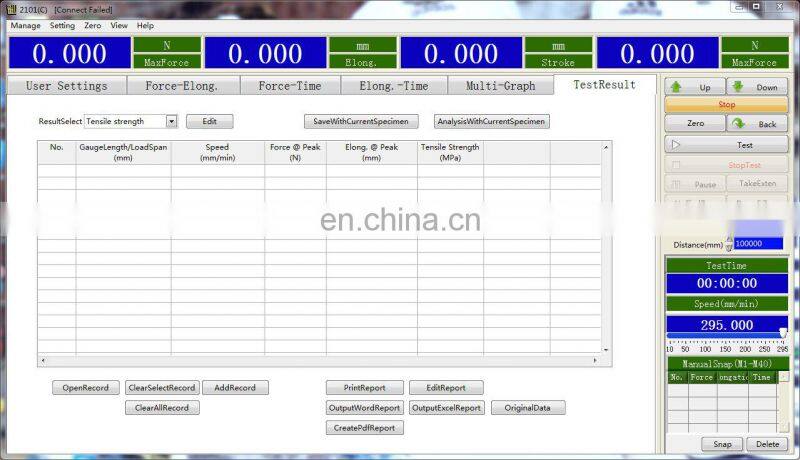

Test result picture

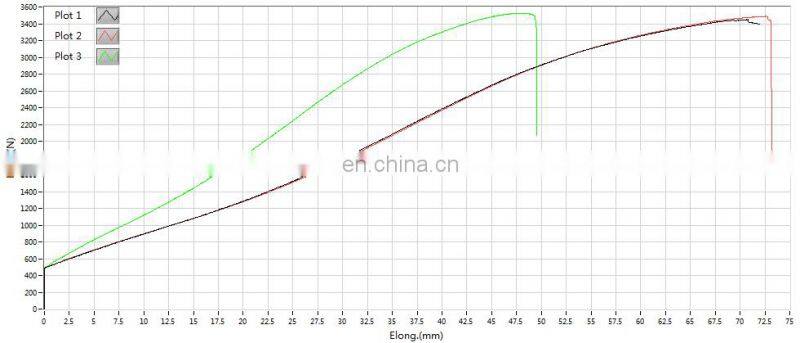

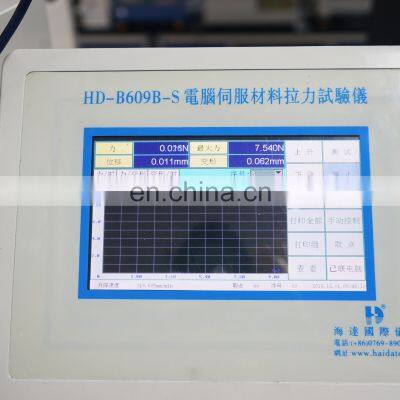

Test curve page
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
