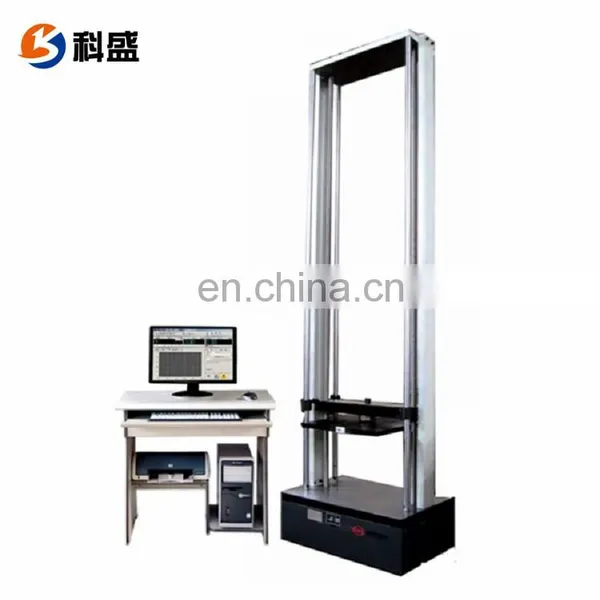

HGW Computer Control Universal Tube Ring Stiffness Testing Machine
Application:
This machine is mainly used for various pipe ring stiffness, flexibility and flat, Central test, based on customers ' special needs can also increase tensile, compression, bending, and functional tests, is a multifunctional electronic universal testing machine.
Feature:
This series of testing machine use computer control the test, servo motor to drive high-precision lead screw, so that drive beams up and down. It has the protective function when over-voltage, over-current or overloading. It is mainly used for plastic pipe stiffness with a circular cross-section and flat detection tests. Therefore, it is the absolutely necessarily testing instruments for every section in institutes, quality inspection departments and pipe manufacturers.
Technical Parameter:
Model |
HGW-20 |
HGW-50 |
HGW-100 |
HGW-200 |
Max test force(KN) |
20 |
50 |
100 |
200 |
Max tube diameter |
0-3000mm ( can be customized) |
|||
Max test width |
20% of the tube diameter |
|||
Test range |
2%~100%FS |
|||
Test force accuracy |
Better than±1% |
|||
Deformation accuracy |
Better than ±1% |
|||
Displacement precision |
Better than ±1% |
|||
Deformation resolution |
0.01mm |
|||
Displacement resolution |
0.01mm |
|||
Force speed |
2%~100%FS |
|||
Displacement speed (mm/min) |
0.05~500 |
0.05~300 |
||
Velocity accuracy |
Better than ±2% |
|||
Patterned deformation control |
0.05%~100%FS |
|||
Patterned deformation control accuracy |
Better than ±1% |
|||
Power |
1kw, 220V±10% |
1.5kw, 380V±10% |
||
Weight (Kg) |
450 |
550 |
||

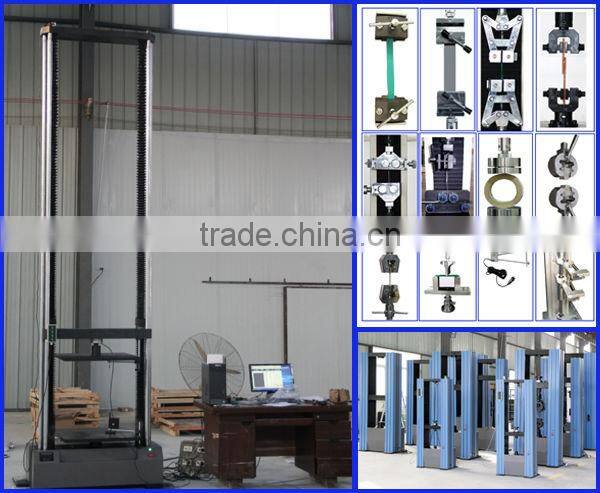

Tensile Testing Machine Pics:
