MWW series Plywood Universal Testing Machine
Application:
Computer control wood-based panels testing machine made for the wood manufacturing and quality supervision station. Can do the following test: bone strength, surface bone strength, tensile strength, static bending strength, modulus of elasticity test, screw griping test and shear test of of MDF,shaving board, plywood, core-board.
Standard:
EN310, JIS A 5908, GB/T17657-1999, ASTM, GB/T 16491-1996
Technical parameter:
Model | MWW-10 |
Max testing force(KN) | 10 |
Testing force level | 1 Level |
Testing range | 2%--100%FS |
Relative error of indicating value | ≤±1% |
Force resolution | 1/300000 |
Displacement resolution | ≤±1% |
Displacement resolution(mm) | 0.01 |
Load speed(mm/min) | 0.05-500 |
Effective tensile space(mm) | 750 |
Effective testing width(mm | 350 |
Overall dimension | 690×380×1650mm |
Weight | 320kg |
Power | 220V,50Hz,0.5KW |
Package list:
Name | Quantity |
10KN high strength host | 1 pc |
High precision photoelectric encoder | 1 pc |
Digital servo control system and digital servo control motor | 1 set |
High precision ball screw assembly | 2 sets |
High precision arc synchronous gear system | 1 set |
High precision arc synchronous gear system | 1 set |
Special measurement and control system | 1 set |
Under WINDOWS operating environment MAXTEST special software | 1 set |
LENOVO computer | 1 set |
HPA4 printer | 1 set |
Technical document | 1 set |
Standard configuration with 6 sets testing fixtures as below | |
Surface bonding strength testing fixture | 1 set |
Internal bonding strength testing fixture | 1 set |
Screw holding strength testing fixture | 1 set |
Static bending strength testing fixture | 1 set |
Elastic modulus testing fixture | 1 set |
Screw griping testing fixture | 1 set |

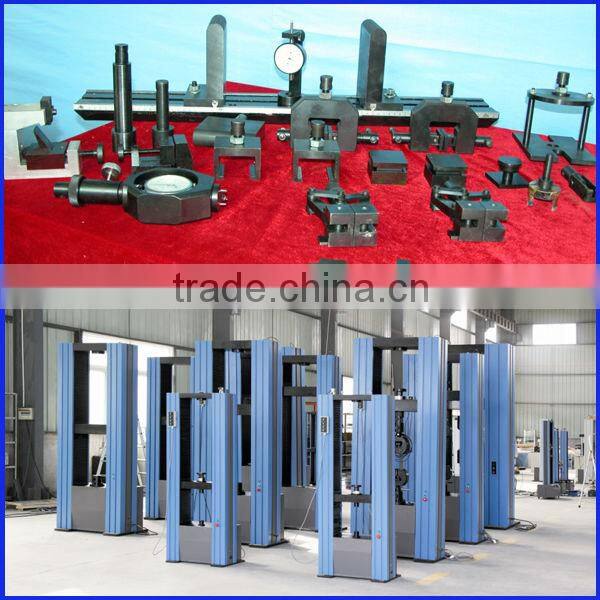

Fixtures & main units :
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
The Realistic Pictures of Our Factory:
Our company can also produce the customized testing machines as clients' requirements.
Best service and the best price for you.
