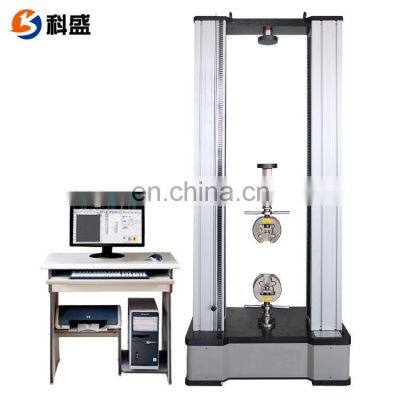

MWW-10 Computer Control Wood Based Panels Universal Testing Machinery
Application:
This machine made for the wood manufacturing and quality supervision station.
Can do the following test:
Bone strength; surface bone strength; tensile strength;static bending strength;
modulus of elasticity test;screw griping test; shear test
Material:
MDF,shaving board, plywood, core-board and other wood based panel
Standard:
EN310, JIS A 5908, GB/T17657-1999, ASTM, GB/T 16491-1996
Technical parameter:
Model |
MWW-10 |
Max testing force(KN) |
10 |
Testing force level |
1 Level |
Testing range |
2%--100%FS |
Relative error of indicating value |
≤±1% |
Force resolution |
1/300000 |
Displacement resolution |
≤±1% |
Displacement resolution(mm) |
0.01 |
Load speed(mm/min) |
0.05-500 |
Effective tensile space(mm) |
750 |
Effective testing width(mm |
350 |
Overall dimension |
690×380×1650mm |
Weight |
320kg |
Power |
220V,50Hz,0.5KW |
Package list:
Name |
Quantity |
10KN high strength host |
1 pc |
High precision photoelectric encoder |
1 pc |
Digital servo control system and digital servo control motor |
1 set |
High precision ball screw assembly |
2 sets |
High precision arc synchronous gear system |
1 set |
High precision arc synchronous gear system |
1 set |
Special measurement and control system |
1 set |
Under WINDOWS operating environment MAXTEST special software |
1 set |
LENOVO computer |
1 set |
HPA4 printer |
1 set |
Standard configuration with 6 sets testing fixtures | |
Surface bonding strength testing fixture |
1 set |
Internal bonding strength testing fixture |
1 set |
Screw holding strength testing fixture |
1 set |
Static bending strength testing fixture |
1 set |
Elastic modulus testing fixture |
1 set |
Screw griping testing fixture |
1 set |
Technical document |
1 set |
Wood Based Panels Universal Testing Machinery

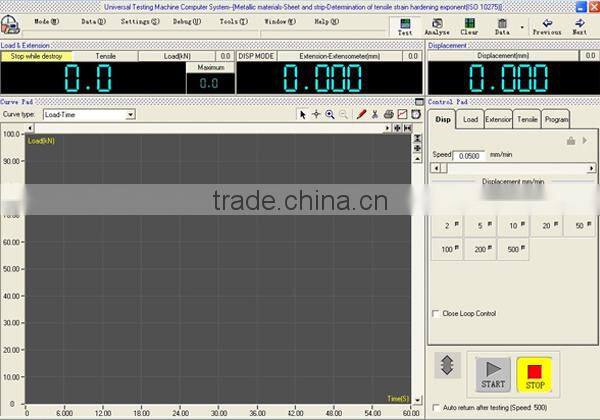

Software:

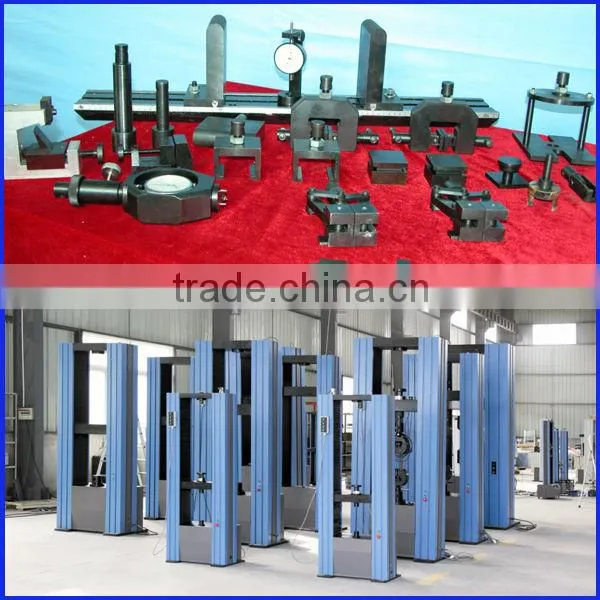

Factory Show:
Cooperate Partner:
