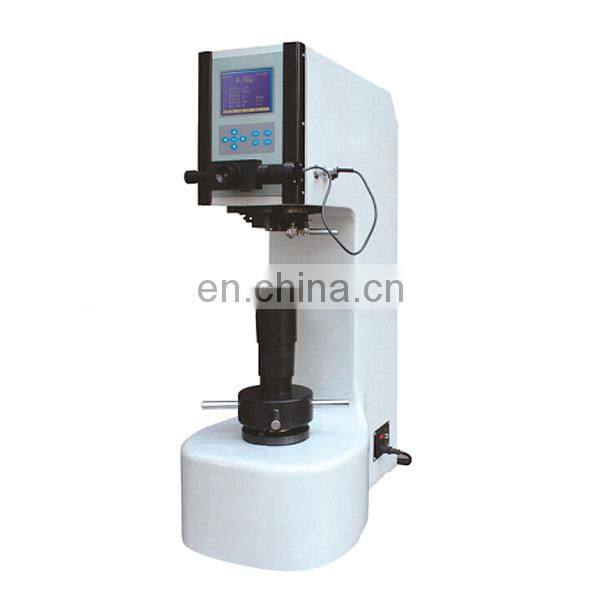

HBS-3000 Digital LCD Display Brinell Hardness Tester, Cast Iron Hardness Tester
1. Application:
HBS-3000 digital brinell hardness tester is a recently developed new generation Brinell tester that is domestically advanced.It can be applied to determine the Brinell hardness for ferrous metal and non-ferrous metal.The tester adopts electronic auto loading,computer software programming,high power optical measurement,photosensor and other systems.Eash operational process and test manufacturing enterprises,colleges and scientific institutions.
2. Main technical specifications
Model | HBS-3000 | |
Type | Digital Brinell | |
Test›range | 8~650 HBW (hardmetals steel ball) | |
Brinell›hardness›test›(N) | 612.5, 980, 1225, 1837.5, 2450, 4900, 7350, 9800, 14700, 29400 | |
Load›control | Automatic | |
Magnification›of›microscope›x | 20x for reading microscope | |
Max.›height›of›specimens›(mm) | 220 | |
Max.›depth›of›specimens›(mm) | 135 | |
Power | AC220V, 50/60Hz | |
Dimension›(DxWxH)›(mm) | 550 x 236 x 753 | |
Net›weight›(kg) | 130 | |
Packing List | ||

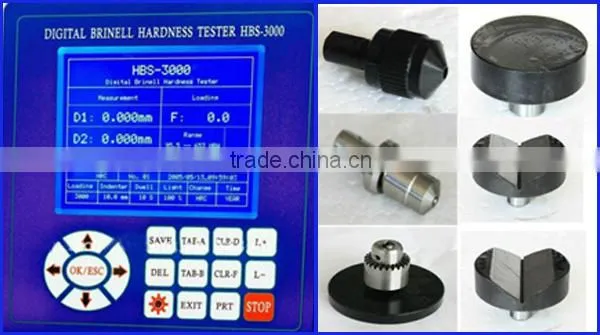

Indenter | Steel ball indenter í2.5mmx1 í5mmx1 í10mmx1 | |
Testing›table | Big / small /V, 1 for each | |
Hardness››block | HBW 3000/10 150~250 x 1, HBW 1000/10 75~125 x 1, HBW 187.5/2.5 150~250 x 1 | |
Operation›manual | 1 | |
Reading›microscope | 20x x 1 | |
Micrometer›eyepiece | 1 | |

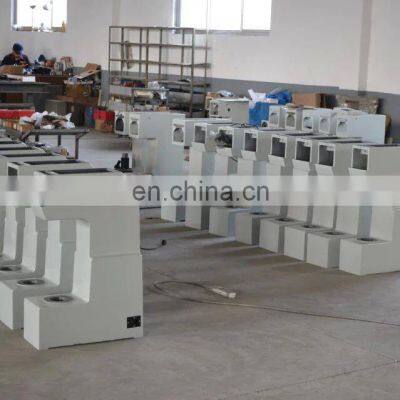

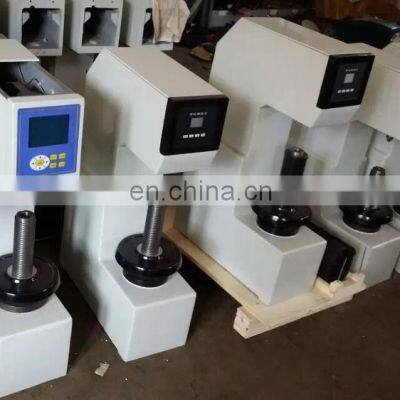

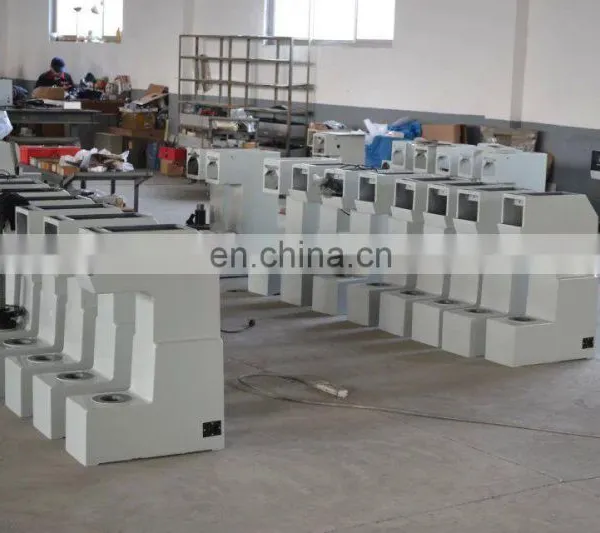

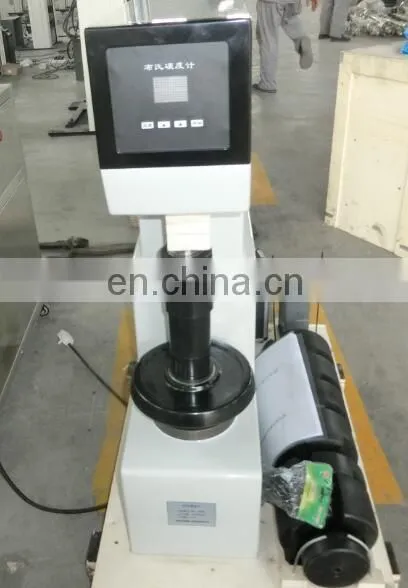

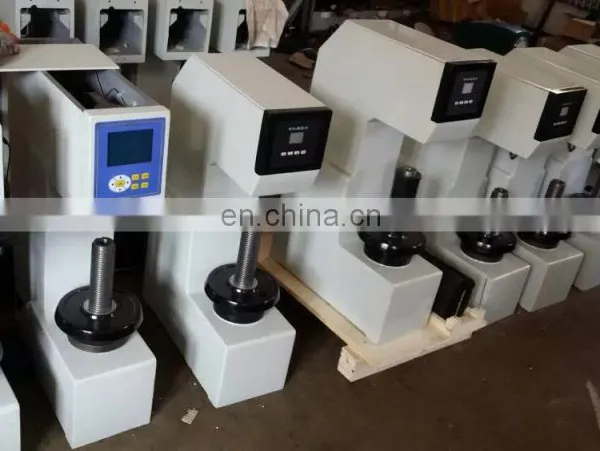

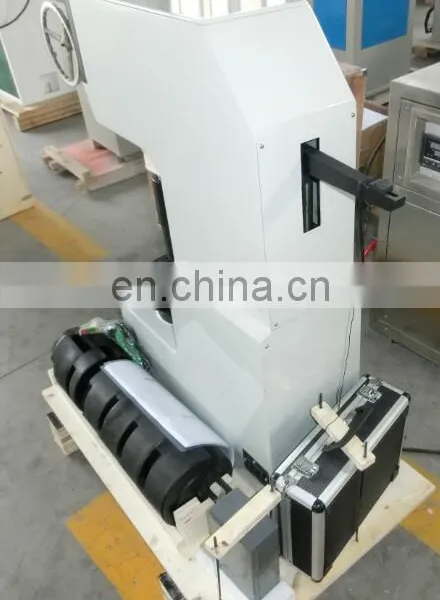

Factory shows:
