100N Digital Display Compression Spring Tester
- 300 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- WDS Series Digital Display Spring Tension Compression Tester/Single Column
- TLW Series Computer Control Automatic Spring Tension and Compression Tester/ Coil Test Equipment
- Digital display gas spring tensile test machine
- TLS-100S 100N Manual Spring Tension and Compression Tester /Load Tester
- TNS Vertical Manual Digital Display Spring Torsion Testing Machine / Spring Torsion Tester
- TLS high precision digital display manual spring tension and compression tester/testing machine with CE certificate
Product Details
Brand Name: | KASON | Place of Origin: | China | Model Number: | TLS |
Power: | Electronic | Usage: | Universal Testing Machine |
Product Description
100N Digital Display Compression Spring Tester
Application
This series testing machine is mainly used for tension spring, compression spring, saucer reed, tower spring, leaf spring, clip spring, flat spring, cpmposite spring,gas spring, mould spring, deformed spring and other precision spring tensile, compression, disp lacement and rigidity test and analysis.
Standards
GB/T, ASTM, DIN, JIS and other international standards
Main Technical Parameters
Model | TLS-005 | TLS-01 | TLS-02 | TLS-05 | TLS-1 | TLS-2 | TLS-3 | TLS-5 |
Max.Load(N) | 50 | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 |
Structure | Single Colum Type Double space models( lower is tensile,upper is compression) | |||||||
Control Method | Microcomputer control | |||||||
Load Accuracy | 1 class | |||||||
Load Range(F·S) | 2%~100%F·S | |||||||
Test force relative error value | ≤±1%% | |||||||
Displacement relative error value | ≤±1% | |||||||
Displacement display resolution | 0.01mm | |||||||
Deformation indication error | ≤±(50+0.15L)um
| |||||||
Speed adjustment range | 0.05-500mm/min (stepless speed) | |||||||
Speed relative error | ≤±1% | |||||||
Tensile test space | Standard 600mm Heightening 850mm | |||||||
Compression test space | Standard 600mm Heightening 850mm | |||||||
Platen diameter | 110mm | |||||||
Upper and lower pressure plate parallelism | ≤0.05mm | |||||||
Power Supply | AC220V±10%,50Hz | |||||||
Dimension | 550×400×1600mm | |||||||
Weight | 100kg |

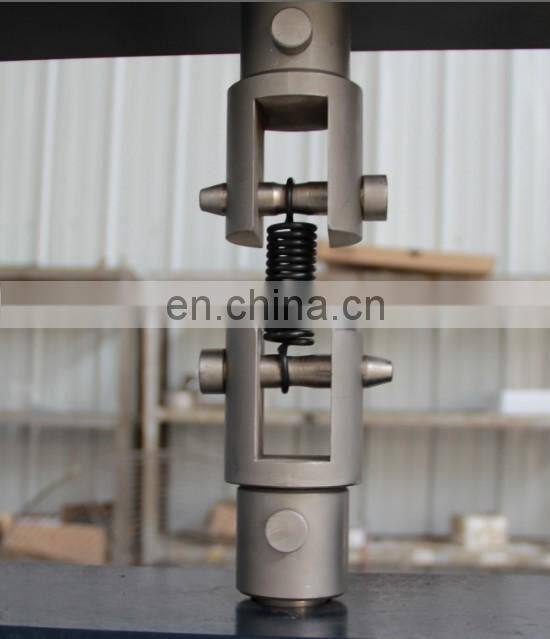

Fixture
Function
1. Automatic calibration, automatic calibration: The system can automatically calibrate the value of accuracy
2. Automatic shutdown: After the destruction of the sample, moving beams automatically stop moving3. Automatic screen: Spring force values can be displayed with the height, strength and deformation of two kinds of changes in the value curve, ease of analysis
4. Point or multi-point test: Can be preset standard value, upper and lower deviation, automatically determine eligibility spring
5. Measurements can be segmented, and calculate the stiffness K and the average stiffness of each segment
6. Auto return: After the test is completed testing machine automatically returns to the test beam movement initial position
7. Breaking judge: After specimen fracture, moving beams automatically stop moving
8. Limit protection: Has the level limit protection function of mechanical and SPC
9. Overload: When more than 3 ~ 5% of the rated load device automatically stop working
The main configuration
1 Single Colum Type High strength double space main unit-----1set
1.1 High precision arc synchronous deceleration system-----1suit
1.2 TaiWan ABBA High precision ball screw-----1set
1.3 Tester dedicated tensile fixture-----1set
1.4 Tester dedicated compression fixture-----1set
2 Measurement and Control System-----1set
2.1 High-precision optical encoder-----1pc
2.2 Digital speed control system-----1set
2.3 Digital speed control motor-----1set
2.4 High precision load sensor-----1suit
2.5 Tester dedicated micro-computer control system-----1set
2.6 Micro-printer(optional)-----1set
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
After-sale Service
One year warranty for all our products,problems can be solved by email,phone or videos.

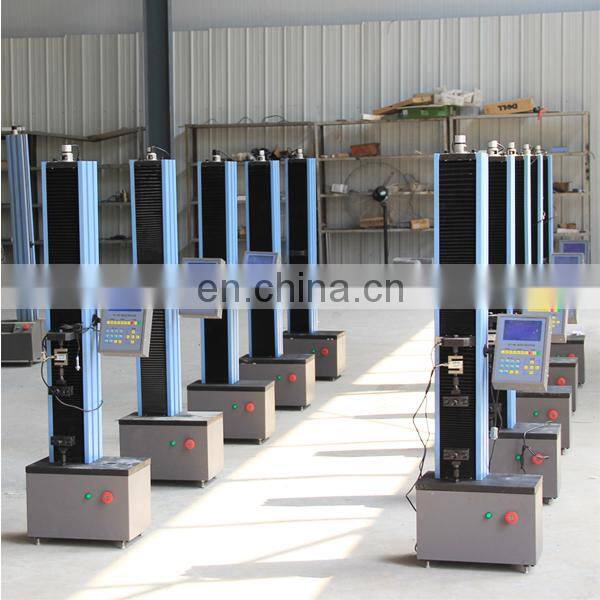

Our factory
