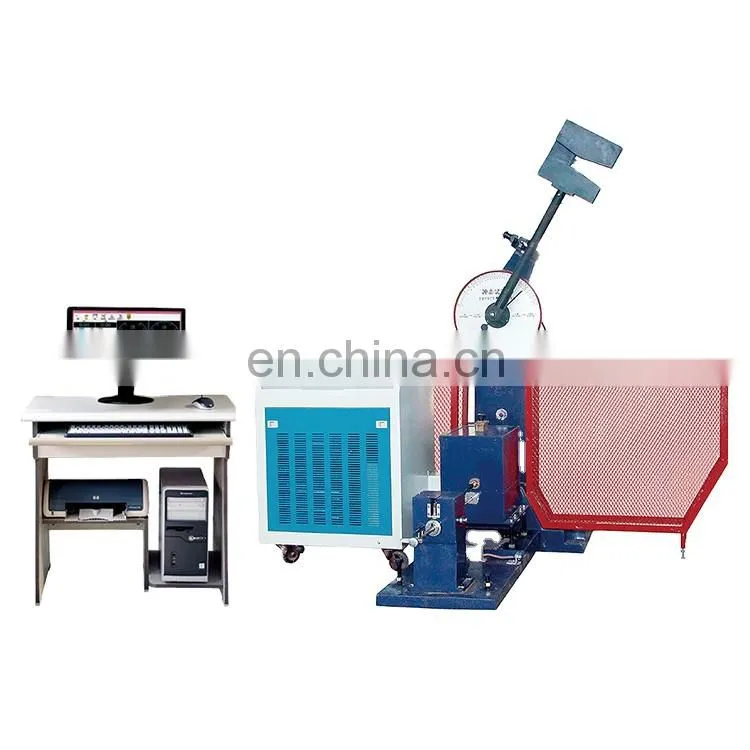

JBDW-300CY Low Temperature Automatic Pendulum Impact Testing Machine Charpy Impact Tester Equipment Price
Application:
JBDW-CY type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
Test standards:
- GB/T 3808-2002 "Inspection of pendulum impact testing machine"
- GB/T 229-2007 "Charpy pendulum impact test method for metallic materials"
- JJG 145-2007 "Pendulum impact testing machine"
- ASTM E23-07a "Standard Test Methods for Notched Bar Impact Testing of Metallic Materials"
- ISO 148:1998"Metallic materials – Charpy pendulum impact test"
Main Technical Specifications:
|
Model |
JBDW-300CY |
JBDW-450CY |
JBDW-600CY |
JBDW-750CY |
|
Control Method |
Computer Controlled |
|||
|
Max. impact energy |
300J |
450J |
600J |
750J |
|
Impact speed |
5.24m/s |
|||
|
Pre-rising angle of the pendulum |
150° |
|||
|
Angle accuracy |
±0.1° |
|||
|
Specimen bearer span |
40mm |
|||
|
Round angle of the jaw |
R1.0~1.5mm |
|||
|
Cooling way |
compressor refrigeration |
|||
|
Range of low temperature |
Room temperature~ - 60°C / - 80°C / - 100°C |
|||
|
Precision of controlling temperature |
Fluctuate±0.5℃, Grades 1℃ |
|||
|
The distance between the pendulum shaft and impact point |
750mm |
|||
|
Standard specimen dimension |
10 x 10(7.5 or 5) x 55mm |
|||
|
Pendulum |
300J 1pc |
450J 1pc |
600J 1pc |
750J 1pc |
|
Power supply |
3-phase 4-line 380V50Hz |
|||
|
|
