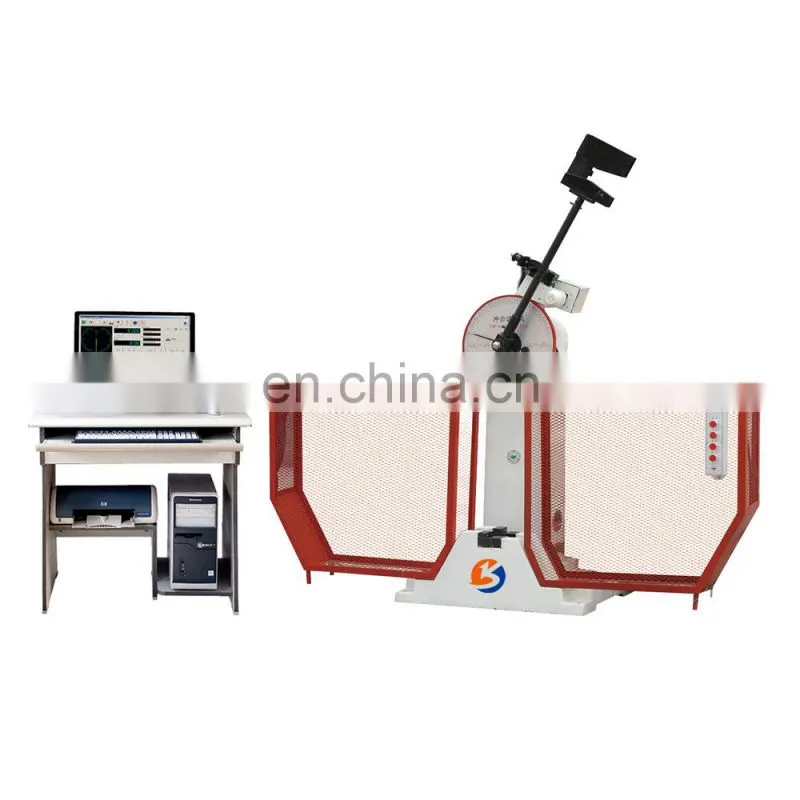

JBW -300B 150J 300J Computer Control Metal Pendulum Charpy Impact Testing Equipment Machine
Application:
Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materials
under dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgy
industry, machinery production, steel plant and other fields. There are three types of models: JB, JBS & JBWseries.
JBW series Computer type: carry out the functions of zero clearing and automatic return, capturing thevalue of lost impact energy and pendulum cycle by means of setting up with computer program, and the
results can be monitored, stored and printed out.
Main Technical Specifications:
|
Specifications |
JB-300B JBS-300B JBW-300B |
JB-500B JBS-500B JBW-500B JB-750C |
|
Type |
Type B |
|
|
Impact energy (J) |
150,300 |
250,500 |
|
Impact velocity (m/s) |
5.2 |
5.4 5.24 |
|
Raised angle |
150º |
|
|
Standard span (mm) |
40+0.2mm |
|
|
Distance between pendulum rotating center and specimen center (mm) |
750 |
|
|
Round angle of jaws (mm) |
R1-1.5 |
|
|
Round angle of striking edge (mm) |
R2-2.5 or R8±0.05 |
|
|
Size of specimen (mm) |
10 x 10(7.5/5) x 55 |
|
|
Power supply |
3phs, 380V, 50Hz/60Hz or Specified by users |
|
|
Dimensions (mm) |
2124 x 600 x 1340 |
2144 x 736 x 1390 |
|
Gross weight(KG) |
550 |
750 |
|
|
