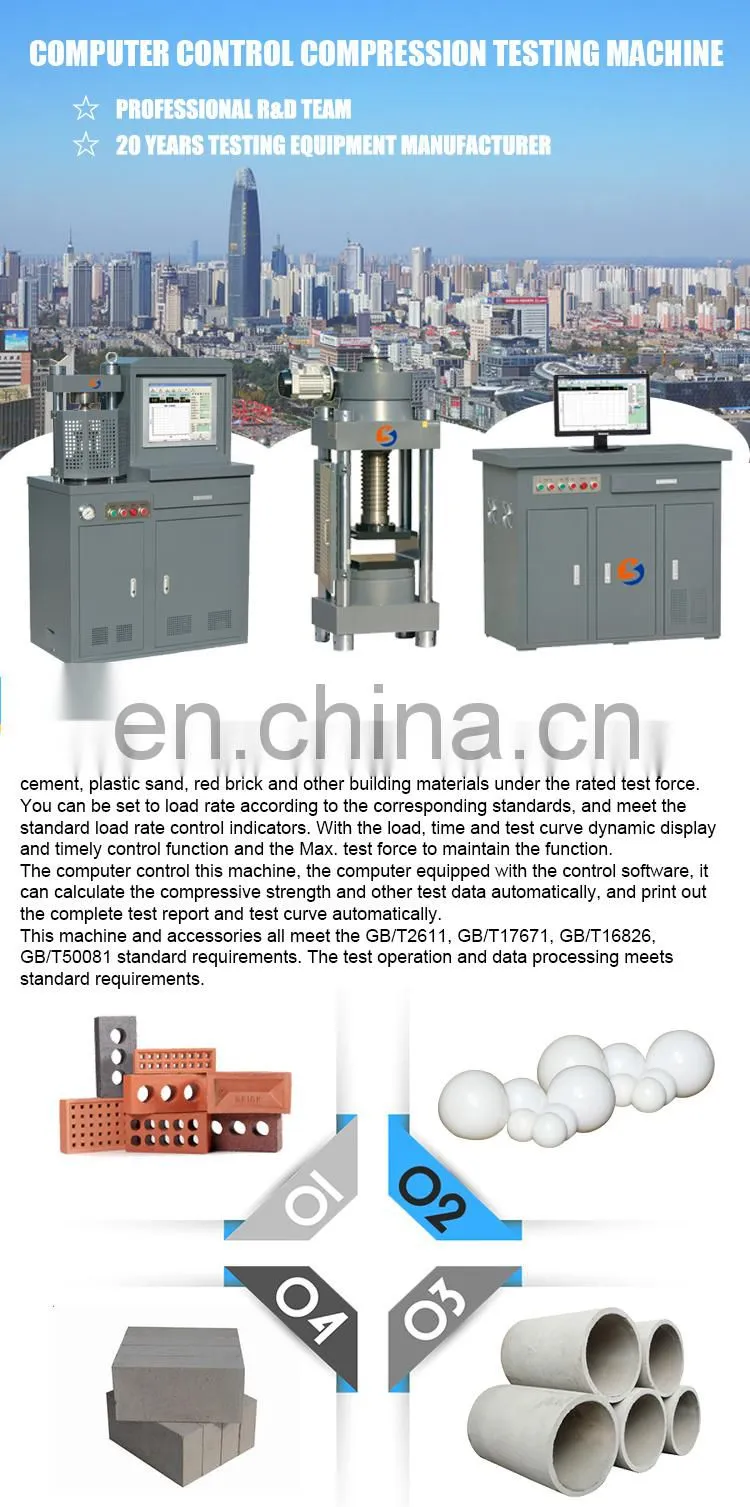

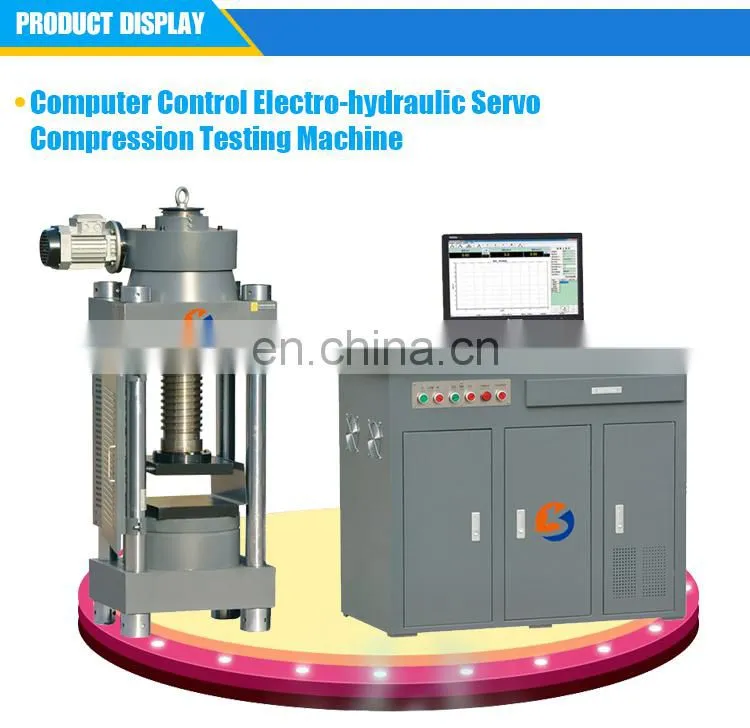

YAW-2000D 2000KN Computer control concrete compression testing machine
1. Application :
This machine is mainly designed to test compression strength of brick, stone, cement, concrete and other materials .
System features :
1) Closed-loop control function ;
2) Can realize constant load rate or constant stress rate load ;
3) Adopts computer for electronic measurement,test automatically ;
4) Computer calculates the results and print reports automatically .
3. Technical parameters :
Name |
Computer Control Automatic Compression Test Machine |
Model |
YAW-2000 D |
Max.Load (kN) |
2000 |
Control Method |
Computer Control Full Automatic Load |
Test Measurement Range (FS) |
4%-100% |
Load accuracy (%) |
Better Than ±1 |
Test Force Resolution (kN) |
0.01 |
Piston stroke (mm) |
50 |
Distance between two platen (mm) |
320 |
Platen Size |
250×250mm
|
Motor Power |
2.0kW |
4. Main configuration :
4.1 Oil cylinder down-setting high strength host--1 Set ;
v Compression fixture--1 Set;
v Electric test space adjustment device--1 Set;
4.2 Integrated harp type oil source control cabinet--1 Set :
v High performance low noise plunger pump--1 Set;
v Three-phase asynchronous motor;
v High precision electro-hydraulic proportional servo valve and valve block group--1 Set;
v Precision oil filter--1 Pc;
v Harp type oil source control cabinet shell--1 Pc.
4.3 Measurement and control system :
v High precision pressure sensors--1 Pc;
v Lenovo computer--1 Pc;
v HPA4 inkjet--1 Set;
v Measurement and control system special for test machine--1 Set;
v Windows environment test software--1 Set.
