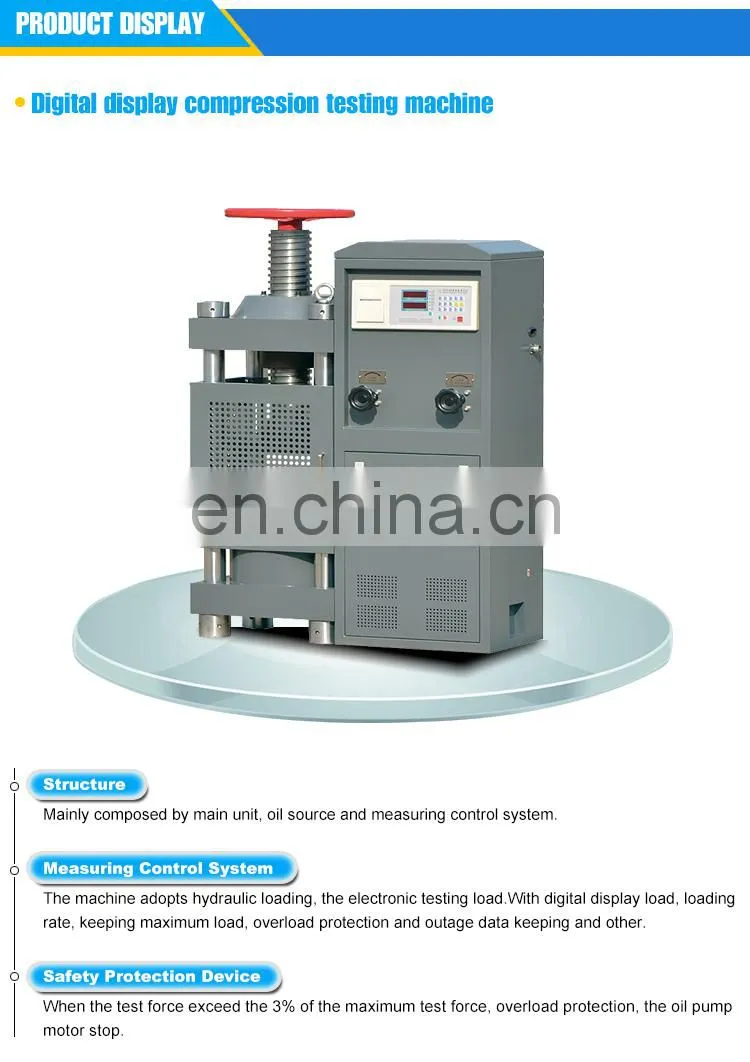

1000KN Digital Display Concrete Brick Unconfined Compression Strength Testing Equipment Machine
Main Application:
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Feature: The test data is not only could displayed on LCD directly, but also could be displayed on computer screen.
Product description:
* Structure::mainly composed by main unit, oil source and measuring control system.
* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device:When the test force exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
Main Technical Parameters:
|
Model |
YES-1000 |
YES-2000 |
|
Max. load |
1000KN /100Ton |
2000kN/200Ton |
|
Machine Class |
1 class |
|
|
Range of test force |
4% ~100%FS |
|
|
Testing space adjust method |
Manualadjust |
|
|
Indicating value accuracy |
±1% |
|
|
Piston stroke |
30mm |
|
|
Diameter of Piston |
250mm |
|
|
Distance between platens |
320mm |
|
|
Upper platen size |
220*250mm (Can be customized) |
|
|
Display |
LCD& Computer screen display |
|
|
Power supply |
0.75KW, AC380V/50Hz/3 phase(can be customized) |
|
|
Size |
880*480*1400 mm |
|
|
Weight |
600kg |
|
|
Power |
380V/220V / 0.75KW |
|
|
|
|
