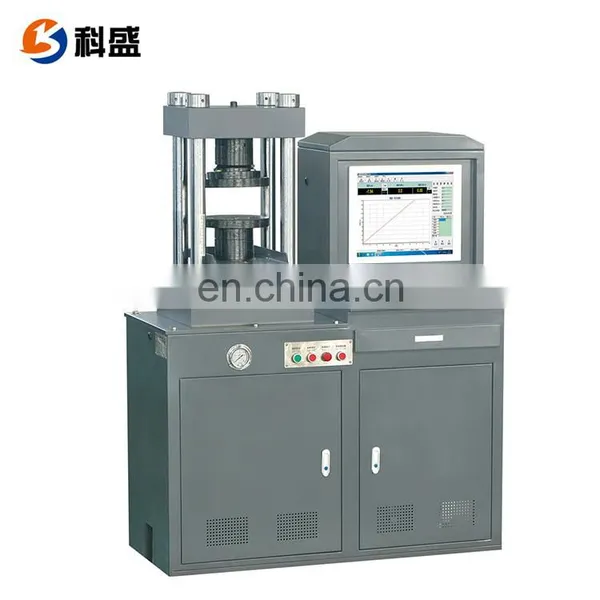

Building Materials Test Equipment : YES 30 ton Digital Display Hydraulically Concrete Compression Equipment
1. Application :
This Series machine adopts loading hydraulically with accurate and reliable test data. In order to guarantee the accuracy of test load readout, it adopts oil pressure transducer to measure the load, after amplifying, the test load, peak value and loading speed can be displayed digitally. The oil source is installed at the bottom of control cabinet in which there is a double-flow high-pressure piston pump driven by the motor. The hydraulic system is controlled manually with the functions of easy operation, safety and reliability. It is widely used for building material compression test, such as concrete. Cement, brick, etc.
2. Main Specifications :
Model |
YES-300 |
Max. Load |
300kN / 30Ton |
Range of test force |
4% ~100%FS |
Load display accuracy |
±1% |
Piston stroke |
80mm |
Max piston speed |
50mm/min |
Max compression space |
φ120mm |
Compression plate size |
φ160 mm |
Pls notice the compression table size can be customize

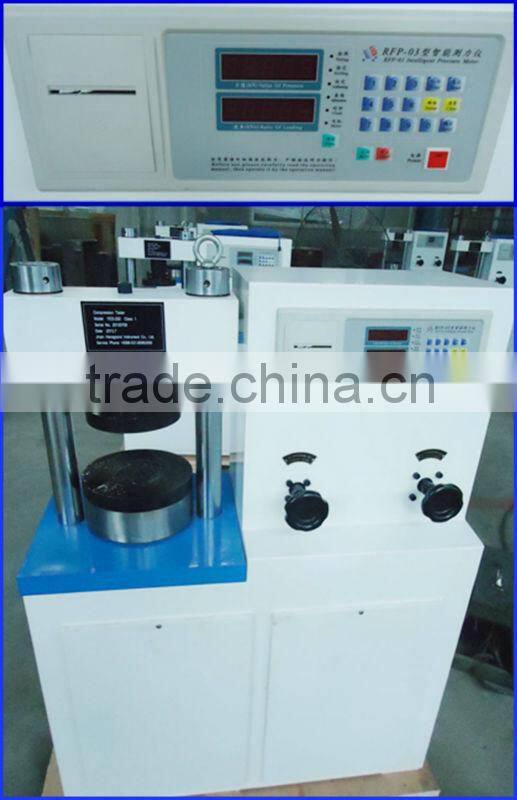

3. Detailed picture:
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
