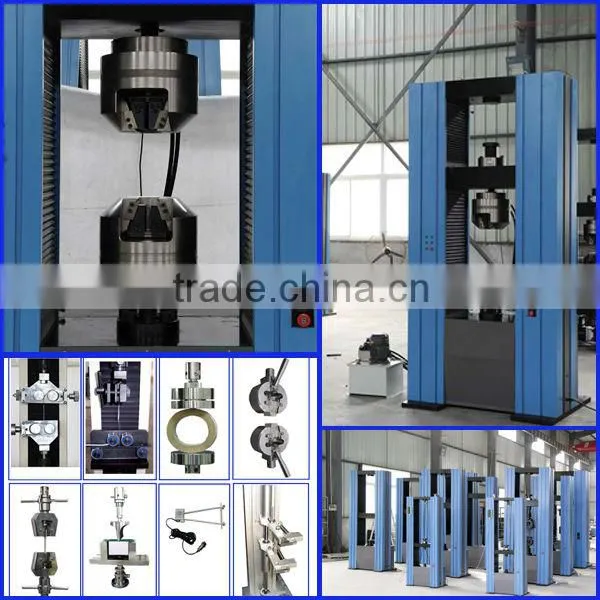

WDS 200kN Digital Display Electronic Universal Tensile Testing Machine , Tensile Testing Machine for PET Strap
1. Application:
WDS series digital display electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tensile, compression, bending, shearing and low cycle test. It is for metal, rubber, plastic, spring, textile, and components testing. Widely used in corresponding industries, research and development, testing institutes and training centers etc.
2. Features:
2.1 Automatic stop: After the sample broken, automatic stop.
2. 2 Display: Real-time display testing force, displacement, testing speed, peak value, testing status on one LCD.
2.3 Automatic return: automatic return to initial position when testing finished.
2.4. Limiting protection: Program control and Mechanical limiting protection.
2.5 High accuracy photoelectric encoder to measure the displacement
2.6 High accuracy load cell to measure the test load
2.7 Ball screw no backlash to guarantee the low noise and high driving efficiency
2.8 High accuracy servo motor to control test speed
2.9 Adopt reliable, durable and high accuracy digital electronic device
2.10 Can built-in multiple load sensor control channel
2.11 Thousands of test fixture can be used according to different test request
2.12 Micro printer optional, can realize testing data print
3. Standard:
ASTM E4, ISO7500-1. EN10002-2, BS1610, DIN51221
4. Main Specifications:
Model |
WDS-200 |
WDS-300 |
WDS-500 |
WDS-600 |
Max. Load |
200kN 20000kgf 44800lbf |
300kN 30000kgf 67200lbf |
500kN 50000kgf 112000lbf |
600kN 60000kgf 134400lbf |
Load accuracy |
≤±1% |
|||
Load range |
2%-100% of full scale |
|||
Disp. resolution |
0.01mm |
|||
Test speed |
0.01-200mm/min |
|||
Tensile space |
600mm|21.6in |
|||
Comp. space |
600mm|21.6in |
|||
test width |
600mm |
600mm |
570mm |
570mm |
Grips |
Manual(Hydraulic grip optional) |
Hydraulic grip |
||
Dimension |
1110×750×2560mm |
1110×780×2600mm |
||
round specimen |
9-26mm |
9-32mm |
||
flat specimen |
0-20mm |
0-20mm |
||
Power supply |
380V, 3ph, 3KW |
380V, 3ph, 4KW |
||
Weight (kg) |
2100kg|4620lb |
2500kg|5500lb |
||
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
Our company is mainly specialized in developing and manufacturing testing equipment used for metal, non-metal and composite material mechanic performance testing. Our main products are Hydraulic universal test machines, Electronic universal test machines, Compression test machines, Ring stiffness test machines, Spring test machines, Horizontal tension test machines, Impact test machines, Metallographic sample preparation equipment, Hardness testers and testing machine accessories. Our products are widely used in steel metallurgy, machinery manufacturing, space flight and aviation, Military, auto manufacturing, rubber industry, plastic industry, etc. Our products sell well around the world.
