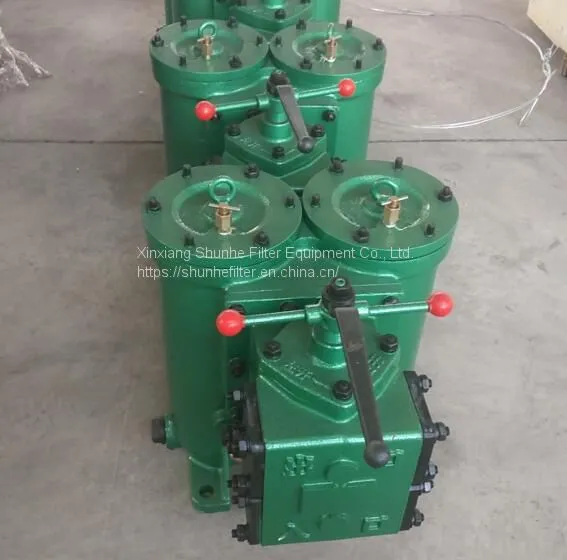

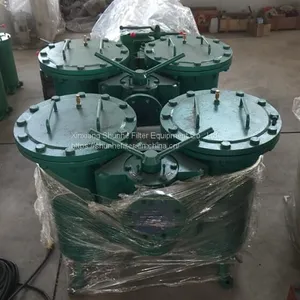

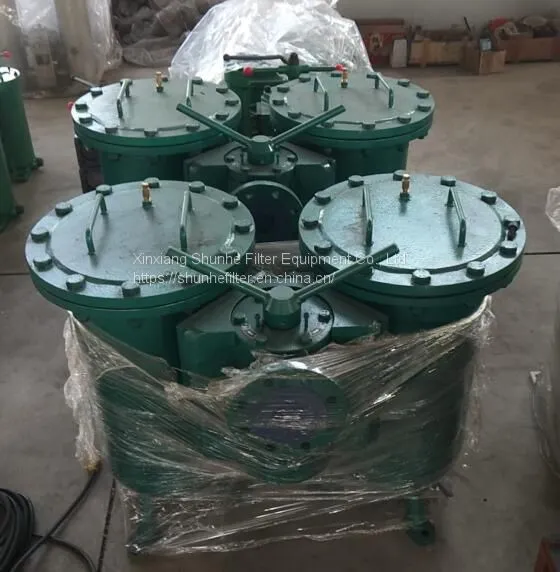

Thin oil station filter system Filter SPL-200X

FOB Price

USD $15 - $120 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	shunhefilter	Place of Origin	China
Model Number	SPL-200X	Material	Other, Wire Mesh
Length	mm	Type	Filter Elements
Usage	Liquid Filter	Filter Rating	118um
Hole Shape	Round

Product Description

SPL mesh filter technical parameters:

Dia	Installation form	Dimensions	Disassembly distance of filter element	Pipe connection size
Threaded connection	Flange connection
DN		H	B	L	H1	DW	D	D1	n	d
15	C	328	180	196	260	M30x2	-	-	-	-
25	D	315	232	230	270	-	-	-	-	-
C	207	260	-	-	-	-	-
32	C	380	207	260	330	-	60*60	44*44	4	9
40	C	462	261	314	385	-	66*66	45*45	4	9
50	X	447	425	410	435	-	86*86	64*64	4	11
C	447	400	410	435	-	86*86	64*64	4	11
65	X	590	450	460	535	-	100*100	75*75	4	11
C	590	420	460	535	-	100*100	75*75	4	11
80	X	775	525	492	685	-	116*116	92*92	4	13
100	X	800	825	565	685	-	190	158	8	15
125	X	855	910	605	760	-	215	183	10	15
150	X	890	1000	990	790	-	240	208	12	15
200	X	1065	1155	1180	945	-	310	273	12	17

Note: 1. Mesh specifications: 40×20, 65×30, 90×45, 125×60, 155×70, 175×90

　　2, the filtering accuracy is optional according to user requirements.

3. There are two kinds of stainless steel mesh and copper mesh.

SPL mesh filter is suitable for filtering lubricating oil, fuel oil and other lubrication systems of various types of marine and land diesel engines, as well as in petroleum, electric power, chemical and other industries.

The product is reliable in operation, convenient in maintenance, and does not require other power sources. The filter element is a filter made of metal wire mesh, which has the characteristics of high strength, large oil flow capacity, ensuring filtering accuracy, and easy cleaning. The SPL double cylinder series can be used in Realize non-stop conversion and cleaning during the operation of the host.
