Self aligning ball bearing 45x85x19mm 1209 2RS
A part of our products:
ZYSL Self aligning ball bearing 1209 2RS
| Model | 1209 |
| Bore Size | 45 mm |
| Outside Diameter | 85 mm |
| Height | 19 |
| Material | Chrome Steel |
| Weight | 0.465kg |
| Certificate | ISO9001:2008 |
| Feature | Low Voice |
| MOQ | 1 piece |
| Port | Qingdao/Shanghai/Guangzhou/Shenzhen/Hongkong |
| Delivery time | 3~5 days after receiving your payment of goods |
| Packing | ZYSL carton ot tube |
1.High precision self-aligning ball bearing
2.ISO standard bearing
3.High quality and copmetitive price
4.Many famous brand can be available
5.Low noise and long life
Advantages of bearing:
1. Excellent and high quality control
2.Fast delivery
3.Competitive price
4.Small order accepted
5.Customers' drawing or samples accepted
6.Less vibration and noise
7.Large Inventories

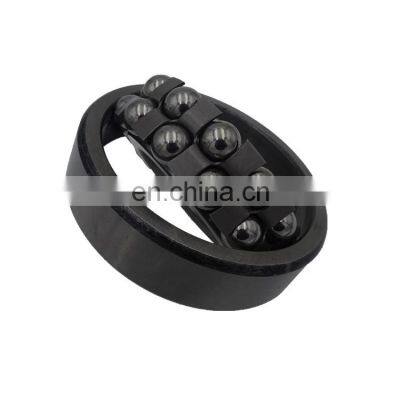

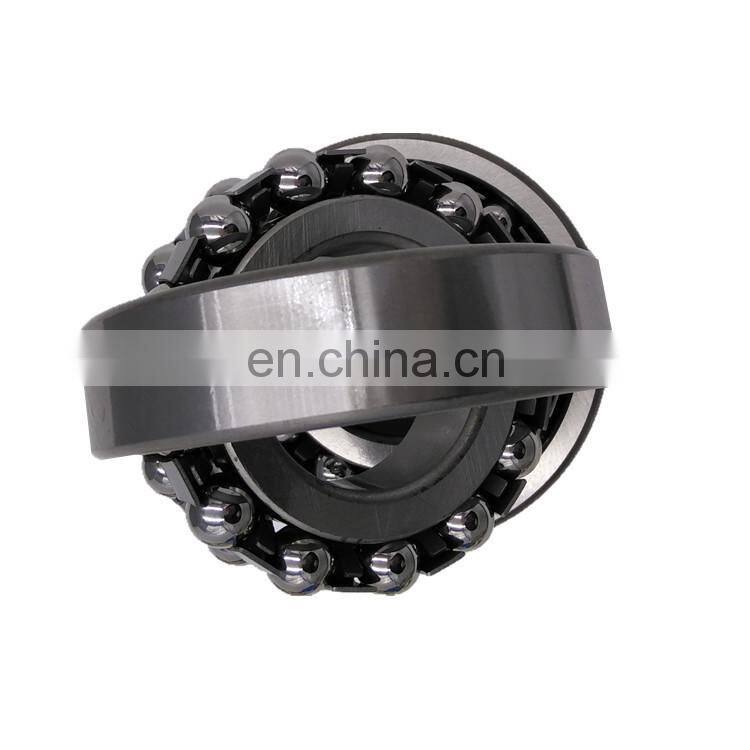

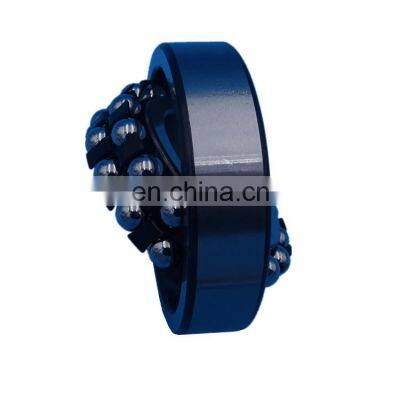

Pictures show
Plastic cage:

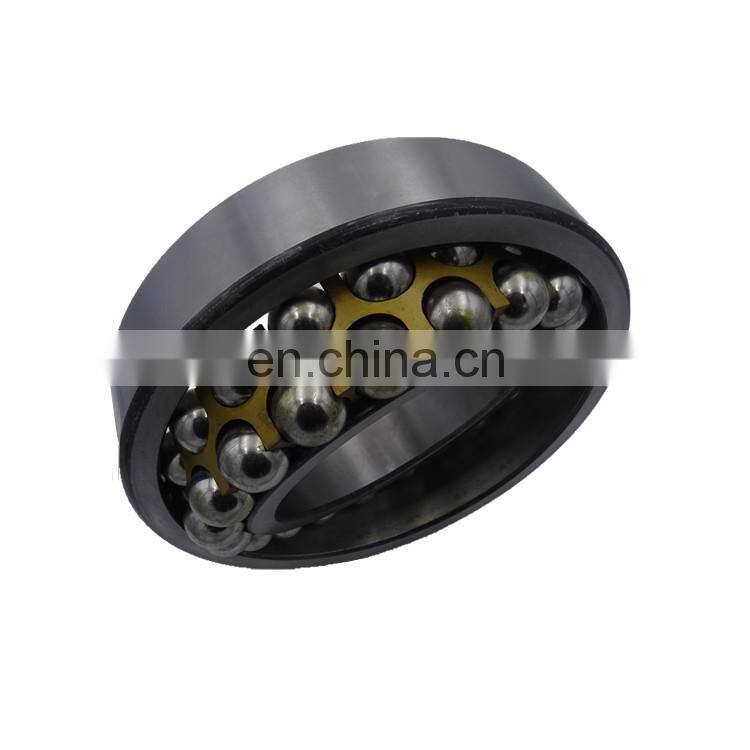

Copper cage:

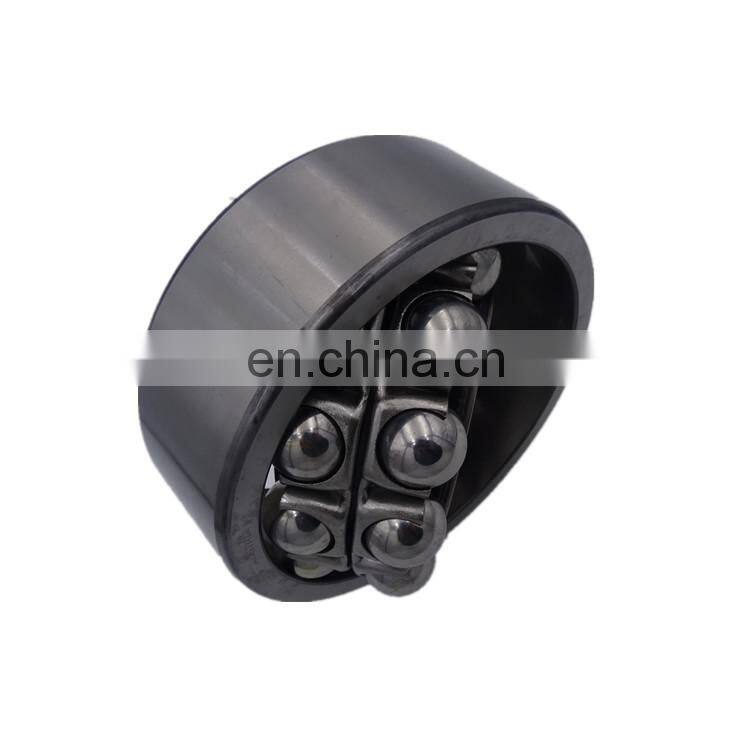

Steel cage:

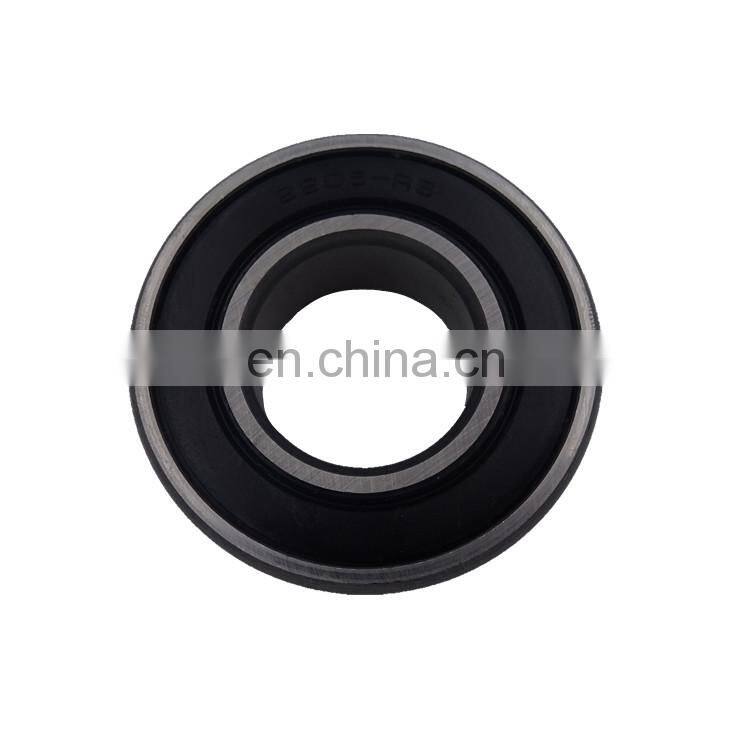

Rubber sealed one:

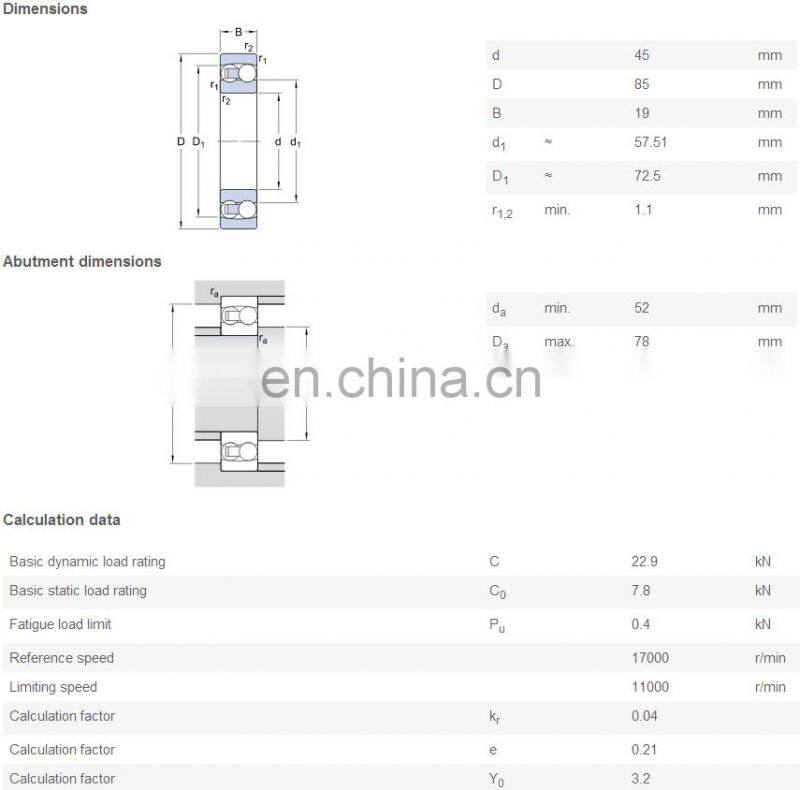

Drawing
Related models and specifications
| New Model | Old Model | Dimension(mm) | Cage Material | New Model | Old Model | Dimension(mm) | Cage Material |
| 126 | 1026 | 6*9*6 | Steel Plate | 1211k | 111211 | 50*100*21 | Steel Plate |
| 127 | 1027 | 7*22*7 | Steel Plate | 1212 | 1212 | 60*110*22 | Steel Plate |
| 129 | 1029 | 9*26*8 | Steel Plate | 1212k | 111212 | 60*110*22 | Steel Plate |
| 1200 | 1200 | 10*30*9 | Steel Plate | 1213 | 1213 | 65*120*23 | Steel Plate |
| 1201 | 1201 | 12*32*10 | Steel Plate | 1213k | 111213 | 65*120*23 | Steel Plate |
| 1202 | 1202 | 15*35*11 | Steel Plate | 1214 | 1214 | 70*125*24 | Steel Plate |
| 1203 | 1203 | 17*40*12 | Steel Plate | 1214k | 111214 | 70*125*24 | Steel Plate |
| 1203k | 111203 | 17*40*12 | Steel Plate | 1215 | 1215 | 75*130*25 | Steel Plate |
| 1204 | 1204 | 20*47*14 | Steel Plate | 1215k | 111215 | 75*130*25 | Steel Plate |
| 1204k | 111204 | 20*47*14 | Steel Plate | 1216 | 1216 | 80*140*26 | Steel Plate |
| 1205 | 1205 | 25*52*15 | Steel Plate | 1216k | 111216 | 80*140*26 | Steel Plate |
| 1205k | 111205 | 25*52*15 | Steel Plate | 1217 | 1217 | 85*150*28 | Steel Plate |
| 1206 | 1206 | 30*62*16 | Steel Plate | 1217k | 111217 | 85*150*28 | Steel Plate |
| 1206k | 111206 | 30*62*16 | Steel Plate | 1218 | 1218 | 90*160*30 | Steel Plate |
| 1207 | 1207 | 35*72*17 | Steel Plate | 1218k | 111218 | 90*160*30 | Steel Plate |
| 1207k | 111207 | 35*72*17 | Steel Plate | 1219 | 1219 | 95*170*32 | Steel Plate |
| 1208 | 1208 | 40*80*18 | Steel Plate | 1219k | 111219 | 95*170*32 | Steel Plate |
| 1208k | 111208 | 40*80*18 | Steel Plate | 1220 | 1220 | 100*180*34 | Steel Plate |
| 1209 | 1209 | 45*85*19 | Steel Plate | 1220k | 111220 | 100*180*34 | Steel Plate |
| 1209k | 111209 | 45*85*19 | Steel Plate | 1221M | 1221H | 105*190*36 | Brass |
| 1210 | 1210 | 50*90*20 | Steel Plate | 1222 | 1222 | 110*200*38 | Steel Plate |
| 1210k | 111210 | 50*90*20 | Steel Plate | 1222K | 111222 | 110*200*38 | Steel Plate |
| 1211 | 1211 | 50*100*21 | Steel Plate | 1224K | 11224K | 120*215*40 | Steel Plate |
Description

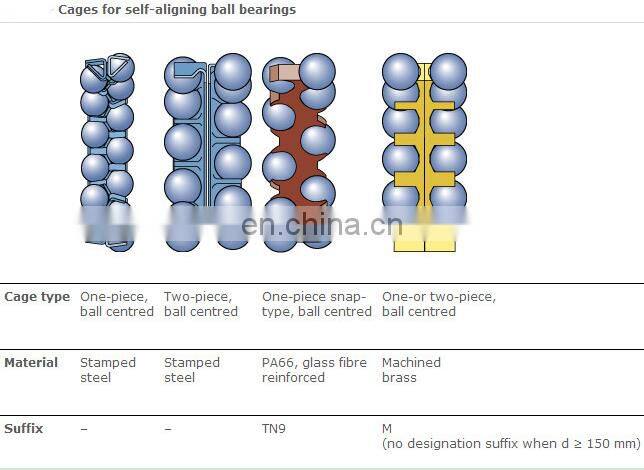

1)Self-Aligning Ball Bearing has two kinds of structure:cylindrical or tapered hole, the cage material is steel plate, brass,etc.. Its characteristics is spherical raceway, with the natureof mind, can automatically adjustable to compensate concentration and shaft deflection caused by error, but theinner and outer rings relative inclination shall not be more than 3 degrees.
2)Self-Aligning Ball Bearing can bear larger radial load,but also can withstand axial load. This kind of bearing outer ring raceway is spherical shape, so it is self-aligning performance,when the axial force bending or tilt the inner center line and center of the outer ring line relative slope up to a maximum of 1 to 2.5 degrees bearing can still work.
3)Taper bore of 1:1 2 or 1:30. In order to strengthen the lubrication performance of the bearing, the bearing outer ring of the oil groove and the processing of three oil hole.
4)Self-Aligning Ball Bearing is applied to withstand heavy load and impact load, precision instruments, low noise motor, automobile,motorcycle, metallurgy, rolling mill, mine, oil, paper, cement, sugar industry,general machinery and so on.
Application:
Mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills.
Method of extending the bearing’s lifetime
1. The installation is correct, that affects precision, life, performance. And fill the bearing with lubricant after installation.
2. Don't allow strong impact, such as hammer striking, transfer roller pressure
3. Use the accurate installation tool, avoid to use cloth kind and short fibers
4. Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer
5. General inspection, such as the surrounding temperature, vibrate, noise inspection
6. Keep bearing cleaning from dirt, dust, pollutant, moisture.
7. Bearing should not be ultra cooled.
A: 30% T/T in advance .70% against copy of B/L
B.30% T/T in advance .70% against L/C at sight
C.Western union
D.Paypal
E:50% in advance,the balance should be paid after seeing the picture of total goods.
F:Offical Bank Account
Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
