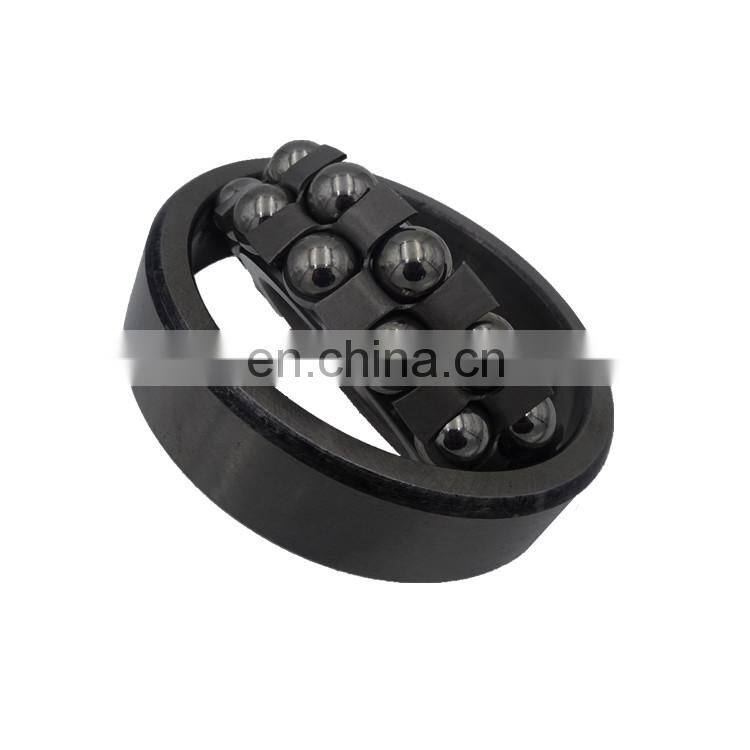

High Performance Self-aligning Ball Bearing 1203 Series

High Performance Self-aligning Ball Bearing 1203 Series thumbnail-1
High Performance Self-aligning Ball Bearing 1203 Series thumbnail-2
High Performance Self-aligning Ball Bearing 1203 Series thumbnail-3
High Performance Self-aligning Ball Bearing 1203 Series thumbnail-4
High Performance Self-aligning Ball Bearing 1203 Series thumbnail-5
High Performance Self-aligning Ball Bearing 1203 Series thumbnail-6

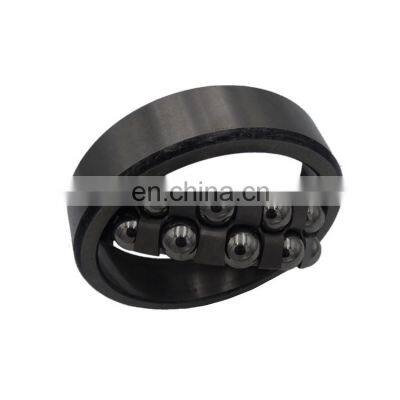

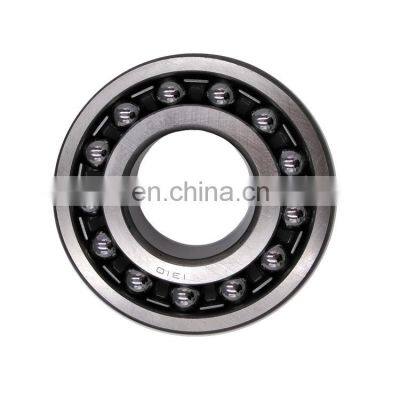

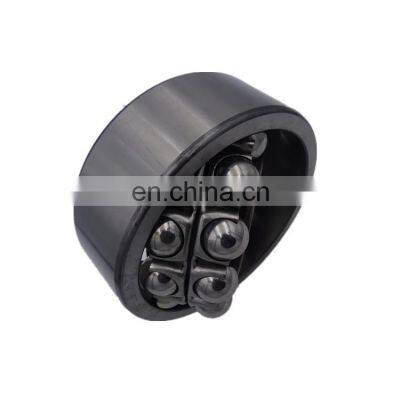

High Performance Self-aligning Ball Bearing 1203 Series photo-1
High Performance Self-aligning Ball Bearing 1203 Series photo-2
High Performance Self-aligning Ball Bearing 1203 Series photo-3
High Performance Self-aligning Ball Bearing 1203 Series photo-4
High Performance Self-aligning Ball Bearing 1203 Series photo-5
High Performance Self-aligning Ball Bearing 1203 Series photo-6
US$ 0.97 - 5 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZYSL
Place of Origin:
Shandong, China
Model Number:
1203
Contact Supplier Request Quote Chat Now
Jinan Shenglei Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Guangzhou Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZYSL
Place of Origin Shandong, China
Model Number 1203
Seals Type OPEN ZZ RS 2RS
Precision Rating P0 P6 P5 P4 P2
Outside Diameter 0, 40
Bore Size 0, 17
Product Description

High performance self-aligning ball bearing 1203 series

Self-aligning Ball Bearing Series

1200(K) series

1200 1201 1202 1203 1204 1205 1206 1207 1208 1209 1210 1211 1212 1213 1214 1215 1216 1217 1218 1219 1220 1221 1222 1224 1228

1300(K) series

1300 1301 1302 1303 1304 1305 1306 1307 1308 1309 1310 1311 1312 1313 1314 1315 1316 1317 1318 1319 1320 1322 1324

2200(K) series

2200 2201 2202 2203 2204 2205 2206 2207 2208 2209 2210 2211 2212 2213 2214 2215 2216 2217 2218 2219 2220 2222

2300(K) series

2303 2304 2305 2306 2307 2308 2309 2310 2311 2312 2313 2314 2315 2316 2317 2318 2319 2320 2321 2322



Brief Introduction of Self-algning ball bearing:

1. The self aligning ball bearings consist of two rows of balls and a common concave sphered raceway in the outer ring

and the inner ring.

2. This type bearings have the self-aligning capacity which make the bearings insensitive to angular misalignments of the

shaft relative to the housing.

3. The series of the bearings: 1200, 1300, 2200, 2300 and so on.
4. The bearings are also available with a cylindrical bore or, in certain size ranges, with a tapered bore

5. The bearings are particularly suitable for applications where considerable shaft deflections or misalignment are to be

expcted

6. The self-aligning ball bearings have the lowest friction at high speed

 A part of our products:



Pictures show

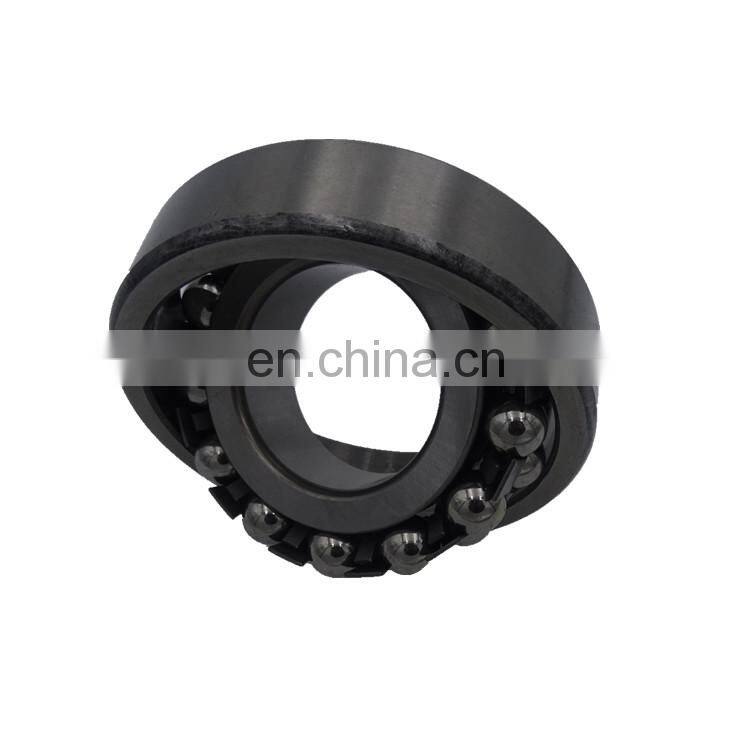

Plastic cage:

High performance self-aligning ball bearing 1203 series

Chrome steel cage:

High performance self-aligning ball bearing 1203 series

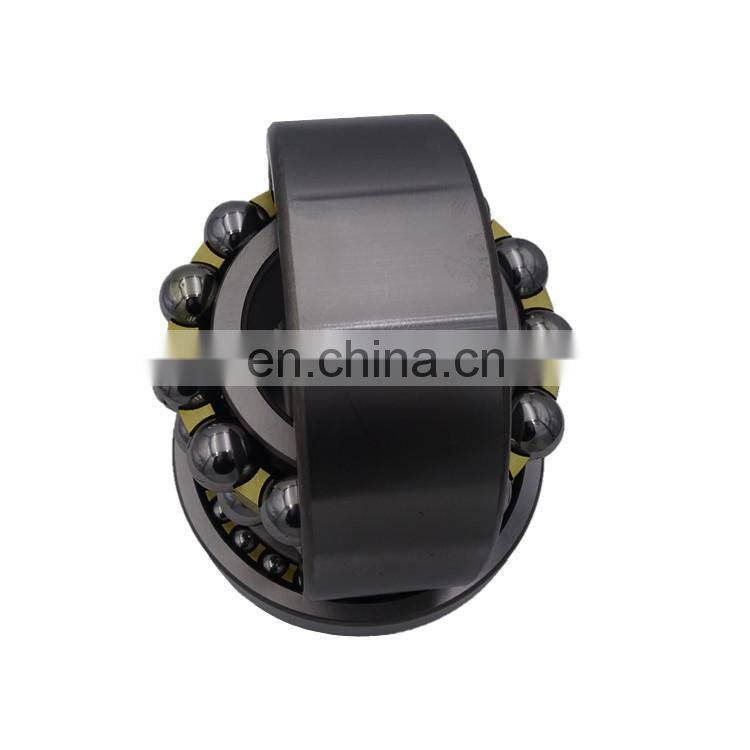

Copper cage:

High performance self-aligning ball bearing 1203 series

Stainless steel material:

High performance self-aligning ball bearing 1203 series

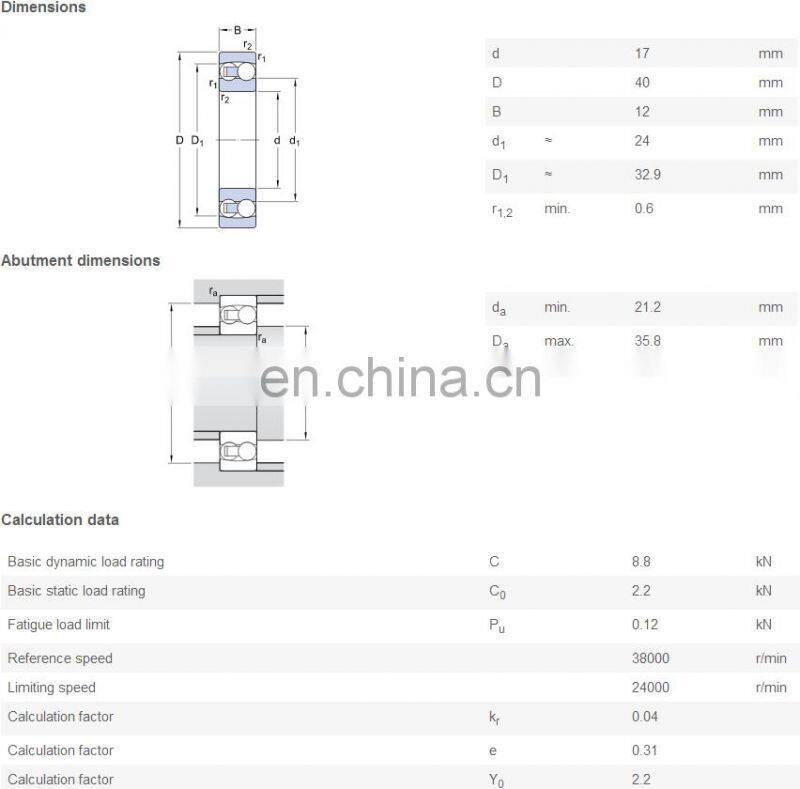

Drawing

Description of self-aligning ball bearing:

1)Spherical Self-Aligning Ball Bearing has two kinds of structure:cylindrical or tapered hole, the cage

material is steel plate, brass,etc.. Its characteristics is spherical raceway, with the natureof mind, can

automatically adjustable to compensate concentration and shaft deflection caused by error, but theinner

and outer rings relative inclination shall not be more than 3 degrees.



2)Spherical Self-Aligning Ball Bearing can bear larger radial load,but also can withstand axial load. This

kind of bearing outer ring raceway is spherical shape, so it is self-aligning performance,when the axial

force bending or tilt the inner center line and center of the outer ring line relative slope up to a maximum

of 1 to 2.5 degrees bearing can still work.



3)Taper bore of 1:1 2 or 1:30. In order to strengthen the lubrication performance of the bearing, the bearing

outer ring of the oil groove and the processing of three oil hole.



4)Spherical Self-Aligning Ball Bearing is applied to withstand heavy load and impact load, precision

instruments, low noise motor, automobile,motorcycle, metallurgy, rolling mill, mine, oil, paper, cement,

sugar industry,general machinery and so on.



Detailed Specification



1.The components of the self aligning ball bearings include two rows of balls, the cage, the inner ring,

and the outer ring with a common concave sphered raceway

2.The material of the bearings is the high quality bearing steel CGr15

3.Particularly suitable for applications where considerable shaft deflections or misalignment are to be

expected

4.produces self-aligning ball bearings to several designs. These are



– open bearings of the basic design

– sealed bearings

– open bearings with an extended inner ring

– self-aligning ball bearing are constructed with the inner ring and ball assembly contained within an outer ring that has a  spherical raceway .This construction allows the bearing to tolerate a small angular misalignment

resulting from deflection or improper mounting

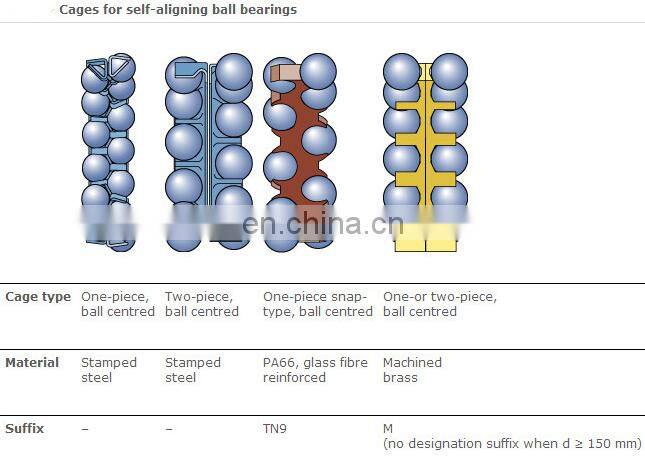

5.Suffix meaning

M:Machined brass cage, ball centred; different designs and material grades are identified by a figure following

the M, e.g. M2

TN9:Injection moulded snap-type cage of glass fibre reinforced polyamide 66, ball centred

C3 :Radial internal clearance greater than Normal

E :Optimized internal design

K :Tapered bore, taper 1:12

2RS1 :Sheet steel reinforced contact seal of acrylonitrile-butadiene rubber on both sides of the bearing

TN :Injection moulded snap-type cage of polyamide 66, ball centred

VE294 :Annular groove and six lubrication holes in the inner ring



Bearing Features



•The lowest friction

•Quiet and smooth operation at high speed

•Spherical raceways to minimise noise

•Self-aligning and insenitive to angular misalignments of the shaft relative to the housing

•Widespread use and versatility



22318E Bearing data sheet for your reference:



spherical ball bearing series--double row 1200 series, 1300 series, 2200 series, 2300 series



Spherical roller bearing series

---Single row series: 21300 series

---Double row series: 22200 series, 22300 series,23000 series, 23100 series, 23200 series, 23300 series,

23900 series, 24000 series, 24100 series,



Characteristics
High temperature capacity
Available cages: Pressed steel cage, machined brass cage


Application
Stand heavy load and the applicable to impact load,  precision instruments,  low noise machine,  automobile,

motorcycle,  metallurgy,  rolling mill,  mine,  petroleum,  paper making,  cement,  the sugar industry,  the

general machinery, etc,



Related models and specifications of High performance self-aligning ball bearing 1203 series

MODEL DIMENSION
2 10
10000 10000 K 1:12 10000 K+H0000  d d1 D B
      108 8   22 7
126       6   19 6
127       7   22 7
129       9   26 8
1200 1200 K     10   30 9
1201 1201 K     12   32 10
1202 1202 K     15   35 11
1203 1203 K     17   40 12
1204 1204 K 1204 K+H204   20 17 47 14
1205 1205 K 1205 K+H205   25 20 52 15
1206 1206 K 1206 K+H206   30 25 62 16
1207 1207 K 1207 K+H207   35 30 72 17
1208 1208 K 1208 K+H208   40 35 80 18
1209 1209 K 1209 K+H209   45 40 85 19
1210 1210 K 1210 K+H210   50 45 90 20
1211 1211 K 1211 K+H211   55 50 100 21
1212 1212 K 1212 K+H212   60 55 110 22
1213 1213 K 1213 K+H213   65 60 120 23
1214 1214 K     70   125 24
1215 1215 K 1215 K+H215   75 65 130 25
1216 1216 K 1216 K+H216   80 70 140 26
1217 1217 K 1217 K+H217   85 75 150 28
1218 1218 K 1218 K+H218   90 80 160 30
1219 1219 K 1219 K+H219   95 85 170 32
1220 1220 K 1220 K+H220   100 90 180 34
1221 1221 K     105   190 36
1222 1222 K 1222 K+H222   110 100 200 38
