ZYSL Chinese Factory Supply Deep Groove Ball Bearing
6403
Our strengths:
- 10 years export experience
- Strict quality control
- Delivery in time
- OEM service is available with good prices
- Your success is our business and future
Chinese Factory Supply Deep Groove Ball Bearing 6403
| Model | deep groove ball bearing 6403 |
| Sizes | ball bearing 17x62x17mm |
| Material | chrome steel/stainless steel ss304, ss440c |
| It is the RIGHT product for you | |

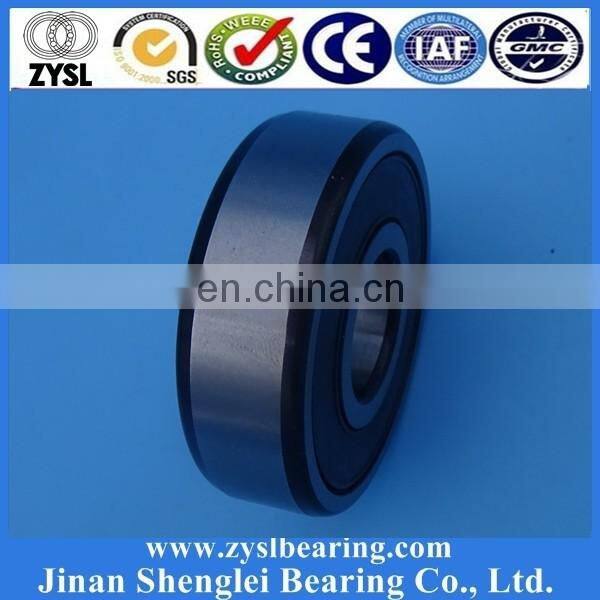

Pictures show:

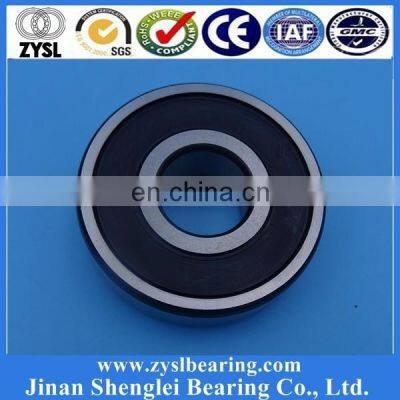

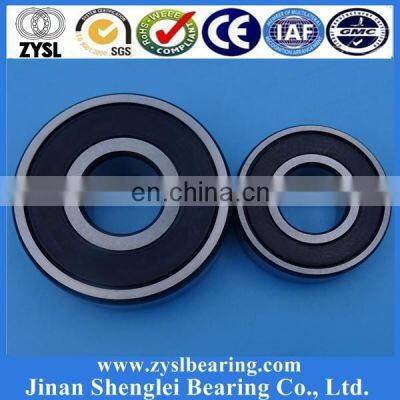

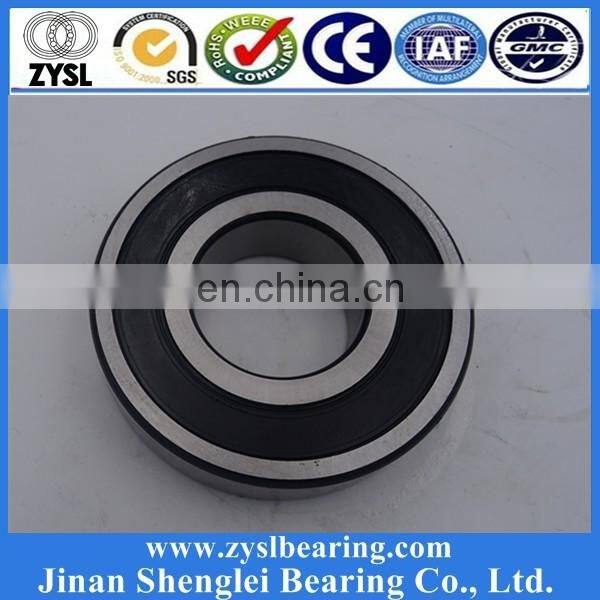

6403 2RS:

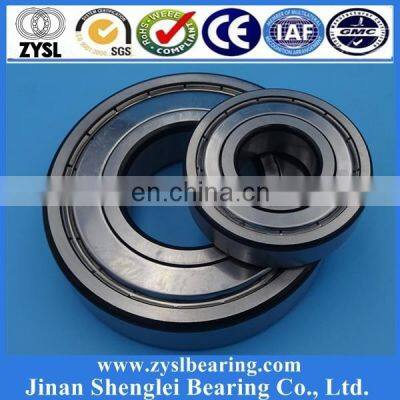

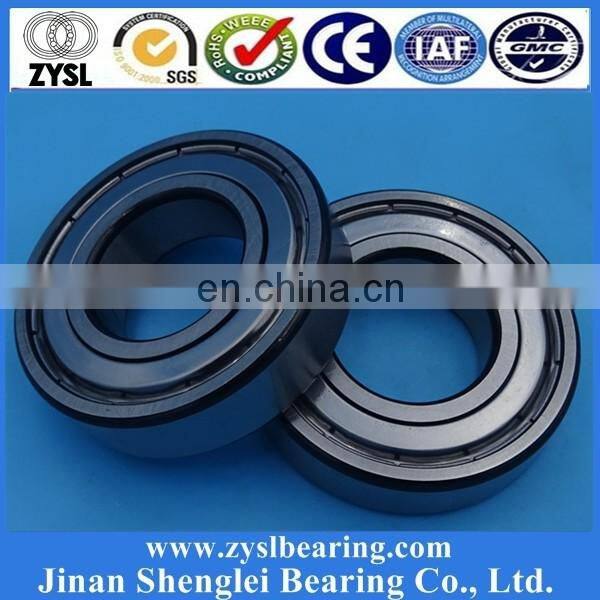

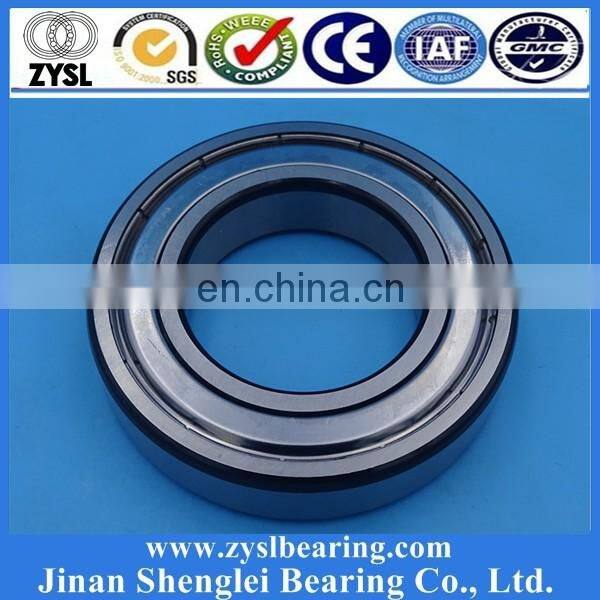

6403 ZZ:

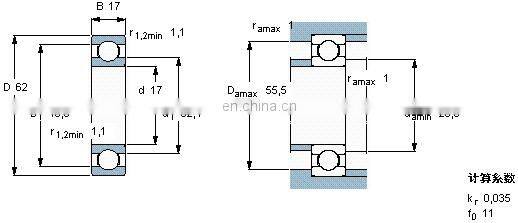

Drawing of deep groove ball bearing 6403
Related models and specifications of deep groove ball
bearing 6403
| Bearing No. | Dimensions (mm) | Basic Load Rating (N) | Weight (kg) | ||||
| ISO | GOST | d | D | B | Dyn. C | Stat. C0 | |
| 6403 | 403 | 17 | 62 | 17 | 22900 | 10800 | 0.27 |
| 6404 | 404 | 20 | 72 | 19 | 31000 | 15200 | 0.4 |
| 6405 | 405 | 25 | 80 | 21 | 35800 | 19300 | 0.53 |
| 6406 | 406 | 30 | 90 | 23 | 43600 | 23600 | 0.74 |
| 6407 | 407 | 35 | 100 | 25 | 55300 | 31000 | 0.95 |
| 6408 | 408 | 40 | 110 | 27 | 63700 | 36500 | 1.25 |
| 6409 | 409 | 45 | 120 | 29 | 76100 | 45000 | 1.55 |
| 6410 | 410 | 50 | 130 | 31 | 87100 | 52000 | 1.9 |
| 6411 | 411 | 55 | 140 | 33 | 99500 | 62000 | 2.3 |
| 6412 | 412 | 60 | 150 | 35 | 108000 | 69500 | 2.75 |
| 6413 | 413 | 65 | 160 | 37 | 119000 | 78000 | 3.3 |
| 6414 | 414 | 70 | 180 | 42 | 143000 | 10400 | 4.85 |
| 6415 | 415 | 75 | 190 | 45 | 153000 | 114000 | 6.8 |
| 6416 | 416 | 80 | 200 | 48 | 162000 | 125000 | 6.422 |
| 6417 | 417 | 85 | 210 | 52 | 174000 | 137000 | 9.5 |
| 6418 | 418 | 90 | 225 | 54 | 186000 | 150000 | 9.56 |
| 6419 | 419 | 95 | 240 | 55 | 188000 | 153000 | 11 |
| 6420 | 420 | 100 | 250 | 58 | 206000 | 175000 | 12.9 |
| 6421 | 421 | 105 | 260 | 60 | 222000 | 179000 | 16.8 |
| 6422 | 422 | 110 | 280 | 65 | 247000 | 227000 | 21.3 |
| 6424 | 424 | 120 | 310 | 72 | 291000 | 287000 | 29 |
| 6426 | 426 | 130 | 340 | 78 | 300000 | 298000 | 38 |
•Cage
In daily operations, cage will be subjected not only to mechanical action from friction, tension and inertial force, but to chemical reaction from lubricants, additives, solvents or coolants. Therefore, design and materials of cage are very inportant for its performance and the reliability of bearing in usage.
ZYSL Bearings offers the following kinds of cages for deep groove ball bearings:
•Materials of Bearings
Materials for bearing rings and parts largely determine the bearing's performance and life. ZYSL Bearings puts more efforts to select materials for bearing ring and part suppliers in a rigorous manner.
Materials and components of bearing rings for ZYSL Bearings are provided by the world's top suppliers,especially for serving bearing manufacturers, fundamentally solving the issue that our bearings lag behind imported bearings in terms of materials for a long time.
ZYSL Bearings boasts a set of strict incoming goods inspection system. Before being put into storage, every batch of steels and parts is under systemic
inspection, including analysis of material composition, metallographic analysis, accuracy check, assembly test, etc.
•Materials for Bearing Ring and Roller Body
Bearing ring and roller body are mainly made of high-Cr bearing steel. Listed below are compositions of material for bearing ring and roller body.
Chemical Composition(%) | |||||||||
NO. |
C |
Mn |
Si |
Cr |
S |
P |
Ni |
Cu |
HB |
< | |||||||||
|
GCr15 DIN 100 GCr6 JIS UJ2 AISI52100
|
0.95~1.05 |
0.20~0.4 |
0.15~0.35 |
1.30~1.65 |
0.02 |
0.027 |
0.3 |
0.25 |
170~207 |
Material for bearing ring and roller body mainly consists of high C-Cr bearing steel.
•Material of cages
Material of cages need good wear resistance, stable size and metal strength. Therefore, operation environment should be mainly considered in selection of material of cages.
Cold-rolled Steel Cage
These light cages hold a high strength with reduced friction and wear in an effective way after surface treatment. The following table covers compositions of material for cold-rolled steel sheet.
No. |
Chemical Composition% |
||||||
|
JISG 3141 SPCC |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
<0.12 |
- |
<0.5 |
<0.04 |
0.045 |
- |
- |
|
Brass Cage
Brass cage is adopted in small and medium bearings. However, brass cage is not suitable for compressors with ammonia cooling due to potential seasonal cracking of brass. It is recommended to replace it with iron cage.
Nylon cage
According to the type and usage of bearings, nylon cages are widely adopted, but they are inappropriate for environments where the temperature is above 120℃ or below 40 ℃. Most of cast molding cages adopt nylon PA66 material, with or without glass fiber reinforcement whose advantage is a good combination of strength and elasticity.
•Materials for Dust Shield and Sealed ring
Material for dust shield
ZYSL Bearings use cold-rolled tin plate as the standard mateiral for dust shields, but also use stainless steel of AISI300 specification sometimes.
Material for seal ring
Seal rings are mainly made for high temperature, fluoro rubbers and silicon rubbers are widely used as well.
A: 30% T/T in advance .70% against copy of B/L
B.30% T/T in advance .70% against L/C at sight
C.Western union
D.Paypal
E:50% in advance,the balance should be paid after seeing the picture of total goods.
F:Offical Bank Account
Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
