Hot sale high qualit 10*35*11 deep groove ball bearing 6300
A part of our products:
Pictures show:

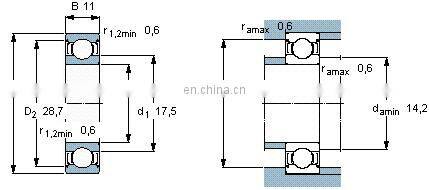

Drawing
Related models and specifications:
Table 1 (mm): 6300 series deep groove ball bearing:
| Open type |
Rubber seals |
Metal shields |
d | D | B |
| 6300 | 6300 2RS | 6300ZZ | 10 | 35 | 11 |
| 6301 | 6301 2RS | 6301ZZ | 12 | 37 | 12 |
| 6302 | 6302 2RS | 6302ZZ | 15 | 42 | 13 |
| 6303 | 6303 2RS | 6303ZZ | 17 | 47 | 14 |
| 6304 | 6304 2RS | 6304ZZ | 20 | 52 | 15 |
| 6305 | 6305 2RS | 6305ZZ | 25 | 62 | 17 |
| 6306 | 6306 2RS | 6306ZZ | 30 | 72 | 19 |
| 6307 | 6307 2RS | 6307ZZ | 35 | 80 | 21 |
| 6308 | 6308 2RS | 6308ZZ | 40 | 90 | 23 |
| 6309 | 6309 2RS | 6309ZZ | 45 | 100 | 25 |
| 6310 | 6310 2RS | 6310ZZ | 50 | 110 | 27 |
Table 2(mm): 6200 series deep groove ball bearing
| Open type |
Rubber seals |
Metal shields |
d | D | B |
| 6200 | 6200 2RS | 6200ZZ | 10 | 30 | 9 |
| 6201 | 6201 2RS | 6201ZZ | 12 | 32 | 10 |
| 6202 | 6202 2RS | 6202ZZ | 15 | 35 | 11 |
| 6203 | 6203 2RS | 6203ZZ | 17 | 40 | 12 |
| 6204 | 6204 2RS | 6204ZZ | 20 | 47 | 14 |
| 6205 | 6205 2RS | 6205ZZ | 25 | 52 | 15 |
| 6206 | 6206 2RS | 6206ZZ | 30 | 62 | 16 |
| 6207 | 6207 2RS | 6207ZZ | 35 | 72 | 17 |
| 6208 | 6208 2RS | 6208ZZ | 40 | 80 | 18 |
| 6209 | 6209 2RS | 6209ZZ | 45 | 85 | 19 |
| 6210 | 6210 2RS | 6210ZZ | 50 | 90 | 20 |
Table 3(mm): 6000 series deep groove ball bearing
| Open type |
Rubber seals |
Metal shields |
d | D | B |
| 6000 | 6000 2RS | 6000ZZ | 10 | 26 | 8 |
| 6001 | 6001 2RS | 6001ZZ | 12 | 28 | 8 |
| 6002 | 6002 2RS | 6002ZZ | 15 | 32 | 9 |
| 6003 | 6003 2RS | 6003ZZ | 17 | 35 | 10 |
| 6004 | 6004 2RS | 6004ZZ | 20 | 42 | 12 |
| 6005 | 6005 2RS | 6005ZZ | 25 | 47 | 12 |
| 6006 | 6006 2RS | 6006ZZ | 30 | 55 | 13 |
| 6007 | 6007 2RS | 6007ZZ | 35 | 62 | 14 |
| 6008 | 6008 2RS | 6008ZZ | 40 | 68 | 15 |
| 6009 | 6009 2RS | 6009ZZ | 45 | 75 | 16 |
| 6010 | 6010 2RS | 6010ZZ | 50 | 80 | 16 |
Table 4 (mm): 620 series deep groove ball bearing
| Open Type |
Rubber seals |
Metal shields | d | D | B |
| 623 | 623 2RS | 623ZZ | 3 | 10 | 4 |
| 624 | 624 2RS | 624ZZ | 4 | 13 | 5 |
| 625 | 625 2RS | 625ZZ | 5 | 16 | 5 |
| 626 | 626 2RS | 626ZZ | 6 | 19 | 6 |
| 627 | 627 2RS | 627ZZ | 7 | 22 | 7 |
| 628 | 628 2RS | 628ZZ | 8 | 24 | 8 |
| 629 | 629 2RS | 629ZZ | 9 | 26 | 8 |
Table 5 (mm): 61800 series deep groove ball bearing:
| Open type |
Rubber seals |
Metal shields |
d | D | B |
| 61800 | 61800 2RS | 61800ZZ | 10 | 19 | 5 |
| 61801 | 61801 2RS | 61801ZZ | 12 | 21 | 5 |
| 61802 | 61802 2RS | 61802ZZ | 15 | 24 | 5 |
| 61803 | 61803 2RS | 61803ZZ | 17 | 26 | 5 |
| 61804 | 61804 2RS | 61804ZZ | 20 | 32 | 7 |
| 61805 | 61805 2RS | 61805ZZ | 25 | 37 | 7 |
| 61806 | 61806 2RS | 61806ZZ | 30 | 42 | 7 |
| 61807 | 61807 2RS | 61807ZZ | 35 | 47 | 7 |
| 61808 | 61808 2RS | 61808ZZ | 40 | 52 | 7 |
| 61809 | 61809 2RS | 61809ZZ | 45 | 58 | 7 |
| 61810 | 61810 2RS | 61810ZZ | 50 | 65 | 7 |
Table 6 (mm): 61900 series deep groove ball bearing:
| Open type |
Rubber seals |
Metal shields |
d | D | B |
| 61900 | 61900 2RS | 61900ZZ | 10 | 22 | 6 |
| 61901 | 61901 2RS | 61901ZZ | 12 | 24 | 6 |
| 61902 | 61902 2RS | 61902ZZ | 15 | 28 | 7 |
| 61903 | 61903 2RS | 61903ZZ | 17 | 30 | 7 |
| 61904 | 61904 2RS | 61904ZZ | 20 | 37 | 9 |
| 61905 | 61905 2RS | 61905ZZ | 25 | 42 | 9 |
| 61906 | 61906 2RS | 61906ZZ | 30 | 47 | 9 |
| 61907 | 61907 2RS | 61907ZZ | 35 | 55 | 10 |
| 61908 | 61908 2RS | 61908ZZ | 40 | 62 | 12 |
| 61909 | 61909 2RS | 61909ZZ | 45 | 68 | 12 |
| 61910 | 61910 2RS | 61910ZZ | 50 | 72 | 12 |
Introduction of Deep groove ball bearing:
Deep groove ball bearing mainly take radial load as well as take moderate axial load. With less coefficient of friction, high limiting speed, large size range and varations of structure, they are suitable for precision instruments, low noise motors, automobiles,motorcycles,and other common machinery, as a widely used type of bearings in machinery industry.
Sealed deep groove ball bearings
Deep groove ball bearings with sealing disks (contacting gaskets) or covering disks (non-contacting gaskets) allow simple designs. Bearings are offered both with one and two sealing or covering disks. Bearings with two-side gaskets are filled with top quality grease. Sealed bearings can be used in a temperature range from – 30 °C to max. 110 °C (short term) for contacting and up to max. 120 °C for non-contacting gaskets. One should note here, that the period of grease use will reduce at a permanent temperature of > 70 °C. Special greases are offered for such cases.
Deep groove ball bearings with annular groove in outer ring
Deep groove ball bearings with annular groove in the outer ring simplify the design in many cases because they can be fixed simply by a snap ring and axially in the housing to save space. These bearings with or without snap ring are available only on request.
Deep groove ball bearings tested for noise
As standard, deep groove ball bearings are subjected to noise tests up to bore parameter 12. In addition, a 100 % rolling test is carried out. These bearings can also be subjected to a noise test if required by the customer (on request only).
Cages
Deep groove ball bearings without cage suffix are provided with a steel sheet cage. Differing cage designs are indicated at the bearing type as bearing symbol (suffix). Deep groove ball bearings with cages of fiber-glass reinforced polyamide 66 are suitable for temperatures of maximum 120 °C for longer periods of time. When using oil lubrication (for non-sealed bearings), the additives contained in the oil may affect the period of use of the cage if the temperature exceeds 100 °C for a longer period of time. In addition, deep groove ball bearings with brass cage and current-insulated designs are available on request.
Single-row deep groove ball bearings accept radial and axial forces and can thus be used in a wide range of applications. They have a simple design, are self-retaining, suitable for high up to very high speeds and resistant in operation and during maintenance and they are offered at a very favorable price. Due to these characteristics, self-aligning deep groove ball bearings are the anti-friction bearings which are used most. The standard version of SLF deep groove ball bearings is provided with a recess for inserting sealing and/or covering disks. The only exception is series 160... . Here, only a version without sealing and/or covering disk can be supplied. (Exception 16006.2ZR)
Company Introdurction
Jinan Sheng Lei bearing Co., Ltd. is located in the "Spring City" Jinan. We Insist the integrity and pragmatic, win-win business philosophy, adhere to the people-oriented, advancing enterprise spirit and regard "quality first, customers utmost" as enterprise concept. Our company has established a professional sales network to help customers get products information at the first time. Our products are exported to many countries now, we have won good reputation and feedbacks from our customer. We offer high quality products with reasonable price and short delivery time.
Company Show
Factory:
Office:
Certificate: ISO 9001:2008
The production process:
Participate in the exhibition:
Customer visition:
Package
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
A: 30% T/T in advance .70% against copy of B/L
B.30% T/T in advance .70% against L/C at sight
C.Western union
D.Paypal
F:50% in advance,the balance should be paid after seeing the picture of total goods.
Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
1. I couldn’t find a design to fit my application in your catalog.
Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design
for custom products. Available options include, but are not limited to,
custom rings, retainers, balls, shields, lubricants, and packaging.
We look forward to working with you to satisfy your rotary motion
requirements.
2. What causes bearing noise?
Bearing noise is a function of both the bearing and the way it is used.
Some external factors that affect bearing noise include lubricant type,
excessive bearing load, and improper installation. Once the abnormal
noise occurred, you can contact our engineers, we will help you find
the reasons and provide the appropriate solutions.
3. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product
development cycle is 60 days in normal. Under normal circumstances, there
are standing stock for regular types. You can email us to learn more details.
4. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other
ports if required by the customer.
