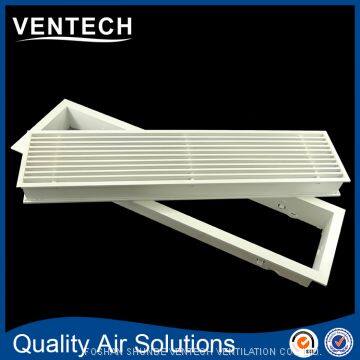

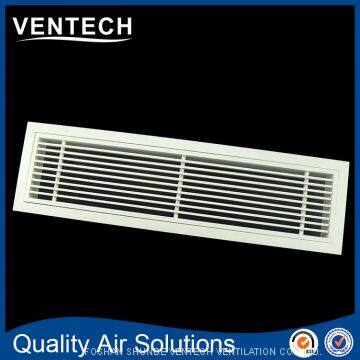

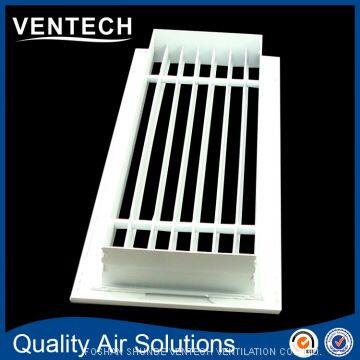

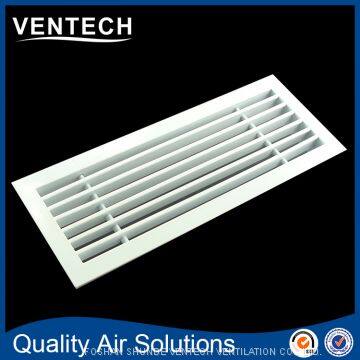

Linear bar grille
Ventilation grille the type linear bar grille is as supply air or extract air variant for comfort zones and industrial zones. Ready-to-install component which consists of a border and fixed horizontal blades.
● Nominal length: 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1500, 2000.
Nominal height: 100, 125, 150, 200, 250, 300.
Horizontal run section: middle section 2000mm, end cups.
Other dimensions upon request.
● Fixed horizontal blades. 0 degree, 15 degree, 30 degree.
● For installation in walls, sills and rectangular ducts.
● Made of extruded aluminum, powder coated, or anodized.
● Concealed spring clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.
● Available in RAL colors, or Anodized color.
● Also for continuous horizontal runs.
● The border, face flange: 17mm, 20mm, 25mm, 30mm.
If there are any need or question pls feel free to contact me, let's work it out together.
