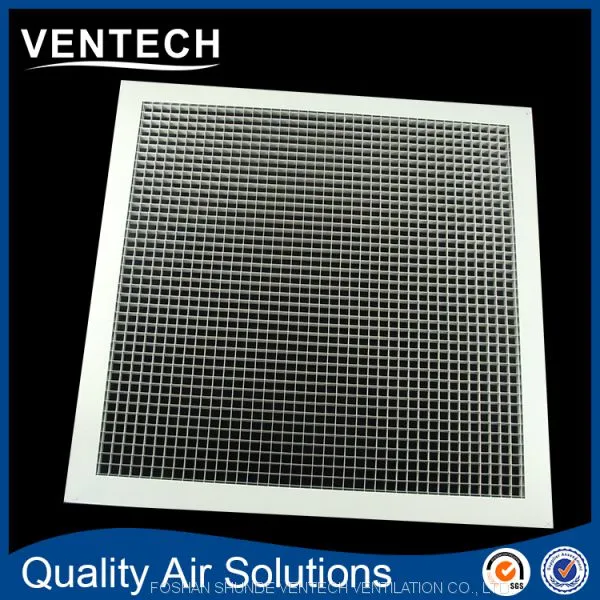

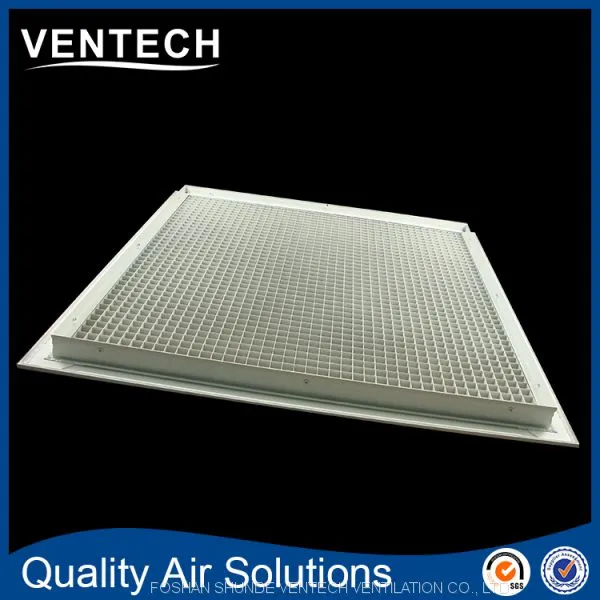

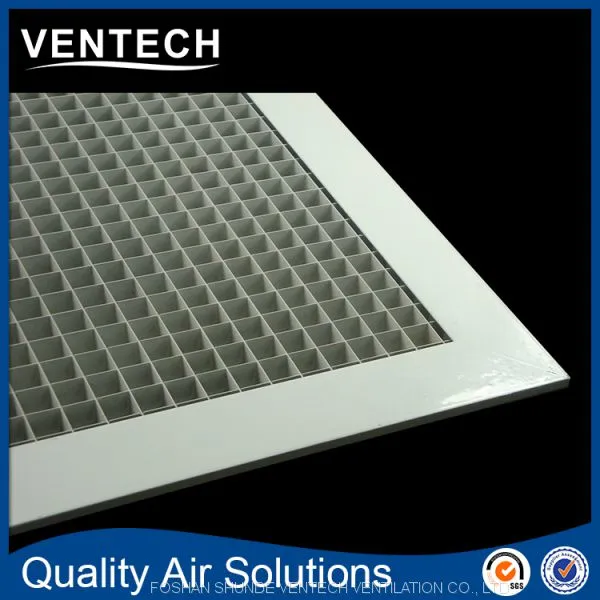

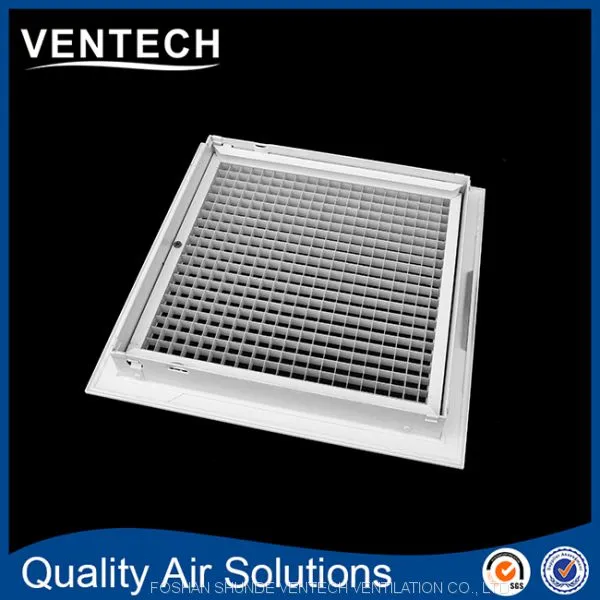

Hvac aluminum egg crate type return air grille

Eggcrate grille

Ventilation grille the type eggcrate grille is as extract air grille for comfort zones and industrial zones

●  Nominal length: 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.

  Nominal height: 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.

  Other dimensions upon request.

●  For exhaust air.

●  eggcrate core in size 12.7x12.7x12.7mm.

●  For installation in ceilings.

●  Made of extruded aluminum, powder coated.

●  Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.

● Available in RAL colors, or Anodized color.

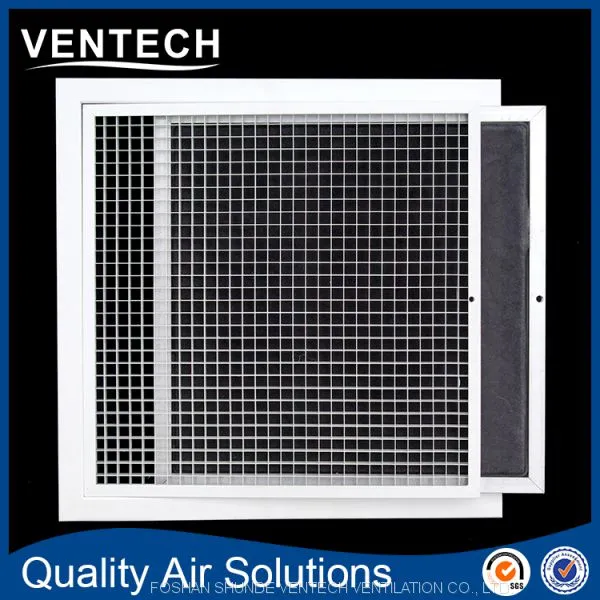

● Hinged type eggcrate grille available with a G4 filter.

● Filter washable and changeable.
