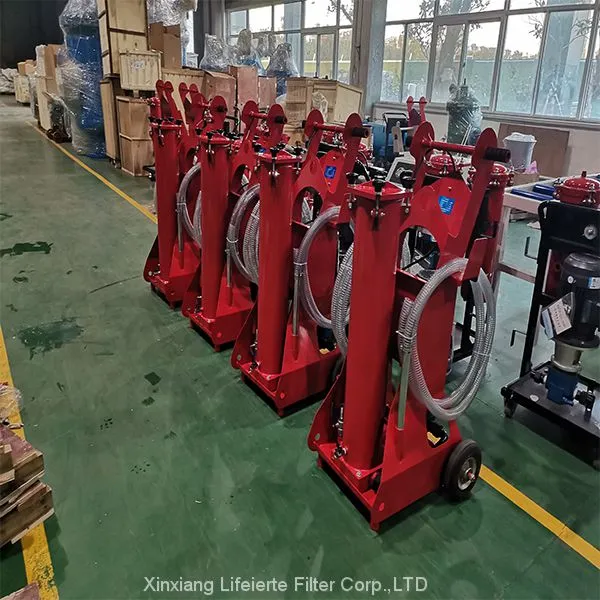

HYDAC FCM Series Equivalent Oil Purifier 100L/min Capacity FCM 100 L N 3B03 C/ S5D5-V photo-1

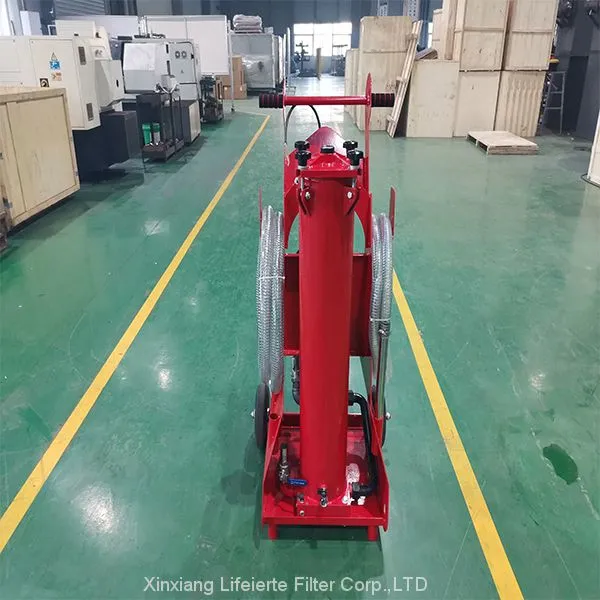

HYDAC FCM Series Equivalent Oil Purifier 100L/min Capacity FCM 100 L N 3B03 C/ S5D5-V photo-2

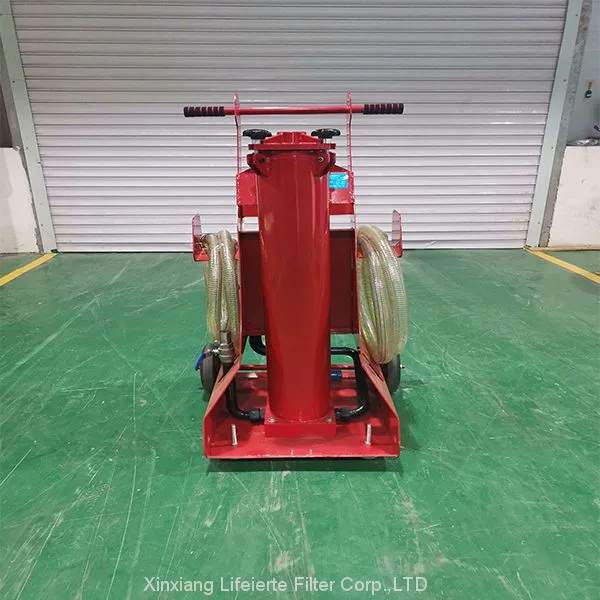

HYDAC FCM Series Equivalent Oil Purifier 100L/min Capacity FCM 100 L N 3B03 C/ S5D5-V photo-3

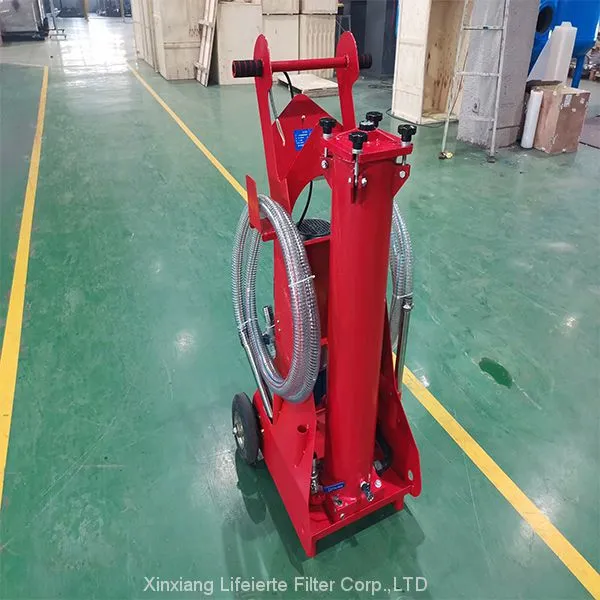

HYDAC FCM Series Equivalent Oil Purifier 100L/min Capacity FCM 100 L N 3B03 C/ S5D5-V photo-4
HYDAC FCM Series Equivalent Oil Purifier 100L/min Capacity FCM 100 L N 3B03 C/ S5D5-V photo-5
US$ 500 - 1000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Hydac
Place of Origin:
China
Model Number:
FCM 100 L N 3B03 C/ S5D5-V
Contact Supplier Request Quote Chat Now
Xinxiang Lifeierte Filter Corp.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hydac
Place of Origin China
Model Number FCM 100 L N 3B03 C/ S5D5-V
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 145 kg
Dimension(L*W*H) 705x610x1245mm
Voltage 400V / 50 Hz (3 Ph + N + PE)
Usage Lubricant Oil
Condition New
Power(W) 1.5kw
Working Pressure 10 bar
Flow 100L/min

HYDAC FCM Series Equivalent Oil Purifier 100L/min capacity FCM  100  L  N  3B03  C/  S5D5-V

Applications

Hydraulic and lubrication systems in different industries (for example,machine tools, plastic injection moulding machines, paper mills,construction machinery, steel industry, marine & offshore, mobile industry)

Advantages

Prevents costly component damage

and system failures

Reliable and convenient operation

Increased oil service life

Reduction in Life Cycle Cost LCC



Technical specifications

Vane pump version

Gear pump version

Max. flow rate

FCM 60 = 60 l/min

FCM 100 = 100 l/min

Voltage

230V 50Hz,380-420V 50Hz,440V-480V 60Hz

Micron

3-40μm

Operating pressure

pmax = 6 bar

pmax = 10 bar

Viscosity range

15 ... 400 mm²/s

15 ... 1000 mm²/s

Permitted operating fluid

Mineral oil (DIN 51424)

Fluid temperature

-10 ... 80 °C

Ambient temperature

-10 ... 40 °C

Seals, gaskets

NBR

Protection class

IP 55

Connections/Length of hoses

Suction hose

Pressure hose

NW 38 (1 ½) / 2.5 m

NW 25 (M 36x2) / 4 m

Weight

135 kg (FCM 60)

145 kg (FCM 100)

Sizes

705x610x1245mm

Model code



FCM  100  L  N  3B03  C/  S5D5-V



FCM:Filtration unit

FluidCleaner Mobil



100:Flow rate

060 = 60 l/min

100 = 100 l/min



L:Versions

L = vane pump without change-over(standard)

F = vane pump with change-over

K = gear pump without change-over

G =gear pump with change-over



N:Connection voltage

M*= 230V / 50 Hz (1 Ph + PE)

N = 400V / 50 Hz (3 Ph + N + PE)

S = 500V / 50 Hz (3 Ph + PE)

X = other voltage



3B03:Filter design

2 = filter size 1300

3 = filter size 2600

   See next page



C/:Clogging indicator

B = visual differential pressure indicator (Standard)

C = special model - differential pressure indicator eletrical (VM2C.) with

automatic motor cut-out when filter is contaminated.



S5D5-V:Supplementary details

No details = standard

S5 = suction hose 5 m with lance

D5 = pressure hose 5 m with lance

V = FPM (Viton) seal

SK = suction hose with threaded connection

DK= pressure hose with threaded connection



*= for type FCM 60(1.5 kW) only

Replacement elements:

Filter size    Filtration rating           Element type                 Part No.

2               3 µm           1300 R 003 BN4HC-/KB (-V-KB)     1263059 (1263760)

2               5 µm           1300 R 005 BN4HC-/KB (-V-KB)     1263060 (1263761)

2               10 µm          1300 R 010 BN4HC-/KB (-V-KB)     1263061 (1263762)

2               20 µm          1300 R 020 BN4HC-/KB (-V-KB)     1263062 (1263763)

2               40 µm          1300 R 040 AM/-KB                1267699

2               10 µm          1300 R 010 BN4AM/-KB (-V-KB)     1270010 (1276060)

2               3 µm           1300 R 003 BN/AM/-KB (-V-KB)      1267991 (1271839)

3               3 µm           2600 R 003 BN4HC/-KB (-V-KB)      1263071 (1263784)

3               5 µm           2600 R 005 BN4HC/-KB (-V-KB)      1263072 (1263785)

3               10 µm          2600 R 010 BN4HC/-KB (-V-KB)      1263073 (1263786)

3               20 µm          2600 R 020 BN4HC/-KB (-V-KB)      1263074 (1263787)

3               40 µm          2600 R 040 AM/-KB                 306899

3               3 µm           2600 R 003 BN/AM/-KB (-V-KB)       1268232 (1275329)

3               10 µm          2600 R 010 BN/AM/-KB              1276840



For discounted price,contact me at:

======================================================================
Helen Jing / Overseas Manager


Xinxiang Lifeierte Filter Corp.,LTD

Tel.:+86-373-2618077
Fax.:+86-373-3339377
Skype: lefilterhuo
Web:
E-mail:overseas-sales01@lefilter.com
Mobile&Wechat&WhatsApp:+86-15537363277
Office Add:No. 9 Hongli Road,Muye District,Xinxiang City,Henan Province,China.
Factory Add.:No.93,B1,Filter Industrial Park,Xinxiang City,Henan Province,China.

====================================================

Product Tags: FCM 100 L N 3B03 C/ S5D5-V , HYDAC FCM Series Equivalent Oil Purifier , 100L/min capacity Oil Purifier
