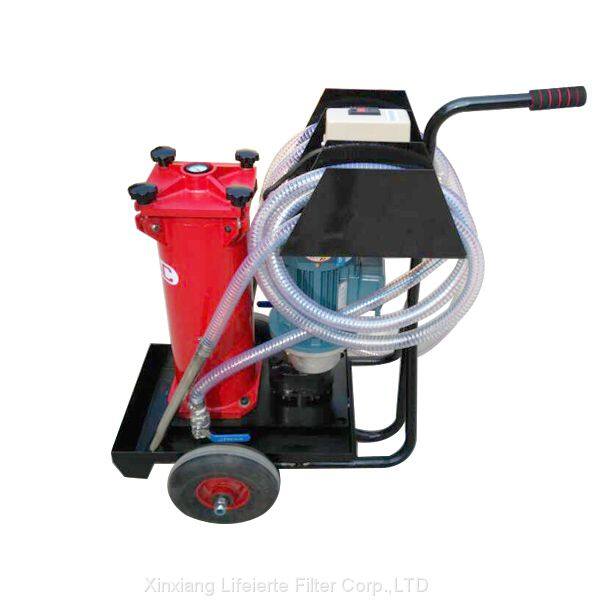

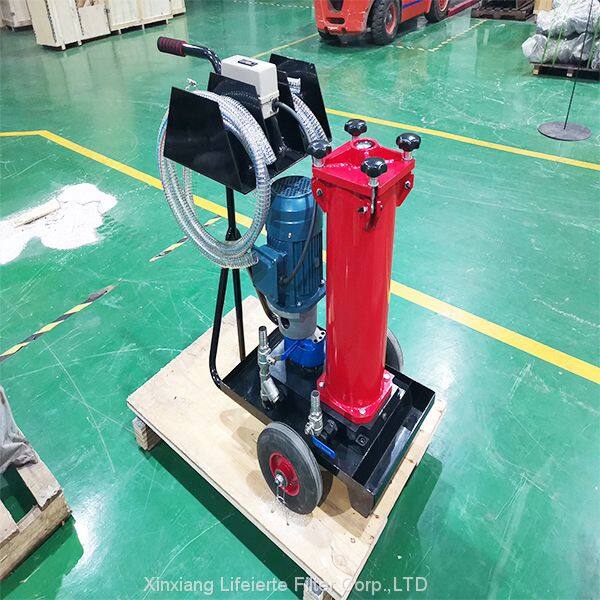

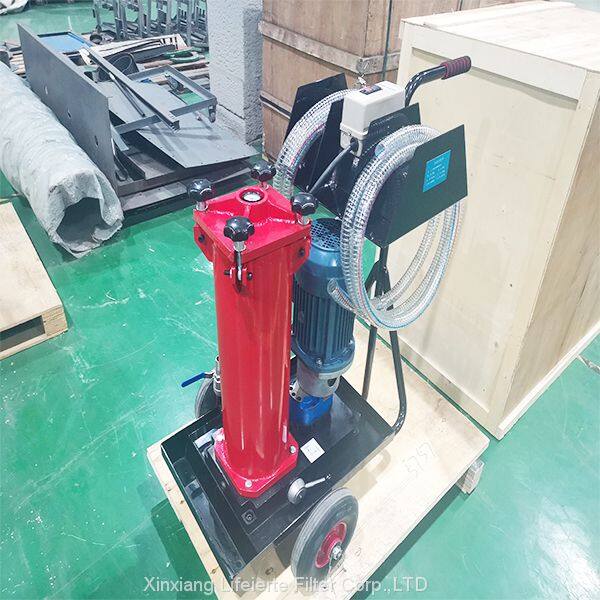

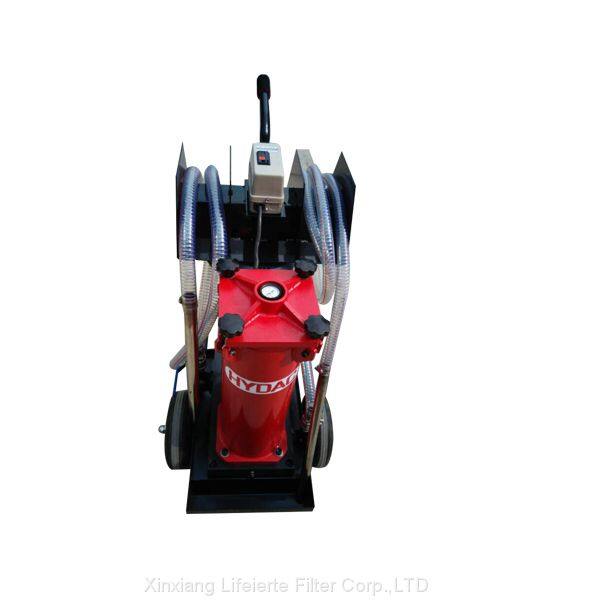

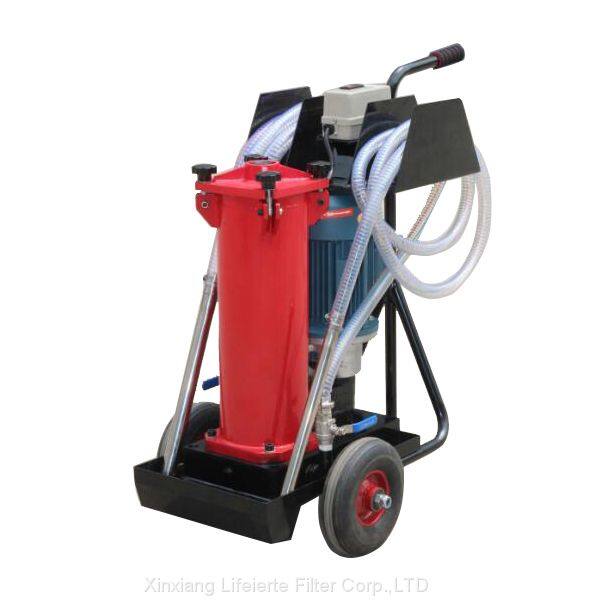

HYDAC OF5F10P3N2B05E Oil Purifier Equivalent for steel plant
OF5F10P3N2B05E Description
The filtration unit OF 5 mobile is designed to fill/filter hydraulic and lubrication tanks and to filter offline.There is also the option (Version F) to bypass the filter when emptying
tanks.
OF5F10P3N2B05E Applications
Hydraulic and lubrication oil systems in a variety of industries
OF5F10P3N2B05E Advantages
Convenient offline filtration
Simple to operate
Greater system availability
Reduction in Life Cycle Cost LCC
Technical specifications
Pump type |
Vane pump |
Max. flow rate |
30/40 l/min |
Voltage |
230V 50Hz,380-420V 50Hz,440V-480V 60Hz |
Micron |
3-40μm |
Operating pressure |
4.5 bar max. |
Viscosity range |
15 ... 800 mm²/s (version-dependent) |
Permitted operating fluid |
Mineral oil (others on request) |
Permitted suction pressure at suction port |
-0.4 bar to +0.6 bar |
Fluid temperature |
-10 ... 80 °C |
Ambient temperature |
-20 ... 40 °C |
Seals |
NBR |
Protection class |
IP 54 |
Power cable length |
10m |
Hoses length |
3 m |
Hose connections |
Suction hose NW 30 with lance Pressure hose NW 25 with lance |
Weight |
≈ 75 kg |
Sizes |
900x530x850mm |
Replacement elements:
Filter size Filtration rating Element type Part No.
1 3 µm 0330 R 003 BN4HC/-KB (-V-KB) 1262999 (1263640)
1 5 µm 0330 R 005 BN4HC/-KB (-V-KB) 1263000 (1263641)
1 10 µm 0330 R 010 BN4HC/-KB (-V-KB) 1263001 (1263642)
1 20 µm 0330 R 020 BN4HC/-KB (-V-KB) 1263002 (1263643)
1 40 µm 0330 R 040 AM /-KB (-V-KB) 1272067 (1266563)
1 3 µm 0330 R 003 BN/AM /-KB (-V-KB) 1272069 (1276690)
1 10 µm 0330 R 010 BN/AM /-KB (-V-KB) 1272068 (1281126)
2 3 µm 1300 R 003 BN4HC-/KB (-V-KB) 1263059 (1263760)
2 5 µm 1300 R 005 BN4HC-/KB (-V-KB) 1263060 (1263761)
2 10 µm 1300 R 010 BN4HC-/KB (-V-KB) 1263061 (1263762)
2 20 µm 1300 R 020 BN4HC-/KB (-V-KB) 1263062 (1263763)
2 3 µm 1300 R 003 BN/AM /-KB (-V-KB) 1267991 (1271839)
2 10 µm 1300 R 010 BN4AM /-KB (-V-KB) 1270010 (1276060)
2 40 µm 1300 R 040 AM /-KB 1267699
