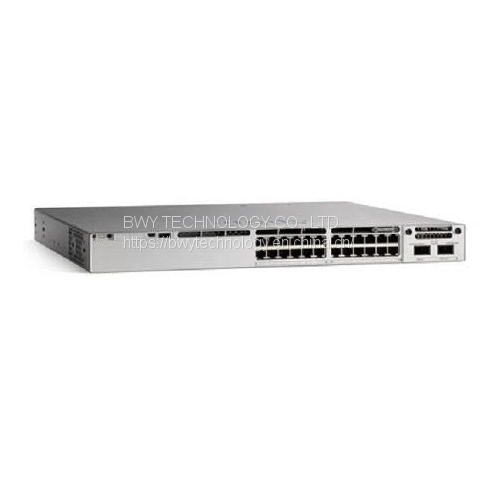

Cisco Catalyst WS-C3750X-24P-S Layer 3 Switch 24 x 10/100/1000 Ethernet PoE+ Ports IP Base Managed
Negotiable
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- Guangzhou
- T/T PayPal Other Cash
- 1 days
You May Like
-
Brand New Switch WS-C3750X-48T-S 48 Port Gigabit Ethernet Network Switch Layer 3 Stakable Switch
-
Original Cisco 3750 Switch WS-C3750G-24TS-S1U 24 10/100/1000 Ethernet Network Network
-
Cisco 3850 POE Switch WS-C3850-24P-E 24 * 10/100/1000 Ethernet POE+ ports IP service managed stackable
-
Cisco 3850 PoE Layer 2 Network Switch 24 Port PoE+ Managed Stackable Ethernet Switch
-
WS-C3850-24T-S Cisco Catalyst 3850 24 Port IP Base Layer 3 Network Switch
-
WS-C3850-12X48U-S Cisco 3850 Ethernet Switch 48 Ports UPoE Network Switch
Product Details
| Brand Name: | Cisco | Place of Origin: | China | Model Number: | WS-C3750X-24P-S |
| Function: | POE, Stackable | Products Status: | Stock | Transmission Rate: | 10/100/1000Mbps |
| Ports: | 24 |
Product Description
WS-C3750X-24P-S Overview
Cisco Catalyst 3750-X Series Switch
Stackable 24 10/100/1000 Ethernet ports
Four optional uplink network modules with GE or 10GE ports
Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor
Dual redundant, modular power supplies and fans
Media Access Control Security (MACsec) hardware-based encryption
Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
StackWise Plus
Cisco StackPowerTM technology: An innovative feature and industry first for sharing power among stack members
Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput
Investment protection with backward compatibility with all other models of Cisco Catalyst 3750 Series Switches
WS-C3750X-24P-S Specification
| WS-C3750X-24P-S data sheet | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3750X-24P-S |
| Product Type | Switch - 24 ports - L3 - Managed - stackable |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density - Uplinks | 24 x 10/100/1000 Ethernet Ports |
| Power Over Ethernet (PoE) | Yes |
| Max Number of Stacks | 9 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at |
| DRAM Memory | 256 MB |
| Flash Memory | 128 MB Flash |
| LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity / Expansion Slots | |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE USB : 1 x 4 PIN USB Type A 1 x console - mini-USB Type B - management 1 x RS-232 - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management Network stack device : 2 x |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Power Supply Specifications | |
| Power Device | Power supply - redundant - plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7.2 kg |
| Rack Mounting Kit | Optional |
| MTBF | 167,198 hour(s) |
| Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| System Software | |
| Software Included | Cisco IOS IP Base |
