Home > Computer Products > Network Hardware & Parts > Network Switch > WS-C3750X-48P-S Cisco Catalyst 3750-X PoE Switch Layer 3 48Ports POE Managed Stackable Network Switch

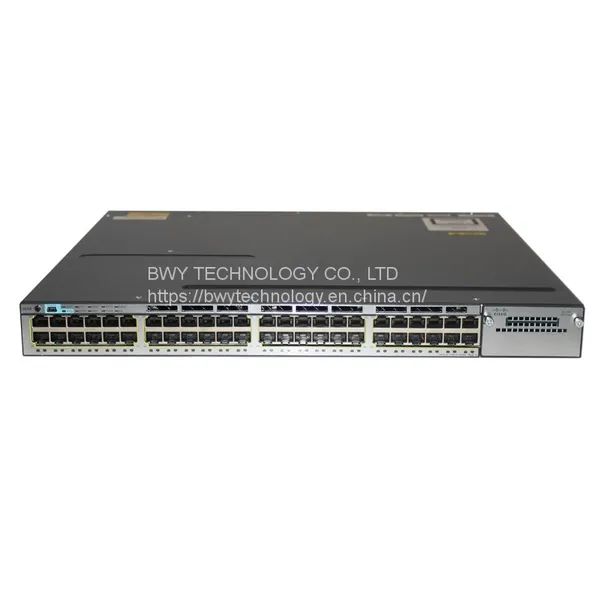

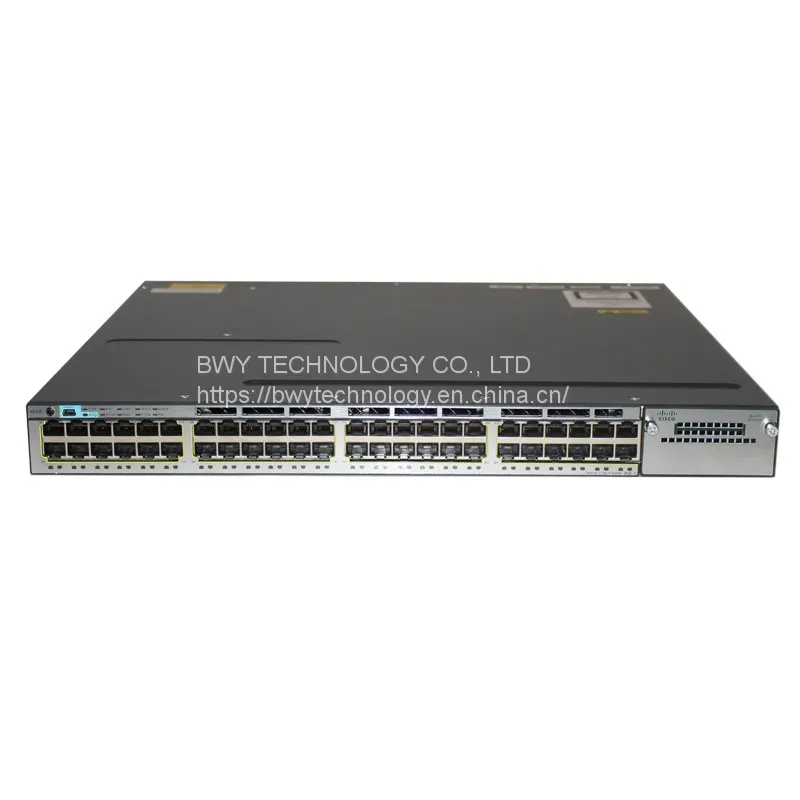

WS-C3750X-48P-S Cisco Catalyst 3750-X PoE Switch Layer 3 48Ports POE Managed Stackable Network Switch

WS-C3750X-48P-S Cisco Catalyst 3750-X PoE Switch Layer 3 48Ports POE Managed Stackable Network Switch thumbnail-1
WS-C3750X-48P-S Cisco Catalyst 3750-X PoE Switch Layer 3 48Ports POE Managed Stackable Network Switch thumbnail-2
WS-C3750X-48P-S Cisco Catalyst 3750-X PoE Switch Layer 3 48Ports POE Managed Stackable Network Switch photo-1
WS-C3750X-48P-S Cisco Catalyst 3750-X PoE Switch Layer 3 48Ports POE Managed Stackable Network Switch photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Cisco
Place of Origin:
China
Model Number:
WS-C3750X-48P-S
Contact Supplier Request Quote Chat Now
Bwy Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Cisco
Place of Origin China
Model Number WS-C3750X-48P-S
Function POE, Stackable
Products Status Stock
Transmission Rate 10/100/1000Mbps
Ports ≥ 48

WS-C3750X-48P-S Overview


  • Cisco Catalyst 3750-X Series Switch

  • Stackable 48 10/100/1000 Ethernet PoE+ ports

  • Four optional uplink network modules with GE or 10GE ports

  • Dual redundant, modular power supplies and fans

  • Media Access Control Security (MACsec) hardware-based encryption

  • Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink

  • USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

  • StackWise Plus

  • Cisco StackPowerTM technology: An innovative feature and industry first for sharing power among stack members

  • Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput

  • Investment protection with backward compatibility with all other models of Cisco Catalyst 3750 Series Switches


WS-C3750X-48P-S Specification


WS-C3750X-48P-S data sheet
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3750X-48P-S
Product Type Managed, Stackable 48 ports L3 Switch
Form Factor Fixed, Rack Mountable 1U, Stackable/Clustering
Switch Port density - Uplinks 48 x 10/100/1000 Ethernet Ports
Power Over Ethernet (PoE) Yes
Max Number of Stacks 9
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
DRAM Memory 256 MB
Flash Memory 128 MB Flash
LED Status Lights Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity / Expansion Slots
Interfaces 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
USB : 1 x 4 PIN USB Type A
1 x console - mini-USB Type B - management
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management
Network stack device : 2 x
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Power Supply Specifications
Power Device Power supply - redundant - plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width 44.5 cm
Depth 46 cm
Height 4.5 cm
Weight 7.5 kg
Rack Mounting Kit Optional
MTBF 139,913 hour(s)
Compliant Standards CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
System Software
Software Included Cisco IOS IP Base
Manufacturer Warranty
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty - lifetime
Limited warranty - power supply and fans - 5 years
New releases update


Product Tags: WS-C3750X-48P-S , Cisco Network Switch , Data Communication Switch , 48 port POE switch , Ethernet Network , Managed Stackable Switch
