China Factory Price Vertical Screw Conveyor Grain Inclined Auger Conveyor with Hopper
USD $1500 - $3600
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal Other Cash
You May Like
-
High Efficiency Food Screw Auger Conveyor with Hopper
-
Sand Inclined Screw Auger Conveyor Powder Lifting Elevator
-
Grain Screw Conveyor Machine
-
Lab Vibrating Screen Test Sieve Shaker Screening Machine
-
Airflow Vibrating Sieve Flour Screening Machine
-
Linear Vibrating Sieve Coffee Beans Screening Machine
Product Details
| Brand Name | Sanyuantang | Place of Origin | China | |
| Model Number | 100.160,200,250,315,400 | Type | Other | |
| Certification | CE,ISO | After-sales Service Provided | No overseas service provided | |
| Warranty | One year ，24 hours technical support. | Weight | According customer's require. | |
| Dimension(L*W*H) | According customer's require. | Production Capacity | 10Kg-10Tons/hours | |
| Voltage | 220V/380V/450V | Condition | New | |
| Power(W) | 0.4kw-22kw |
Product Description

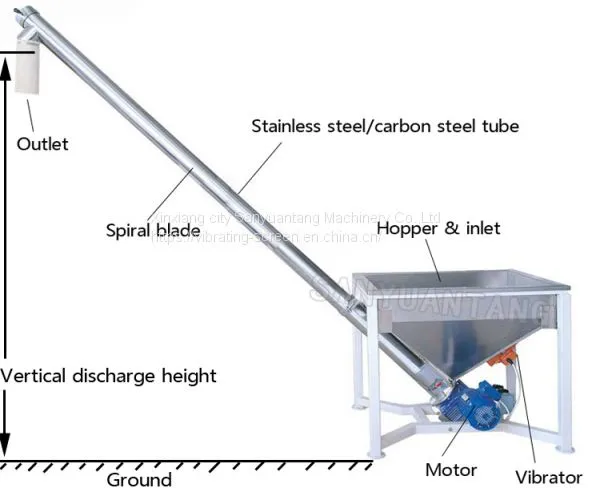

LS Series Screw Conveyor product description
The screw conveyor can convey many different materials, like dry powder,such as coffee powder, wheat flour, condiment and it also fits for some small batches. Combining with the packaging machine, we can present you situation tracing with the above material. It can also be used separately. The whole machine are made of stainless steel (also can be made by carbon steel) of 304 except for the motor.
Main technical parameter
model Model | screw diameter (mm) | Screw pitch (mm) | rotational speed of screw (r/min) | convey measure (m3/h) | motor power (kw) | max dip angle (o ) |
LS-100 | 100 | 100 | 140 125 112 100 90 80 71 63 50 40 | 2.2 | 2.2~18.5 | ≤20 |
LS-125 | 125 | 125 | 4.0 | |||
LS-160 | 160 | 160 | 8 | |||
LS-200 | 200 | 200 | 11 | |||
LS-250 | 250 | 250 | 22 | |||
LS-315 | 315 | 315 | 34 | |||
LS-400 | 400 | 355 | 64 | |||
LS-500 | 500 | 400 | 95 | |||
LS-630 | 630 | 450 | 150 | |||
LS-800 | 800 | 500 | 210 |
Application:

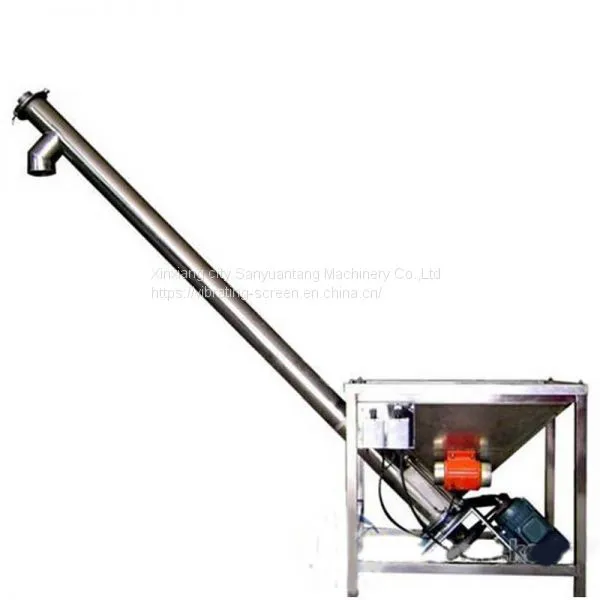

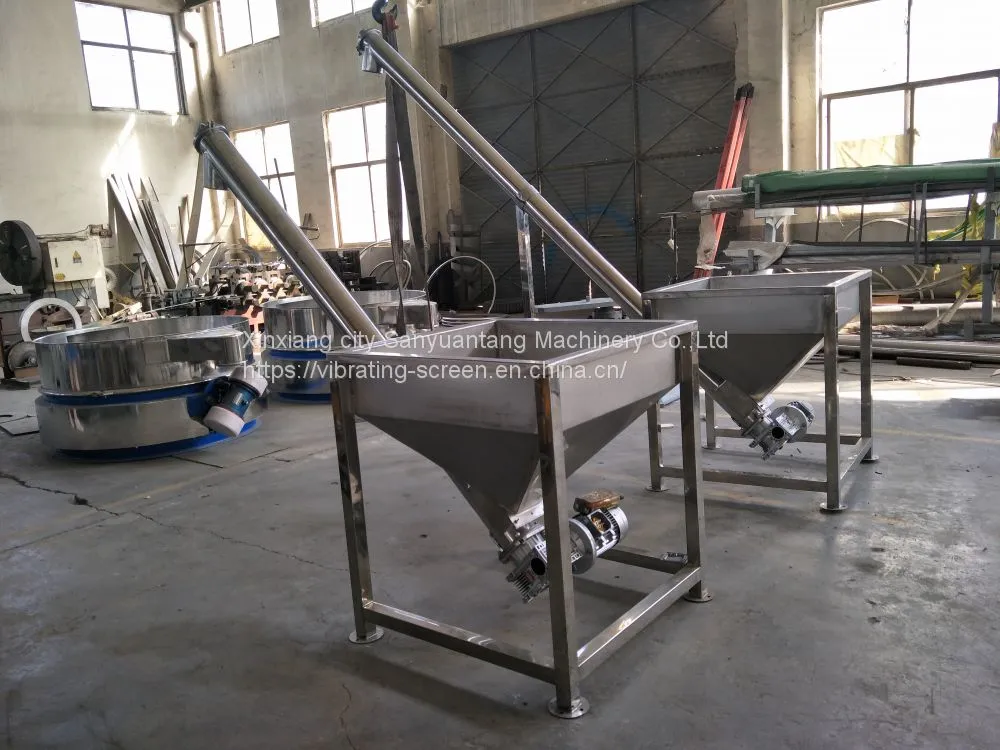

Product shows:

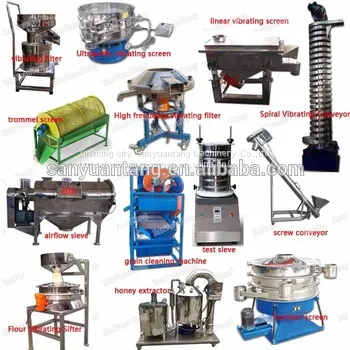

Other Products:
