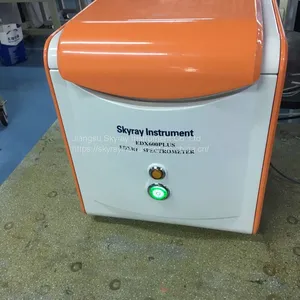

EDX600PLUS gold testing pawnshop machine
- 200 Piece / Pieces per Month
- Any port of China
Product Details
Brand Name: | Skyray Instrument | Place of Origin: | China | Model Number: | EDX600Plus |
Product Description
Instrument Features
Quick Test
Within one second, you can get both the Karat value and content value of your gold sample.
Accurate
Testing result of our XRF is comparable to the fire assay.
Non destructive
XRF test will not destroy your gold sample.
Multi-functional
Besides the gold, the non precious metals, such as Ni,Cu and Zn which are frequently used in the jewelries can also be simultaneously tested by our XRF. What's more, our XRF can also be used to test the plating thickness of the gold plated jewelry.
Applications fields:
Jewelry factories
Jewelry shops
Pawnshops
Banks
Gold testing labs or fire assay labs
Refiners who buy and sell gold
Details of the EDX600PLUS is in the below table:
Specifications | |||
Measurement principle | EDXRF(Energy Dispersive X-ray Fluorescence) | ||
Measurement range | Au, Ag, Ni, Cu, Zn, Pt and Pd | ||
Measurement time | 40S-60S | ||
Sample Type | Solid, liquid and powder | ||
Detectiion Limit | from ppm to 99.99% | ||
Configurations | |||
Skyray copper x-ray tube | Tube voltage | 5KV-50KV | |
Tube current | 1μA-1000μA | ||
High Voltage Generator | Max voltage | 50KV | |
Spellman-USA | Stability | 0.001% per 8 hours | |
Proportional counter | Skyray patened proportional counter | ||
Single sample chamber | size | 439×300×50mm | |
Signal to Noise Enhancer | |||
High resolution CCD camera | |||
Software | |||
OS | WindowsXP, Windows7, Windows 8 and Windows 10. | ||
Calibration | factory made calibration as per customer's request for both | ||
qualitative and quantitative analysis | |||
Standard Accessories | |||
Power Supply Cable | |||
Checking sample | |||
USB cable | |||
Testing Film | |||
Sample Cups | |||
Installation Requirements | |||
Ambient Temperature | 15 ºC-30 ºC | ||
Ambient Humidity | 35%-75% | ||
Power Supply | 110V/220V | ||
Voltage Stablizer is recommended |
