Home > Manufacturing & Processing Machinery > Mould > Plastic Mould > Houseware Plastic Injection Mould Plastic Chairs
US$ 2,000 - 26,000
MOQ: 2 Sets
Key Specifications
Get Latest Price
Brand Name:
Chenhang Mould Factory
Place of Origin:
Zhejiang, China
Model Number:
CH-2018-S001
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Mold Design Wedding Chairs for Bride and GroomUS$ 9,500 - 9,500MOQ: 1 Set -
Injection Moulder for Automatic Mahjong TableUS$ 1,000 - 16,800MOQ: 1 Set
-
Plastic Chair Machine Mould Making Factory in TaizhouUS$ 1,000 - 13,800MOQ: 1 Set
-
Machinery Mould Plastic Chair Manufacturing ProcessUS$ 5,000 - 15,000MOQ: 1 Set
-
Plastic Chair Mold China SupplierUS$ 2,200 - 50,000MOQ: 1 Set
Brand Name
Chenhang Mould Factory
Place of Origin
Zhejiang, China
Model Number
CH-2018-S001
Product
Household Product
Shaping Mode
Plastic Injection Mould
Product Description
We are mould maufacture, we can provide you :A.Competitive priceB.High mould quality with guaranteedC.On time deliveryD.Strict quality controlE.All the mould produced follow on customers’ requirements
Following are the details for household ware plastic injection mould plastic chairs | ||||||
Product details | PP/PE material | 2.5mm thickness | ||||
take 1.5% shrinkage | with size 420x360x300 mm | |||||
material MFI 5 to MFI 35 | weight around 550g | |||||
Mould details | cavity and core use P20 steel | mould size is 660x600x520 | ||||
mould base with 45# | use cold runner by big gate | |||||
automatical mode | use stripper plate ejection for auto drop | |||||
Injection machine parameter for refering | Haitian 428T | Injection volume with 2000 g/cm³ | ||||
Production cycle time around 48s | Cooling time around 6s | |||||
Melt temperature around 220 ° | Non-automatic removal of the gates | |||||
We can offer you 2016 wholesale plastic laundry baskets new products kitchen tools
1) Professional & detailed response
2) In time complete quotation.
3) Professional and integrity designs & drawings.
4) Mold flow analysis report
5) Once a week mould process machining .

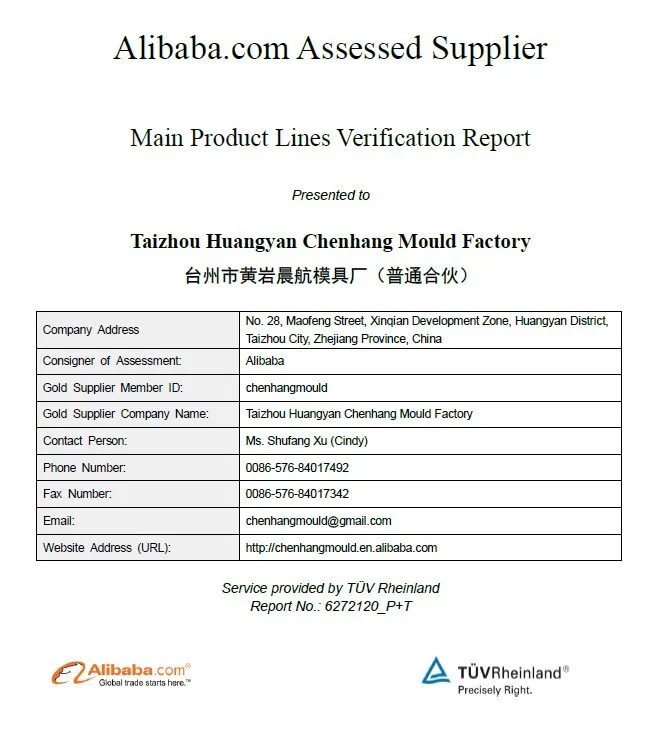

Certifications

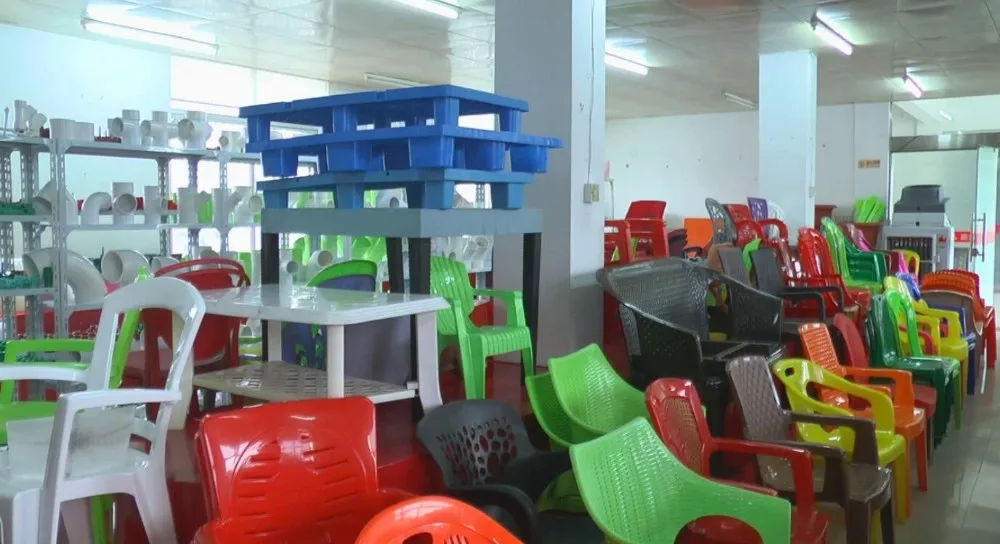

Detailed Images
Stable, powerful and technical staff.
Many years of experience in mould manufacturing.
Word advanced technology.
Technology bring all possibility.
For chenhang, technology means all.
Without technology, the product is abiosis;
Without technology, the production is inanition.
We are insisting on researching and developing.
For professional, to be highly respected.
Professional and persistent bring honor to Chenhang.
We maintain close cooperation with many standard
customers and our technicians thus be highly respected.
There is no royal road to learning. We have been striving
for years, then arrive at the existence of Chenhang.
Chenhang people are pursuing the ideal and gaining
the success with constant confidence and perseverance.
Our Service

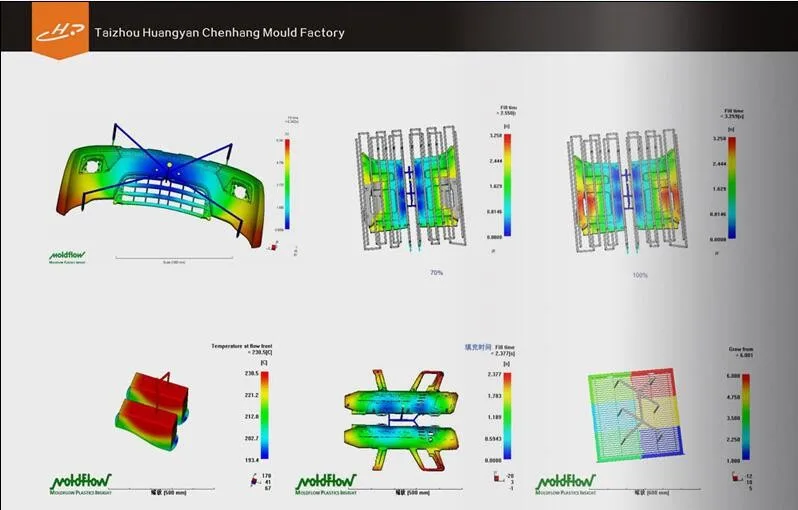

Mold flowing analysis
Before mold start, we will make mold flowing analysis, under simulation of material filling and forming the product, to check the design of gate is workable.

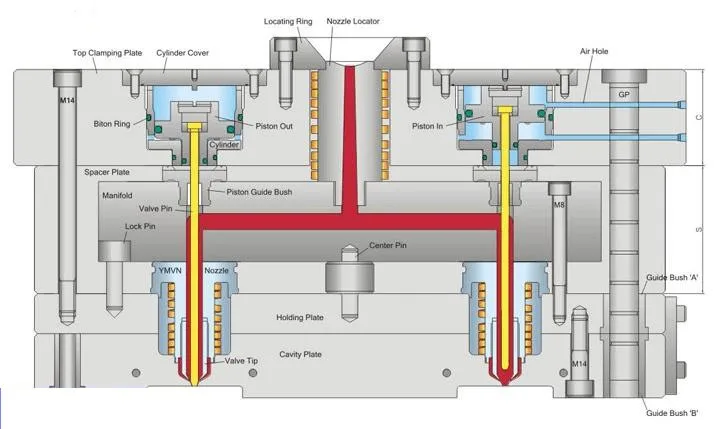

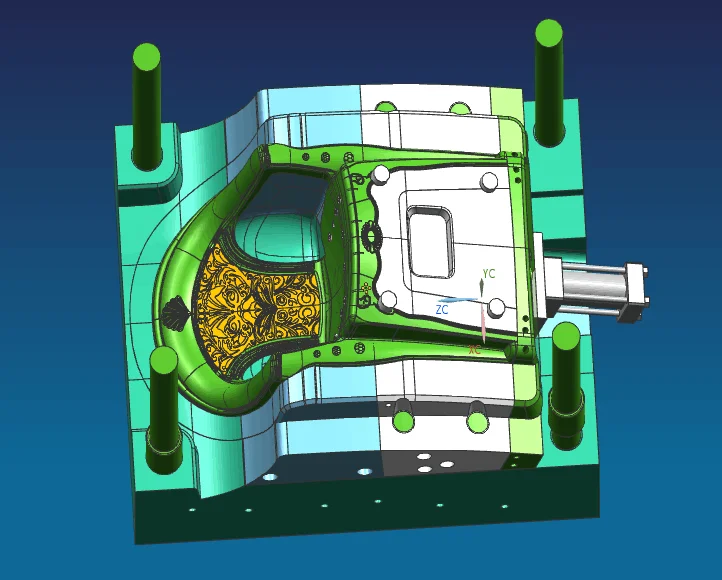

Mold 3d construction
After checked and confirmed the product, we will make mold construction to show everything clear in real mould.

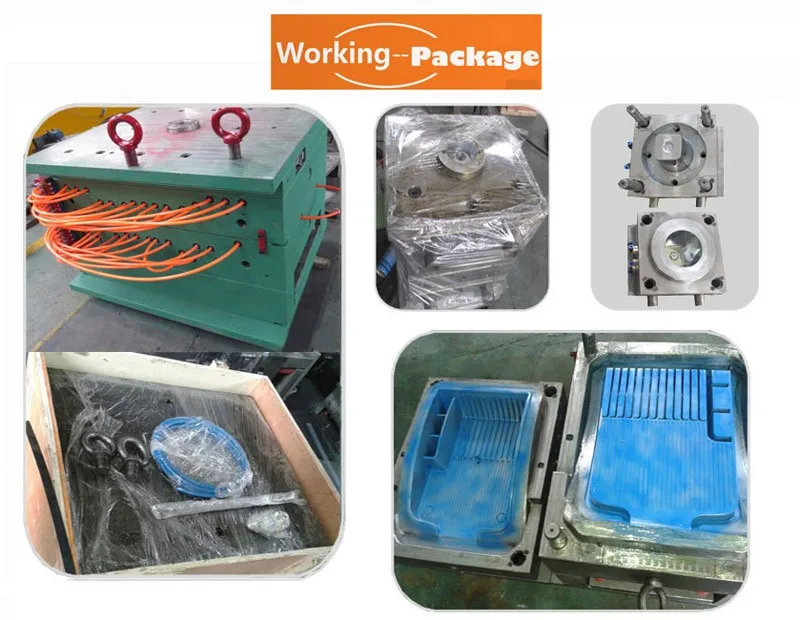

Packing & Delivery
Packaging | ||
Size | wooden box size 900x700x650mm | |
Weight | 1300kg | |
Packaging Details | The moulds covered with anticorrosive oil inside and plastic film outside. Final packed in wooden case.Or we can follow you to make your own special package for household ware plastic injection mould plastic chairs | |
Delivery | ||
Transport | by sea, by air or by railway | |
Terms | FOB or CIF | |
Transport Details | ||
Market and Map
From Ningbo/Shanghai To Taizhou By train, takes around 1 hour/ 3 hours
From Guangzhou to Taizhou
By airplane, takes around 2 hours
From Yiwu to TaizhouBy bus, takes around 3 hours
