SD non-intrusive intelligent electric actuator is the execution unit in industrial automation
instrument, it receives from the regulator, PLC, DCS control signal from the computer, suchas the completion of automatic adjustment, is indispensable to automatic control system for main equipment. It is widely used in power station, metallurgy, petroleum, chemical mine,light industry, pharmacy, gas power, building materials, transportation and city subway,water supply, sewage treatment and other industries.
Electric actuators are classtfied according to output: Quarter turn actuator:
Also known as part of the return receipt actuators, general rotation range of 0-90°, the output torque in Nm. Mainly used for: butterfly valve, ball valve, shutter type valve, damper, baffle and plug valve.
Linear-turn actuator:
The output is indicated by N, and the output is a linear displacement.Mainly used for single, double seat control valve, sleeve valve, gate valve, etc.
Multi-turn actuator:
Output torque in Nm, more than 360 rotation. It is mainly used for gate valve, globe valve, slide valve, high temperature and high pressure regulating valve, etc.

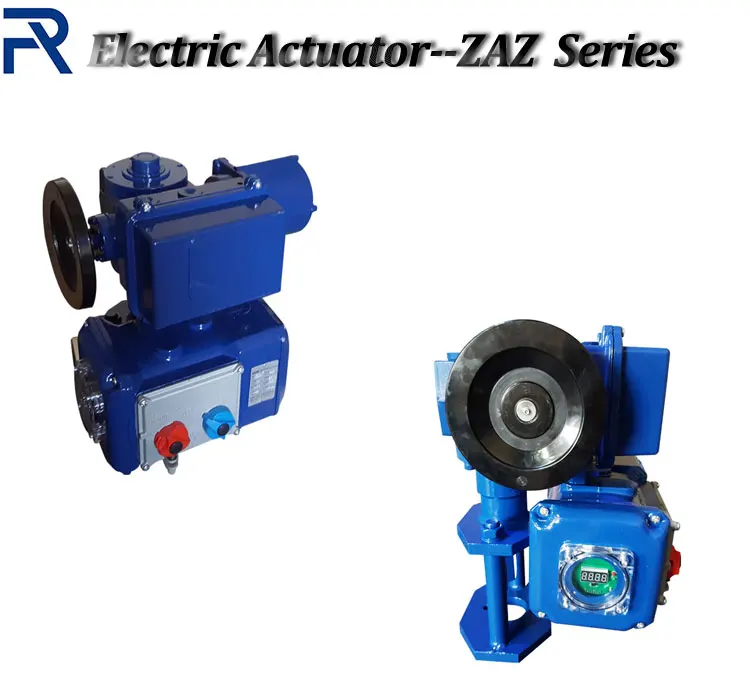

About A+ZAZ64K/F:
ZAZ64K/F are linear-turn electric actuators in SD series.Linear-turn electric actuator is an electric
actuator which outputs linear displacement and can be used to control various control valves in need of linear displacement, such as single ano double-seat control valve, sleeve control valve, high temperature and high pressure water supply valve, desuperheater water and other control valve.
Linear-turn actuator The outout is indicated by M, and the output is a linear displacement Mainly used for single, double seat control valve, sleeve valve, gate valve, etc.
Shipment Term:
1. Orders processed timely after the payment verification .
2. Terms of Deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment Term:
1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.
2. Advance payment should be made within 3 days of order .
Our company provides you with the following services free of charge:
1. All-round electric actuator and valve technology selection service
2. High-quality post-product maintenance and technical analysis services
3. Accept other related cooperation.
