Help CenterLinear Turn Modulating Electric Actuator Valve ST14/16+VE50R/2
Related Products
-
On-off Type Intelligent Electric Linear Turn Actuator Skz-4200f Skz-4200kUS$ 470 - 1200MOQ: 1 Piece -
SD Series High Torque Linear-turn Electric Actuator Skz-4100f Skz-4100kUS$ 400 - 1390MOQ: 1 Piece
-
Actuator Motor Accessories Electric Actuator Sh600f30 Sh600k30 Sh250f30 Sh250k30US$ 350 - 1200MOQ: 1 Piece
-
Features of Electric Actuator Uses of Electric Actuator Rj600f30 Rj600k30 Rj100f25 Rj100k25US$ 400 - 1390MOQ: 1 Piece
-
SD Intelligent Electric Actuator With Angular Travel Rd600f30 Rd600k30 Rd250f30 Rd250k30US$ 470 - 1300MOQ: 1 Piece
Motion Mode |
|||||||
Quarter-turn |
Multi-turn |
Linear-turn |
|||||
|
Torque 4000Nm |
Torque 1~100KNm |
Torque 60~6000Nm |
Torque 10~10KNm |
||||
|
Environmental Conditions
|
General Environment
|
Control Mode
|
On / Off |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
S1S2S3S4 |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
|||
|
Explosive and Flammability
|
On / Off |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
||
S1S2S3S4 |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
|||
Linear-turn electric actuator is an electric actuator which outputs linear displacement and can be used to control various control valves in need of linear displacement, such as single and double-seat control valve, sleeve control valve, high temperature and high pressure water supply valve, desuperheater water and other control valve. Explosion-proof Grade : IP67.
ST+VE/SRA+VE series linear-turn electric actuator has achieved an excellent reputation over the years in this market thanks to a range of actuators providing the following features:
Compact construction with a high output torque
Self-locking gear train to maintain the position of the valve when the actuator is de-energized
Very good resistance to vibrations
Very simple settings - no specific tool required
Adjustable mechanical travel limit stops to prevent overtravel
Removable drive socket for easy machining
Emergency handwheel and mechanical position indicator provided on all actuators as a standard

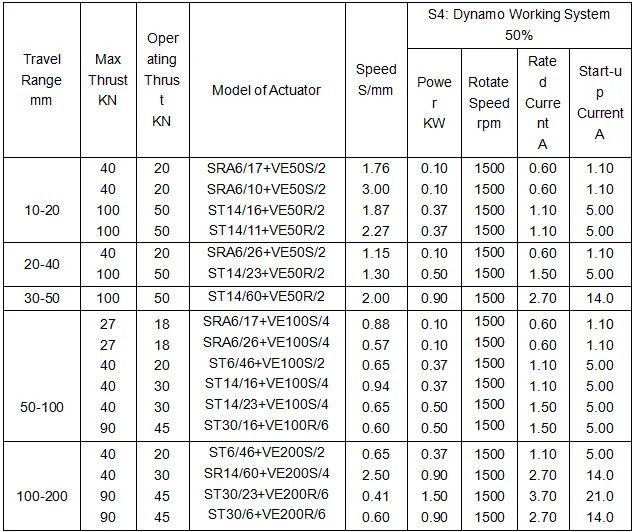

3-phase power 380v, 50Hz

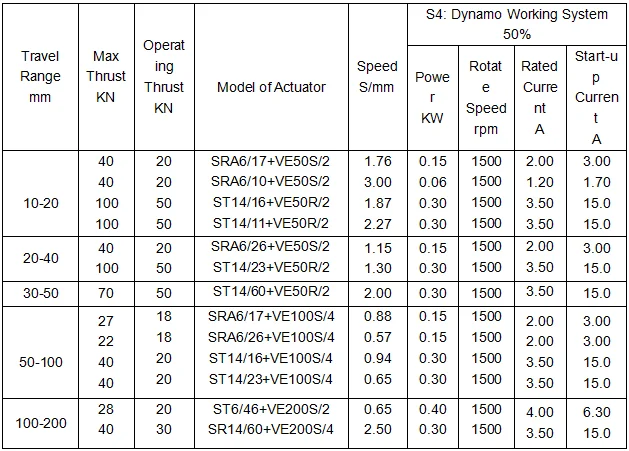

Single phase power 220v, 50Hz

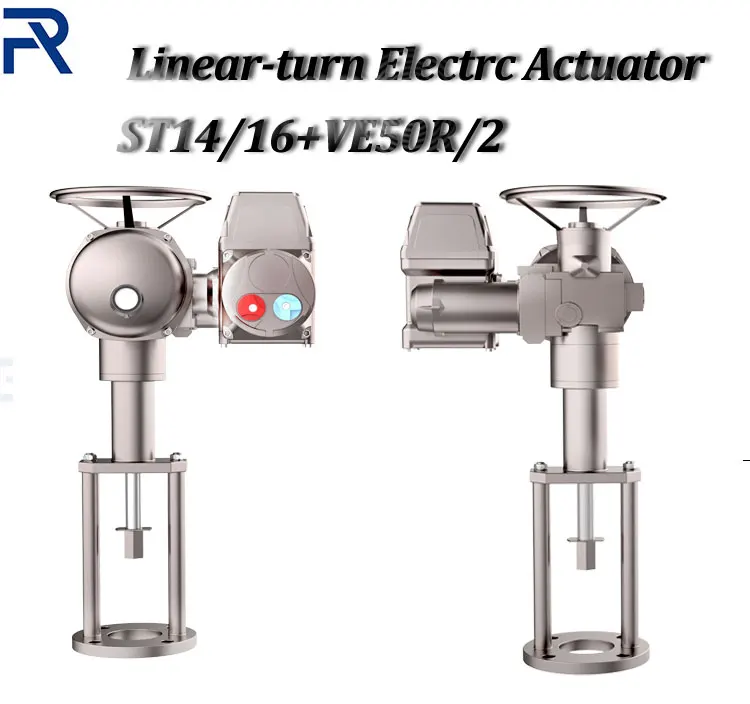

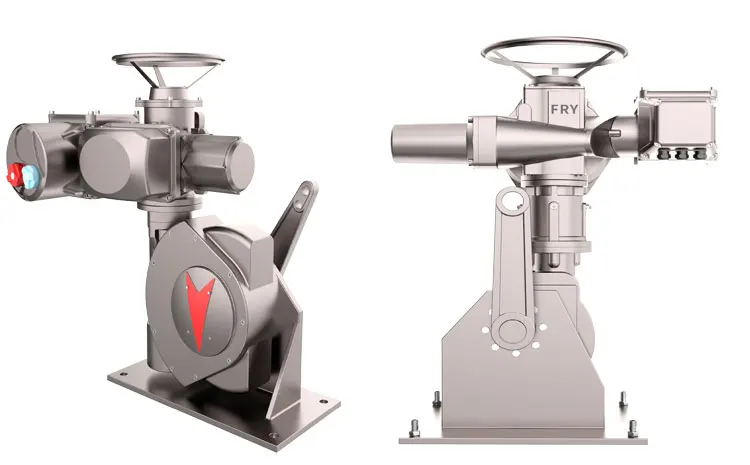

ST(SRA)+VE Linear-turn Actuator
1. Easy limit adjustment
2. Self-locking at all speeds
3. Continuous gear transmission between motor and valve
4. Excellent vibration resistance on main mechanical components
5. No regular maintain required, gear lubrication is effective throughout its service life
6. High gear system efficiency and low wear
7. High performance and low noise
Hand wheel does not rotate during electrical control; automatic manual and motor operation switching.

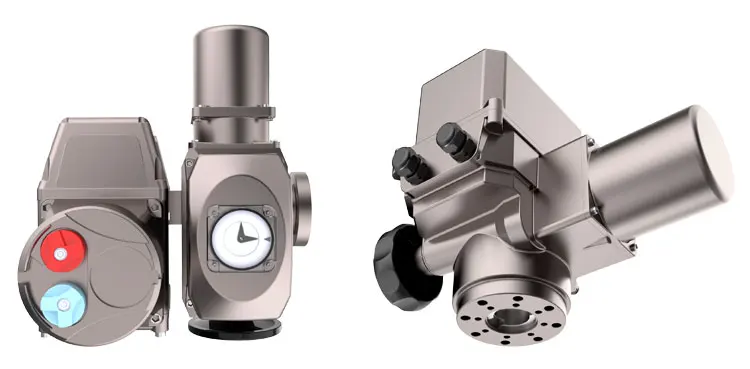

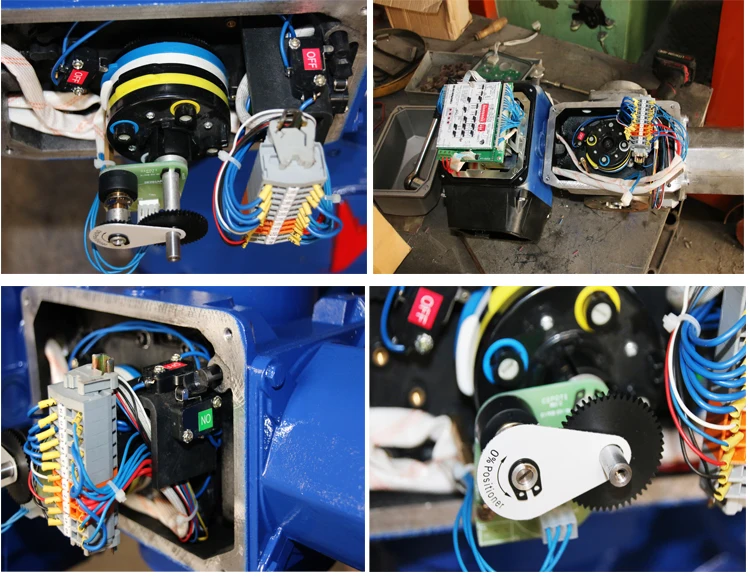

Internal wiring

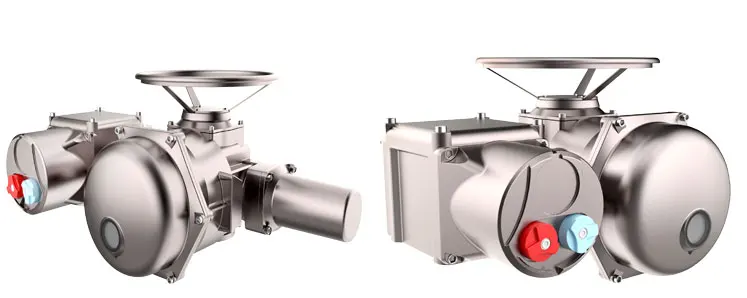

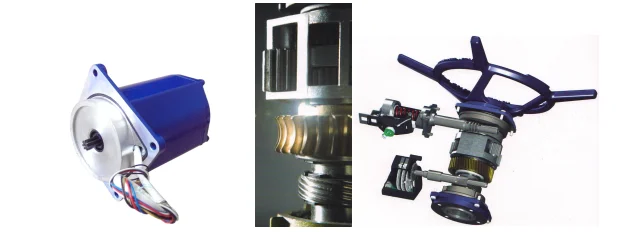

The asynchronous motor used on Bernard electrical actuator provides the highest nominal torque ratio on starting, which makes it competent in coping with all difficult situations and frequent starting operations.
1. Asynchronous motor provides high torque on starting
2. Motor overload protection
3. Motor overheat protection
Motor insulation grade F
ASP,OA series quarter-turn electric actuators
ST+RS series quarter-turn electric actuators
ST series multi-turn electric actuators
1. Orders processed timely after the payment verification .
2.Terms of deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment:
1. We accept TT,D/A,/D/P,L/C, West Union with 30% Deposit.
2. 30% Initial payment must be made within 3 days of order .and 70% TT before delivery.
Documents:
1.Certificate of origin:CO,FORM A.FORM E,FORM F,FORM X ISSUED BY CCPIT / Chamber of Commerce.
2.Commercial invoice
3.Packing list
3.Quanlity certificate.
