Good -looking Custom Made All Kinds Injection Plastic Molding Spares Cost for Injection Molding Molds

FOB Price

US$ 1,000 - 1,000 / Set

1 Set(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OEM	Place of Origin	Zhejiang, China
Model Number	JJ-18411	Product	Household Appliance
Product Material	Plastic	Shaping Mode	Plastic Injection Mould

Product Description

Products Description

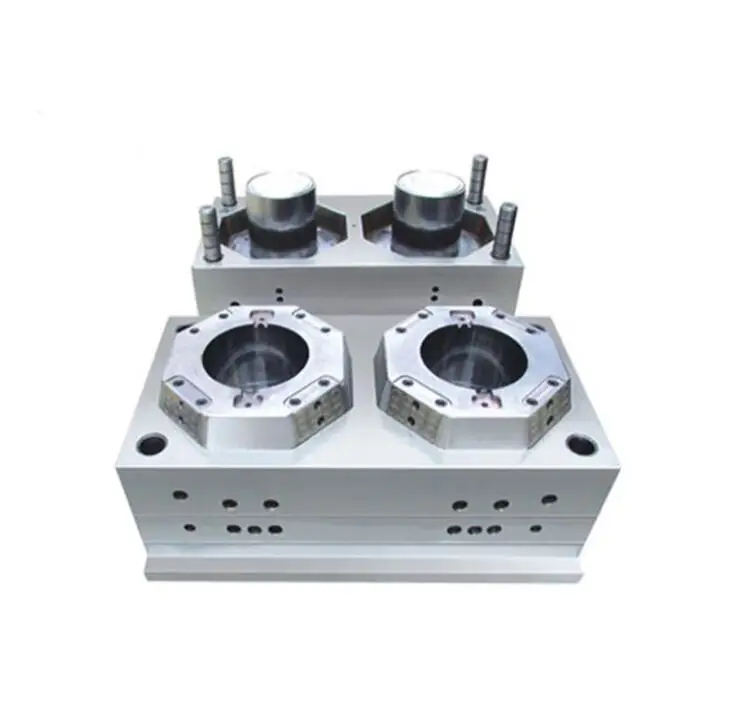

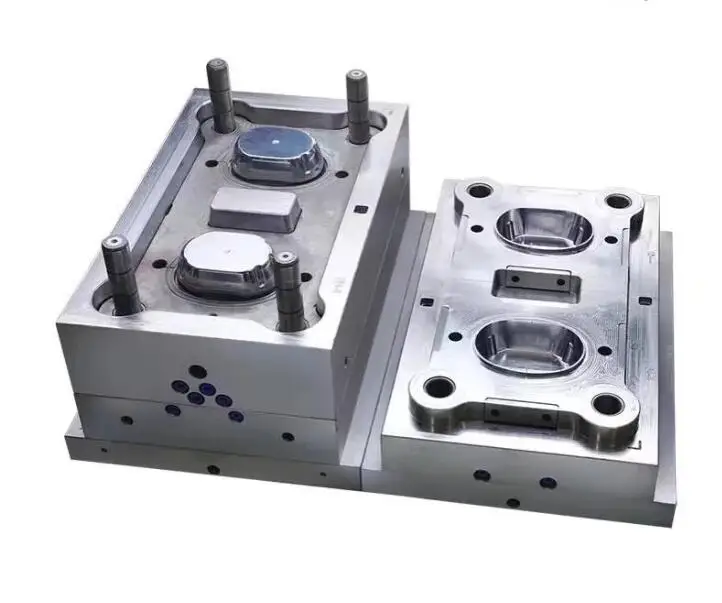

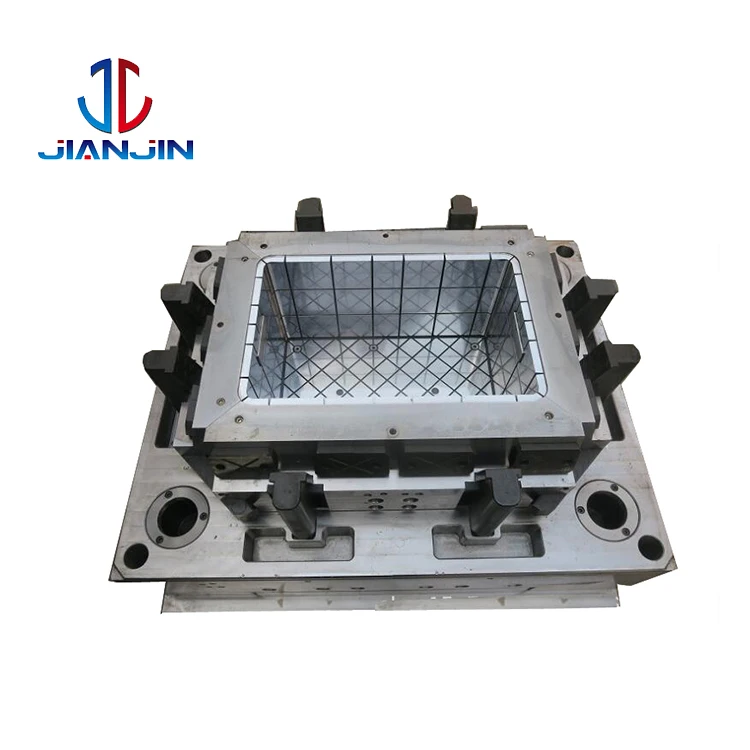

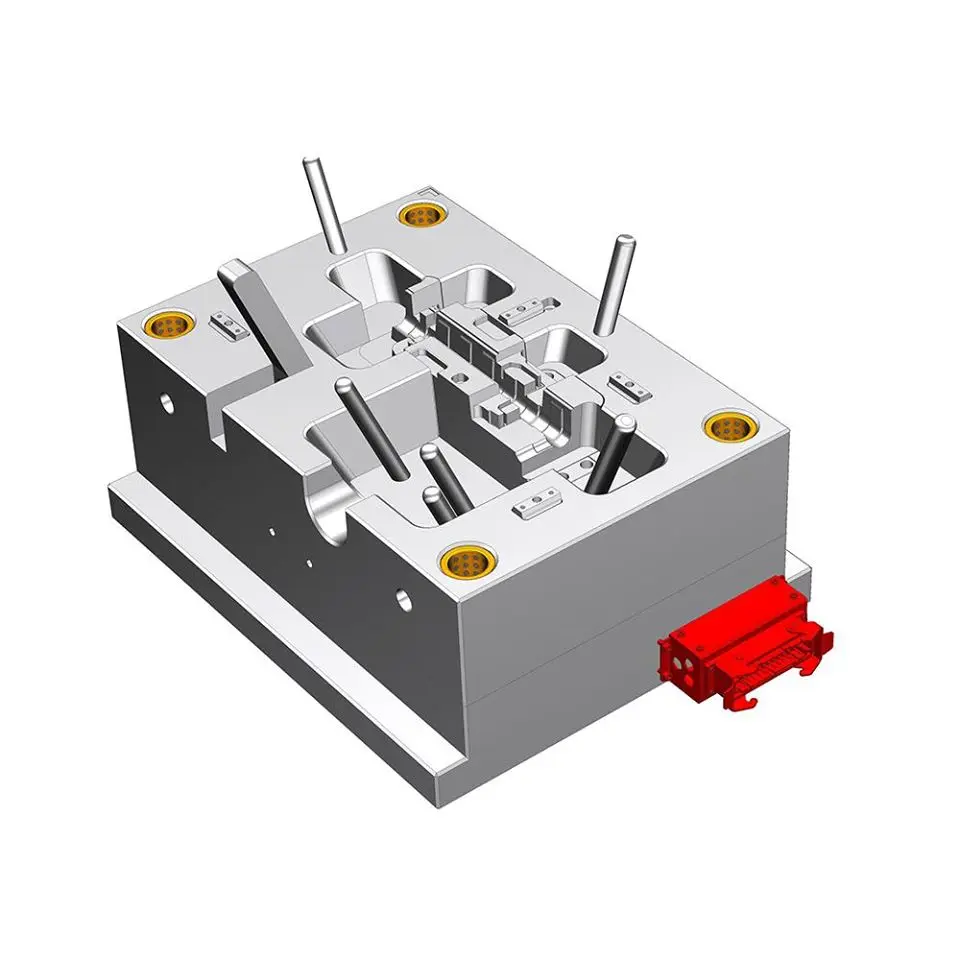

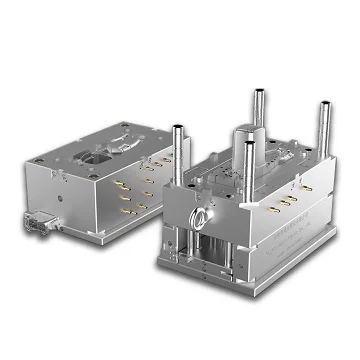

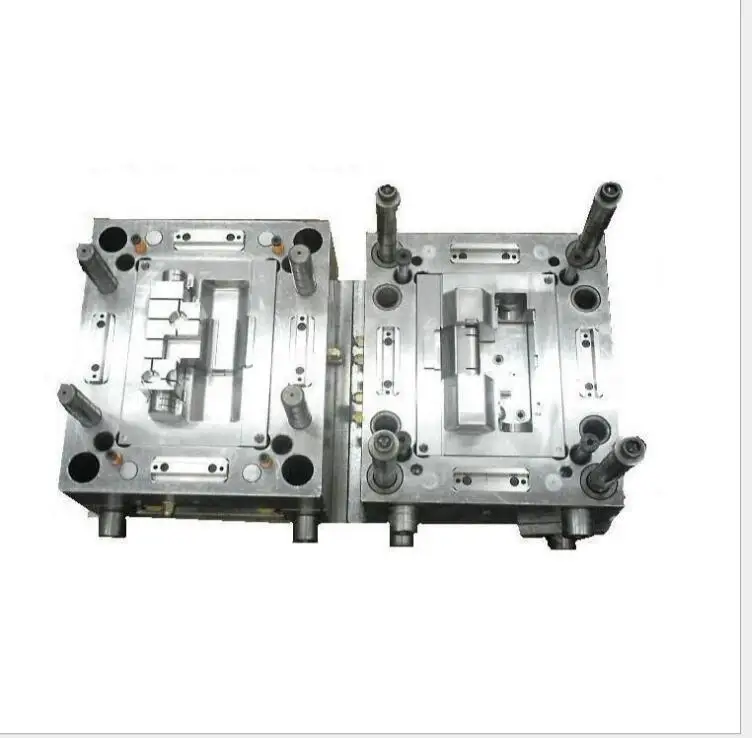

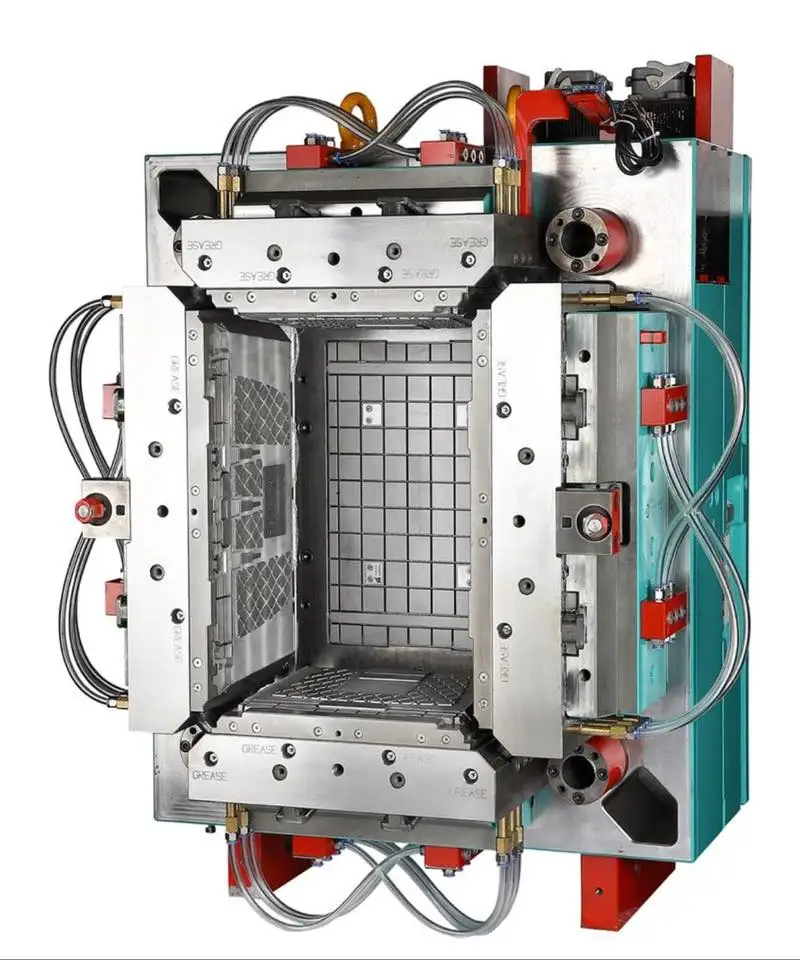

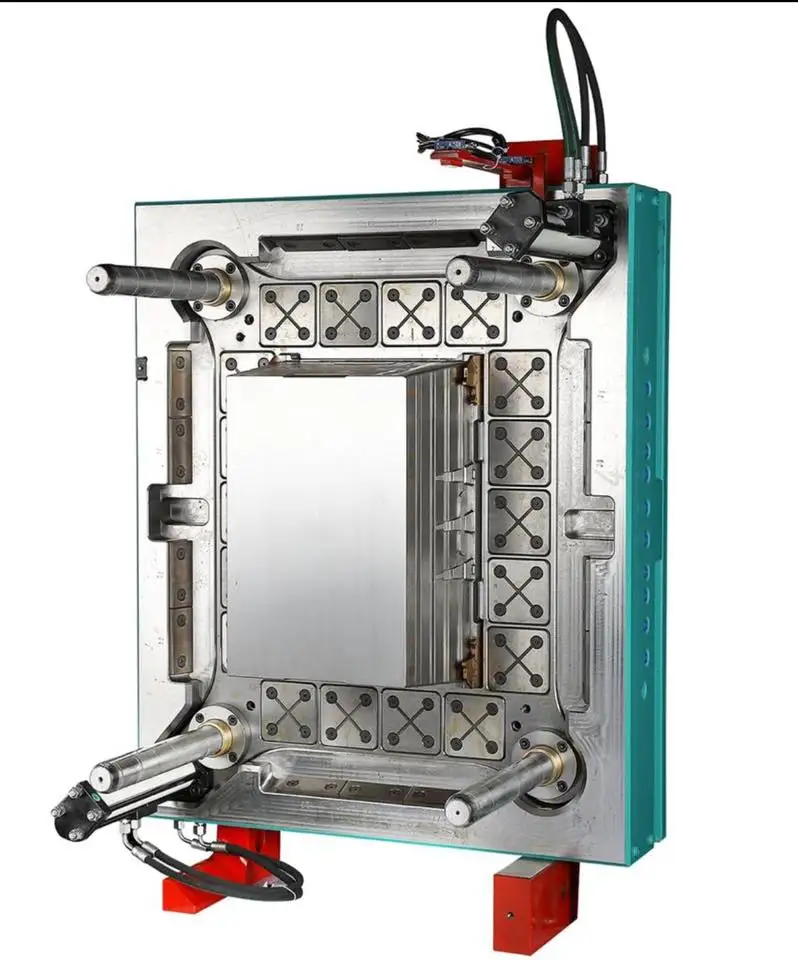

Mold product details

Mould Type	China Top Tool Maker MIM injection Multi-Cavity Moulding Mold
Design Software	UG, ProE, Auto CAD, Solidworks, etc.
Mould Material	718H, P20, NAK80, S316H, SKD61, etc.
Hardness of the steel	20~60 HRC
Mould Base	HASCO, DME, LKM, etc.
Runner	Hot runner, Cold runner, as per customers requirement and part structure.
Mould Cavity	Single-cavity or Multi-cavit, as per customers requirement and part structure.
Ejection Techniques	Pin ejection, sleeve ejection, bar ejection, blade ejection, etc.
Gate Type	Edge gate, sub-gate, pin gate, side gate, etc.
Mould hot treatment	Quencher, Nitridation, Tempering, etc.
Mould Cooling System	Water cooling or Beryllium bronze cooling, etc.
Mould Surface	EDM, texture, high gloss polishing
Mould Life	>500,000 shots
Equipments	High speed CNC, standard CNC, EDM, Wire cutting, Grinder, Lathe, Milling machine, plastic injection machine
Raw material of metal injection	316L,17-4ph,420,440c,al203,zr02,si02,fe,ndfeb,smco5,fe-si,wc-co,fe-2ni,fe-8ni,ti,ti-6al-4v, etc.
Lead time	25~60 days

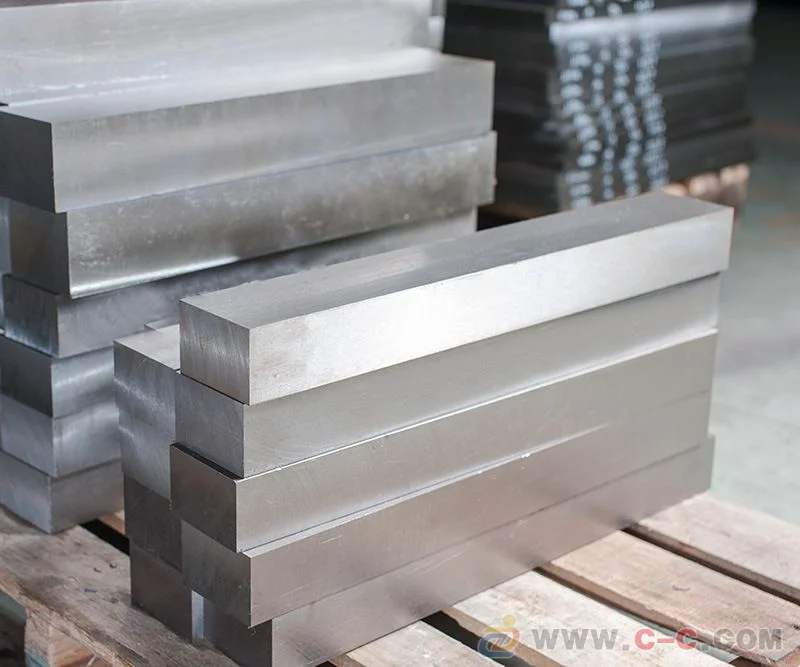

Detail information of mould steel

Mould material	Mould hardness	Mould life
P20	HRC 29-33	300000 shot
H13	HRC >43	500000 shot
718	HRC 30-36	500000 shot
S136	HRC 48-52	1000000 shot
2344	HRC >48	800000 shot

Manufacturing Process

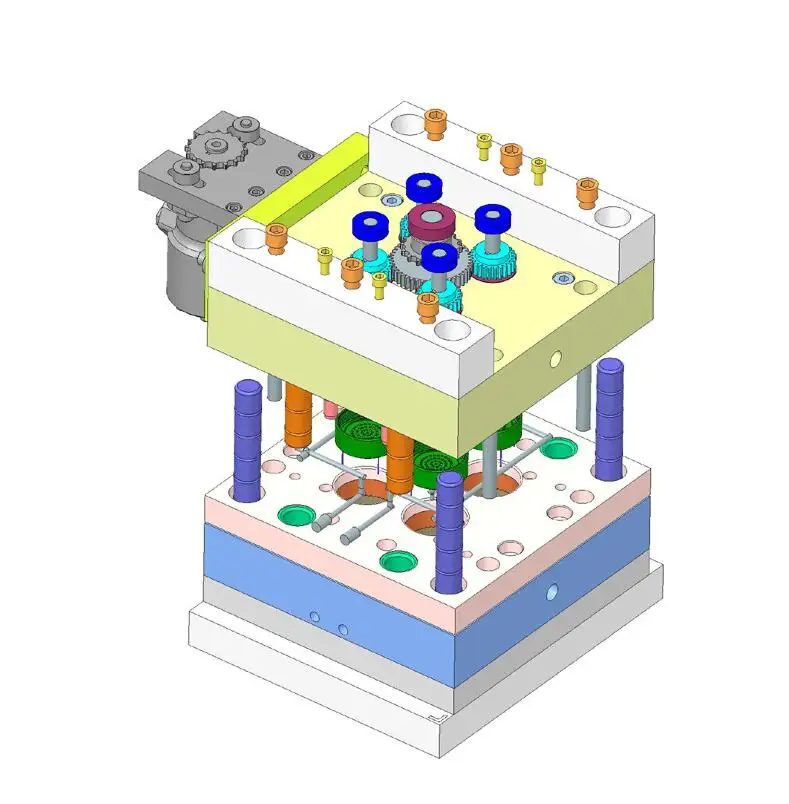

1. Design molds

2. Purchase mold base & re&cavities material

3. CNC machining

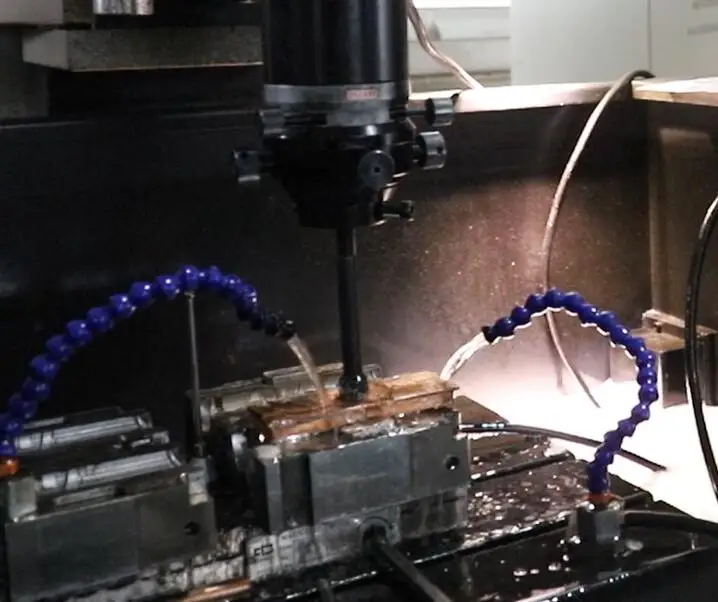

4. EDM machining

5. Grinding &Driling machining

6. W-cut machining

7. Design molds

8. Assembly molds

9. Trial run TO samples

10. Inspection samples.

11. Silk screen logo

12. Batch production and delivery after sample confirmation

our company

Yuyao Jianjin Plastic Co.,Ltd

Our company was founded in 2012, mainly engaged in the development and manufacture of precision injection mold.The company has 3 senior mould design and manufacturing engineers, 5 senior technicians, specializing in injection molding, communication and other work, providing help for our lean manufacturing.Thanks for the customer's support, we established the injection molding production
line in 2014.The company now has 10 90-1100t injection molding machines and more than 50 employees.In 2018, the plastic industry co., LTD mainly engaged in overseas business was established.Look forward to building a good relationship with you.

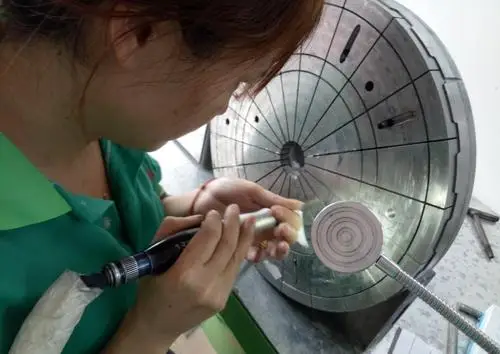

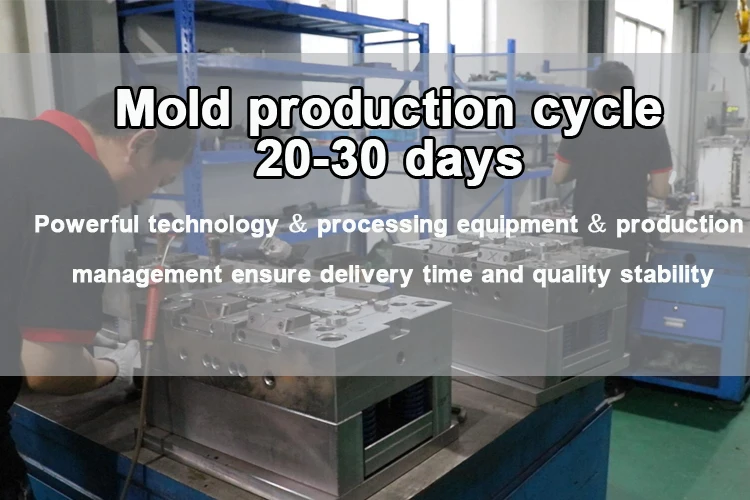

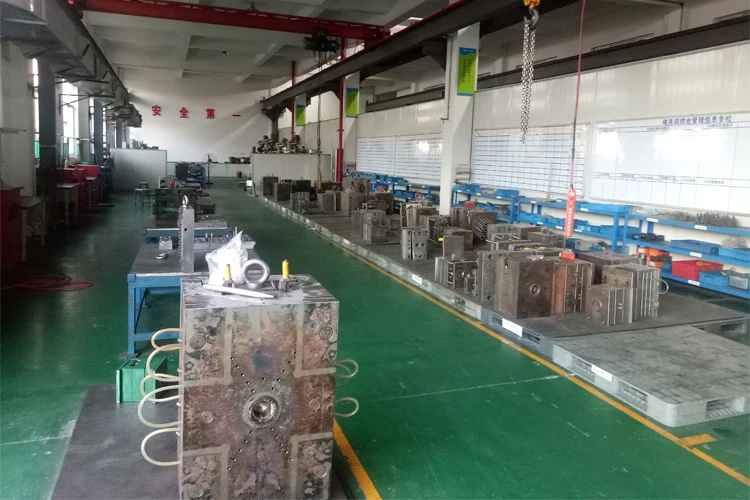

Mold Making Shop

Jianjin has its own mold assembly workshop of 500 square meters. Seven mold engineers are responsible for mold manufacturing, maintenance and daily maintenance.

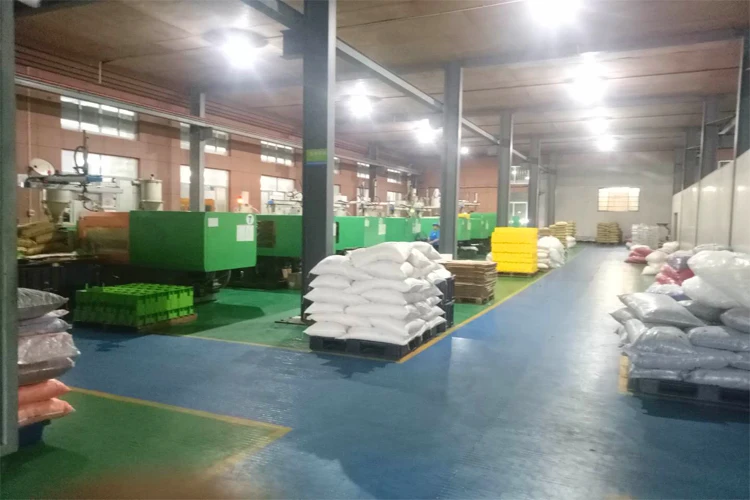

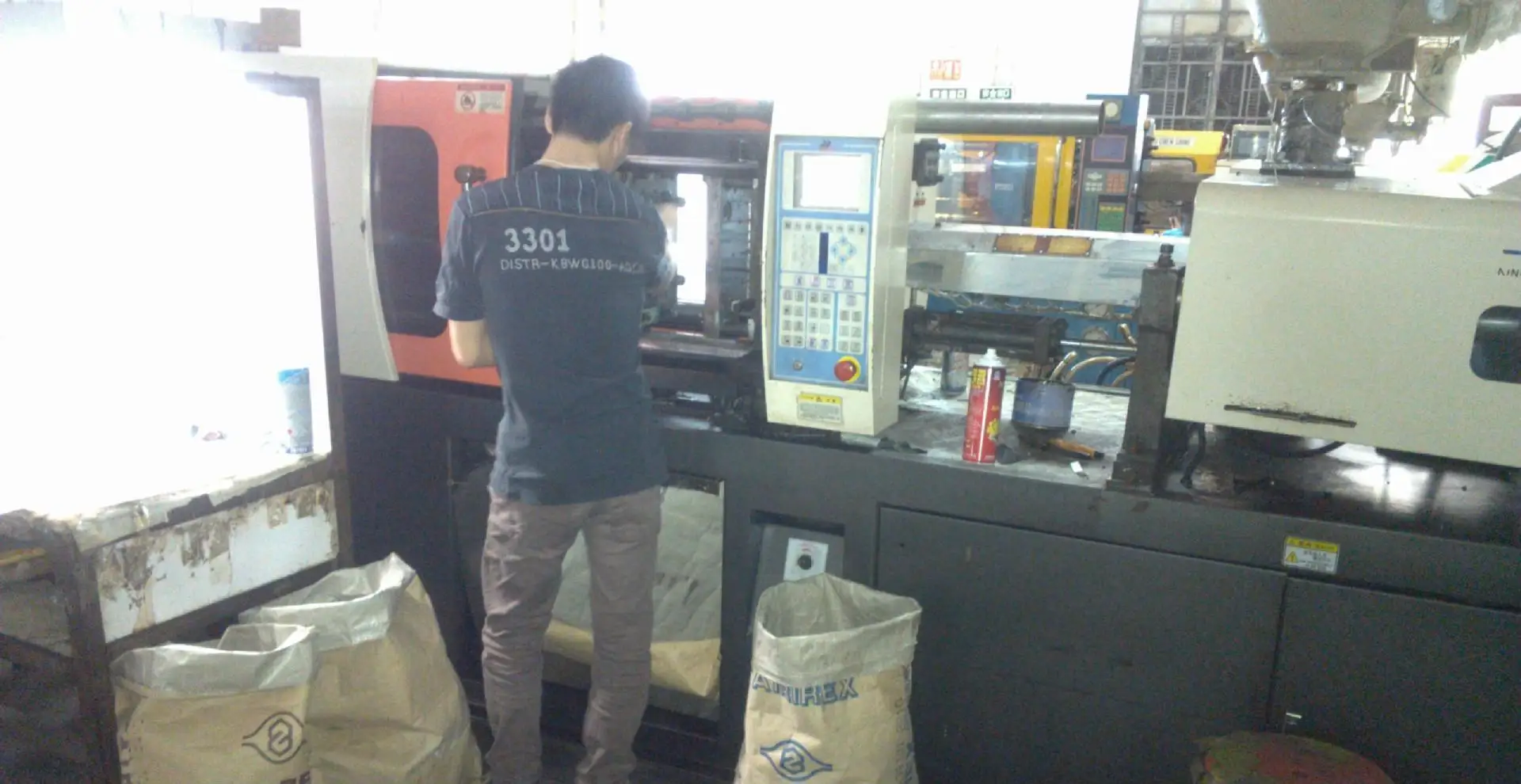

Injection Molding Shop

Jianjin has 10 sets of 90-1100 ton injection molding machines and 1500 square feet injection molding room. We can produce 0.01-13 pound parts.

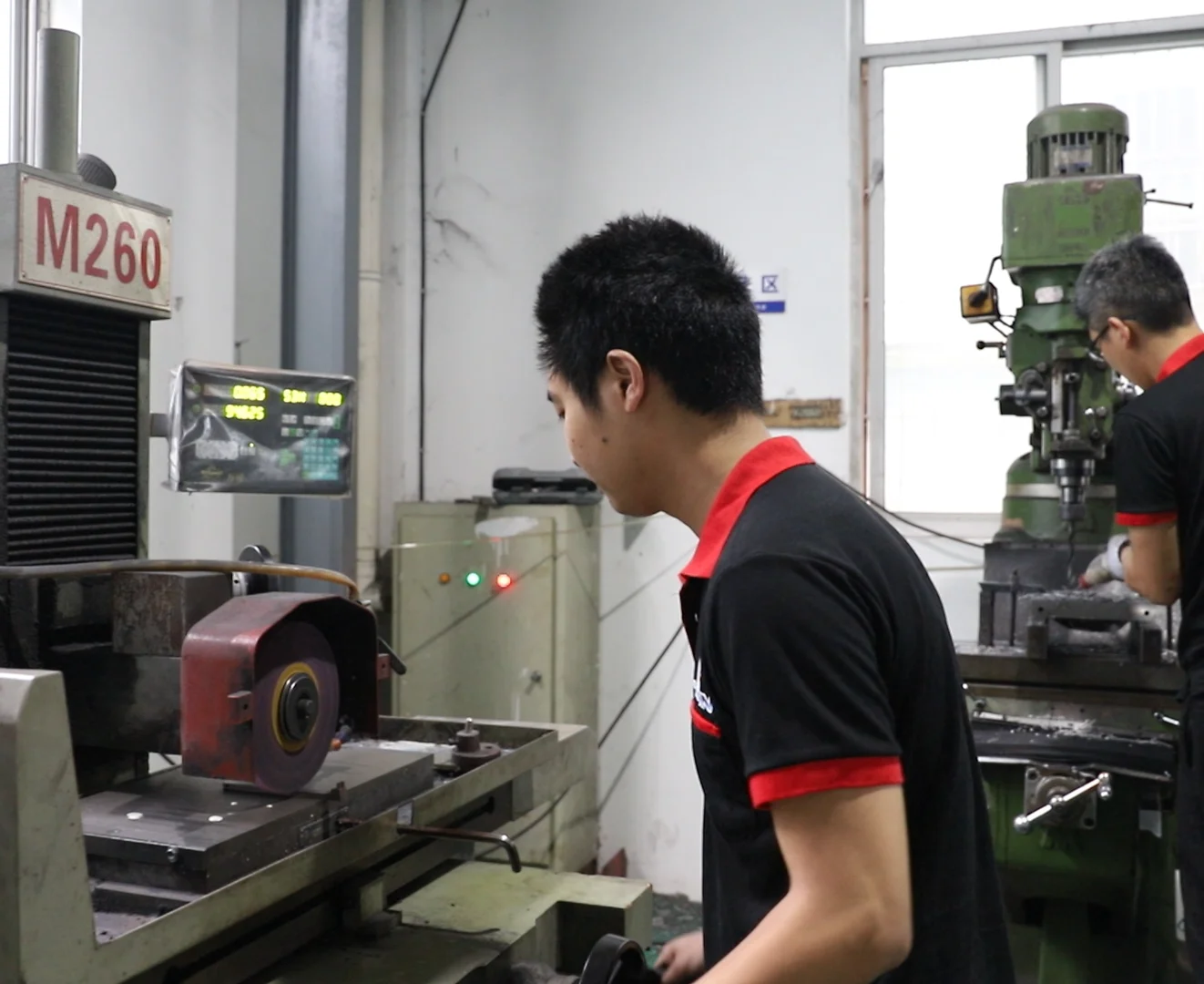

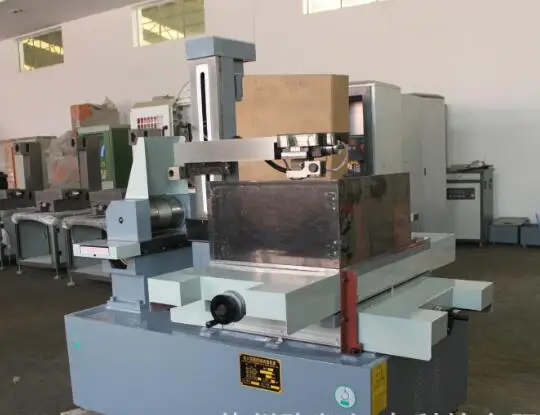

Machining workshop

Jianjin has its own mold manufacturing workshop of 1000 square meters, CNC, EDM, w-cut, engraving machine, milling machine, drilling machine, CNC lathe.

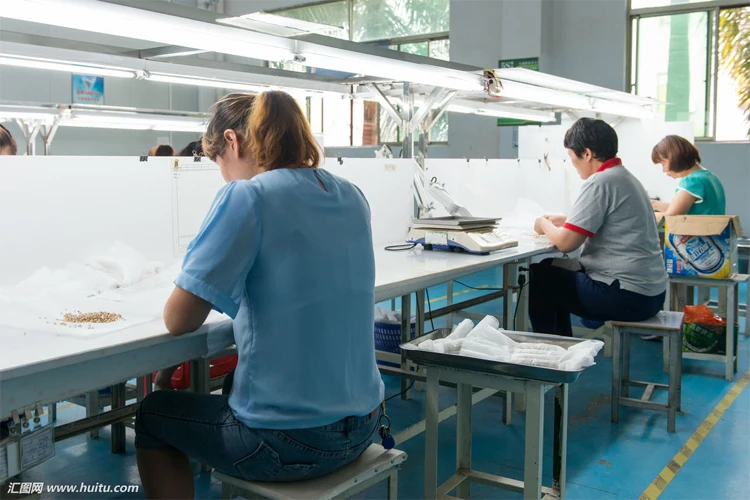

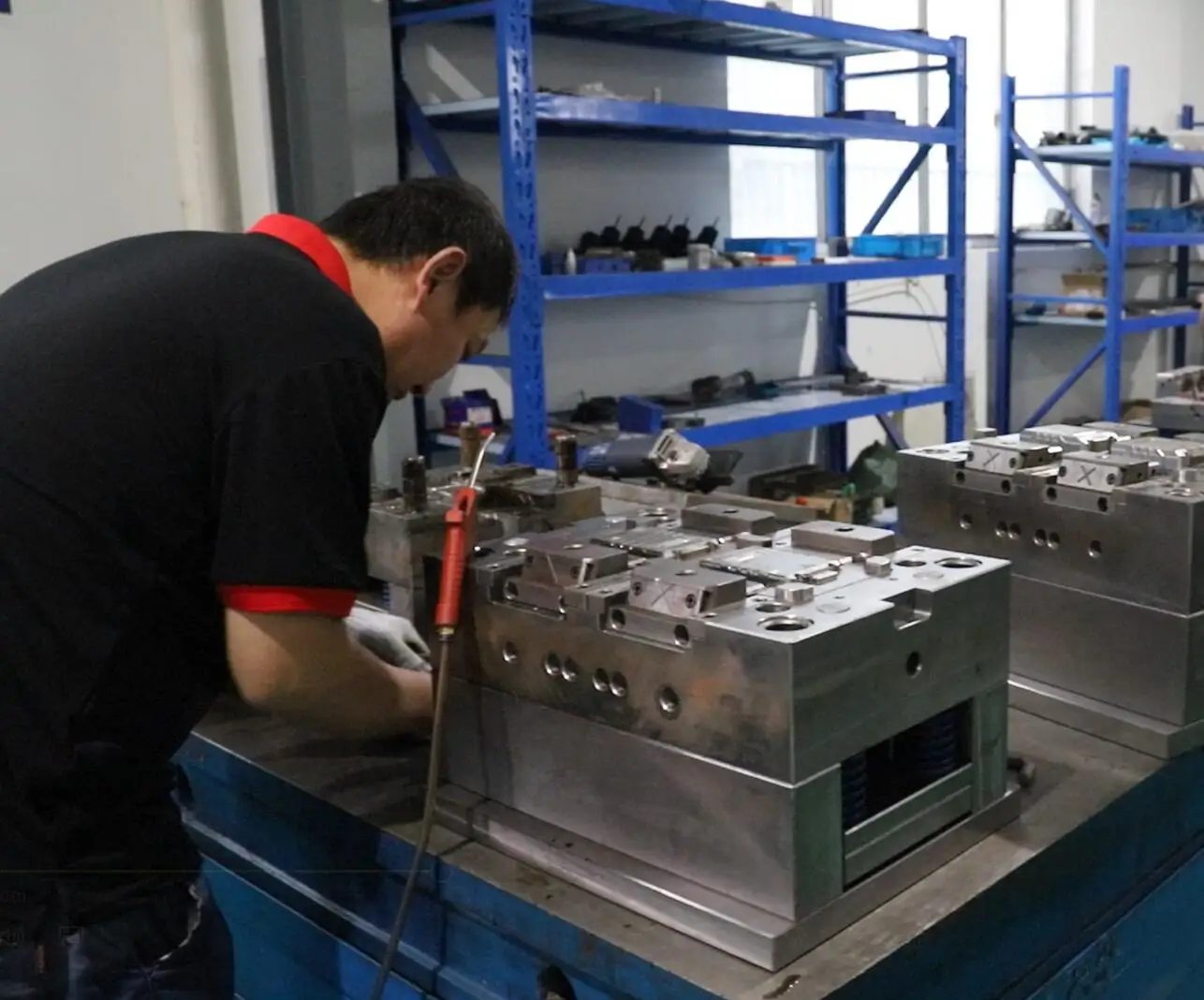

Assembly shop

We Also Provide Assembly Service For Our Customer.

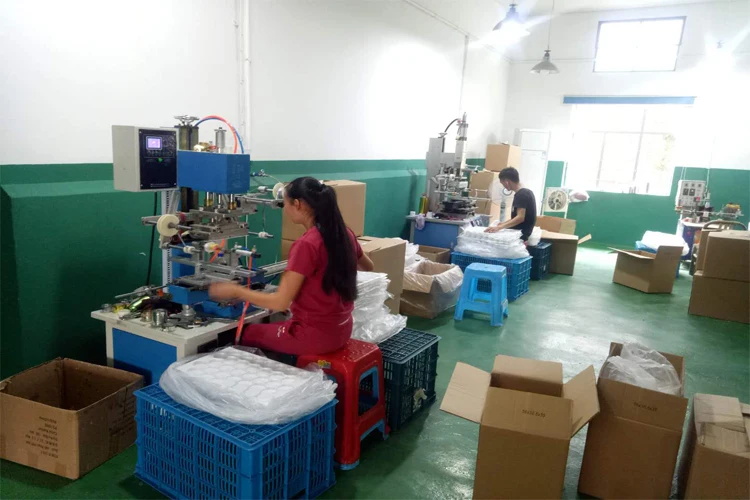

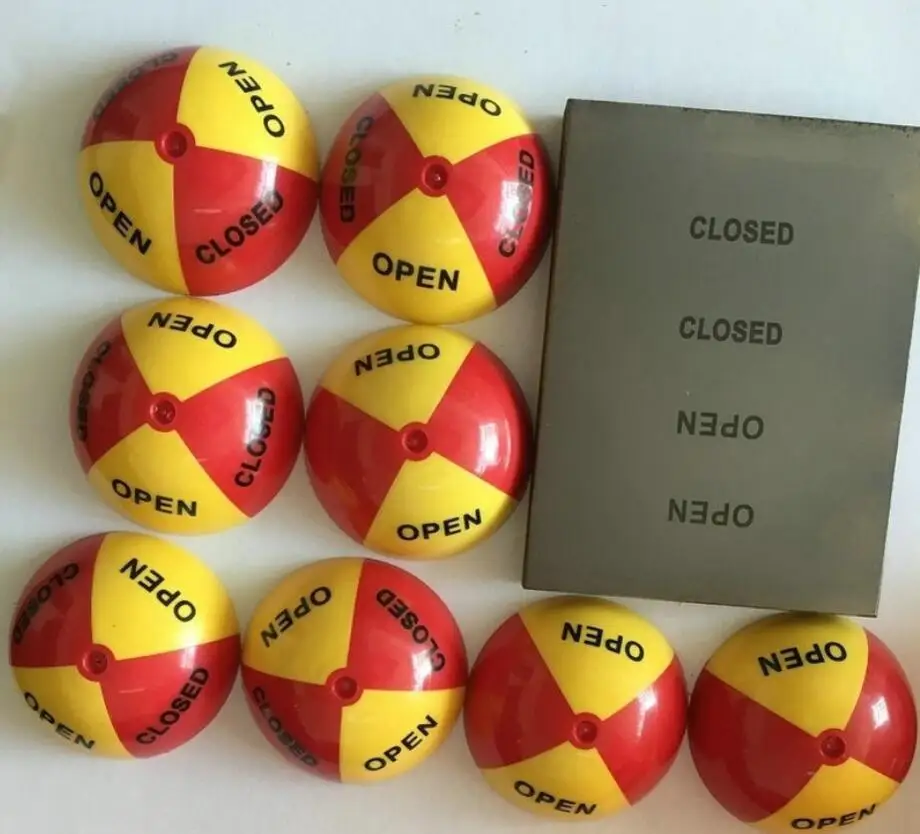

Printing workshop

We Also Provide Silk Screen Printing, Pad Printing, Heat Transfer Print Service.Widely used in cosmetics, medical devices, auto parts, home appliances, etc

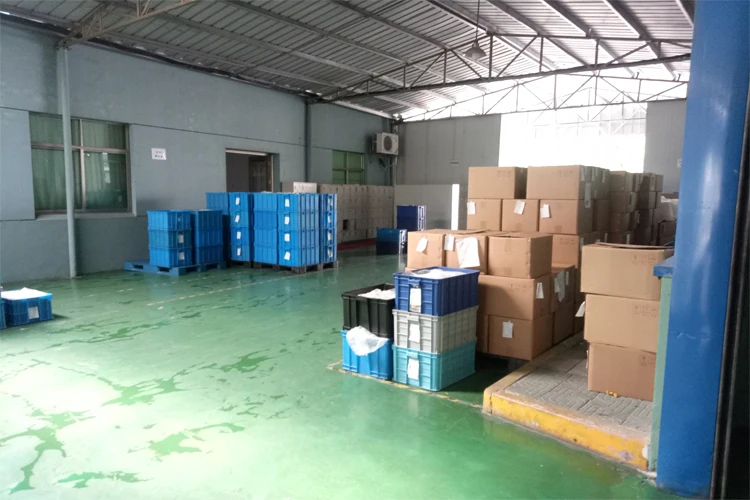

Well Organiced Warehouse

Jian jin has more 500 square feet warehouse which is Well Organiced,we have divied areas for different function and even a have a special area for FDA certified raw material which is only produced in clean room.

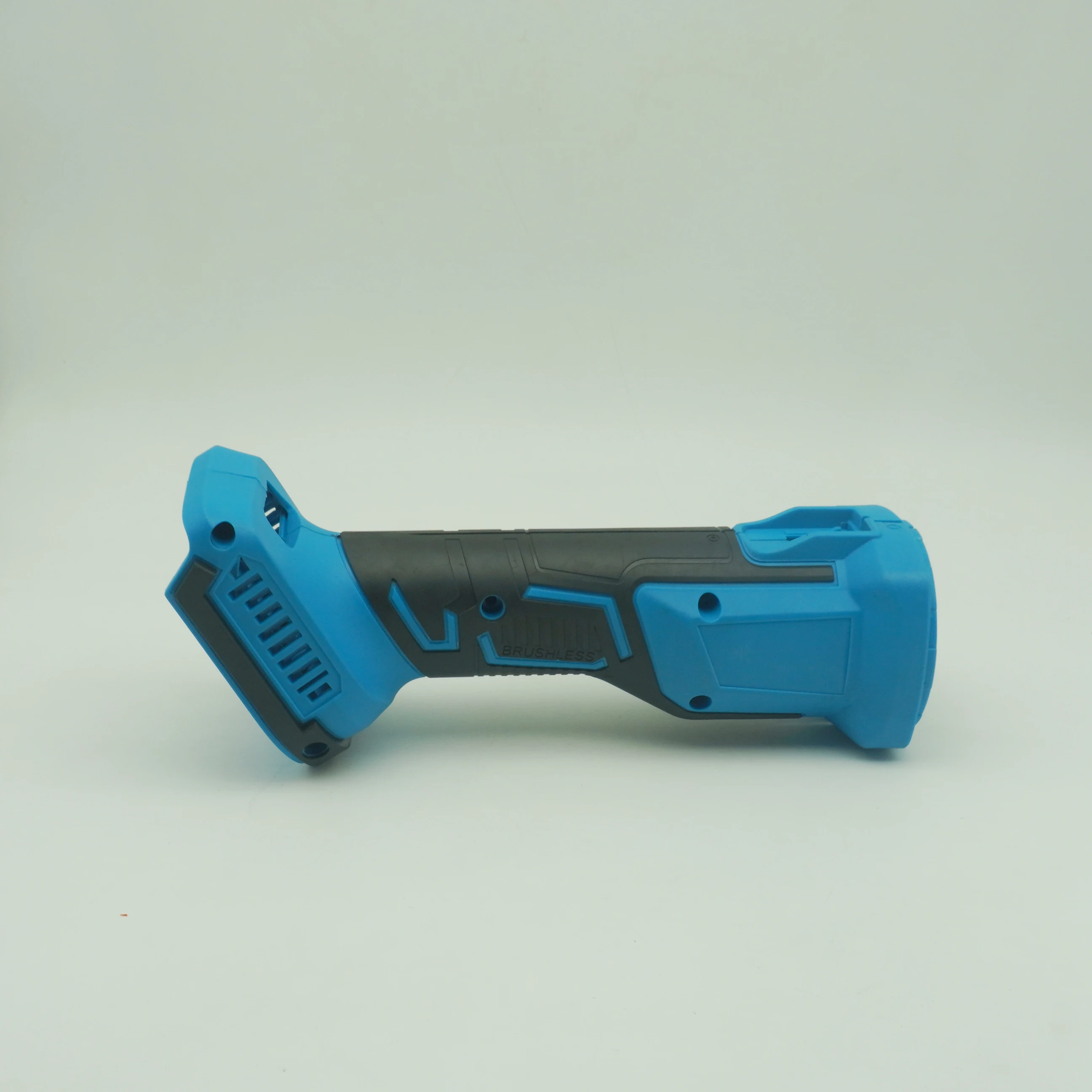

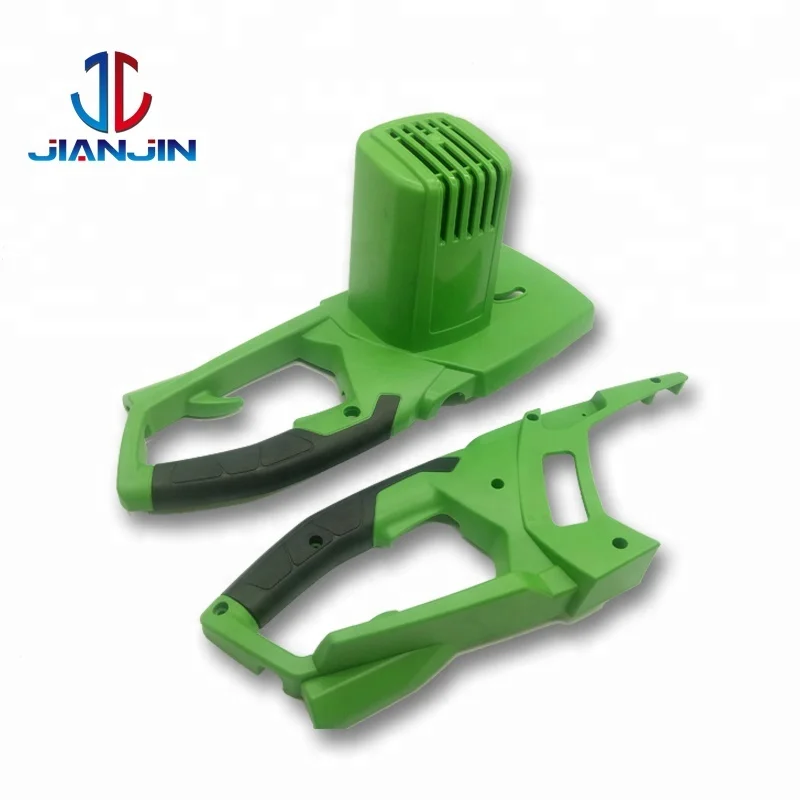

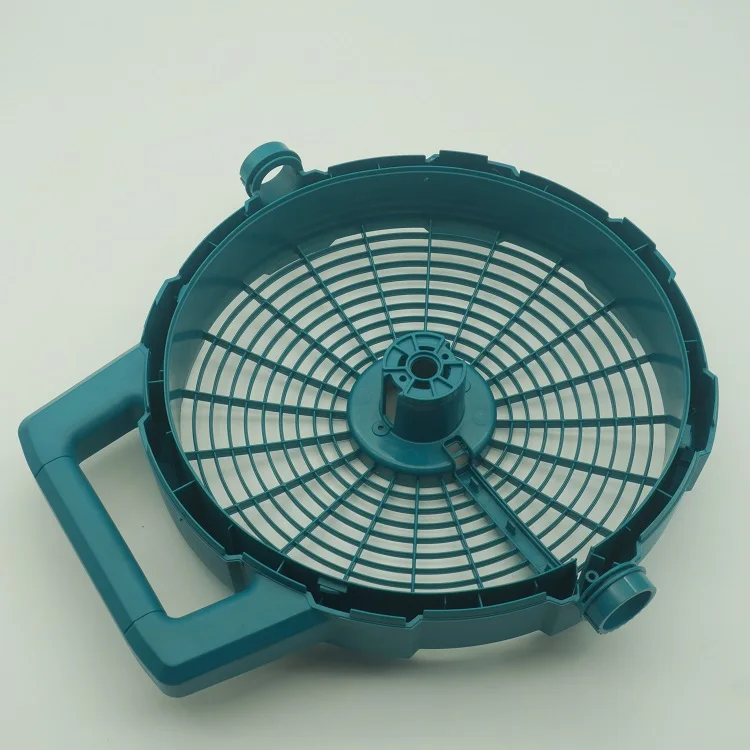

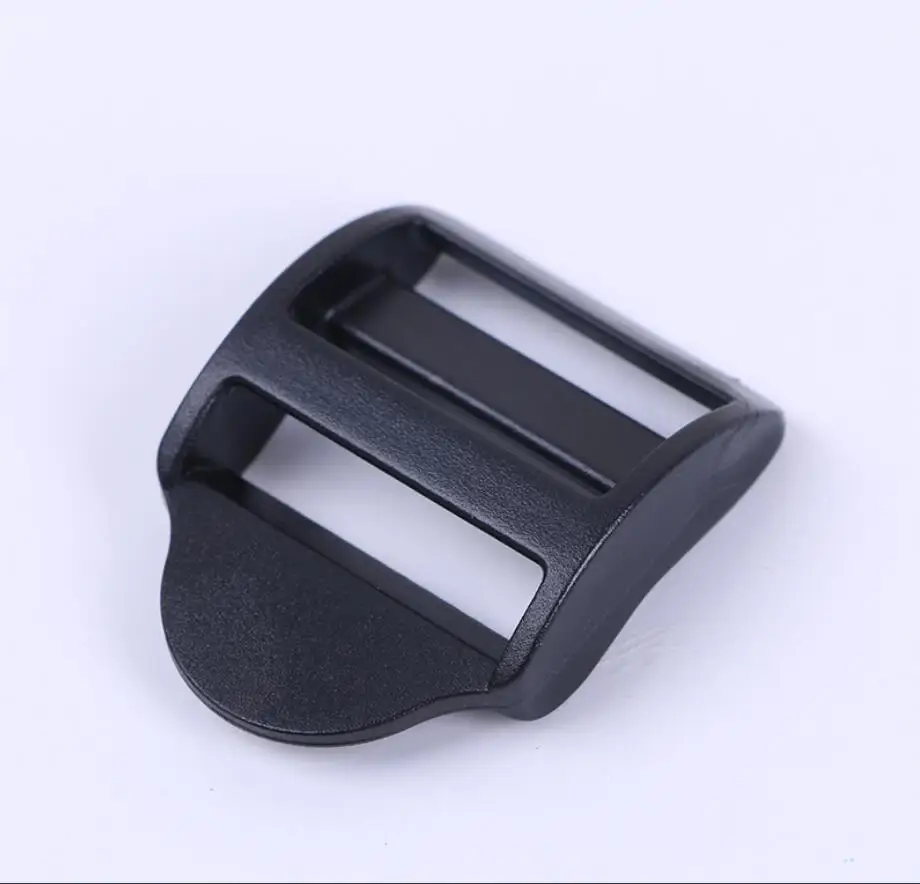

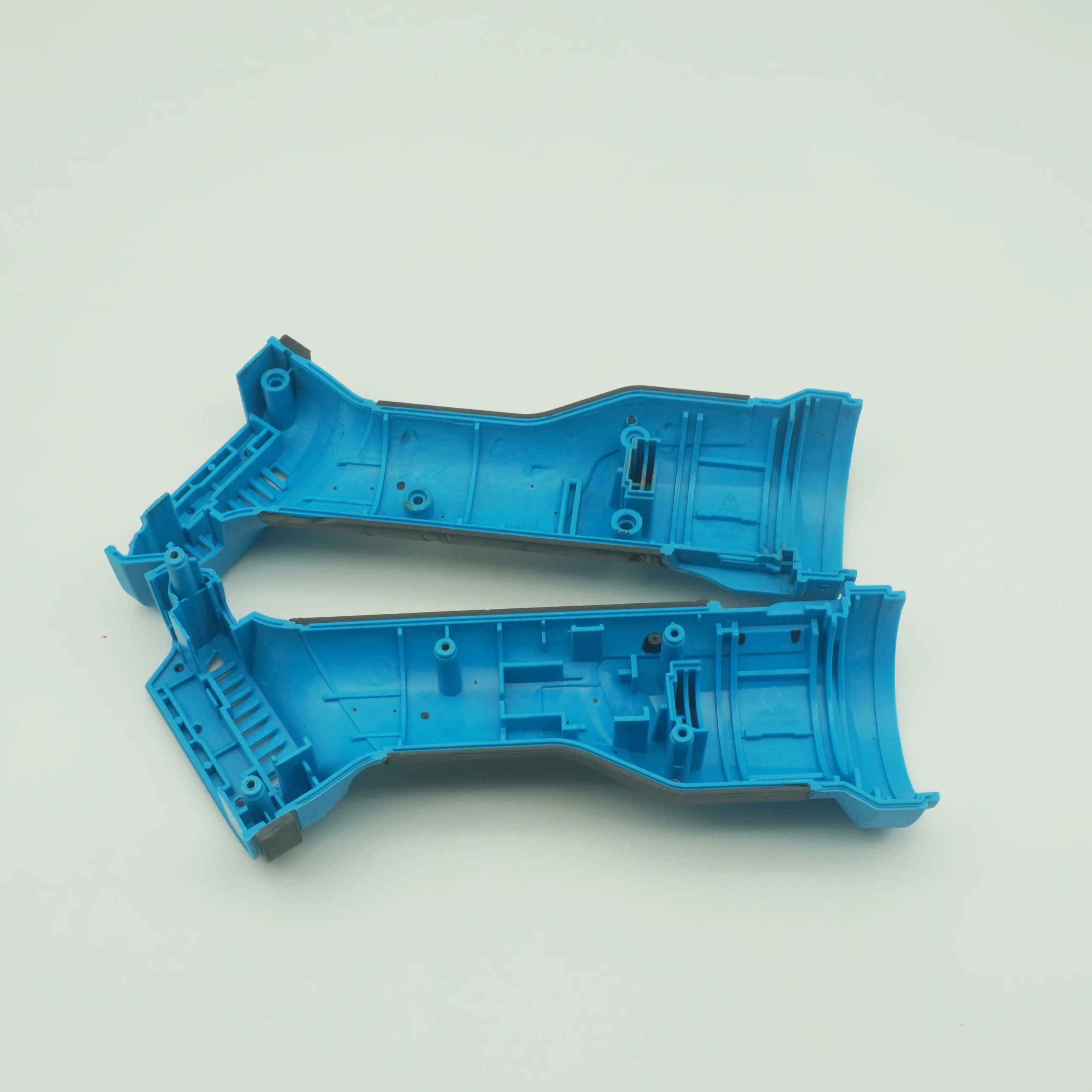

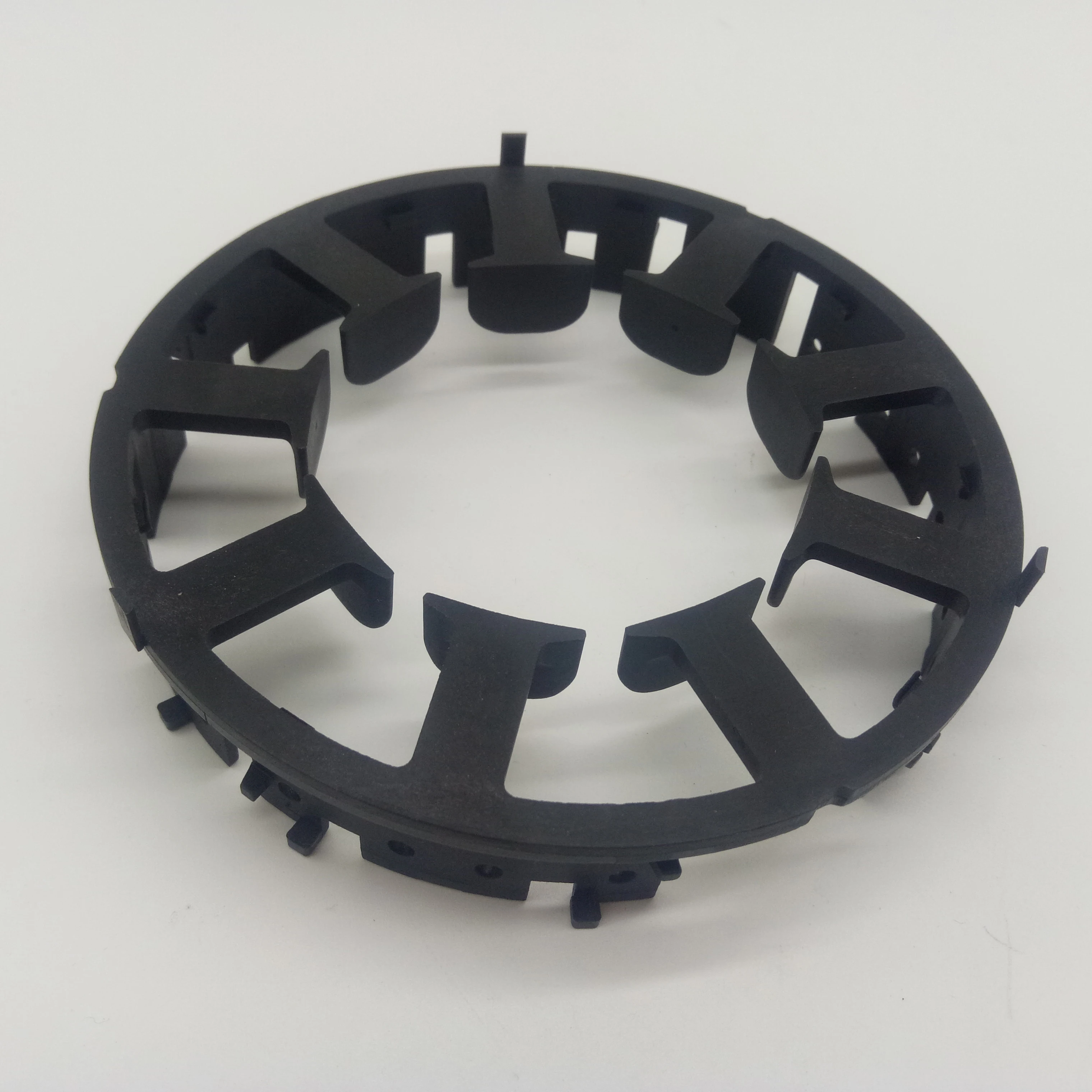

Customer Photos

FAQ

Q: Which kind of product can you do?
A: Plastic injection molding and mass production for plastic parts.

Q: Which kind information need for quotation?
A: 1) Sample photo with size or 2D/3D design
2) Product material
3) The quantity
4) Runner type, cold or hot
5) Mould steel type, P20, 718, 2738, H13, S136, 2316, an so on.

Q: I have no 3D drawing, how should I start the new project?
A: You can supply us a sample or tell me your idea,we will help to finish the 3D drawing design.

Q: How long will be the injection mold finished?
A: Usually it will take about one month to finish the mold

Q: How about the samples?
A: After mold finished. We will make some samples for you to check as soon as we finish the mold and then deliver the samples for you to check.

Q: How about the mould modify?
A: You can tell us your comment about the samples after you receive them.If there is any dimension different from the drawing,we will modify the mold for free in our side and ther make the new samples

Q: How about the proprietary rights of the plastic injection mold?
A: Customer paid the mould so it all belong to Customer.
