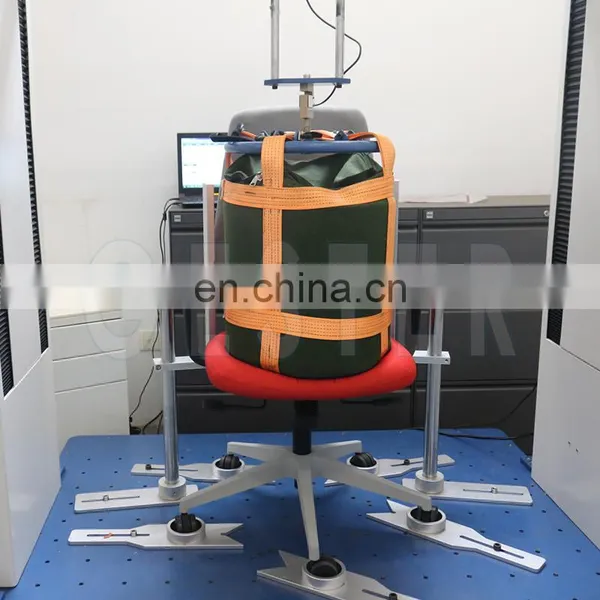

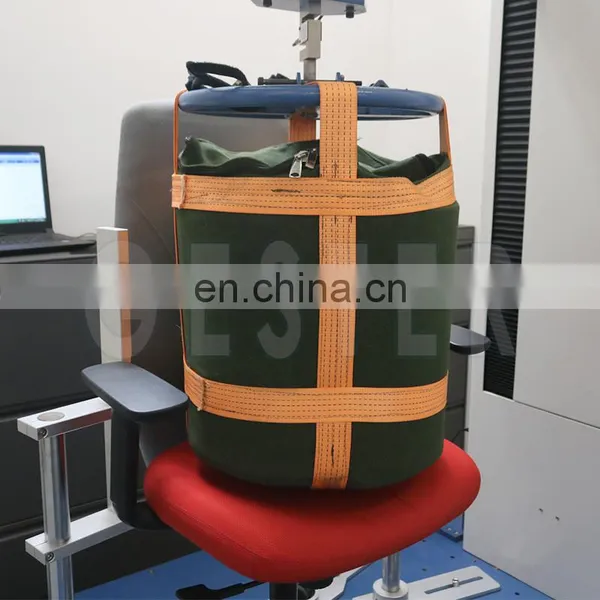

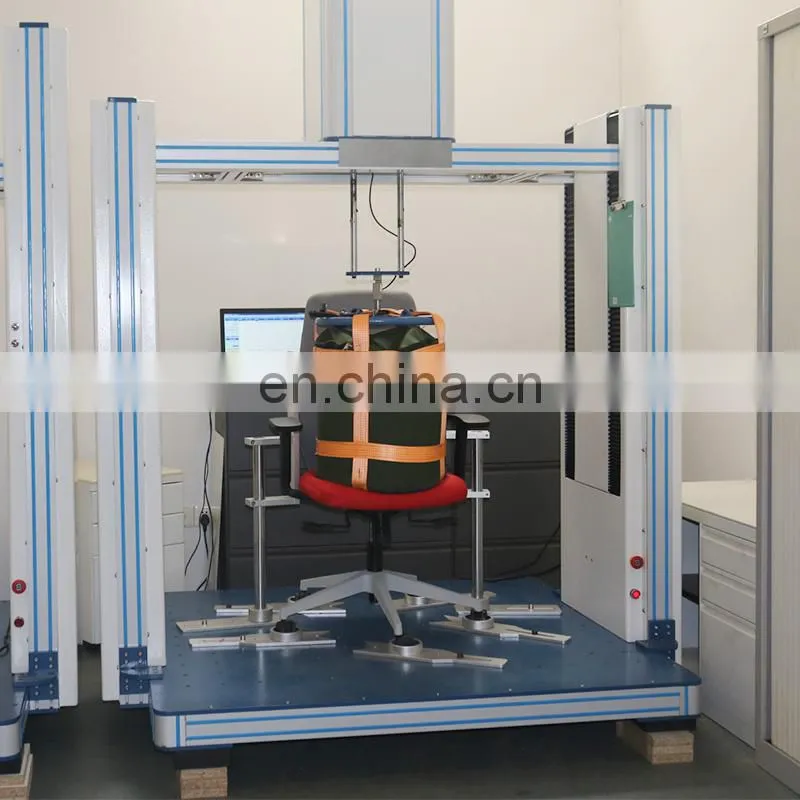

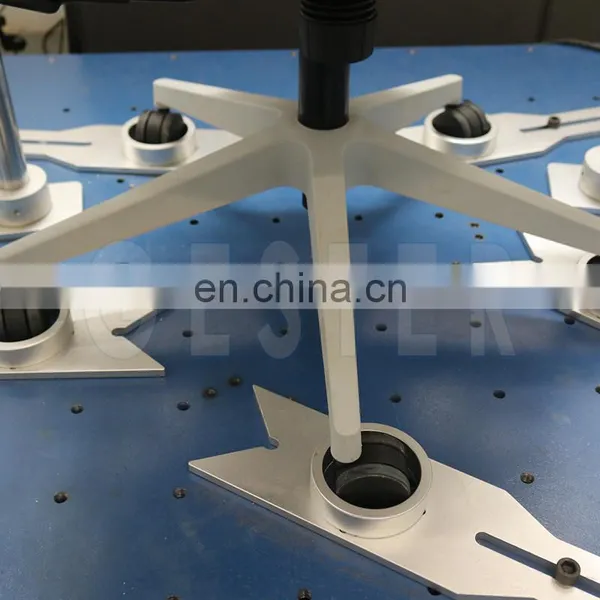

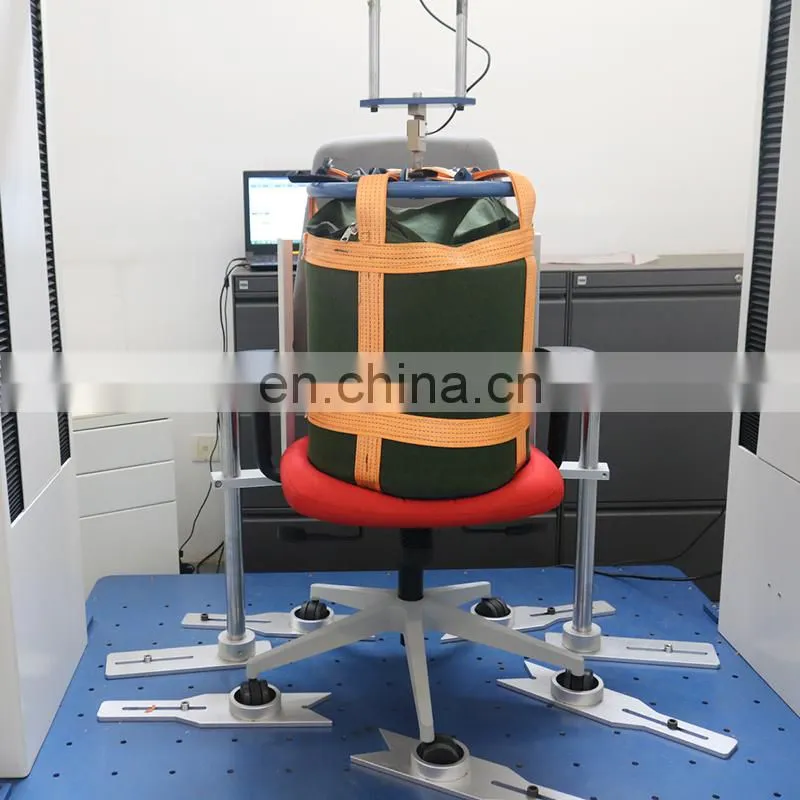

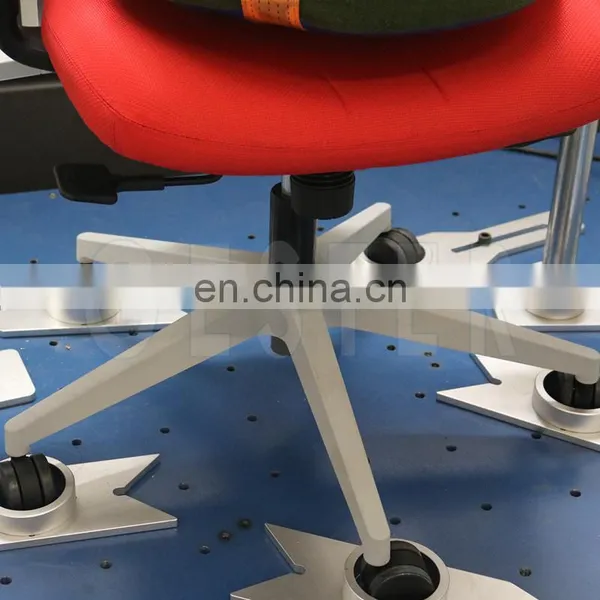

Chair Seating Impact and Durability Tester Chair Testing Machine
Chair Seating Impact and Durability Testing Machine can be applied to all types of chairs, with two functions of chair seating impact and seating durability test.
The purpose of this test is to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat and evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.
0
1.The main structure of the machine is made of aluminum, beautiful and easy to maintain.
2.Using PLC touch screen control, operation more convenient.
3.In addition, the machine loading device using electric control movements, more extensive test space.
0
0
Model |
GT-LB05A |
GT-LB05B |
GT-LB05C |
Impactor diameter |
200mm |
406mm |
A+B Impactors |
Impactor weight |
25kg |
Max.350Lbs (accumulated) |
|
Cylinder stroke |
0~300mm |
||
Beam stroke |
900~1350mm |
||
Test Speed |
10~30r/min |
||
Test Times |
0~999999times, settable |
||
Control |
PLC touch screen control |
||
Dimensions(WxDxH) |
150x150x200cm |
||
Weight(about) |
350Kg |
500kg |
530kg |
Power |
220V 50Hz 5A |
||
0
All kinds of chair products can be tested on the Chair Seating Impact and Durability Tester Chair Testing Machine
- QIs your company a trading company or factory?
- AFactory + trade (integration), has 20 years focusing on test instruments field, 6 years exporting experience.
- QAfter an order is placed, when to deliver?
- AGenerally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
- QWhat’s the payment term?
- AT/T,L/C and other payment terms could be negotiated.
- QWhat's the warranty and after-sales service?
- A12 months warranty. Feedback to you within 24h and help you to repair your problem controller freely, even it's not from our factory.
- QWhat the standards do you adopt?
- AWe have been adopting the world standards and regulation such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA.
- QWhat about the product' services and quality?
- AEach instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. And our Main clients : SGS, BV and Intertek.
