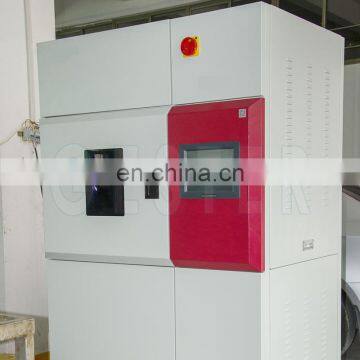

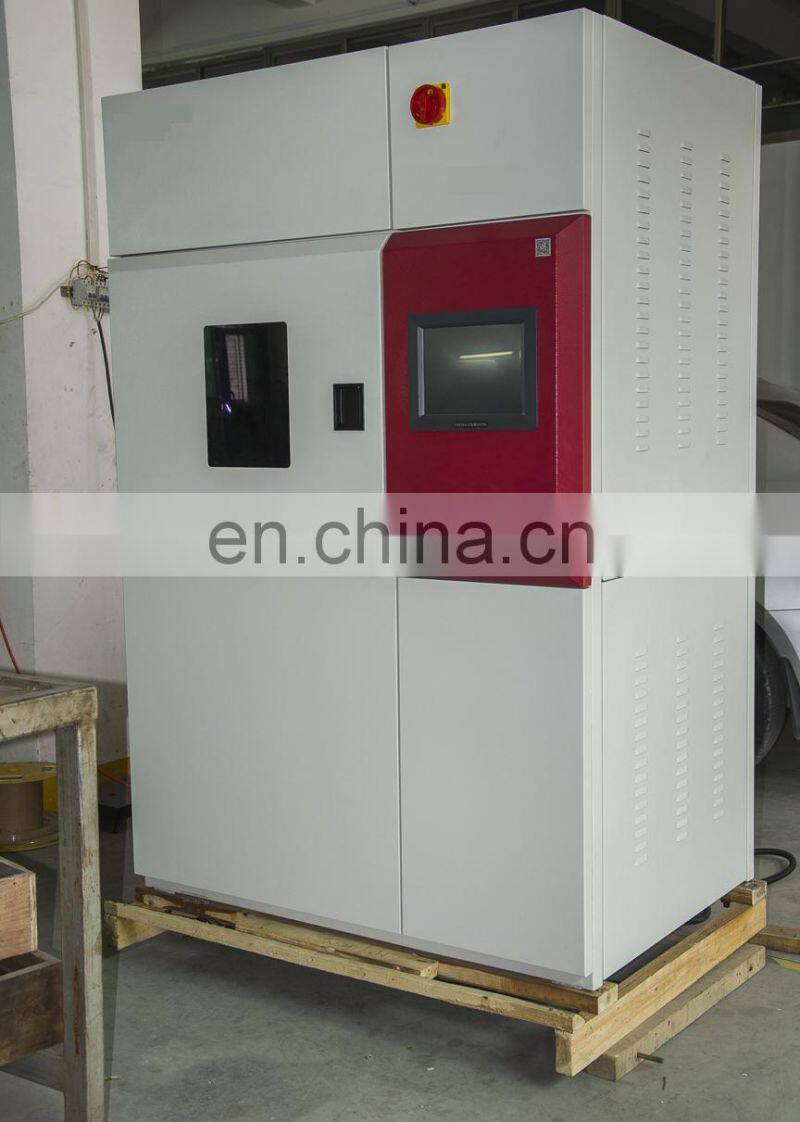

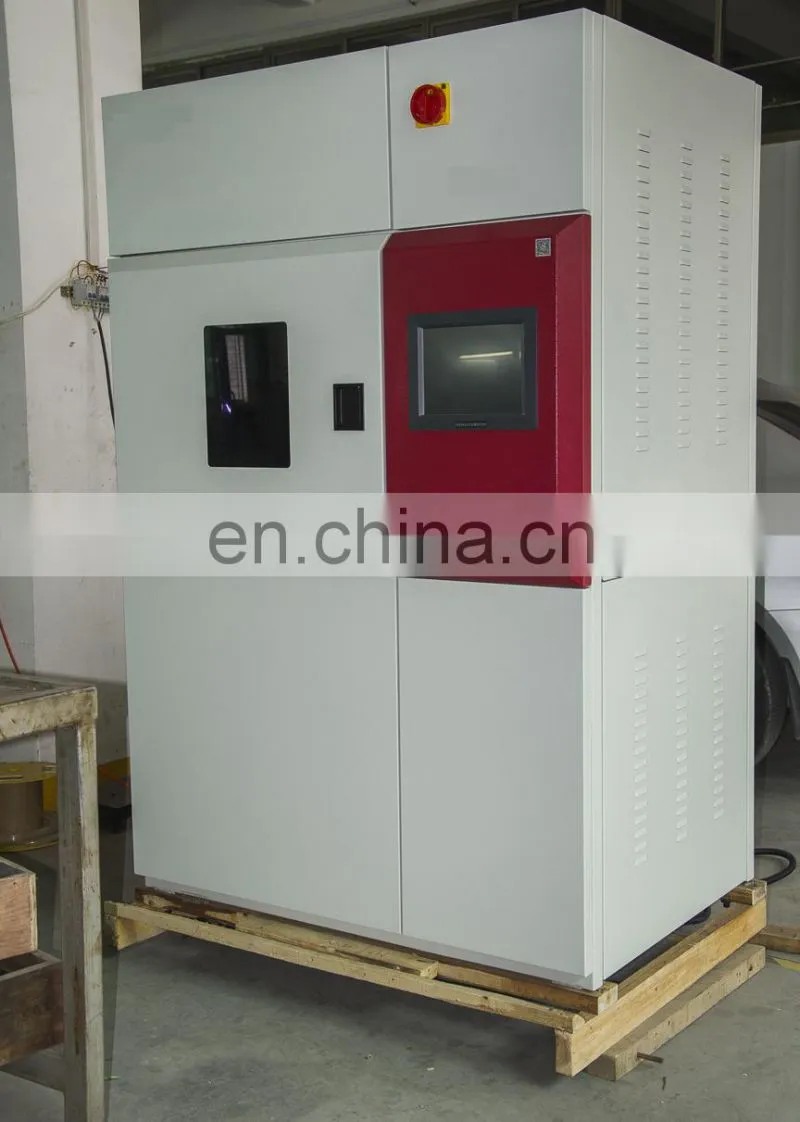

UV Light Accelerated Weather Test Chamber
Application:
It is widely use in solar radiation simulation light color fastness, light perspiration color fastness and light aging test of rubber, plastic, coating, petrochemical industry, car, textile industrial products and other materials. It through simulate illumination, exposed to the rain, mist spraying, alternating light and dark, temperature and humidity climates conditions to test material products’ color fading, aging, transmittance, peeling, hardness, softness and other performance changes.
Feature
- Presetting various specifications, or customized programs, meet diverse range of standards, including AATCC, ISO, BS, JIS etc.
- 4500W water-cooled xenon arc lamp system, accurately simulate sunlight spectrum. Irradiance auto- compensates system, control irradiance, temperature, and humidity timely through a closed loop.
- Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless irradiation regulation.
- Accurate chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration system.
- Ultrasonic humidification system makes spray water even and low noise. Saturated steam humidifying, industrial refrigerating machine dehumidifying, and close loop control the humidity.
- Large amount of testing specimen, be able to hold as 3 times of specimen quantity as air-cooled machine in a test.
- Custom program capability and storage for additional user-defined tests.
- De-ionized water system to ensure purity of cooling water and spray water.
- Each specimen holder has time recorder respectively. Ease to test different specimen in one test.
- Multi-point inspection: malfunction alarm, self-diagnostic function, ease to maintenance.
- Print the test result chart by stylus printer directly. No need support of PC.
Standards
| Textile |
GB/T 8430, GB/T 14576, GB/T 8427, ISO 105-B02/B04/B06, AATCC 169, M&S C09 / C09A, JIS L0843 |
| Paint coating | GB/T1865, ASTM D6695, ISO 11341, NES M0135 |
| Rubber & Plastics | GB/T 12831, GB/T9344, GB/T 16422.1, ASTM D2565, ISO 4892 |
| Non-metallic Material |
AATCC TM16, ASTM G26, ASTM D4459, ASTM G155, GB/T 2423.24,GB/T 15102, GB/T 15104 Car: SAE J2527, SAE J1885, SAE J2212, SAE J1960, SAE J2412, ISO3917, PV 1303, PV 3929, PV 3930, DVM 0067- MA, HES D6601, TSL 0601G, GMW3414, EDS-T-7415, D47 1431 |
Key Specification:
| Model | GT-3000-1 | GT-3000-1 |
|
Irradiation Source (Water-cooled Long Xenon Arc Lamp) |
4500W | |
| Exposure Area | 2660cm2 | 4700cm2 |
| Sample Holders Capacity |
ISO:135×45mm 33pcs Or AATCC:100×75mm 20pcs |
ISO:135×45mm 47pcs Or AATCC:100×75mm 35pcs |
| Average Lamp Life | 1000 hours | |
| Sample Rack Rotating Speed | 1-7rpm ( adjustment) | |
| Sample Rack Outside Diameter | Φ550mm | |
| Chamber Temperature Range | 20-93℃ ±1 ℃ Resolution: 0.1 ℃ | |
| BPT | 35-125 ℃ ±1 ℃ | |
| BST (Option) | 35-120 ℃ ±1 ℃ | |
| Chamber Humidity |
Light Cycle: 10-70%RH; Resolution :0.1% Dark Cycle: 30-95%RH; Resolution :0.1% |
|
| Irradiance Control Range |
0.6~3.08W/m²@420nm (Option: 340nm, 420nm, 300-400nm and 300-800nm) Accuracy: ±0.02W/m²@420nm. Digital Setting, Closed-loop Automatic Compensation |
|
| Power Supply | AC220V±10% 50Hz 10KW | |
| Dimensions | 1200×900×1800mm(L×W×H) | |
| Weight | 350KG | 360KG |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our
production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by GESTRE Instruments Co Ltd. Besides,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team
will provide perfect technical support and help guest solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product
use training, each of our product provide video training to show you how to install & operate. We can arrange engineer
to train the operation of equipment to customer’s company when you need. Main clients has SGS, Bureau Veritas and
Intertek. our products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
And welcome to our company! We display more new design in our showroom.
