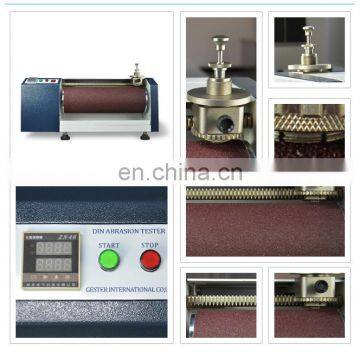

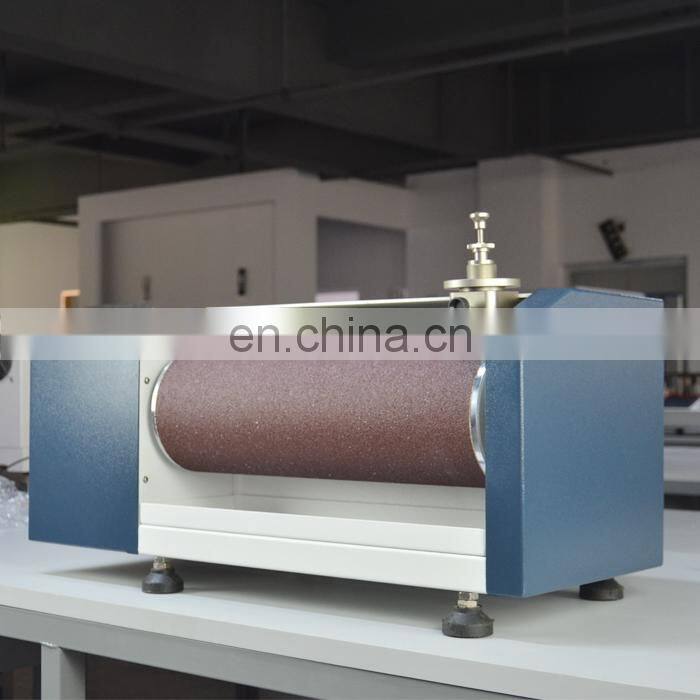

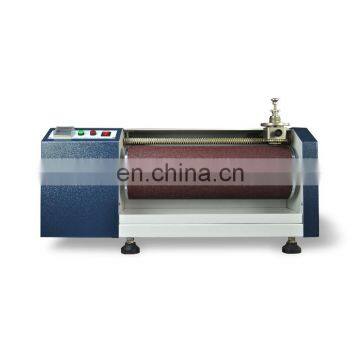

DIN-53516 DIN Abrasion Tester GT-KB03 Footwear Testing Equipment
Application
- DIN Abrasion Tester GT-KB03; It is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.
- Body paint baking processed, easy for maintenance.
- Equip with digital counter, automatically stop after test finished.
Principle

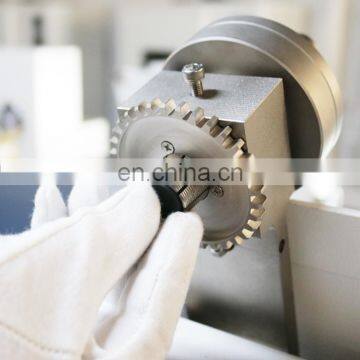

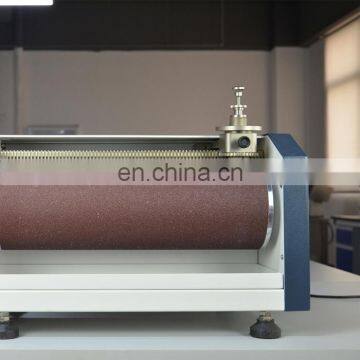

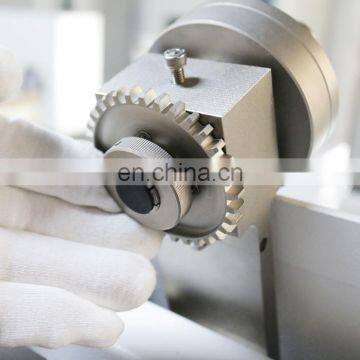

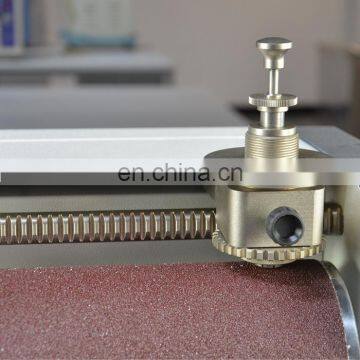

Under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.
Key Specification
Model | GT-KB03 |
Diameter of wear wheel | 150mm |
Load weight | 5N, 10N (0.25, 0.5, 1.0, 1.5, 2.0 kgs) |
Grinding wheel speed | 40rpm |
Sandpaper grits | #60 |
Roller length | 460mm |
Wear trip | 40m |
Dimensions ( L x W x H ) | 700 x 300 x 300 mm |
Weight | 55kg |
Standards | DIN-53516 ISO -4649 BS-903 JIS-K6369 JIS-K6264 |
