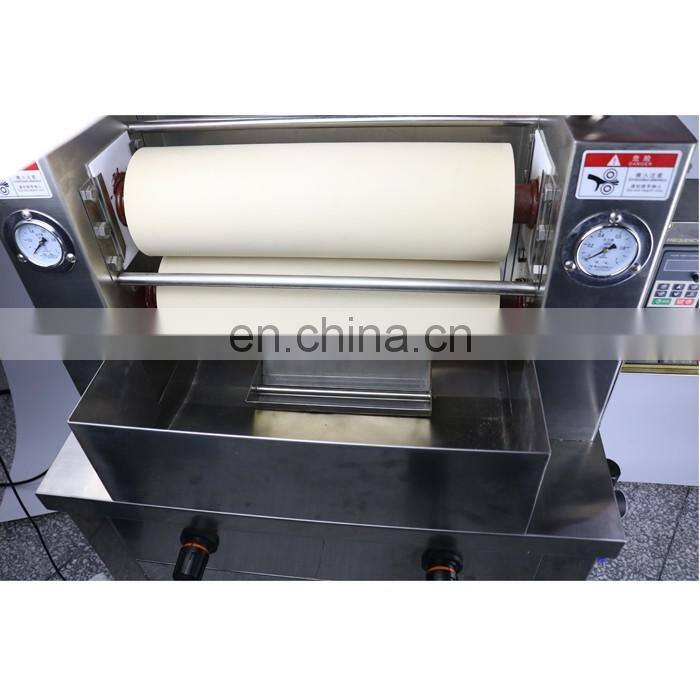

Laboratory Padding Mangle for Textile Industry
US$ 1,000 - 2,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GESTER
Place of Origin:
Fujian, China
Model Number:
GT-D19A
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gester Yarn Crimp Tester Manufacturer From ChinaUS$ 1,545 - 1,775MOQ: 1 Set -
ASTM D3786 Fabric Bursting Strength TesterUS$ 10,300 - 12,100MOQ: 1 Set
-
Textile Testing Machine Falling-Pendulum Type Tearing TesterUS$ 1,200 - 2,000MOQ: 1 Set
-
GESTER Instrument Laboratory Continuous Vat Dyeing MachineUS$ 2,500 - 9,000MOQ: 1 Set
-
Zipper Fatigue Tester Manufacture Zipper ReciprocatingUS$ 2,000 - 4,000MOQ: 1 Set
Brand Name
GESTER
Place of Origin
Fujian, China
Model Number
GT-D19A
Power
Electronic
GT-D19A Laboratory Padder GT-D19
Product introduction
0
|

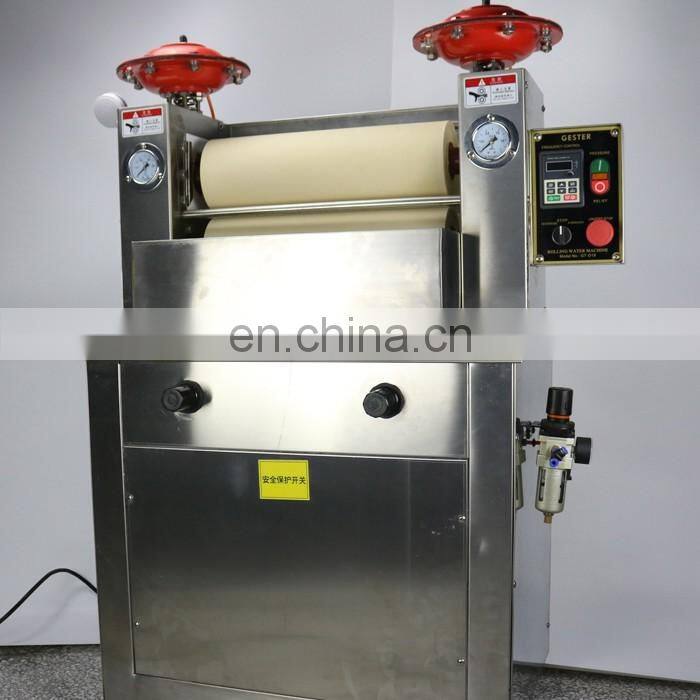

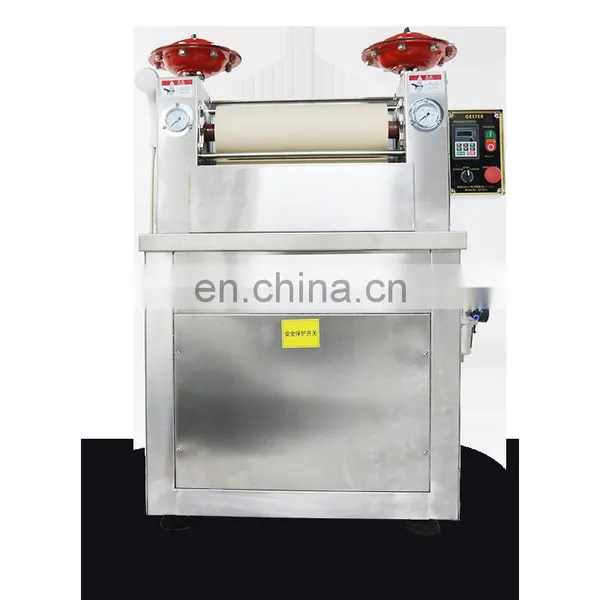

Laboratory Padder GT-D19A |
Laboratory Padder is suitable as dyeing and finishing padding mangle. The pressure transmission can be applied by means of pneumatic cylinder. It’s apply to pure cotton, T/C and other chemical fiber fabric. |
0
Key Feature

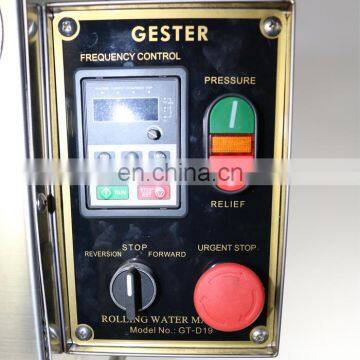

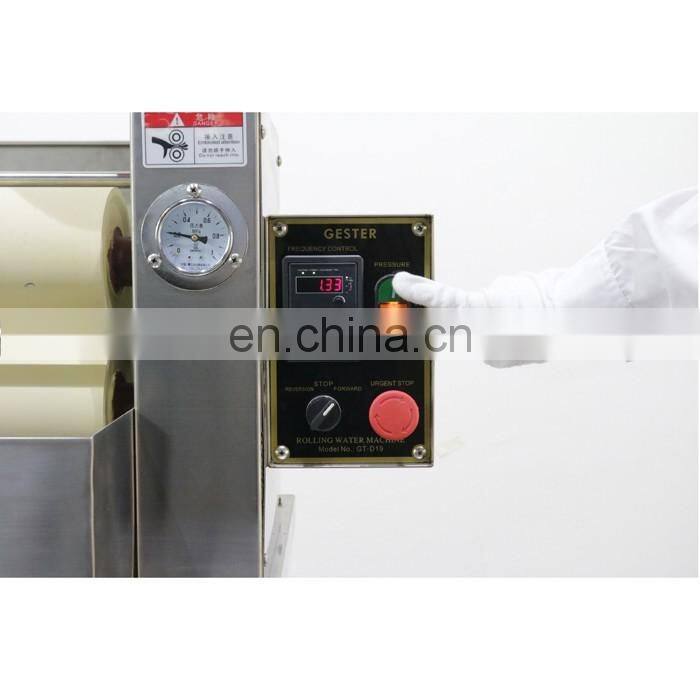

- Cloth speed controlled by inverter from 0-10m/min
- NBR rubber is applied for coating of roller, excellent erode-resistance, long life-time

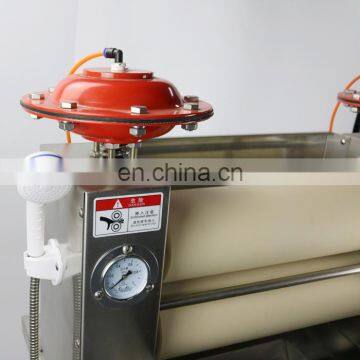

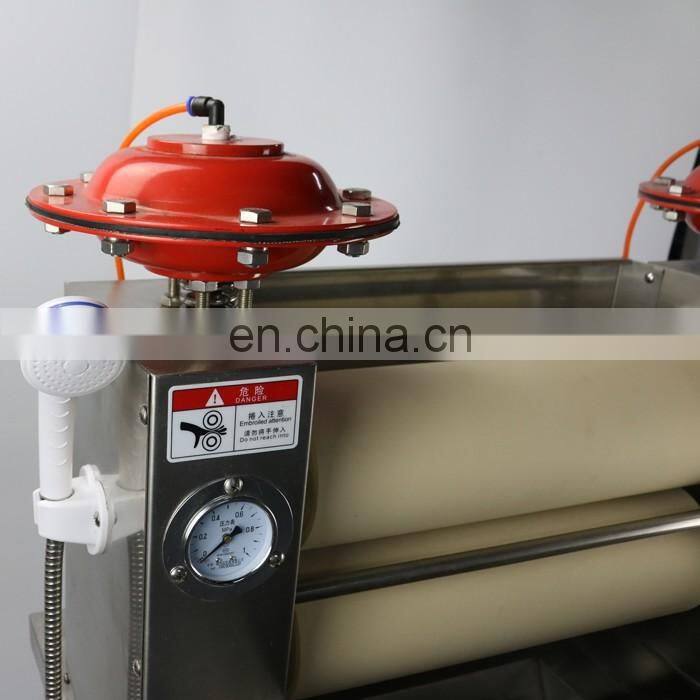

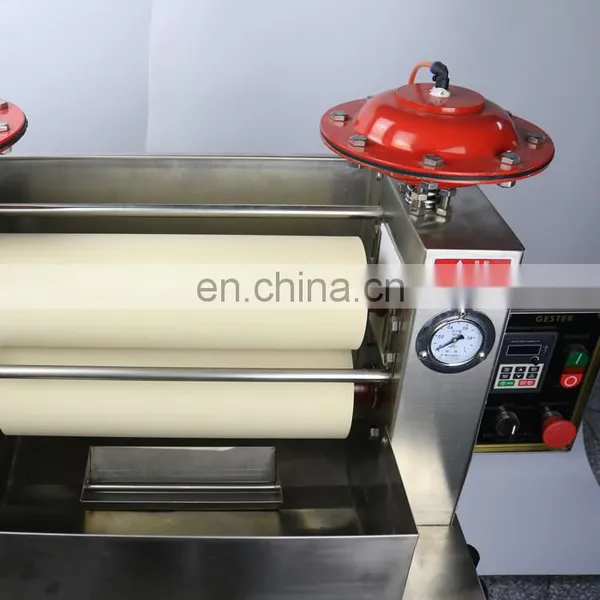

- Two separate disc-shaped pneumatic cylinders control each end of roller to keep uniform pressure for whole rollers.
- Brushed stainless steel surface, easy to clean and good appearance
- Removable liquor trough and spray head wash-down facility, free standing.

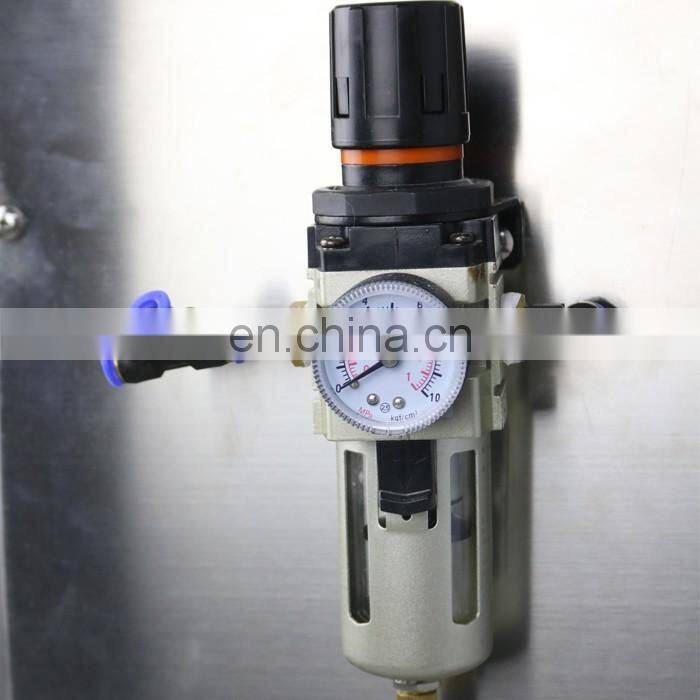

- Laboratory standard compressed air supply required.
0
Product Images
Specifications
Model |
GT-D19-1 |
GT-D19-2 |
Rollers position |
Vertical |
Horizontal |
Rollers width |
450mm |
|
Rollers diameter |
125mm |
|
Rubbers hardness |
70degree shore |
|
Cloth speed |
0-10m/min |
|
Standard pressure required |
0.6MPa |
|
Retained dyestuff ratio |
40-80% |
|
Power supply |
AC 220V 50/60HZ |
|
Dimensions ( L x W x H ) |
840 x 680 x 1450mm |
840 x 740 x 1100mm |
Weight |
140kg |
|
Standard accessories |
1pc |
Spray head
|
1pc |
Air blow gun |
|
Optional accessories |
Optional |
Air compressor |
Application Industry
All kinds of Yarn materials can be tested on the Laboratory Padder
FAQ
FAQ
- QIs your company a trading company or factory?
- AFactory + trade (integration), has 20 years focusing on test instruments field, 6 years exporting experience.
- QAfter an order is placed, when to deliver?
- AGenerally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
- QWhat’s the payment term?
- AT/T,L/C and other payment terms could be negotiated.
- QWhat's the warranty and after-sales service?
- A12 months warranty. Feedback to you within 24h and help you to repair your problem controller freely, even it's not from our factory.
- QWhat the standards do you adopt?
- AWe have been adopting the world standards and regulation such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA.
- QWhat about the product' services and quality?
- AEach instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. And our Main clients : SGS, BV and Intertek.
