Yarn Length Tester /Measuring Instrument,Wrap Reel Machine

FOB Price

USD $800 - $1,500 / Set

1 Set(Min.Order)

Product Details

Brand Name:	GESTER	Place of Origin:	Fujian, China	Model Number:	GT-A06-2
Power:	Electronic

Product introduction

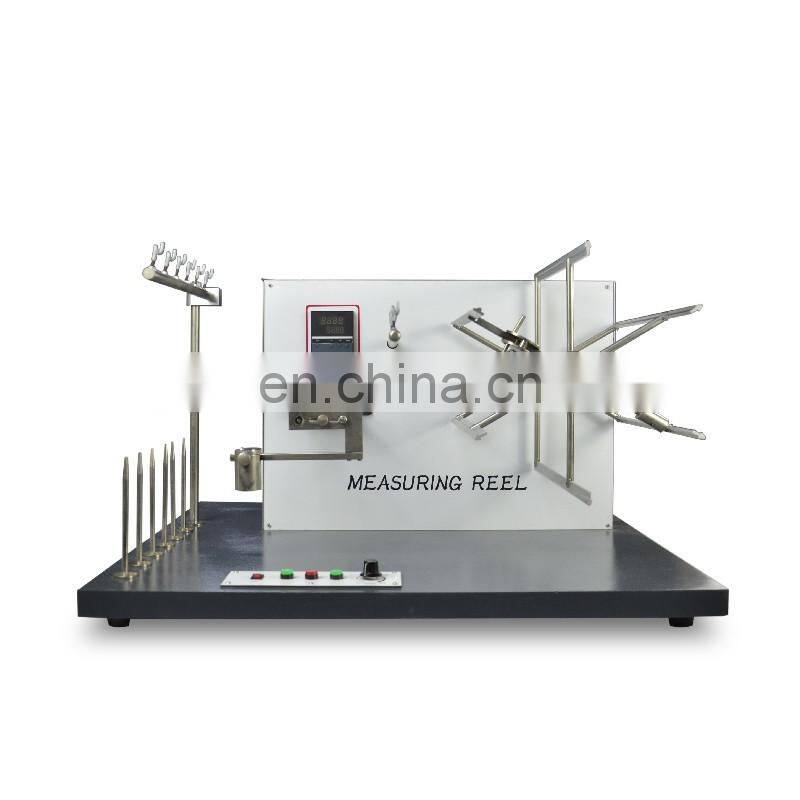

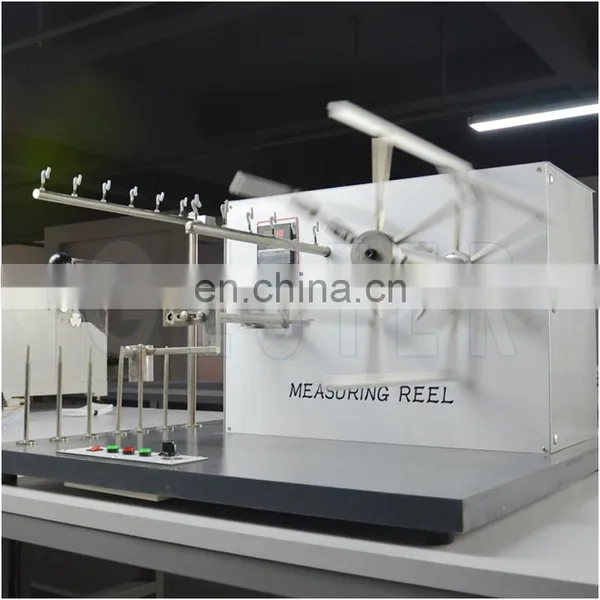

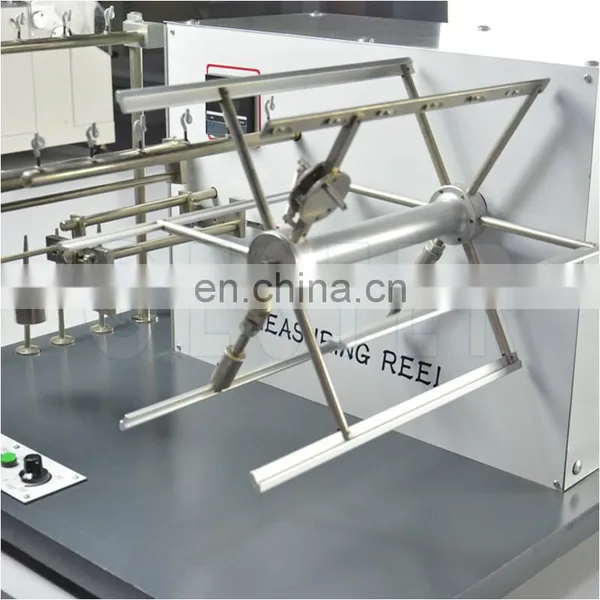

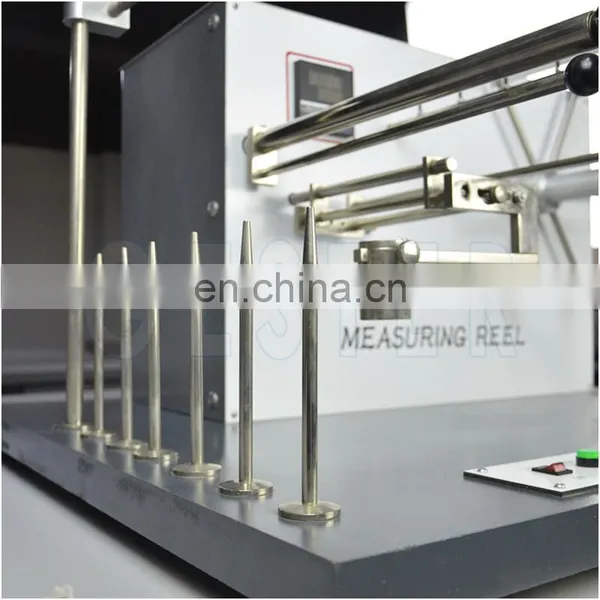

	Yarn Length Measuring Instrument
	Yarn Length Measuring Instrument,Wrap Reel Machine To produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.

Key Feature

1.Use MCU to control unit, allow numeric programming parameter (such as speed, bobbin number, reel presetting parameters are pre-settable).

2.Precision DC speed regulating motor with synchromesh belt makes precisely positioning.

3.Numeric speed controlling panel, make unit work consistently and stably.

4.Two optional startup mode (hard startup, soft startup), do not break yarn when startup.

5.Electronic limit trips, total rev number and user programmable stops.

6.Closed-loop controlled and speed tracking system, Ensure to keep even speed when Voltage is variable.

Specifications

Model	GT-A06
Reel circumference	1000mm (metric system), 54 (English system)
Rev of reel	25-300 RPM (numeric pre-settable)
Interval of spindle	65cm
Number of wrap	2-9999 Rev(pre-settable)
Programmable stop	1-9 rev(pre-settable)
Traveling reciprocating distance	35mm+/-1mm
Reeling pre-tension	0-100cN (pre-settable)
Dimensions	780 x 660 x 480mm ( L x W x H )
Weight	50kg
Standards	ISO 2060 ASTM D1907 GB/T4743 GB/T6838

Application Industry

All kinds of Yarn materials can be tested on the Yarn Length Measuring Instrument,Wrap Reel Machine
