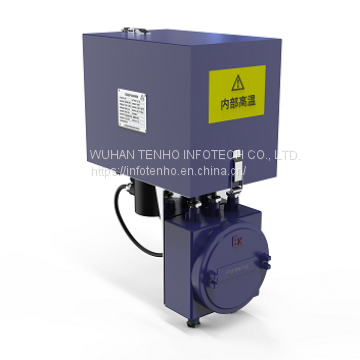

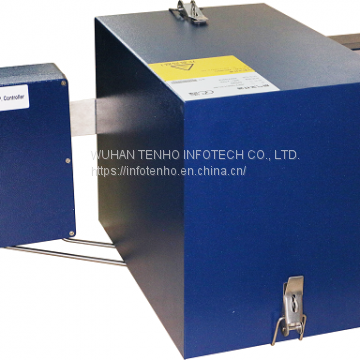

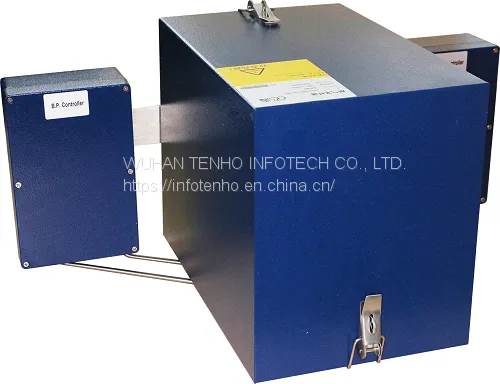

Sampling probe

Sampling gas temperature      600℃ Max

Gas pressure    0.4~3BarMax.

Ambient temp.         -20℃~80℃

Probe temp.    150℃±10℃

Connector of pipe    G3/4”

Gas outlet         OD6/4mm (or OD8/6mm)

With backflushing    Yes

Backflushing gas inlet      OD6/4mm (or OD8/6mm)

Filter material silicon carbide：2μm/75mm

Filter chamber capacity  40cm3

Power supply   220V 50Hz

Power consumption          650W

IP class     IP65

Startup time    Less than 30Min

Weight     12Kg

Enclosure       blue printed
