Production Details : Chemical plastic barel making machine HT(II)-30L
Dairy
Food/ Beverage
Cosmetic/Personal care
Lub-oil containers
Household chemical
Industrial
Technical Specification:
| Max .Product Volume | (L) | 30 |
| Station | Double | |
| Dry cycle | (Pc/h) | 400*2 |
| Screw Diameter | (mm) | 100 |
| Screw L/D ratio | (L/D) | 28 |
| Screw drive power | (KW) | 75 |
| Screw heating power | (KW) | 9.1 |
| No .of heating zone (Screw) | (ZONE) | 5 |
| Output of HDPE | (Kg/h) | 200~250 |
| Hydraulic pump driving power | (KW) | 22 |
| Clamping force | (KN) | 250 |
| Platen distance | (mm) | 420~920 |
| Mold moving stroke | (mm) | 980 |
| Max .size of Mold | (W*H)(mm) | 680*750 |
| Capacity of Accumulator head | (L) | |
| Max .Die diameter(Single-head) | (mm) | 280 |
| Die heating power(Single-head) | (KW) | 5.28 |
| No .of heating zone(Single-head) | (ZONE) | |
| Central distance of Bi-head | (mm) | |
| Max .Die diameter (Bi-head) | (mm) | |
| Heating power (Bi-head) | (KW) | |
| Blowing pressure | (Mpa) | 0.6 |
| Air consumption | (M^3/MIN) | 0.8 |
| Cooling water pressure | (Mpa) | 0.3 |
| Water consumption | (L/) | 100 |
| Size of machine | (L*W*H)(m) | 5.9*3.4*3.9 |
| Weight of machine | (TON) | 18 |
Packaging Details :wooden Box ,PE film ,wooden / steel Base
Shipping :ship/train
Engineers available to service machinery overseas
Our company is always dedicated to making good blow molding machine .For the past fifteen years,we have provided more than 2600 sets of all specifications of automatic blow molding machine .Always,we provide our customes with high qualities and services.
Samples of our machine
Plastic drum manufacturing machine /220Liter/210Liter/200Liter

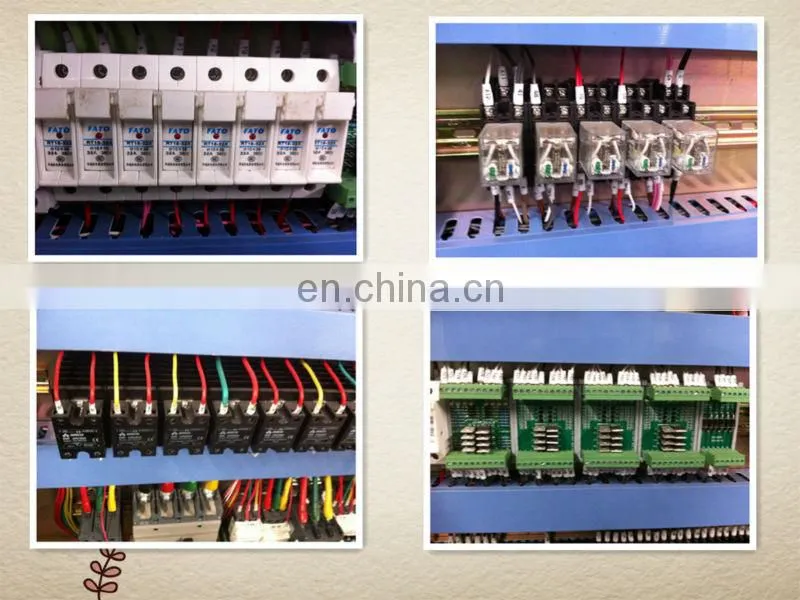

A:Our electronic control parts
drum manufacturing machine ,use Japan's Mitsubishi PLC computer and human-machine interface control,Standard electronic control cabinet, making the stable operating environment components, equipment service life.

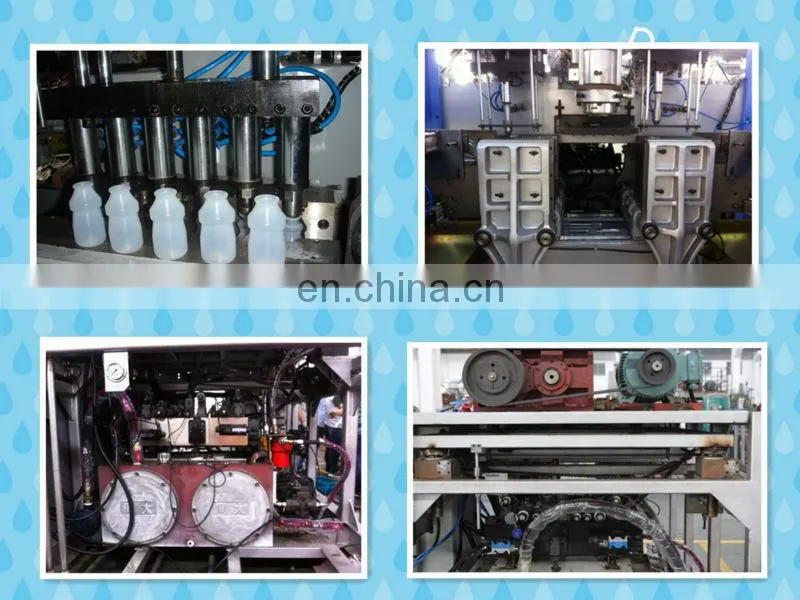

B:The other parts
drum manufacturing machine :Proportional pressure control equipped with hydraulic valve and pump imported brand-name, stable and reliable.
100-point electro-hydraulic servo control systems, electro-hydraulic servo system uses the energy storage device.

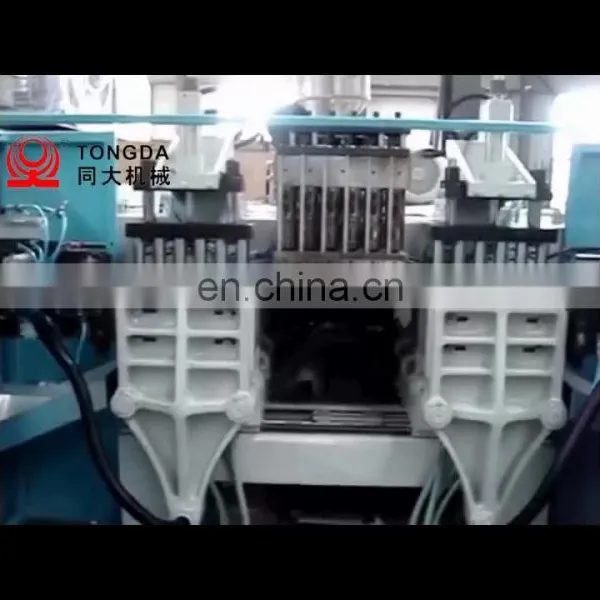

C:The opening and closing mold
drum manufacturing machine :mold transfer system: the use of two template pin lock mechanism, the bottom of the template model using linear guide cylinder to achieve the shift shift mode, clamping force and balanced, enabling micro-mold, thus ensuring the locking time clamping force is sufficient, when mold mold smooth. This pin lock mechanism has been applied for a patent.

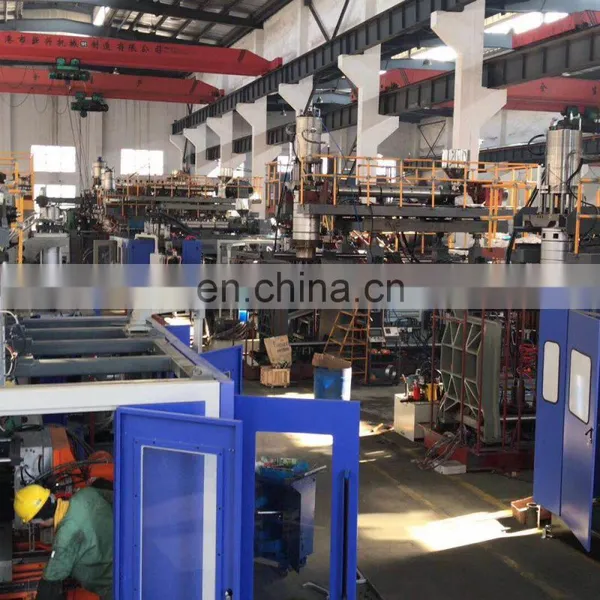

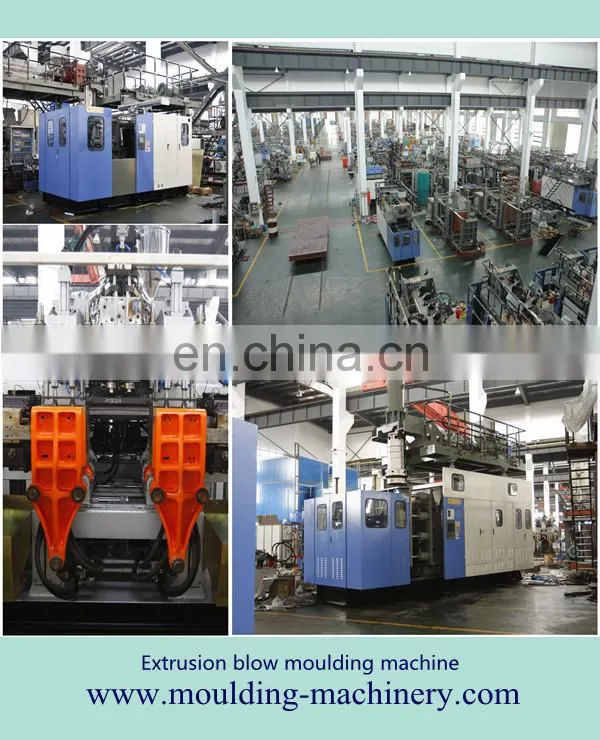

D:Our workshop ,
drum manufacturing machine

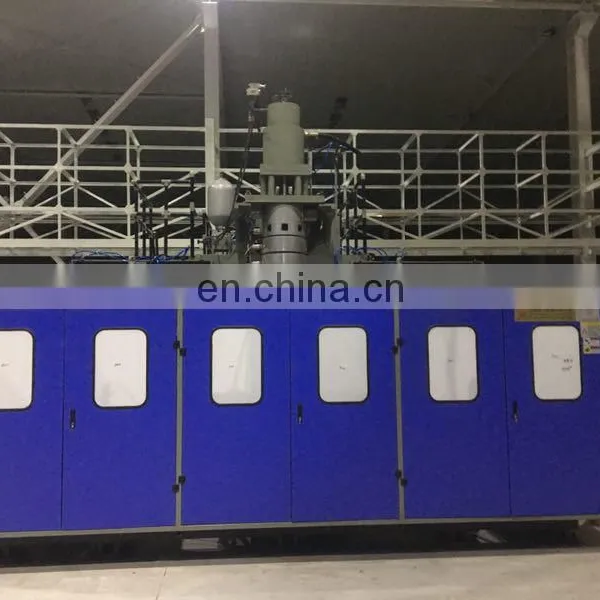

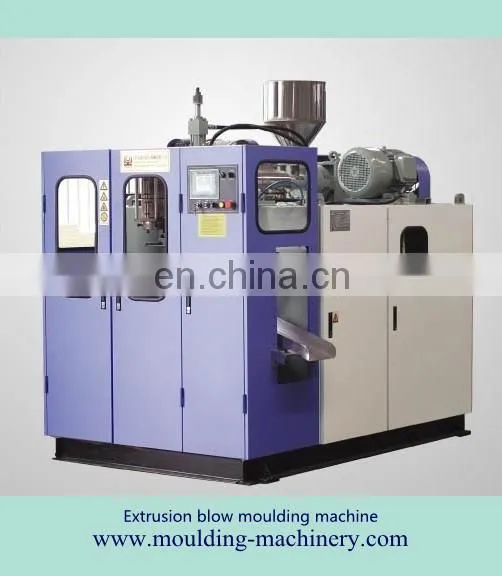

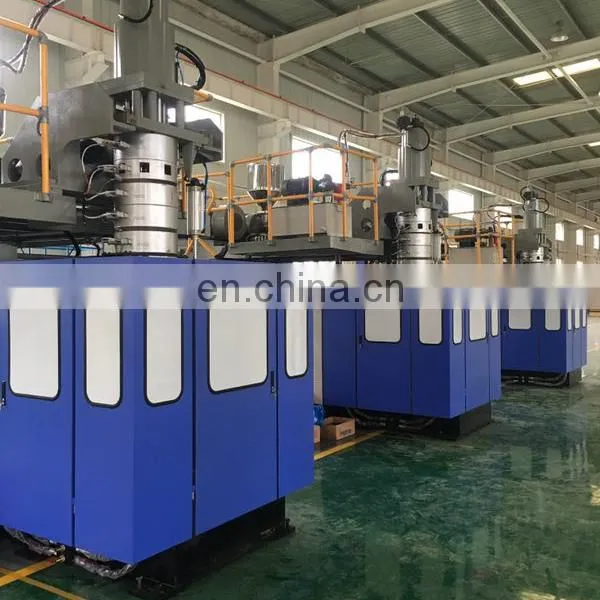

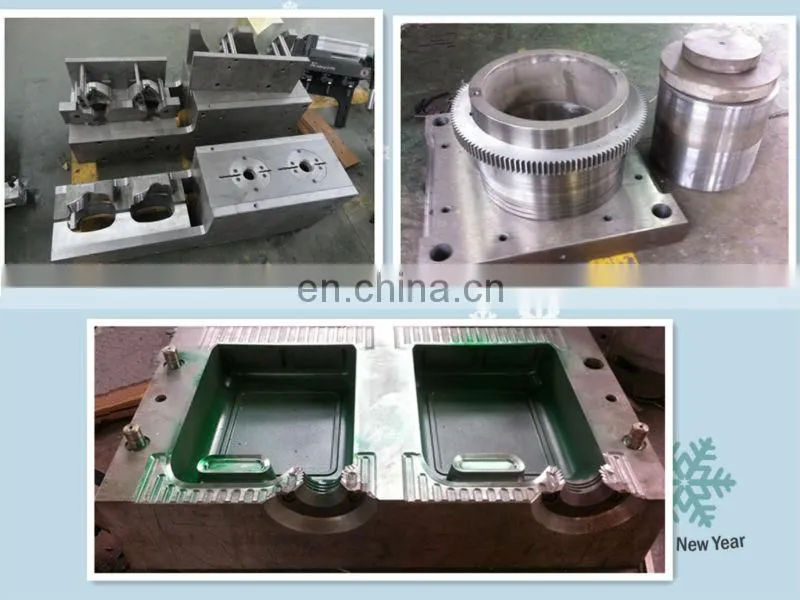

E:Our machine
drum manufacturing machine

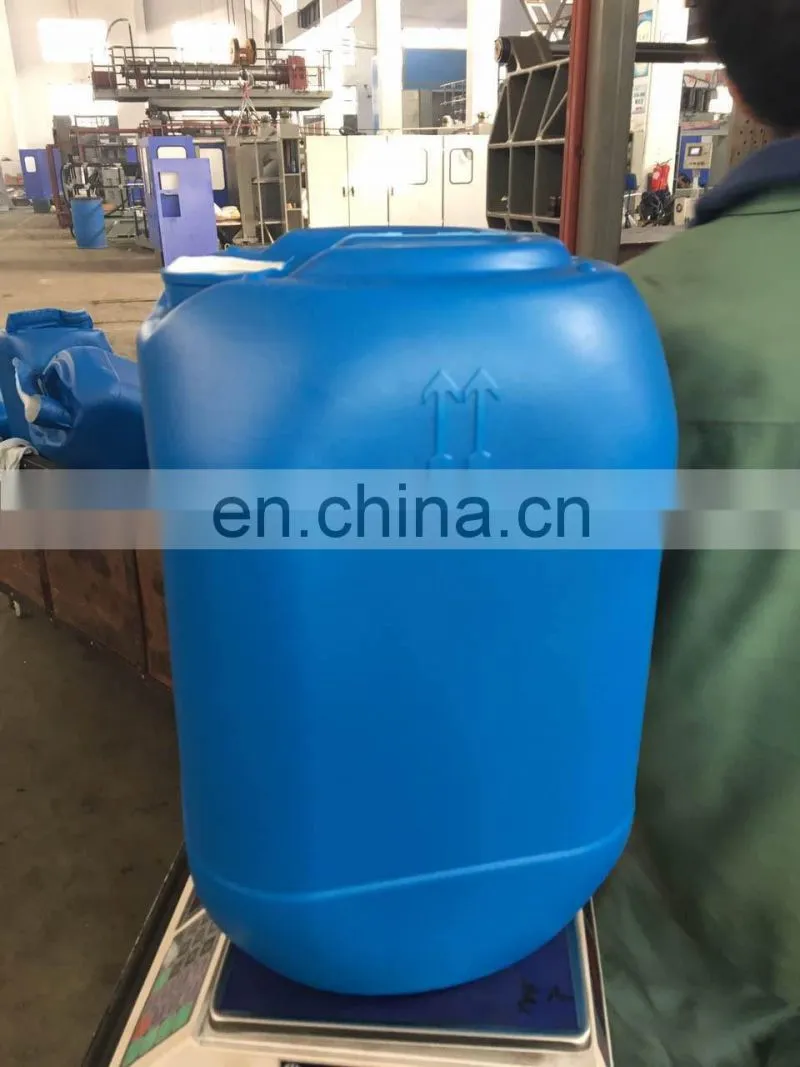

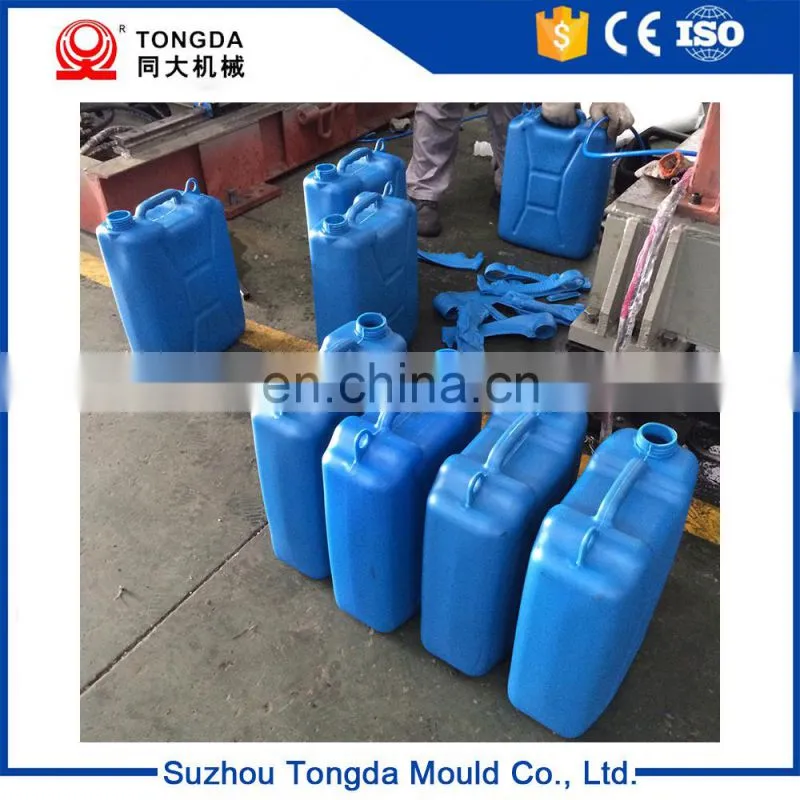

F:Our products
drum manufacturing machine
G:Our company
drum manufacturing machine
H:Our certificate
CE and ISO9001
drum manufacturing machine
