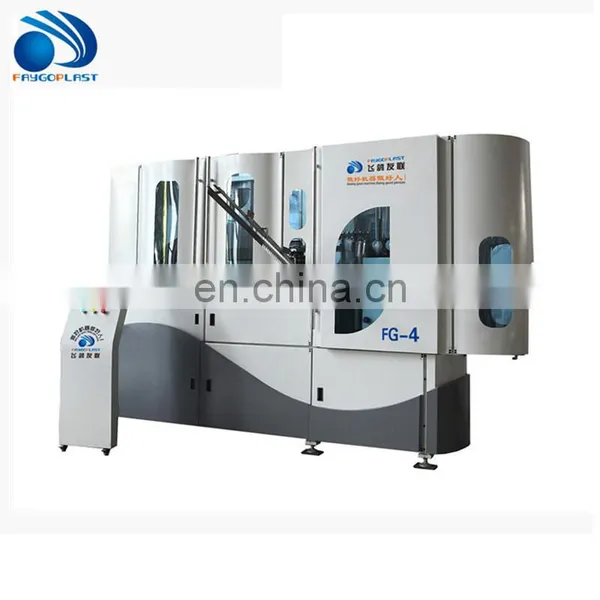

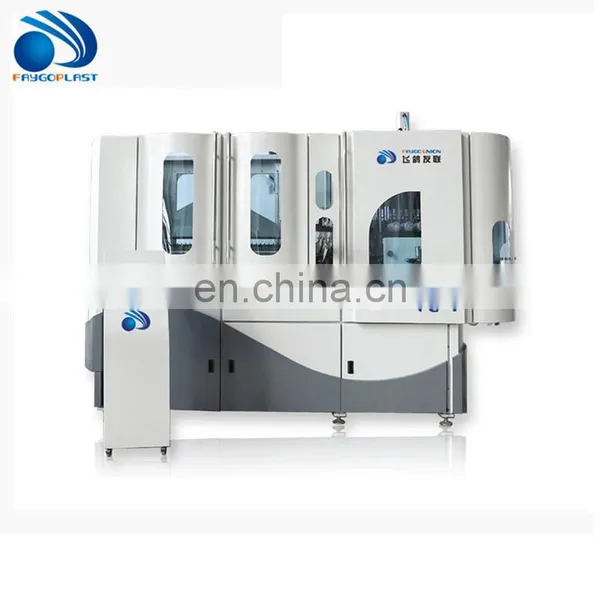

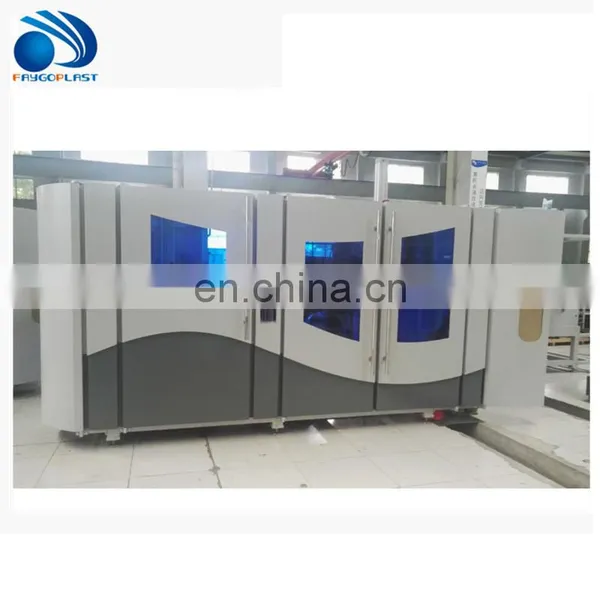

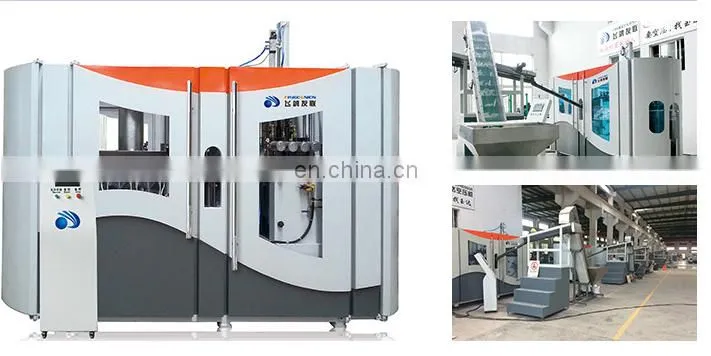

Automatic Manufacturers Price 1 Liter Plastic Pet Water Bottle Extrusion Blow Molding / Moulding Machine for Sale
US$ 120,000 - 125,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FAYGO
Place of Origin:
Jiangsu, China
Model Number:
FG8
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Machine to Make Bottle Plastic From FAYGO UNIONUS$ 90,000 - 110,000MOQ: 1 Set -
Biodegradable Heat Shrink Water Bottle Machine Make MachineUS$ 75,000 - 90,000MOQ: 1 Set
-
Double Colour Film Blowing Machine Set,PET Blow Film Extrusion Machine,Double Colour PET Film Blowing Machine PriceUS$ 90,000 - 95,000MOQ: 1 Set
-
High Density 250ml-2000ml/6500-8000BPH Full-Automatic PET Bottle Blowing MachineUS$ 90,000 - 95,000MOQ: 1 Set
-
Linear Type 12000 Bph PET Bottle Blowing MachineUS$ 72,000 - 75,000MOQ: 1 Set
Brand Name
FAYGO
Place of Origin
Jiangsu, China
Model Number
FG8
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Weight
4500kg
Dimension(L*W*H)
4.5*1.3*2.3m
Voltage
Customized
Power
95KW
Condition
New
Product Description
| Type | FG4 | FG6 | FG8 | ||
| Bottle specification | Mold number(piece) | 4 | 6 | 8 | |
| Max capacity(BPH) | 6500-8000 | 9000-10000 | 12000-13000 | ||
| Max volume(mL) | 2000 | 2000 | 750 | ||
| Max height(mm) | 328 | 328 | 290 | ||
| round bottle max diameter(mm) | 105 | 195 | 75 | ||
| Square bottle max diagonal(mm) | 115 | 115 | 76 | ||
| Preform specification | Suitable inner bottle neck (mm) | 20-25 | 20-25 | 20-25 | |
| Max perform length(mm) | 150 | 150 | 150 | ||
| Electricity | Total installation power(KW) | 51 | 51 | 97 | |
| Heating oven total power(KW) | 46 | 46 | 92 | ||
| Heating oven real power(KW) | 25 | 30 | 45 | ||
| Voltage/Frequency(V/Hz) | 380(50Hz) | 380(50Hz) | 380(50Hz) | ||
| Allowed voltage fluctuation range | ±10% | ±10% | ±10% | ||
| Compressed air | Pressure (bar) | 30 | 30 | 30 | |
| Air consumption(m3/min) | 4 | 6 | 8 | ||
| Cooling water | Mold water | Pressure (bar) | 4-6 | 4-6 | 4-6 |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 45 | 45 | 45 | ||
| Oven water | Pressure (bar) | 4-6 | 4-6 | 4-6 | |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 22 | 22 | 22 | ||
| Machine specification | Machine dimension(m)(L*W*H) | 3.3*1*2.3 | 4.3*1*2.3 | 4.8*1*2.3 | |
| Machine weight(Kg) | 3500 | 4000 | 4500 | ||
Packaging & Shipping
Our Services
One stop Station Services
1)Stand-by engineers teams to provide overseas installation and commissioning service.
2)1 year warranty.During warranty ,we provide free of charge for repairing cost.
3)lifetime maintence .After-sales department can provide life long maintence service.

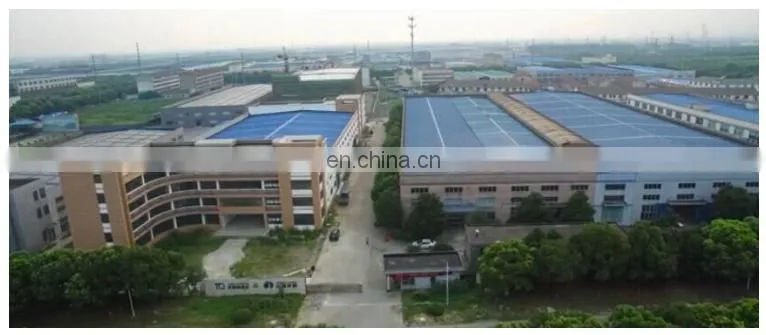

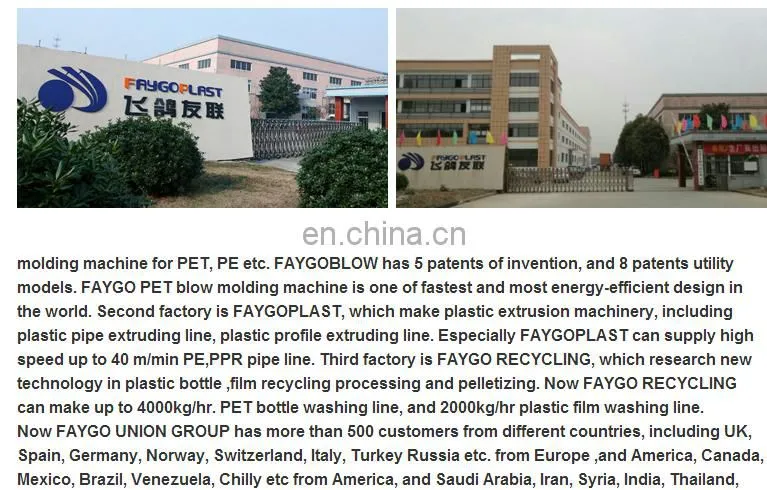

Company Information
vxgd
If you want get more information, please contact us, thanks!
Our company is near Shanghai ,about150km. Contact person :Sarah He
Whatsapp/Facebook:+86 188629865739
Mobile:0086-18862985739
Welcome to our factory anytime!
