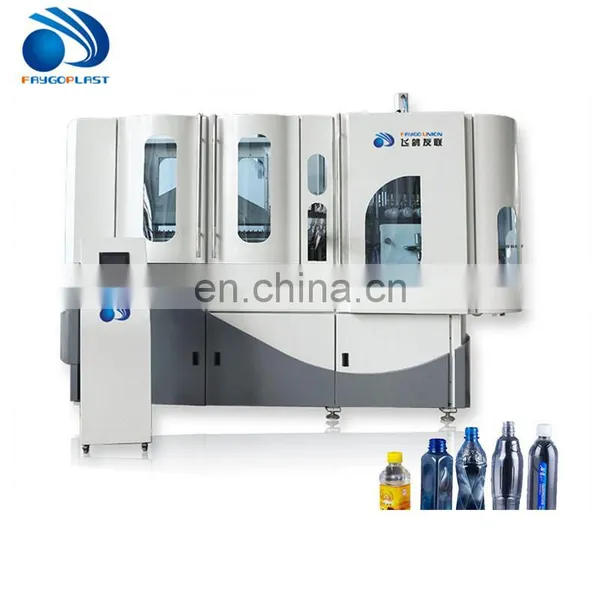

Machine to make bottle plastic Introduction:
FG series full-automatic Machine to make bottle plastic is the most stable two-step automatic stretch Machine to make bottle plastic
FG series full-automatic Machine to make bottle plastic is the most stable two-step automatic Machine to make bottle plastic. It has six cavities and the maximum capacity of the products is 2L. The capacity can be 9000-10000BPH, It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET etc.
1)High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:9000BPH(6-cavity)
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Machine to make bottle plastic Setting:
a).PLC colour display: OMRON(JAPAN)
b).Pneumatic parts:FESTO(GERMANY)
c).Controller of preform transfer:Servo motor National(JAPAN)
d).Other electric parts are all world-famous brand
Machine to make bottle plastic Technology is below:
Model |
FG6 |
Cavity number |
6 |
Blowing capacity |
9000BPH (500ml) |
Applicable preform |
Neck:20-25mm |
Height:105mm | |
Applicable bottle |
Neck: 20-25mm |
Volume: Max2000ml | |
Height: Max328mm | |
Diameter: Max105mm | |
Electricity consumption |
Installation power:51kw |
Heating oven power:46kw | |
Heating oven operating power:26kw | |
Voltage:380V/50Hz | |
Air consumption |
Pressure:30bar |
Capacity:3.5m3 | |
Mold water consumption |
Pressure:4-6bar |
Temperature:6-13℃ | |
Flow:45L/min | |
Oven water consumption |
Pressure:4-6bar |
Temperature:6-13℃ | |
Flow:26L/min | |
Machine Dimension |
L3900*W900*H2500mm |
Machine weight |
3500kg |

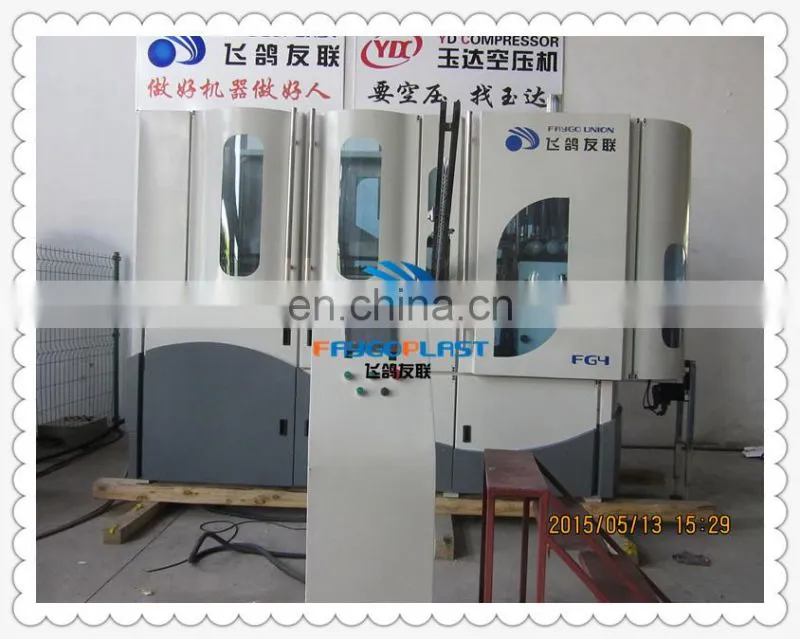

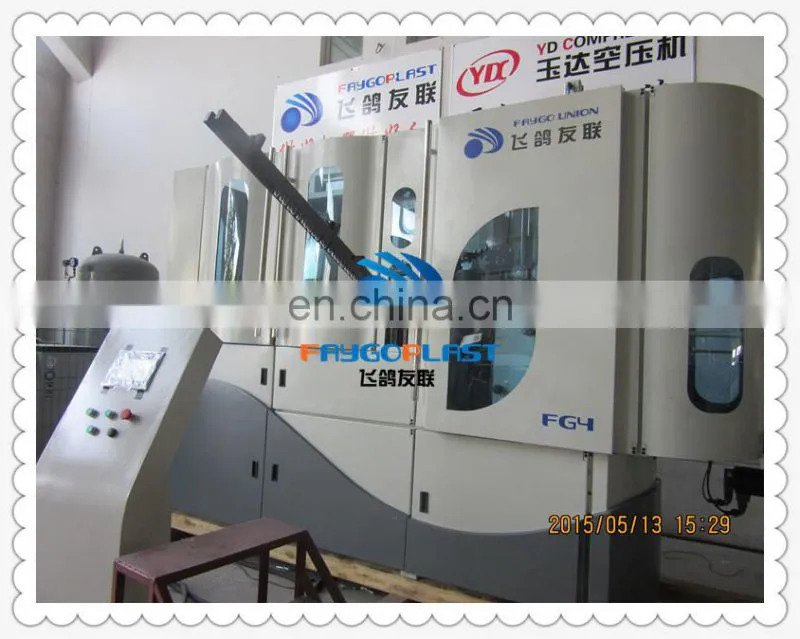

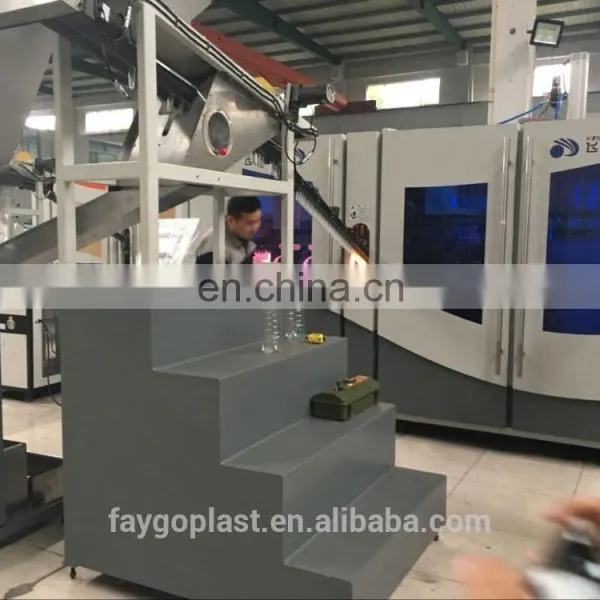

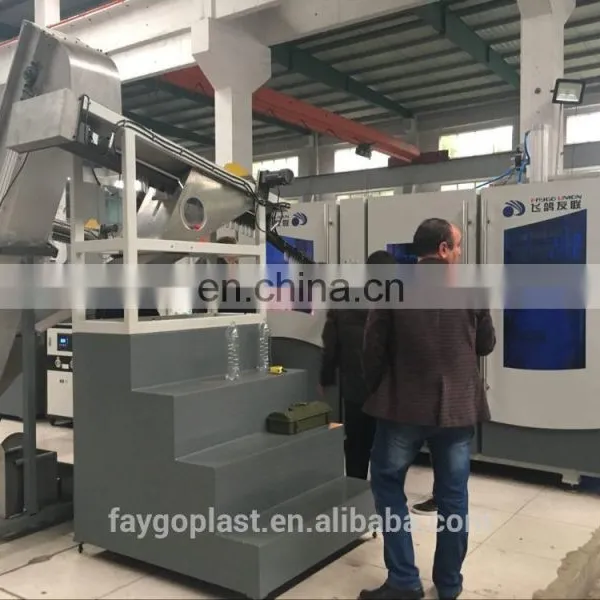

Machine to make bottle plastic Photos in our factory:

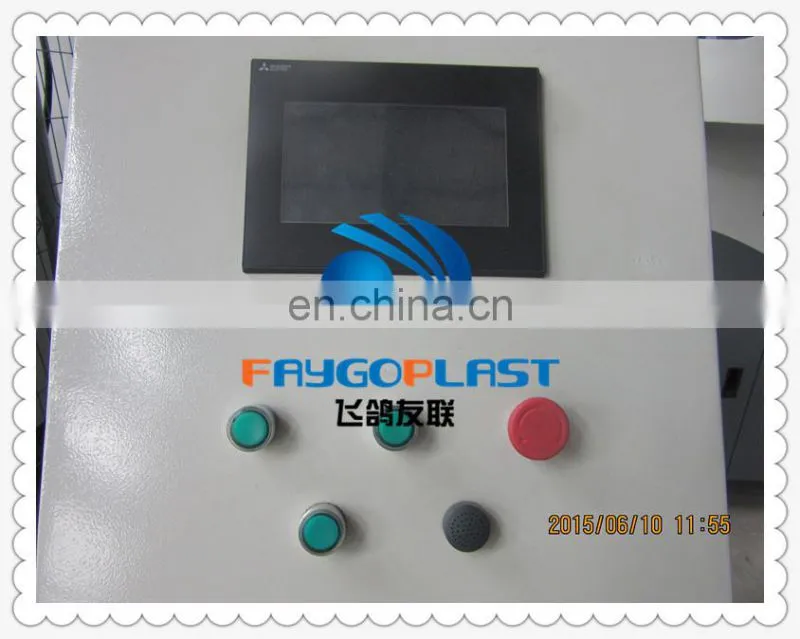

The control panel for the Machine to make bottle plastic

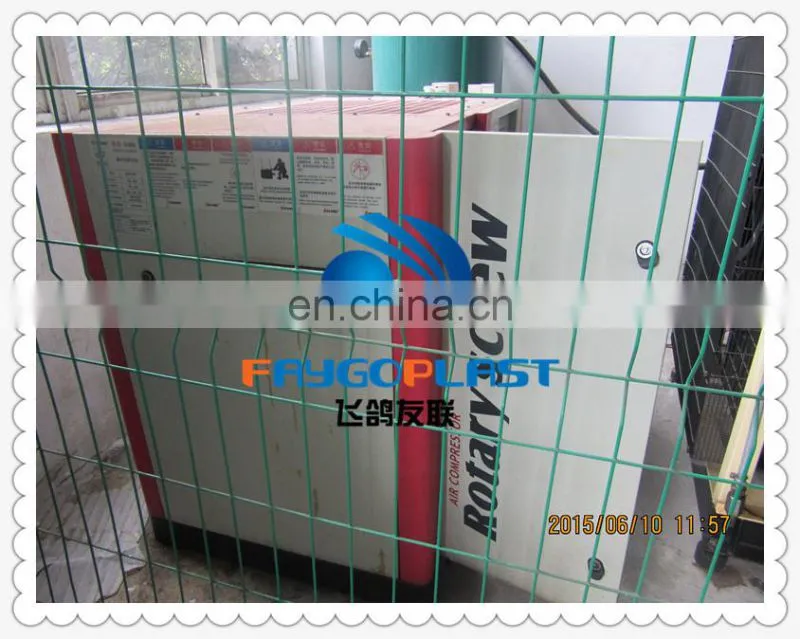

Air Compressor of Machine to make bottle plastic:

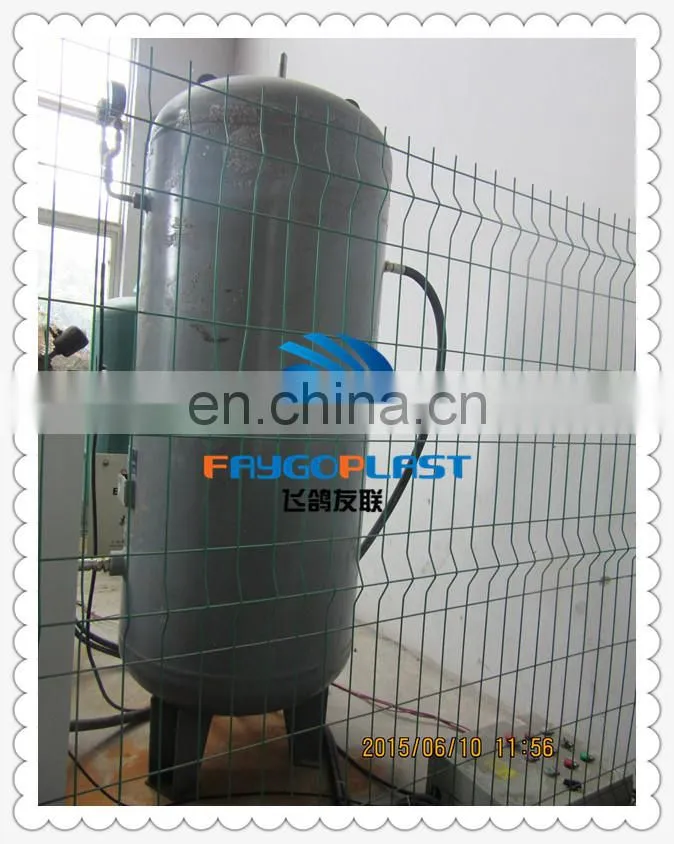

Air Tank used together with air compressor for this Machine to make bottle plastic
Air filter& air-liquid separator for this Machine to make bottle plastic:
Chiller is needed on the Machine to make bottle plastic:
Customer and Brand for this Machine to make bottle plastic:
My Contact for Machine to make bottle plastic:
