Spiral Endotracheal Heat Shrink Tube Machine
US$ 30,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Faygo
Place of Origin:
Jiangsu, China
Certification:
CE ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Paper Core Pe Pipe Making MachineUS$ 30,000 - 50,000MOQ: 1 Set -
Hdpe Making Price List Used Pvc Pipe Manufacturing Machine In IndiaUS$ 20,000 - 50,000MOQ: 1 Set
-
Factory Pvc Production Manufacture Plastic Promotional Ppr Tube Equipment Making MachineUS$ 30,000 - 30,000MOQ: 1 Set
-
Corrugated Line New Coming Upvc Extruder High Quality Flexible Pvc Four Pipe Making MachinesUS$ 20,000 - 50,000MOQ: 1 Set
-
China Plastic Pu Tpu Hose Production Line Cpvc Upvc Hdpe Pe Pp Pvc Corrugated Drainage Pipe Machines PriceUS$ 20,000 - 50,000MOQ: 1 Set
Brand Name
Faygo
Place of Origin
Jiangsu, China
Certification
CE ISO
Weight
2-10T
Dimension(L*W*H)
20mx2.5mx2.2m
Voltage
380V 50HZ 3Phase(Customized)
Application
Pipe
Condition
New
Plastic Processed
PE
Screw Design
Double-screw
Spiral Endotracheal Heat Shrink Tube Machine
Product Description
It is main used for producing PP-R, PE pipes with diameter from 16mm~160mm, PE-RT pipes with diameter from 16~32mm. Equipped with proper downstream equipment, it can also produce mufti-layer PP-R pipes, PP-R glass fiber pipes, PE-RT and EVOH pipes. With years of experience for plastic pipe extrusion, we also developed high speed PP-R/PE pipe extrusion line, and the max production speed could be 35m/min (base on 20mm pipes).
Products picture:
|
|
|
Technical parameters
model |
pipe size |
Extruder |
motor power |
Total length |
max output |
FGP63 |
16~63mm |
SJ65 |
37kw |
22m |
80~120kg |
FGP110 |
20~110mm |
SJ75 |
55kw |
30m |
100~160kg |
FGP160 |
50~160mm |
SJ75 |
90kw |
35m |
120~250kg |
This pipe extrusion line adopt energy efficient single screw extruder with special mould, production efficiency than single high-speed production line increased by 30%, energy consumption lower than 20%, also effectively reduced labor costs. The production of PE-RT or PE pipes can be realized by the appropriate transformation of the machine.
The machine could adop PLC control and color large screen liquid crystal display screen composed of control system, the operation is simple, linkage across the board, machine adjustment, automatic fault alarm, the whole line appearance, stable and reliable production.

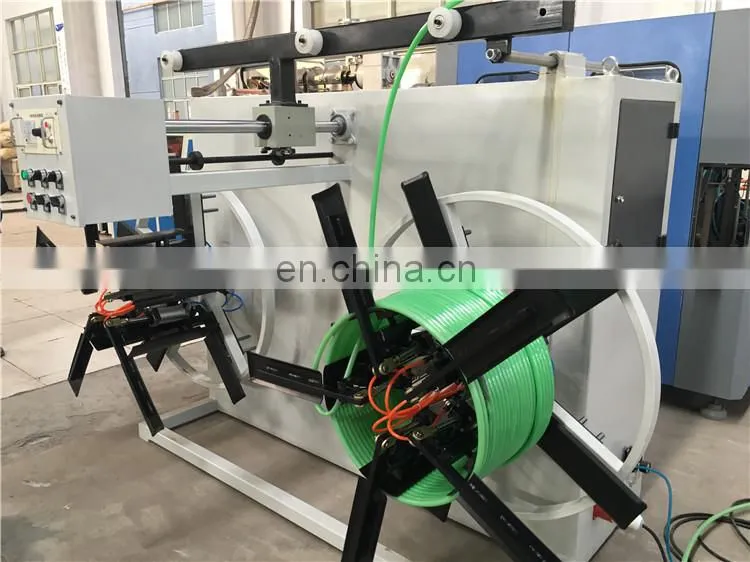

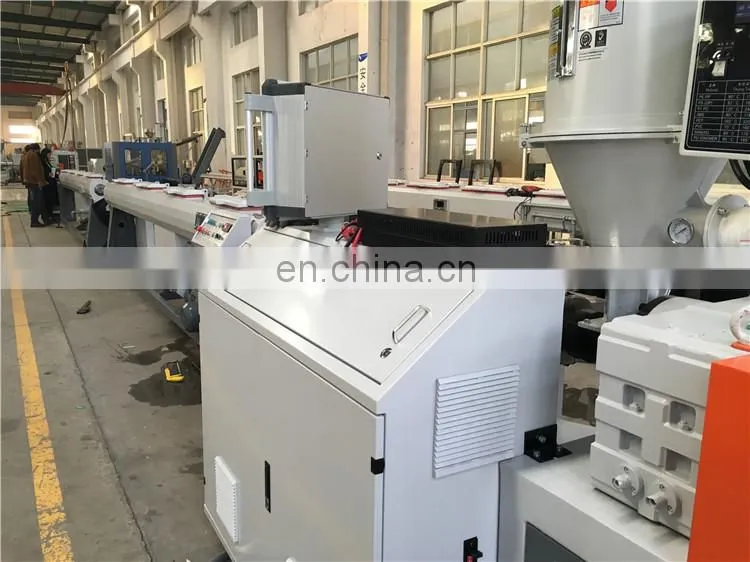

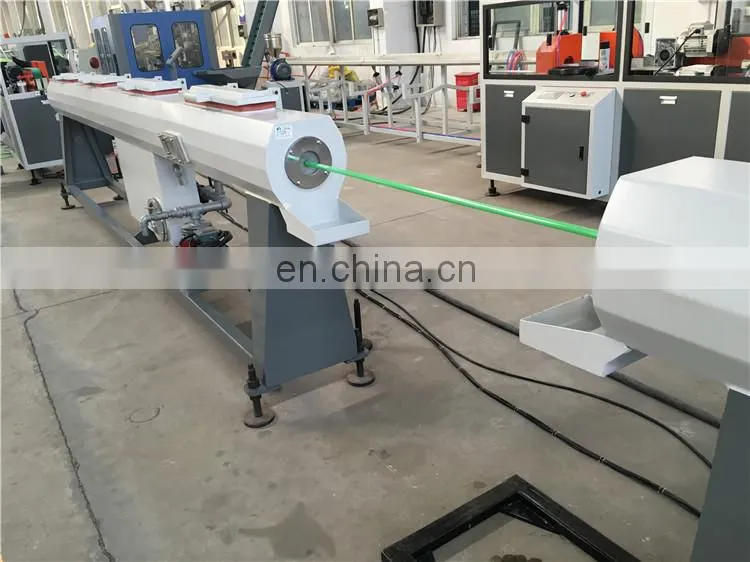

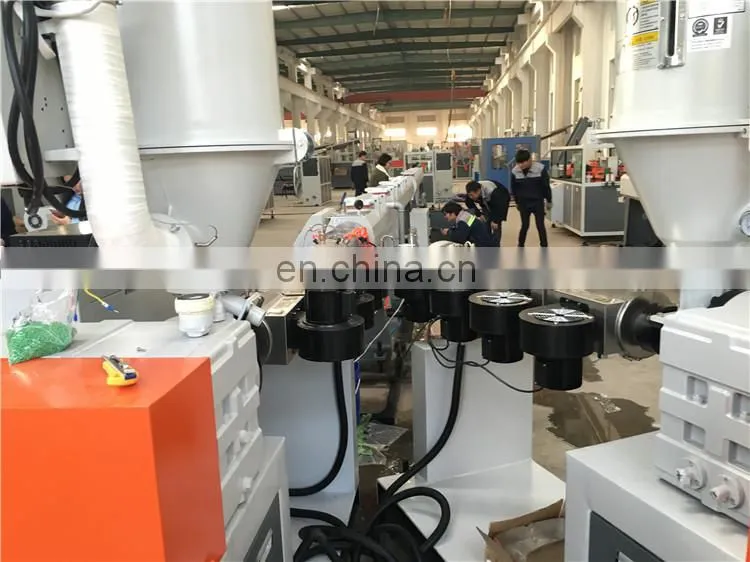

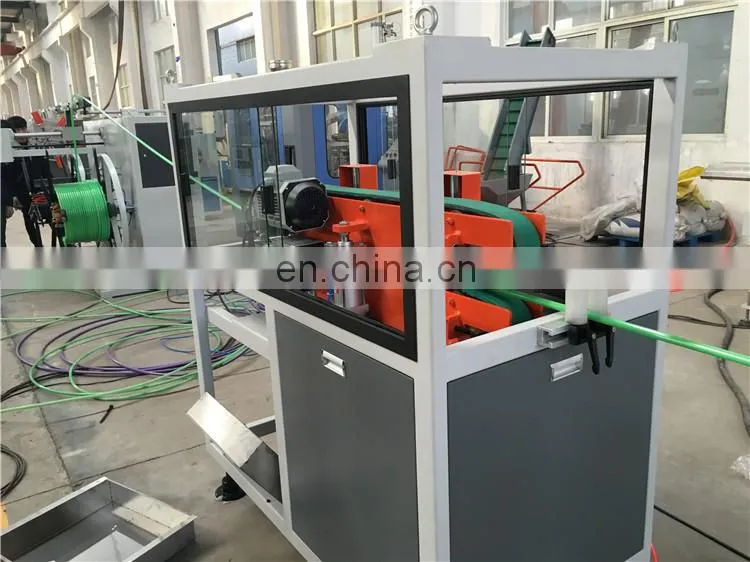

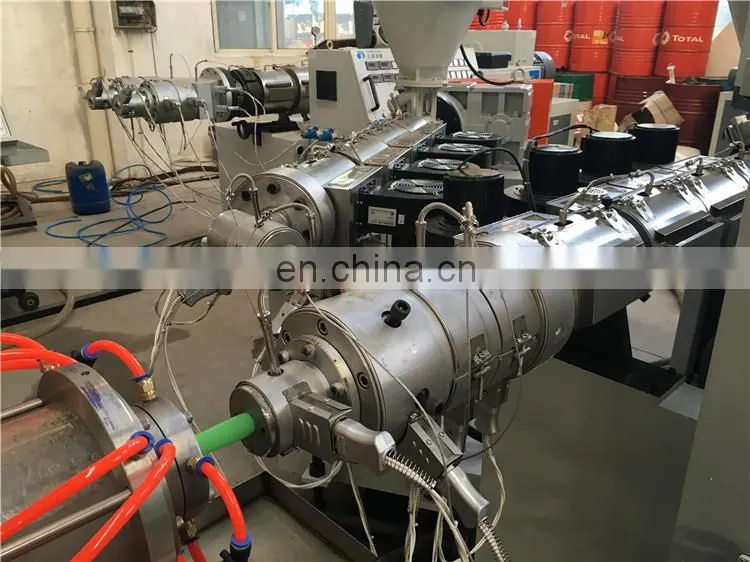

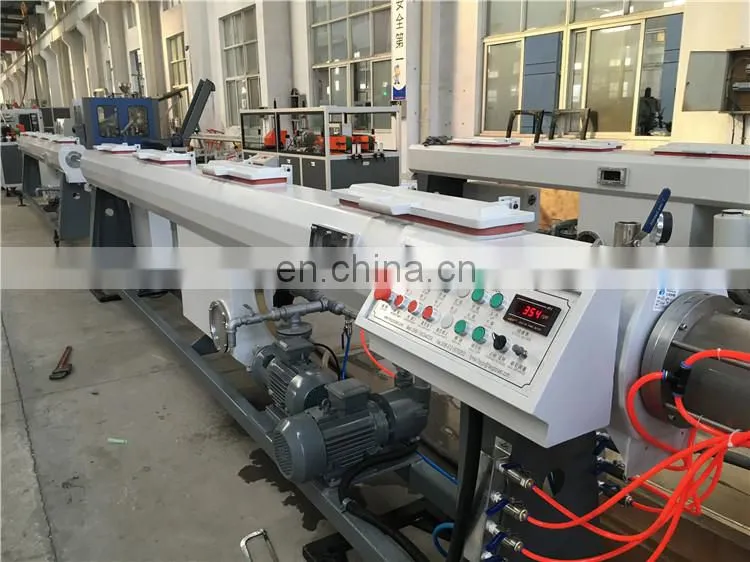

Product pictures
Spiral Endotracheal Heat Shrink Tube Machine
Other Pipe Machine
|
|
|
| PVC Pipe Production Line | HDPE Pipe Production Line | High Speed PPR Pipe Production Line |
