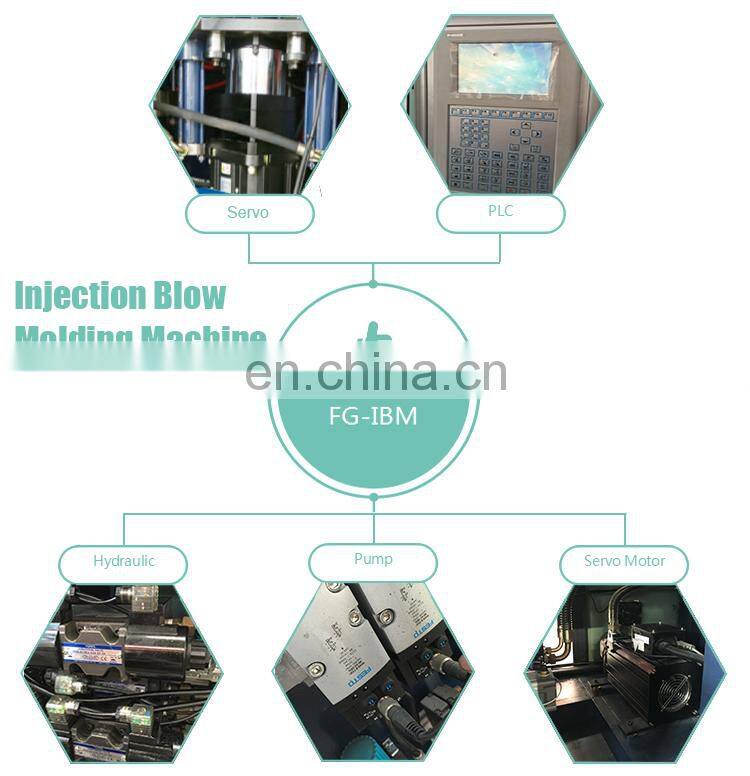

PE bottle plastic injection stretch blow molding machine
Specifications
Injection blow molding machine
1)Function: Injection,Blowing
2)Used for :Thermoplastic
3)CE,ISO
Feature:
1)One step fast molding without scrap, good for continuous production meeting GMP standard;
2)Neck and thread in high precision dimension to meet various sealing requirement;
3)Smooth party lines on body and bottom for perfect surface finishing, various shape available;
4)Max. Uniformity of bottle weight, thickness and volume;
5)High speed production with multi cavities available on different bottle size;
6)Suitable material: PE, PP, PS, SAN, PETG, EVA...etc for various bottles;
7)Different method as option, big space for ease mould changing.
Injection blow molding machine parameters:
| Name | Unit | FG40 | FG60 | FG80 | FG100 |
| Screw diameter | mm | 40 | 45 | 50/55 | 60 |
| L/D Ratio | 22:1 | 22:1 | 22:1 | 22:1 | |
| Injection Capacity | G | 179 | 260 | 314 | 415 |
| Heating power | KW | 7.5 | 10 | 10.8 | 12 |
| Heating section | 3+N | 3+N | 4+N | 4+N | |
| Injection mould clamping force | KN | 400 | 600 | 800 | 1000 |
| The injection mold opening stroke | mm | 140 | 140 | 140 | 150 |
| Mould clamping force | KN | 60 | 100 | 120 | 150 |
| Blow mold opening stroke | mm | 140 | 140 | 140 | 150 |
| Injection stroke | mm | 160 | 160 | 160 | 160 |
| Mold Size | mm | 480*340 | 600*390 | 800*400 | 1000*460 |
| Min. Thickness of Mold | mm | 180 | 240 | 280 | 280 |
| Main motor power | KW | 11 | 18.5 | 22 | 30 |
| Reject Stroke | mm | 210 | 230 | 230 | 230 |
| Dry Cycle Time | s | 3.5 | 4 | 4 | 4 |
| Total power | KW | 20 | 30 | 40 | 45 |
| Operating power | % | 52-70 | 52-70 | 52-70 | 52-70 |
| System pressure | Mpa | 14 | 14 | 14 | 14 |
| Compressed air pressure | Mpa | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 |
| Cooling water pressure | Mpa | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Product maximum diameter | mm | 120 | 120 | 120 | 120 |
| Product maximum length | mm | 200 | 220 | 220 | 220 |
| Product volume | ml | 3-800 | 3-800 | 3-1000 | 3-1000 |
| Dimensions | M | 3*1.3*1.7 | 3.5*1.4*1.8 | 4*1.6*2 | 4.5*1.8*2 |
| Equipment weight | Ton | 3.5 | 5 | 8 | 10 |
Mode cavity number control table
| Product Size | FG40 | FG50 | FG60 | FG80 | |||
| Volume | Neck Dia. | Height | Body Dia. | Cavities | Cavities | Cavities | Cavities |
| 5ML | 10 | 35 | 45 | 9 | 14 | 18 | 22 |
| 10ML | 12 | 40 | 20 | 9 | 12 | 16 | 20 |
| 20ML | 15 | 50 | 25 | 8 | 10 | 14 | 18 |
| 30ML | 20 | 60 | 30 | 7 | 9 | 13 | 16 |
| 40ML | 22 | 65 | 35 | 7 | 8 | 12 | 15 |
| 60ML | 28 | 75 | 40 | 6 | 8 | 12 | 14 |
| 80ML | 30 | 80 | 45 | 5 | 7 | 10 | 13 |
| 100ML | 32 | 85 | 50 | 4 | 6-7 | 10 | 12 |
| 150ML | 35 | 90 | 53 | 3 | 5-6 | 8 | 9 |
| 200ML | 38 | 100 | 58 | 3 | 4-5 | 7 | 8 |
| 400ML | 42 | 120 | 65 | 5 | 3-4 | 6 | 7 |
| 650ML | 50 | 160 | 80 | 1 | 2 | 5 | 6 |
| 800ML | 40 | 200 | 90 | 1 | 2 | 4 | 5 |
Products:
|
| |
|
|
Idea:
Abide by the logos of “Sincerity, Development, innovation, Win-Win” constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!
Market:
Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Transportation:
It is located in the beautiful port city of Zhangjiagang with convenient traffic; it’s about 150 km away from Shanghai.
