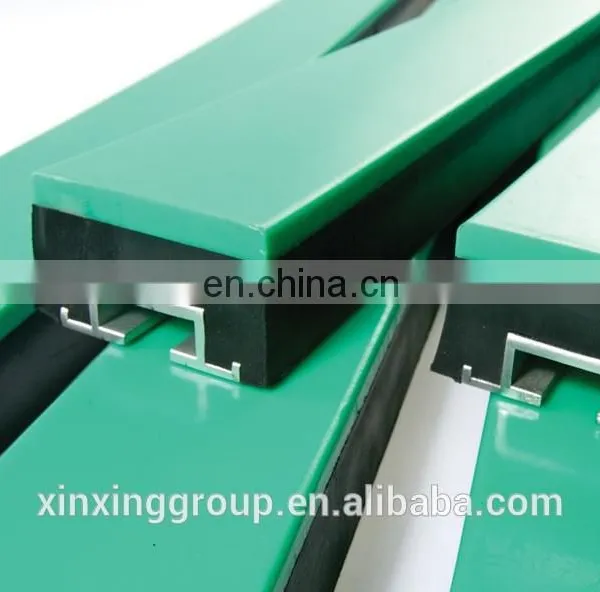

Help CenterConveyor Impact Craddle Impact Bar/extrusion Hdpe Plastic Rod/bar
Related Products
-
Uhmwpe Bars for Conveyor Belt Impact Bed/colorful UHMWPE Plastic Rod Pe-uhmw BarUS$ 2.6 - 5.5MOQ: 10 Kilograms -
Conveyor Rubber Impact Bar/High Density Polyethylene RodUS$ 2.6 - 5.5MOQ: 10 Kilograms
-
Solid PE Plastic Guide Rail UHMWPE Sliding RailUS$ 3 - 9MOQ: 500 Kilograms
-
Low Coefficient of Friction and High Impact Endurance Conveyor Equipment Guide RailUS$ 3 - 6MOQ: 500 Kilograms
-
UHMWPE Plastic Chain Guide/uhmwpe Guide Rail/uhmwpe Guide BarUS$ 3 - 6MOQ: 500 Kilograms
Yellow Color Anti impact UHMWPE Cushion Bar
hard plastic sheet
UHMW Polypropylene Sheet Factory
uhmwpe ba
hdpe bar
uhmw bar
uhmwpe bars
conveyor rubber skirt board
mining conveyor impact bed
impact bar
conveyor belt impact bar
impact extension bar
Manufacturers
UHMWPE impact bar
uhmwpe Conveyor impact bar
uhmwpe Conveyor impact bar
polyethylene impact bar
PE impact bar
rubber impact bar
conveyor rubber impact bar
Plastic flat bar
An impact bar is a special mechanical device that distributes the load of an impact over a wide surface area. The bar is made with a special rectangular design that forces any impacted weight to be distributed of the entire surface area of the bar. These types of bar designs are often used in safety equipment for automobile doors, bumpers, and roll cages. They are also used as weight support for conveyor belts.
Many cars and trucks include impact bars throughout the passenger compartment. These safety devices enclose the occupants with bars in the doors, bumpers, and roof. The bars make the car safer for collisions and rollover accidents.
An automobile bumper is typically based on an impact bar design. Bumpers reduce damage to the car and occupants by limiting the explosive effects of a collision. The bar has in internal rectangle cut-out area that is designed to spread the load of impact across the entire beam. This makes it easier to support heavy loads during crashes.
Impact bars are available in many types of material. The most frequently used are rubber, metal, or hardened urethane. The type of material determines the weight and distributed load the barcan support. An impact bar made from hardened urethane is considered one of the most durable because it is more resistant to wear.
Why Choose Us
l More than 15 years' professional manufacturing experience with own factory.
l Virgin 100% material produced, high quality with good surface and color make ensured
l GB/T 19001-2008 ; ISO 9001:2008 certification.
l Competitive price, In stock, Fast delivery, and Excellent service.
l OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
The properties of UHMW-PE Impact bars
Property |
Unit |
Value |
Density |
g/cm3 |
0.93-0.96 |
Average molecular weight |
g/mol |
3million- 10 million |
Tensile strength (23°C in air) |
MPa |
22 |
Breaking strength |
MPa |
42 |
Tensile strain at break |
% |
600 |
Charpy impact strength (notched) |
mJ/mm2 |
No break |
Ball indentation hardness |
N/mm2 |
42 |
Shore D hardness |
-- |
65-70 |
Abrasion |
% |
70-80, steel = 100 |
Static Friction Coefficient |
-- |
≤0.16 |
Kinetic Friction Coefficient |
-- |
≤0.10 |
Water Absorption |
-- |
NIL |
Elongation at break at 23 degress |
% |
≥300 |
Temperature resistance |
°C |
-269 to +85 |
Melt Temperature |
°C |
130-140 |
Our UHMW-PE impact bars Characters:
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.
5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
UHMWPE Advantages & Key Features:
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Light weight and easier to handle and fix
--Cost efficient; Resulting in low energy consumption
--Does not rot, split or crack; 100% recyclable
--Great liner material for industrial material handling applications
--Easy Reprocessed
FEATURES |
|
IMPACT BAR TECHNICAL DATA |
Item |
Index |
||||
Normal |
High Elastic (H) |
Flame Retardant (S) |
|||
Rubber Hardness (Shore A) |
60±5 |
50±5 |
60±5 |
||
UHMWPE Color |
Blue |
Blue |
Brown |
||
Coeffi cient of Surface Friction for UHMWPE |
0.07 |
0.07 |
0.10 |
||
Surface Resistivity (Ω) |
|
|
|
||
Flame Resistance Ability (Combustion by Alcohol Burner) |
|
|
Average test time by |
||
Adhesion (N/mm) ≥ |
Rubber & UHMWPE: 6.0 |
||||
Rubber & “T-slot” extruded metal construction: 6.0 | |||||
Note: Flame Retardant Impact Bar--With quality approval on the “Flame Resistant and Anti-static” ability for Underground Coal Mine Industry, and got “Certificate of Qualified Products” issued by “China National Inspection & Supervision Center of Coal Mine Equipment”. |
Our UHMW-PE impact bars standard sizes:
Any small size need us to cut , we can satisfy your special need .
IMPACT BAR SPECIFICATIONS |
Type |
A(mm) |
B(mm) |
H(mm) |
UHMWPE Thickness H2 (mm) |
Impact Bars |
600 |
100 |
50,65, 75,100* |
12, |
700 | ||||
750 | ||||
800 | ||||
900 | ||||
1000 | ||||
1220 | ||||
1400 | ||||
1524 | ||||
B Type Impact Bars |
B1220 |
|||
B1400 | ||||
B1524 | ||||
B1600 | ||||
B1800 |
Note: Other dimensions in the diagram are respectively: C=36mm; D=17.5mm; H1=15mm. |
T- BOLT TECHNICAL DATA |
Note: Bolt size can be customised to suit individual applications. |
Packaging : pallet packing or as client need.
Other products:
XINXING can provide various UHMWPE & HDPE products with the good quality at reasonable price according to your requirement.
Drawings:
Other UHMWPE machined CNC parts:
HDPE rod plastic bar / UHMWPE rod (5-480mm)
impact bar for vibration absorption
impact bar
UHMWPE impact bar
Uhmwpe impact bar
plastic impact bar
Uhmwpe impact bar/plastic impact bar
impact bar
mining impact bar
conveyor impact bar
impact uhmwpe bars
new impact uhmwpe bars
Cheapest impact uhmwpe bars
Conveyor impact craddle impact bar
Black UHMWPE conveyor bar
Conveyor impact bar
conveyor impact bar
impact bar for conveyor system
bumper impact bar
impact bar
impact bar
impact bar
nylon bar
hard plastic rod
color uhmwpe rod
flat bar
uhmwpe bar
conveyor rubber impact bar
uhmwpe red bar
fitness bar / resistance bar
pe bar
uhmwpe bar
blue uhmwpe bar
blue uhmwpe bar
UHMWPE Powder
UHMWPE Powder
UHMWPE Powder
IMPACT BED
conveyor impact bed
conveyor belt impact bar
im
contemporary impact uhmwpe bar
stylish impact uhmwpe bar
UHMWPE impact bar
wear resistant cnveyor imapct bar
bottle side guide wear strip
specialized impact bar
good specialized impact bar for industrial use
specialized impact bar
uhmwpe rod
nature color plastic bar
plastic bar in stock hdpe rod
impact bar
conveyor impact bar
impact bar
plastic rods
uhmwpe red bar
fitness bar / resistance bar
pe bar
uhmwpe bar
colourful uhmwpe bar
colourful uhmwpe bar
UHMW Polyethylene
UHMW Polyethylene
UHMW Polyethylene
impact bars
impact bed with impact bars
buffering impact bed with impact bars
impact bar for loading point
conveyor rubber impact bar
Rubber Impact Bars Capped
uhmwpe rod
pe rod
pe bar
price of uhmwpe
uhmwpe conveyor bed bars
price of uhmwpe impact bars
wear resistant and impact resistant conveyor sliding bar
UHMWPE bar
uhmwpe sliding bar
conveyor belt impact bar
impact beds
conveyor inpact bars
uhmwpe impact bar
designer uhmwpe impact bar
Cheapest uhmwpe impact bar
impact bar
Any questions, please feel free to contact us.
