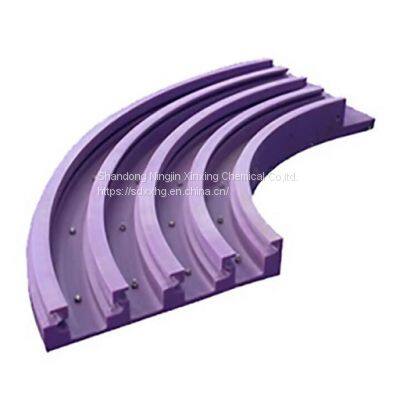

Help CenterUhmwpe Corner Track
Related Products
-
Uhmwpe Chain Guide and Belt GuideUS$ 4 - 5MOQ: 500 Kilograms -
Uhmwpe Roller Chain Guide and Track GuideUS$ 4 - 5MOQ: 500 Kilograms
-
Uhmwpe Chain Tracks and Chain GuidesUS$ 4 - 5MOQ: 500 Kilograms
-
Made to Order Uhmwpe Slide Guide Chain Track RailUS$ 4 - 5MOQ: 500 Kilograms
-
Uhmwpe Chain Track Guide and Corner Track GuideUS$ 4 - 5MOQ: 500 Kilograms
Chain Guides Extend Chain Service Life
Extend the life of your chain and minimise expensive downtime.
We manufacture all types of Roller Chain Guides. They are available in several grades of UHMW plastic. UHMWPE chain guides extend chain life, decrease noise and friction. Chain guide material used for conveyor side guide and conveyor frame support provided in ultra-low friction ULF material and highly self-lubricating.
Our extensive range of chain guides are manufactured in China from UHMWPE polymer that offers an extremely low coefficient of friction, meaning your expensive chain is sliding easily across its surface, minimising chain wear.
Low-cost chain guide profiles such as our Xinxing® brand enables smooth chain flow and protects the chain from metal on metal contact. This is proven to extend chain life.
There are a wide range of benefits gained from using Xinxing® Chain Guides such as:
Lower cost of conveyor construction, as the chain guides are simply bolted or welded into place.
Reduced power consumption due to less friction.
Quieter site operation due to less chain squeal.
Reduced maintenance costs due to the quick turn-around of fitting replacements.
Will outlast steel wear strips and will not rust.
With a range of different styles available, we cover the most common conveyor chain types used in China
Our range will suit C2060 double pitch, straight sidebar chains.
A wide range of 2.609″ pitch chains such as 81X, 81XHD, WR/WH78, H78, including these chains in rooftop variants.
We even supply our UHMWPE chain guides to suit larger pitch chains such as 6″ pitch WH132 and 4″ pitch WH124.
If we don’t have it on the shelf, we can custom design and CNC machine your chain guide to suit your exact requirements, with quick turn-around times.
Advantages
High-wear resistance: seven times wear resistance than steel, four times than PTFE.
High impact resistance: two times impact resistance than PC, five times than ABS.
Self-lubrication: the same as PTFE, better than steel and brass appended lubricating oil.
Anti-corrosion resistance: stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in a certain range of temperature and humidity.
Non-sticking: the smooth surface of product hardly affixes other material.
Low-temperature resistance: in (-196), it still has the prolongation and high tensile strength.
Non-toxic and clean property
SIZE
| Product | Description | To Suit Chain |
| XX200/SC | 2" Scanner Transfer Chanex | C2060 |
| XX200CITT | 2" Channel Insert | C2060 |
| XX200 | 2" Standard Chanex | RC80, C2060, C2080 |
| XX225TT | 2 1/4" Chanex | C2080, C2080H |
| XX50250-B | 2 1/2" Low Wall Chanex | Various |
| XX250 | 2 1/2" Standard Chanex | 81X |
| XX300TT | 3" Tru-Track Chanex | 81X |
| XX300 | 3" Standard Chanex | 81X |
| XX300CITT | Tru-Track Channel Insert | 81X |
| XX300HW | 3" High Wall Chanex | 81X |
| XX350125 | 3 1/2" Standard Chanex | 81X-HD |
| XX337 | 3 3/8" High Wall Chanex | 81X-HD |
| XX400CITT | Tru-Track Chanel Insert | 81X, 81X-HD, H78, WH78 etc |
| XX400TT | 4" Standard Chanex | H78, H78A, WH78 etc |
| XX450 | 4 1/2" Heavy Duty Chanex | WH78-XHD, H82 etc |
| XX225175 | 2 1/4" High Wall | Bin Slide |
| XX25400 | Flange Cap (Slip Chanex) | Bin Sorter Knees & Walls |
| XX650 | 6 1/2" Standard Chanex | H124, WH124 etc |
| XX900 | 9 1/4" Standard Chanex | H132, WH132 etc |
COLOR
green, white, black
APPLICATIONS
conveyors
