UHMWPE Abrasion Resistant Sheet Shaftless Screw Conveyor U Shape Liner
US$ 3 - 9
MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Brand Name:
XINXING
Place of Origin:
China
Model Number:
XX-012
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Green T 1000 Uhmw Polyethylene Panel | T 88 Blue Sheet | UHMWPE Liner Plastic PanelUS$ 3.8 - 4MOQ: 1000 Kilograms -
Color Customized Uhmwpe Polyethylene Wear-resisiting LinersUS$ 3 - 6MOQ: 300 Kilograms
-
Screw Conveyor U-shaped Liner - Screw Conveyor U-shaped LinerUS$ 3.8 - 4MOQ: 1000 Kilograms
-
An-ti Static Uhmwpe Polyethylene Conveyor Belt Impact BarUS$ 5 - 50MOQ: 500 Pieces
-
UHMW PE Polymer Truck Lining Board UHMW PE1000 BoardUS$ 55 - 60MOQ: 20 Square Meters
Brand Name
XINXING
Place of Origin
China
Model Number
XX-012
Material
PE
Size
1000*1000*10mm
Thickness
6-25mm
Product Description

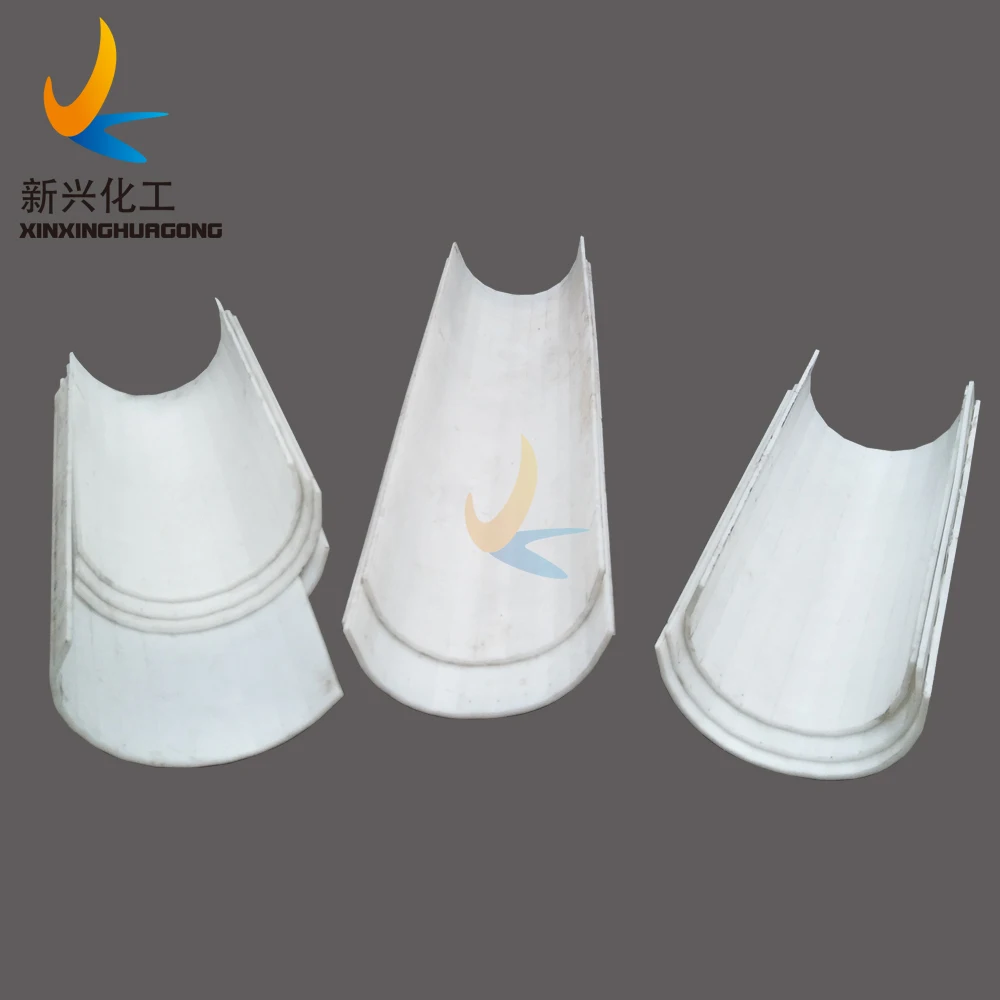

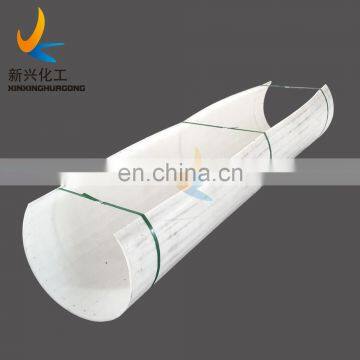

Introduction of shaftless screw conveyor liner
Wear-resistant Trough Liner
A major benefit of shaftless screw conveyors is the elimination of intermediate hanger bearings to support the screw sections. Intermediate hanger bearings are a constant maintenance issue and can be a restriction to bulk material flow. Shaftless screw conveyors rely on trough liners to support the shaftless spiral and provide a bearing surface.
Selection of the appropriate liner material and attachment method is critical to ensuring a relatively low maintenance shaftless screw conveyor. Xinxing utilizes extensive experience and an application database when selecting trough liner materials for a specific application.
Now lots of conveyors have developed a secure liner attachment method that simplifies installation and replacement. So, you just need to select an appropriate liner for your machine to ensure the super effect and long work lifespan
A major benefit of shaftless screw conveyors is the elimination of intermediate hanger bearings to support the screw sections. Intermediate hanger bearings are a constant maintenance issue and can be a restriction to bulk material flow. Shaftless screw conveyors rely on trough liners to support the shaftless spiral and provide a bearing surface.
Selection of the appropriate liner material and attachment method is critical to ensuring a relatively low maintenance shaftless screw conveyor. Xinxing utilizes extensive experience and an application database when selecting trough liner materials for a specific application.
Now lots of conveyors have developed a secure liner attachment method that simplifies installation and replacement. So, you just need to select an appropriate liner for your machine to ensure the super effect and long work lifespan
Specification
Items | unit | data | ASTM Test Method |
Molecular Weight | billion | 3~9 | D2857 |
Specific Gravity | g/cm^3 | 0.935~1.0 | D1505 |
Tensile Strength | MPa | 40~45 | D638 |
Elongation at break | % | 300~400 | D638 |
Impact Strength | kJ/m^2 | ≥140 | D250 |
Rockwell Hardness | kJ/m^3 | 40~60 | D747 |
Abrasion Loss | mg/1000 times | 70 | D1175 |
Distortion Temperature | ℃ | 85 | D648 |
Advantage of UHMWPE abrasion resistant liner sheet
Our shaftless screw conveyor liner is made of UHMWPE material that over 5 million molecular weight, and it features of extremely wear resistant, impact resistant, oil proof, Hydrolysis resistance, abrasion resistant, self-lubrication, non-stick, even the temperature below -100 Celsius degree, it still keeps the features. Good flexible ensures the perfect bending effect, light weight easy to install and dismantle, increase the work efficiency and the extend the service life!
* Abrasion resistance at the top in plastics, 4 times higher than nylon 66 and PTFE, 6 times
higher than carbon steel;
* The impact strength ranks first among plastics, which is 2 times of PC and 5 times of ABS, and can keep high toughness at liquid nitrogen temperature (-196)
* Its self-lubrication is approach to that of PTFE, and the coefficient of friction is only 0.07-0.11
* The impact absorption value is the highest among all plastics, and the sound attenuation effect is very good
* High chemical stability, in a certain temperature and concentration range can withstand the action of various corrosive media and organic media
* Strong anti-adhesion ability, second only to PTFE;
* Completely hygienic and non-toxic, can be used to contact food and medicine
* UHMWPE is odorless, non-toxic, odorless, non-corrosive, and has physiological circulation and physiological adaptability.
* Abrasion resistance at the top in plastics, 4 times higher than nylon 66 and PTFE, 6 times
higher than carbon steel;
* The impact strength ranks first among plastics, which is 2 times of PC and 5 times of ABS, and can keep high toughness at liquid nitrogen temperature (-196)
* Its self-lubrication is approach to that of PTFE, and the coefficient of friction is only 0.07-0.11
* The impact absorption value is the highest among all plastics, and the sound attenuation effect is very good
* High chemical stability, in a certain temperature and concentration range can withstand the action of various corrosive media and organic media
* Strong anti-adhesion ability, second only to PTFE;
* Completely hygienic and non-toxic, can be used to contact food and medicine
* UHMWPE is odorless, non-toxic, odorless, non-corrosive, and has physiological circulation and physiological adaptability.

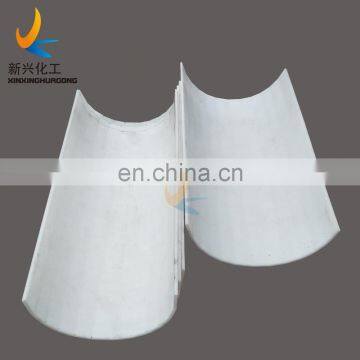

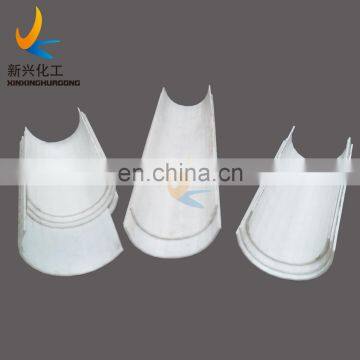

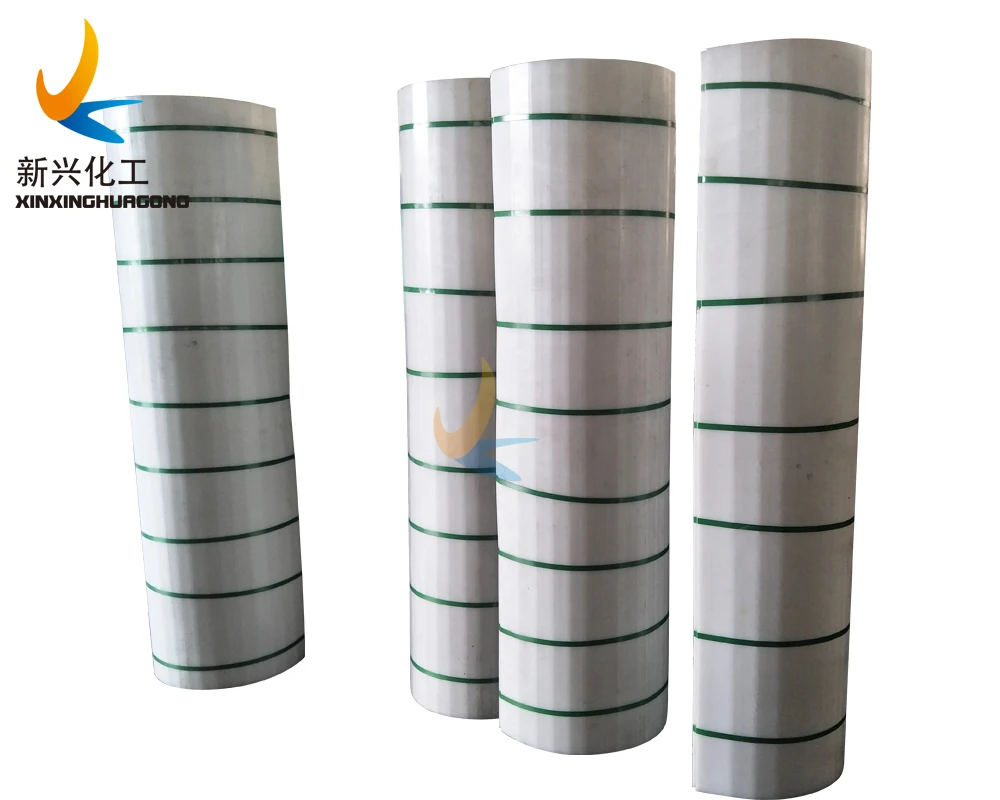

Size & color
External diameter: φ200-1500mm
thickness: 5-20mm, length: 1000-2500mm
All size accept customization, include the flat edge above the half circle part
Color: white, black, others also acceptable

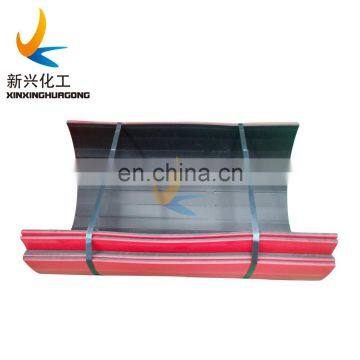

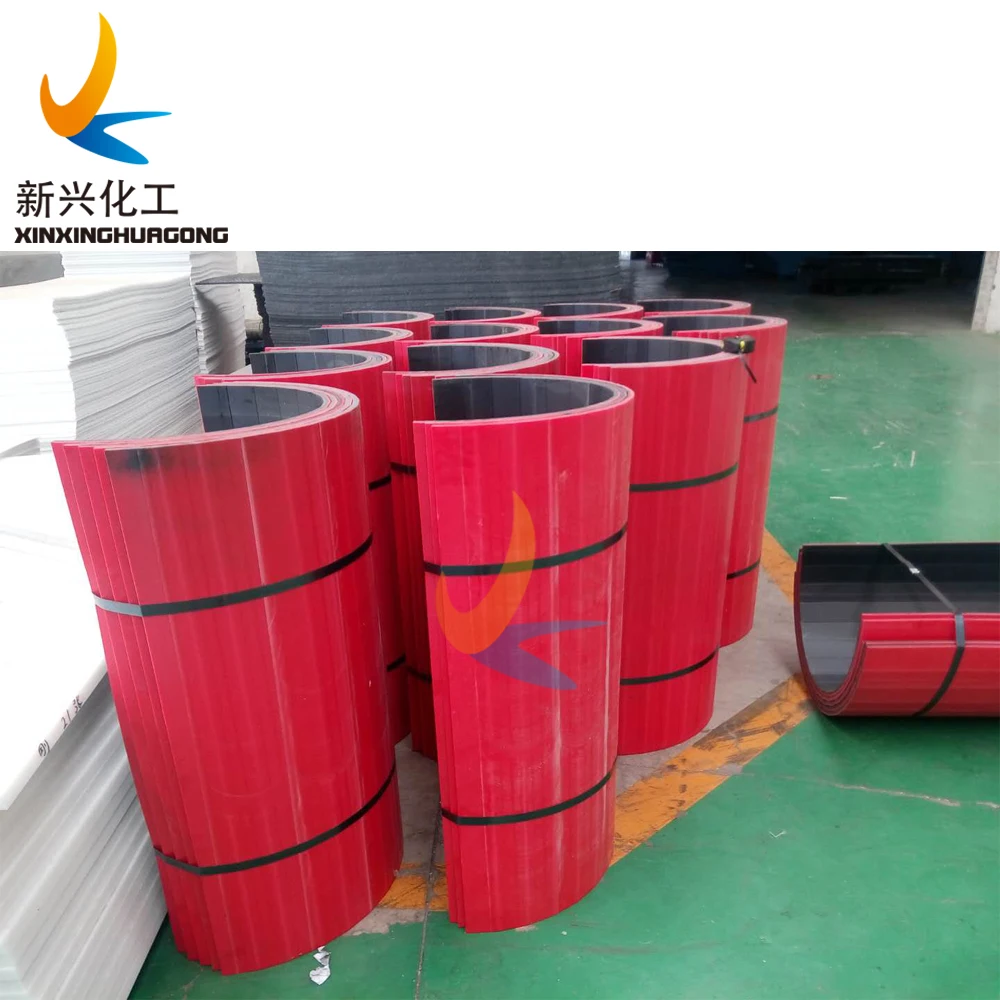

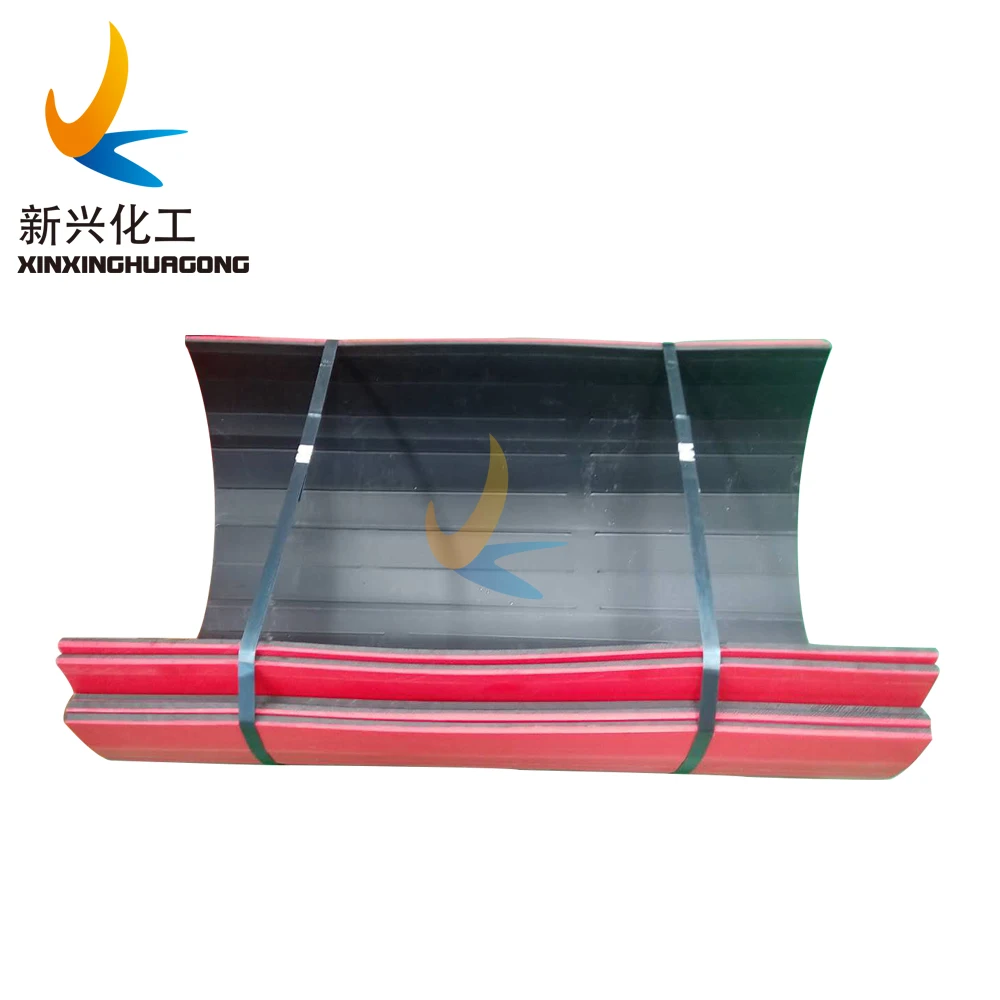

Private order: double color bending sheet( warning the thin layer to protect the equipment)
Application: shaftless screw conveyor
All size accept customization, include the flat edge above the half circle part
Color: white, black, others also acceptable
Private order: double color bending sheet( warning the thin layer to protect the equipment)
Application: shaftless screw conveyor

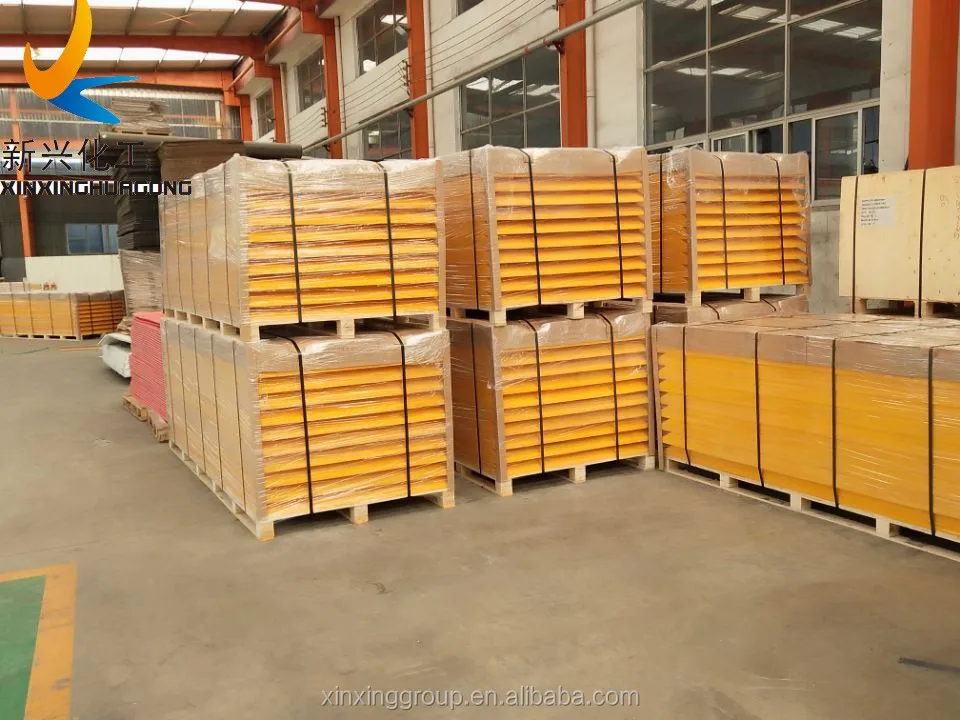

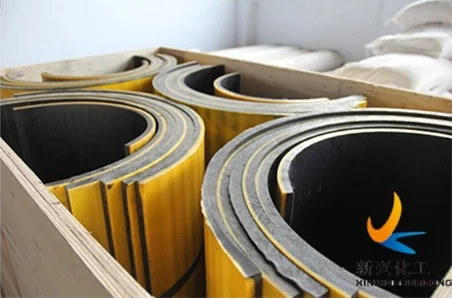

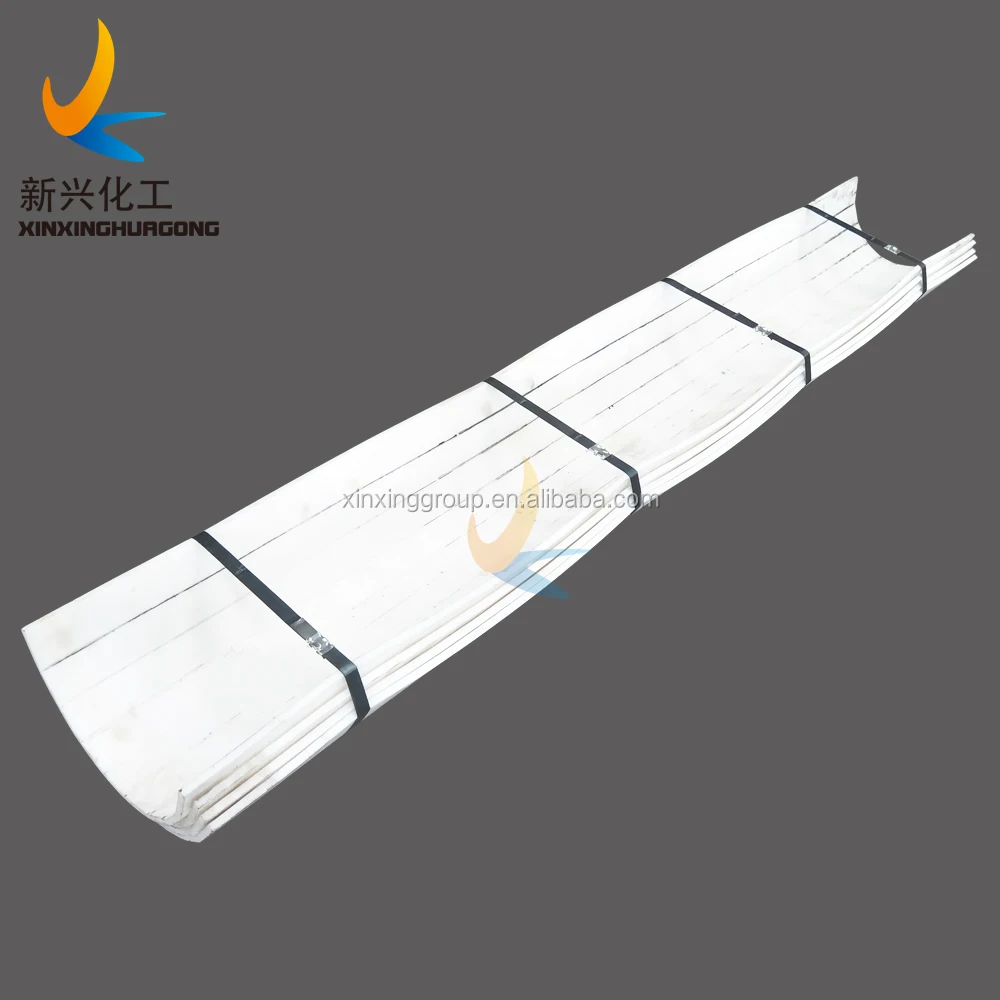

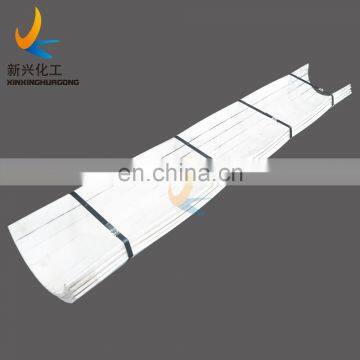

Packing & Delivery
Features: anti-corrosion, abrasion resistant, protect the main material of the machine from abrasion and corrosion. Prevent the material conveyed touching with the metal.

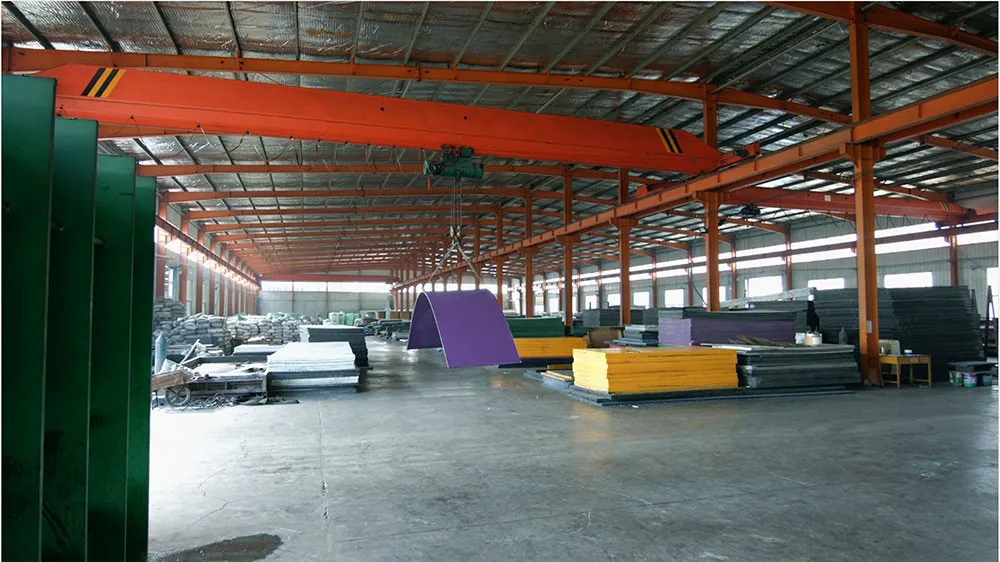

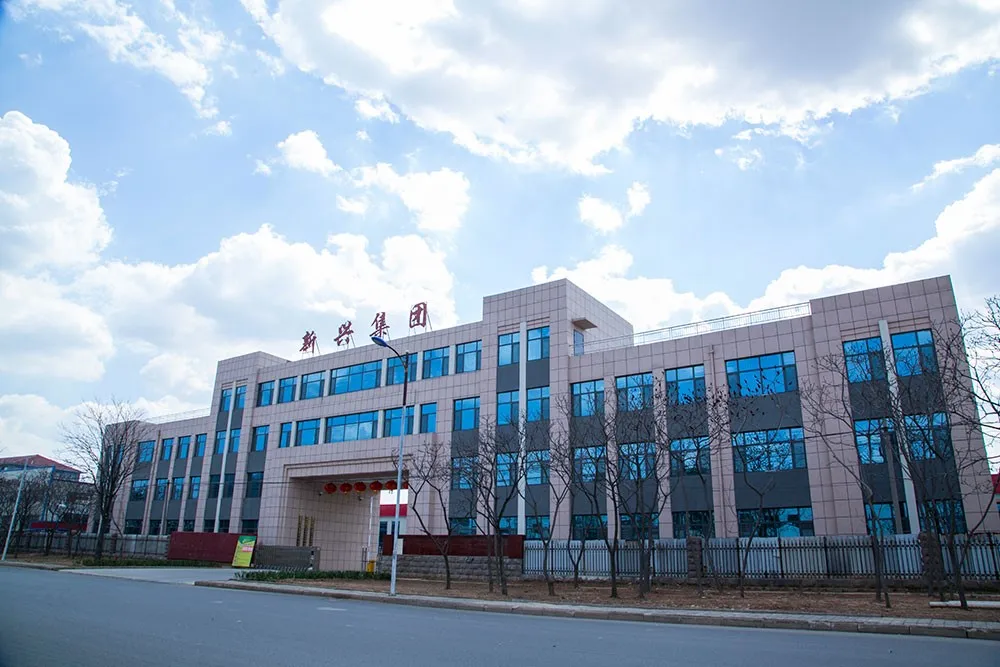

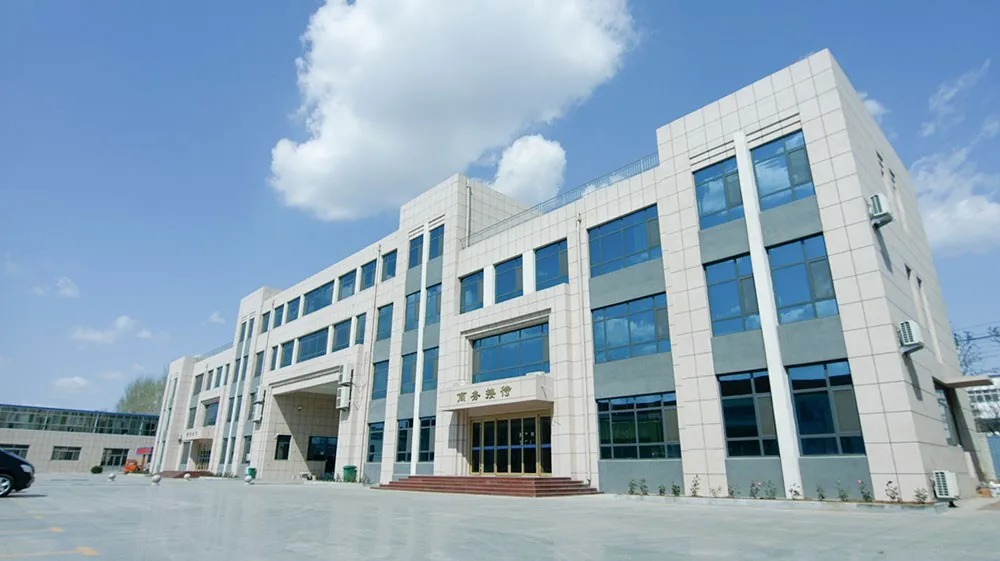

Company Profile
Established in 1989, Shandong Ningjin Xinxing Chemical Co., Ltd. has become the largest manufacturer of engineering plastics in China. Xinxing’s main engineered plastic products include UHMWPE sheets and rods , HDPE sheets and rods PP sheets and PVC sheets , etc . We can also supply a huge range of custom machined plastic parts such as Marine fender, Ground protection mats, Composite rig mats, as well as Ice rink series products like Ice rink dasher board , synthetic ice panel and hockey shooting pads . .
Our industrial plastic products are widely used in North America, Europe, Australia, Southeast Asia, Africa, Russia and many organizations and government projects due to their outstanding properties. Xinxing engineered thermoplastics are chemical resistant and extremely strong compared to common plastics.
We manufacture all plastic products in strict accordance with ISO9001 production standards. Meanwhile we passed UL factory Audit, SGS Quality Audit , and kinds of third party lab tests for different products , to guarantee a high-quality , high-standard, safe and healthy production environment for workers and customers .
We always share the things “ Quality first , Customer first , keeping improving “ to win more benefits for our partners.
Xinxing welcome for your cooperation !
Our industrial plastic products are widely used in North America, Europe, Australia, Southeast Asia, Africa, Russia and many organizations and government projects due to their outstanding properties. Xinxing engineered thermoplastics are chemical resistant and extremely strong compared to common plastics.
We manufacture all plastic products in strict accordance with ISO9001 production standards. Meanwhile we passed UL factory Audit, SGS Quality Audit , and kinds of third party lab tests for different products , to guarantee a high-quality , high-standard, safe and healthy production environment for workers and customers .
We always share the things “ Quality first , Customer first , keeping improving “ to win more benefits for our partners.
Xinxing welcome for your cooperation !
