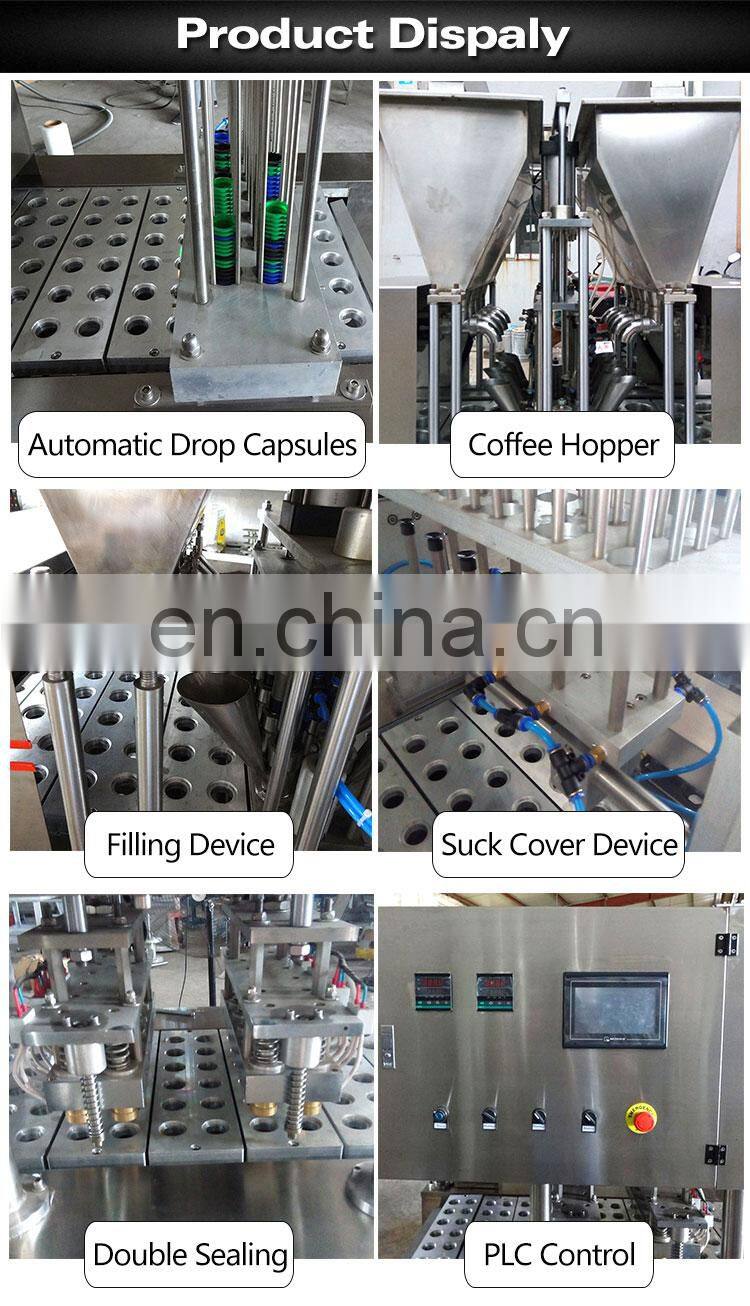

Linear Coffee Capsule Filling & Sealing Machine is automatic high-speed sealing machine. From drop cups, filling, put the film, print dates, twice sealing to out are all automatic operation. The electrical and pneumatic components are all using famous brands ( can be also customized by customers’ requirements), with stable quality, long life. It is mainly used in the products packing like: coffee powder, milk powder, rice, wheat powder and so on.
Features:
- The whole machine with advanced design, reasonable structure, reliable performance.
- Automatic operation, the production rate can be adjustable, simple and safe operation, increase productivity, reduce labor costs.
- Photocell eye calibration, ensure the accuracy of filling.
- Twice of sealing, the pressure of sealing can be adjustable. Can be sealed according to customer' requirements for easy to tear and not easy to tear, which embodies a higher level of human design.
- The sealing edges are smooth and flawless.
- The machine can be customized according to customer' needs and add other auxiliary functions.
Please don't be hesitate! Contact us and get more Capsule Filling Machine details!
Click for More Information !!!

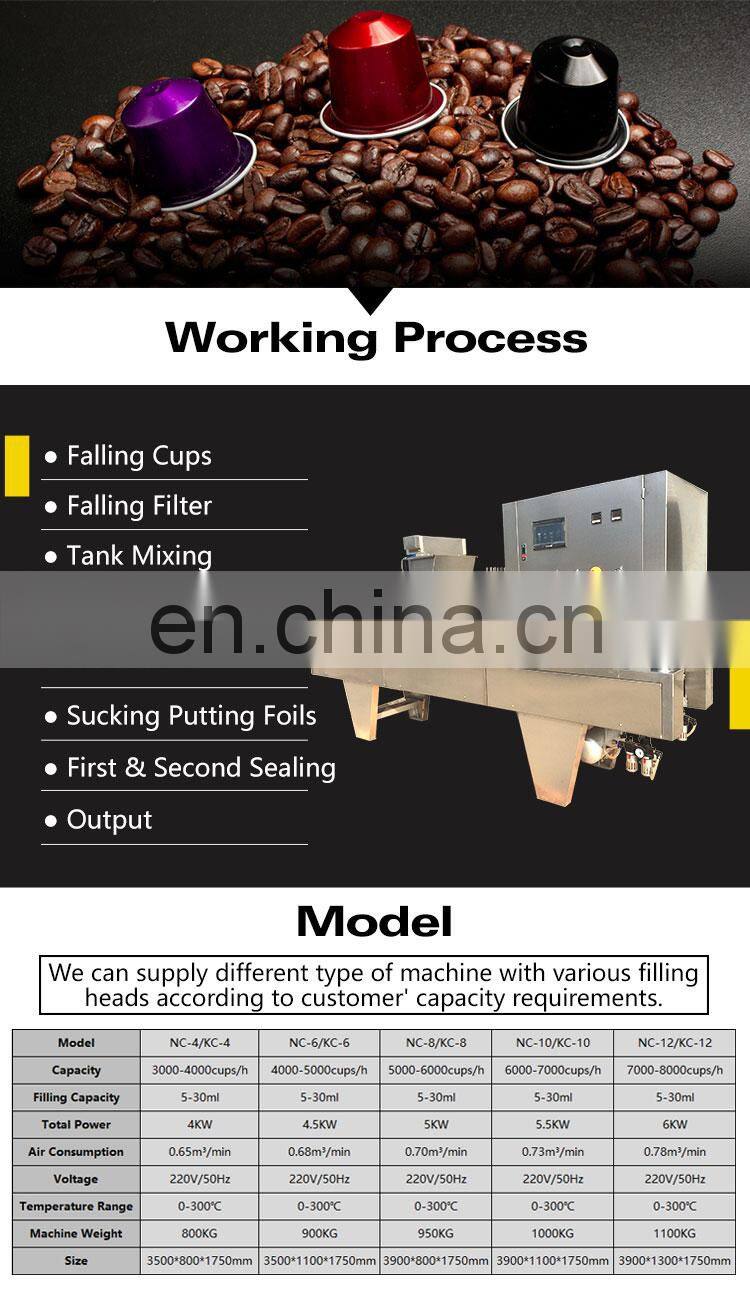

| Item | Precision screw powder capsules filling sealing machine with foil lids | ||||
| Model | NC-4/KC-4 | NC-6/KC-6 | NC-8/KC-8 | NC-10/KC-10 | NC-12/KC-12 |
| Capacity | 3000-4000cups/h | 4000-5000cups/h | 5000-6000cups/h | 6000-7000cups/h | 7000-8000cups/h |
| Filling Capacity | 5-30ml | 5-30ml | 5-30ml | 5-30ml | 5-30ml |
| Total Power | 4KW | 4.5KW | 5KW | 5.5KW | 6KW |
Air Consumption | 0.65 cubic meters/min | 0.68 cubic meters/min | 0.70 cubic meters/min | 0.73 cubic meters/min | 0.78 cubic meters/min |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Temperature Range | 0-300℃ | 0-300℃ | 0-300℃ | 0-300℃ | 0-300℃ |
| Machine Weight | 800KG | 900KG | 950KG | 1000KG | 1100KG |
| Size (mm) | 3500*800*1750 | 3500*1100*1750 | 3900*800*1750 | 3900*1100*1750 | 3900*1300*1750 |
Click for More Information !!!
Q: Can I control the sealing temperature of the coffee capsule filling and sealing machine?
A: Yes, you can control the temperature by the thermostat of this machine.
Q: If I add UV sterilization device, do the time and intensity of sterilization can be controlled?
A: Yes, it can be controlled according to the time of the machine.
Q: Does the sealing of machine is electrically heated? Can you recommend the most suitable sealing temperature?
A: Yes, it is electrically heated. According to our experience, the temperature is usually between 180 to 220 degrees, If the cups material and film thickness are different, the sealing temperature is also different. The sealing temperature is adjustable (0-400°)
Q: Does the machine can sealing both plastic cups and aluminum foil cups?
A: Yes, half of the machine can do plastic cups, and half can do aluminum foil cups.
Q: What is the functions of the machine?
A: Automatic drop cup, automatic flush nitrogen, automatic filling, automatic film, printing date, two times heat seal, automatic cup-out. (Flush nitrogen and print date are optional)
Q: Can I filling k-cup and coffee capsule on the same machine?
A: In general, it is not possible. Because of the diameter of the cup is different, but we can customized it for customers. But the machine must be two heads or over. Such as two heads machine, one head is k-cup, another is Nestle capsule.
Q: How to adjust the filling quantity?
A: Adjust the filling amount by adjusting the filling time.
Q: What is the filling speed of your coffee capsules machine?
A: We will recommended the suitbale machine based on the customer's request, we have linear machine and rotary machine.
Q: Can one machine be used for different sizes of cups?
A: Yes, but is is difficult to change the molds, so if the cup size is different, we recommend changing machines.
Q: What is the machine's service life?
A: Normally, 3-5 years.
