Brief Introduction:
This e liquid filling machine is mainly available to fill eye-drop.E-liquid into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.
Characteristic:
1,Man-machine dialogue system setting,visual convenient operation ,accurate filling level.
2,the mainframe running speed is stopless frequency conversion.
3,the product quantity can be controlled.
4,Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).
5,Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.
Main Technical Parameters:
Filling Volume | 2-30ml |
Productivity | 35-60bottles/min |
Filling Precision | ≤±1% |
Power Supply | 380V/50Hz |
Capping Rate | ≥99% |
Stoppering rate | ≥99% |
Air Supply | 1.3 m3/h 0.4-0.8Mpa |
Power | 2.0 kw |
Weight | 550 kg |
Dimension | 1800*1000*1500mm |
Shanghai shenhu packaging machinery equipment Co,ltd
------ Factory Directly sale

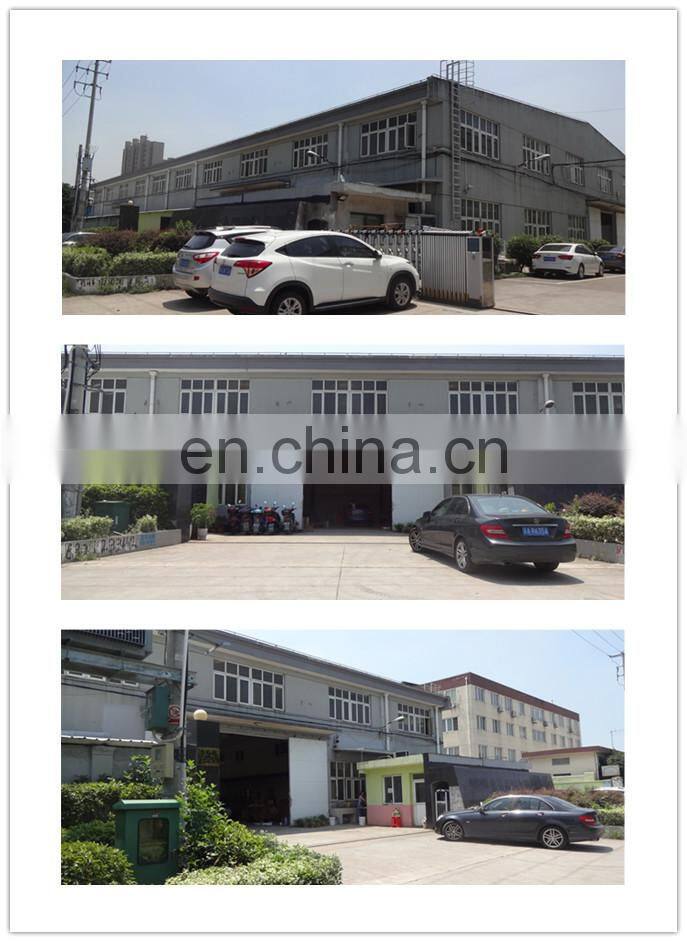

We locate in Nanxiang Town, Shanghai city, equiped with advanced management concept, outstanding R&D team, innovative science and technology, thorough presale, in sale and after sale service system.we combined with domestic and international advanced packaging concept to create first-class packaging machinery all over the world.we are a long-established factory specializing in providing packaging equipment for toothpaste, cosmetics,food, beverage,daily chemical, agrochemicals,fine chemical,and other industries. Our main equipment is filling and sealing machine for tube/ cup / bottle / bag / box, filling and capping machine and their related production lines.
We are in the business of packaging machines for more than 10 years.
Email: angela @shenhu.net.cn
Skype:zxmangela
