1 2 4 6 8 Heads Fully Automatic Liquid Ointment Tube Filling Machine Oil Filling Machine

US$ 10,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Shenhu
Place of Origin:
Shanghai, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Shenhu
Place of Origin Shanghai, China
Certification CE
Warranty 1 Year
Weight 900kg
Dimension(L*W*H) 1500*1100*1900mm
Condition New
Voltage AC380/220 V
Automatic Grade Automatic
Product Description

1 2 4 6 8 heads fully automatic liquid ointment tube filling machine oil filling machine

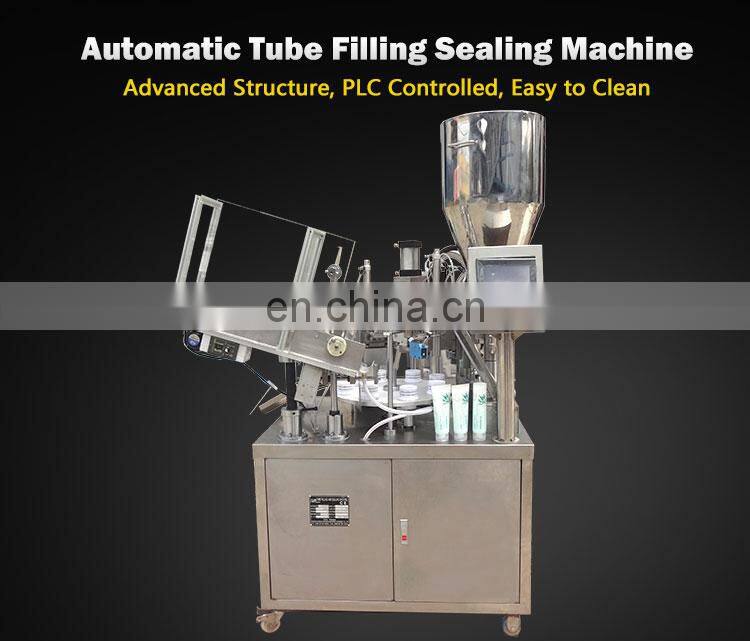

HTGF-50 Automatic Tube Filling Sealing Machine is suitable for plastic tube and laminated tube filling and sealing, widely used in daily chemical products, medical products, food, chemicals, cosmetics, toothpaste and so on industries.

Please don't be hesitate! Contact us and get more Silicone Tube Filling Machine details!


Applications

1 2 4 6 8 heads fully automatic liquid ointment tube filling machine oil filling machine

Product Overviews

1 2 4 6 8 heads fully automatic liquid ointment tube filling machine oil filling machine1 2 4 6 8 heads fully automatic liquid ointment tube filling machine oil filling machine

Technical Paremeter
 Item Factory Price Automatic Toothpaste Filling and Sealing Machine,equipment for the production of tooth paste
 Model  HTGF-80
 Power

 AC380/220V

 Air Pressure

 0.6Mpa

 Max Power  2KW
 Productivity  30-80pcs/min
 Filling Accuracy  ±1%
 Hopper Capacity  50L
 Fill Volume  5-25ml, 15-150ml, 30-200ml
 Tube Diameter  10-50mm
 Tube Length  210mm
 Dimension  1500*1100*1900mm (L*W*H)
 Machine Weight  About 850KG
 Features
  • Adopt PLC and touch screen control system, easy to operate.
  • Driving system is closed under the working table, safe and non-pollution.
  • Material contact parts used SUS316L material, easy to clean and meet with GMP requirements.
  • Filling sealing parts are installed on the working table, half-closed and transparent, easy to maintain.
  • Cam driving, high accuracy, high speed.
  • Tube orientation controlled by photocell for accurate positioning of tubes.
  • Filling nozzle used Japan sealing rings in case of leaking.
  • Changing different parts and do some adjustment can achieve 3 side folding, 5 side folding and other folding ways.
  • Automatic printing date on the tube bottom.
  • No tube no filling function.
  • Automatic counting and E-stop.
  • (Choose) heating and mixing function, protection cover.
