Semi-automatic Ultrasonic Grease Tube Filling and Sealing Machine

Semi-automatic Ultrasonic Grease Tube Filling and Sealing Machine photo-1

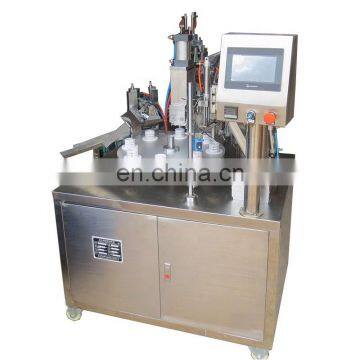

Semi-automatic Ultrasonic Grease Tube Filling and Sealing Machine photo-2

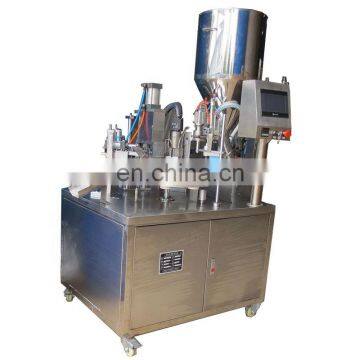

Semi-automatic Ultrasonic Grease Tube Filling and Sealing Machine photo-3

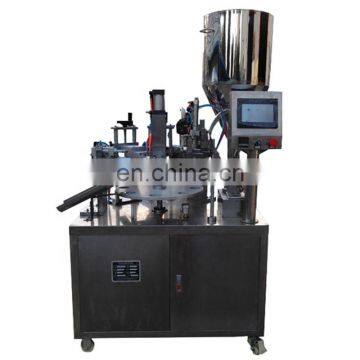

Semi-automatic Ultrasonic Grease Tube Filling and Sealing Machine photo-4

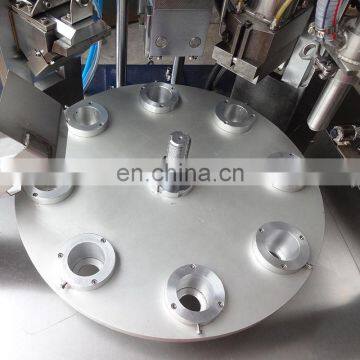

Semi-automatic Ultrasonic Grease Tube Filling and Sealing Machine photo-5

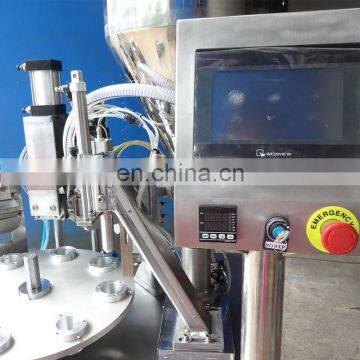

Semi-automatic Ultrasonic Grease Tube Filling and Sealing Machine photo-6
US$ 5,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SH (lubricant oil tube filling machine)
Place of Origin:
Shanghai, China
Certification:
CE SGS GMP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SH (lubricant oil tube filling machine)
Place of Origin Shanghai, China
Certification CE SGS GMP
Warranty 1 Year
Weight 350kg
Dimension(L*W*H) 1000*800*1600mm(L*W*H)
Condition New
Voltage 220v 380v(can be customized), 110V/220V/380V 50/60Hz
Automatic Grade Semi-Automatic

Semi-automatic ultrasonic grease tube filling and sealing machine

HTGF-50 Semi Automatic Tube Filling Sealing Machine uses rotary piston way, filling precision, using light point control, heated sealing all work with high precision cylinder full stroke control, easy to adjust filling volume, the filling speed can be adjusted. It applies to all kinds of composite tubes, plastic pipe and metal pipe filling and sealing, date printing, cut the tail. Sealing neat appearance, sealing strong, high accuracy, good stability. According to the different material properties, Optional ingredients bucket heating system, anti-leak filling head, Machine adopts imported PLC control, import the original frequency control, pneumatic components using (AIRTAC), import original (SICK) photoelectric sensors, high stability, imported hot air flow meter and the formation of hot air heating system.

Our Machine Advantages:

  • 1. Host with frequency control.
  • 2. Color positioning, selection of German, while accompanied by a high-precision drives and stepper motor (very high requirements on the standard configuration Servomotor), to ensure the correct position graphics.
  • 3. Anti-leak filling nozzle deep into inside of hose, while there is a bottom-up filling process is complete when filling and sealing, no leakage or overflow. Machine is suitable for a variety of different physical and chemical properties of the filling material requirements. Filling volume fine hand wheel placed in the external body, tight regulation and very convenient to ensure filling accuracy ≤ ± 1%, cost savings and truly accurate measurement.
  • 4. The structure is compact, self-control, transmission closed.
  • 5. Easy to change tube holder for different tube diameter.
  • 6. Material contact parts made of 316 stainless steel, clean, sanitary, in full compliance with the requirements of GMP.
  • 7. The machine speed by inverter control can be adjustable.
  • 8. Height can be adjusted directly and conveniently for different tubes.
  • 9. Filling volume can be adjustable by double cylinder, easy to adjustable.
  • 10. Equipped with safety devices, door stop, no tube no filling, overload protection.
  • 11. No filling leak, the air blow-off device blew cream tail. (This is our patent)
  • 12. Sealing temperature use (Leister hot air gun) tail pipe internal heating, cooling External cooling device configuration.

Please don't be hesitate! Contact us and get more Plastic Tube Sealing Machine details!

Applications

Semi-automatic ultrasonic grease tube filling and sealing machine

Packaging Materials and Filling Materials Scope:

  • Soft Tube, Plastic Pipe, Composite Pipe.
  • ointment, cream, gel viscosity fluids agents.

Applicable Industries:

  • It is widely used in pharmaceutical, cosmetic, food, chemical and other industries packaging. Such as ointments, gels, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste filling and sealing materials.

Click for More Information !!!

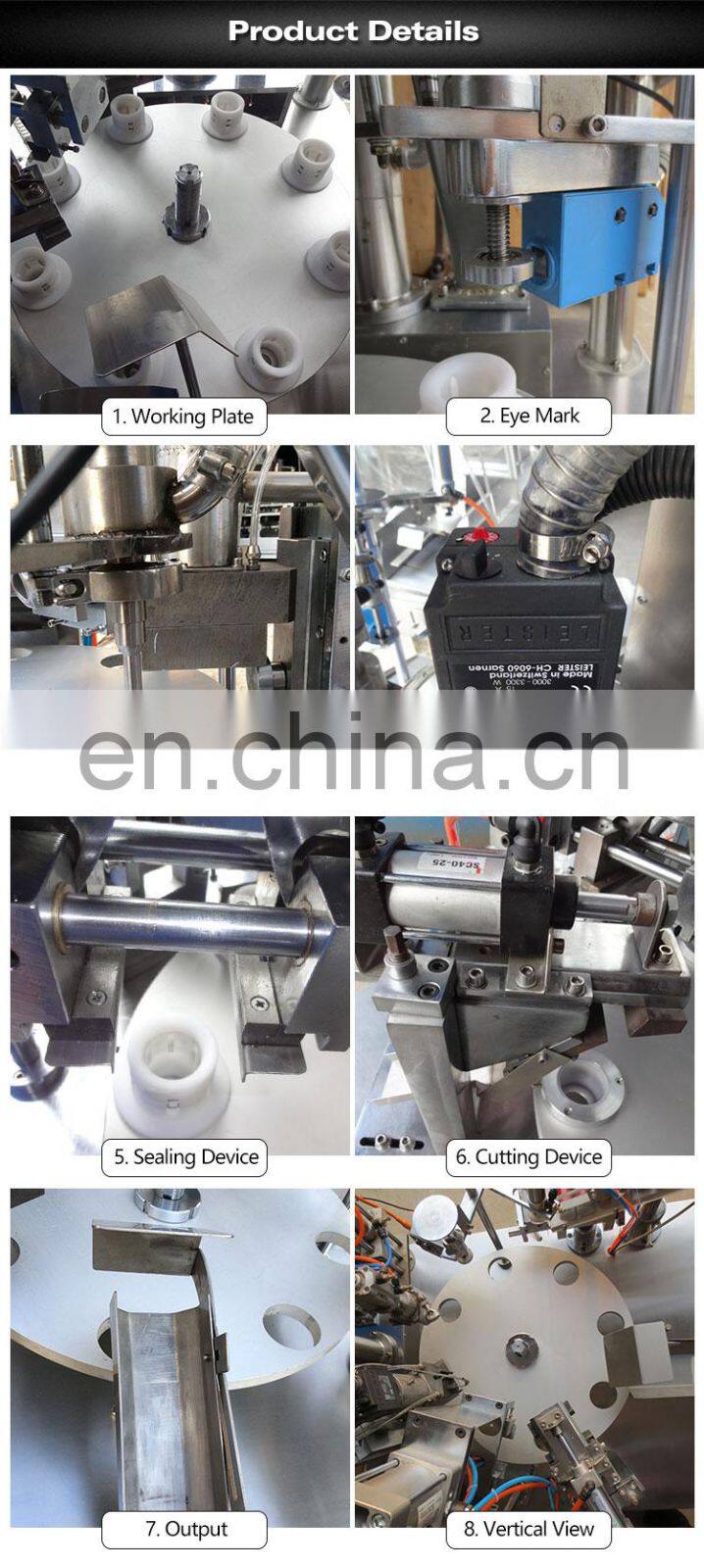

Product Details

Semi-automatic ultrasonic grease tube filling and sealing machineSemi-automatic ultrasonic grease tube filling and sealing machineSemi-automatic ultrasonic grease tube filling and sealing machine

Click for More Information !!!

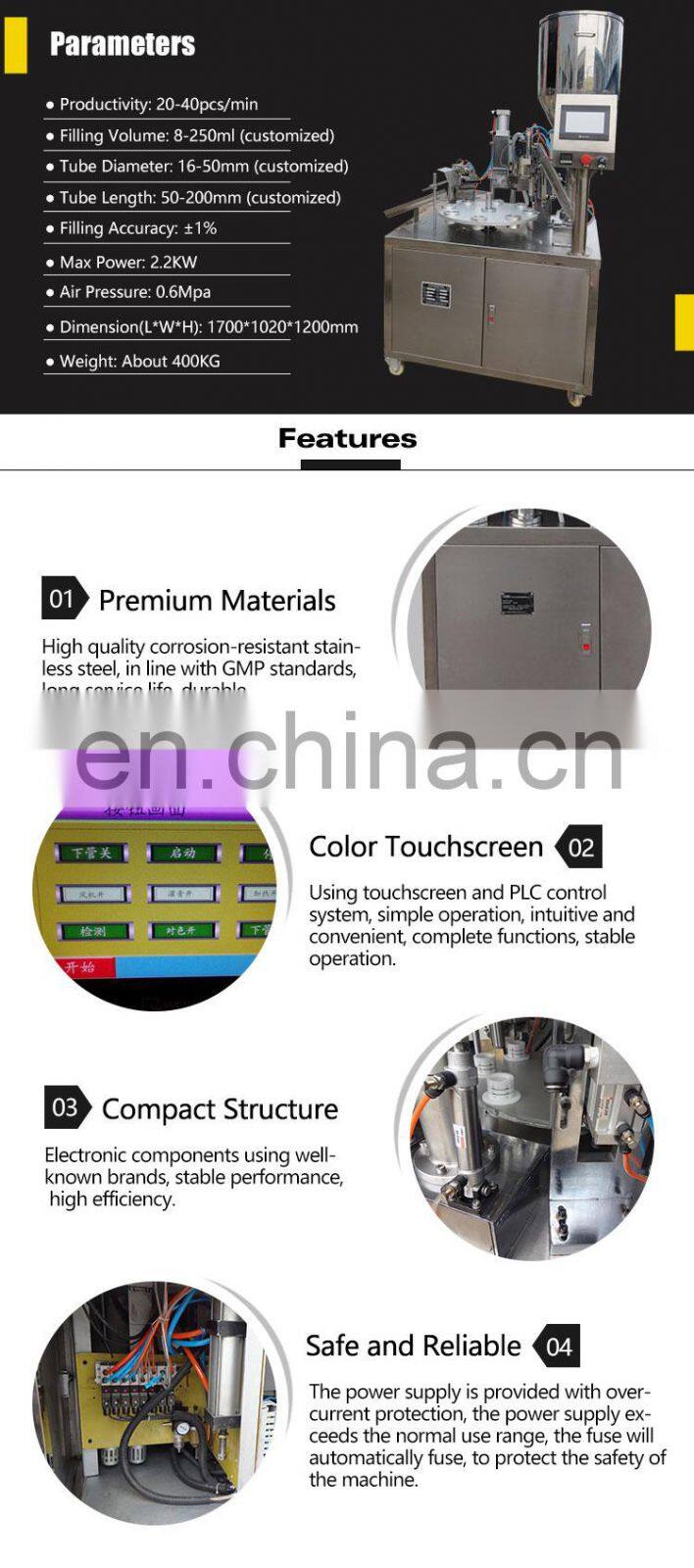

Technical Paremeter
 Productsemi-automatic lubricant oil tube filling sealing machine/lubricant grease tube filling sealing machine
 ItemH-Type Heat Wind Sealing
 Productivity

20 to 40pcs/min

 Filling Volume

8 to 250ml (customized)

 Tube Diameter16 to 50mm (customized)
 Tube Length50 to 200mm (customized)
 Filling Accuracy±1%
 Max Power2.2KW
 Air Pressure0.6Mpa
 Machine WeightAbout 400KG
 Dimension (L*W*H)1700*1020*1200MM
