24v dc Coreless Replacement Maxon Motor
US$ 10 - 50
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
CONSTAR
Place of Origin:
Guangdong, China
Model Number:
3068RCG
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4-8mm High Speed Micro dc Coreless Motor Toy Airplane MotorUS$ 0.7 - 10MOQ: 10 Pieces -
New 6*10mm DC1.3-3V Micro Coreless Vibrating Vibrator Vibration DC MotorUS$ 0.5 - 8MOQ: 10 Pieces
-
Electric Toy Boat Motor,Rc Toys MotorUS$ 0.8 - 8MOQ: 5 Pieces
-
20mm Power High Rpm Electric Motors,dc Replacement Maxon MotorUS$ 5 - 50MOQ: 3 Pieces
-
8mm 8V Micro DC Coreless Motor With 0.15mNm Rated Torque Used in Industrial AutomationUS$ 5 - 20MOQ: 2 Pieces
Brand Name
CONSTAR
Place of Origin
Guangdong, China
Model Number
3068RCG
Type
Micro Motor
Certification
CE, ROHS
Torque
60 mNm
Usage
Car, Home Appliance
Construction
Permanent Magnet
Continuous Current(A)
0.15 A
Speed(RPM)
8500 rpm
Commutation
Brush
24v dc coreless replacement maxon motor
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Operating Environment: -20~+100°C; 15~90%RH
3.Characteristics:
The following are our standard products, we also provide customized products and service.
| -1SP-24.0 | -2SP-36.0 | |||
| 1 | Voltage | V | 24.0 | 36.0 |
| 2 | Rotor resistance | Ω | 0.7 | 1.5 |
| 3 | No-load speed | rpm | 8500 | 8600 |
| 4 | No-load current | mA | 150 | 130 |
| 5 | Stall torque | mNm | 977.4 | 954.2 |
| 6 | Stall current | mA | 36400 | 24000 |
| 7 | Nominal torque | mNm | 60.0 | 86.0 |
| 8 | Nominal speed | rpm | 7930 | 7820 |
| 9 | Nominal current | mA | 2460 | 2270 |
| 10 | Max. output power | W | 218 | 215 |
| 11 | Max. efficiency | % | 88 | 86 |
4. Options: Lead wires length, shaft length, special coils, gearheads, encoder
5.Characteristics Curve:

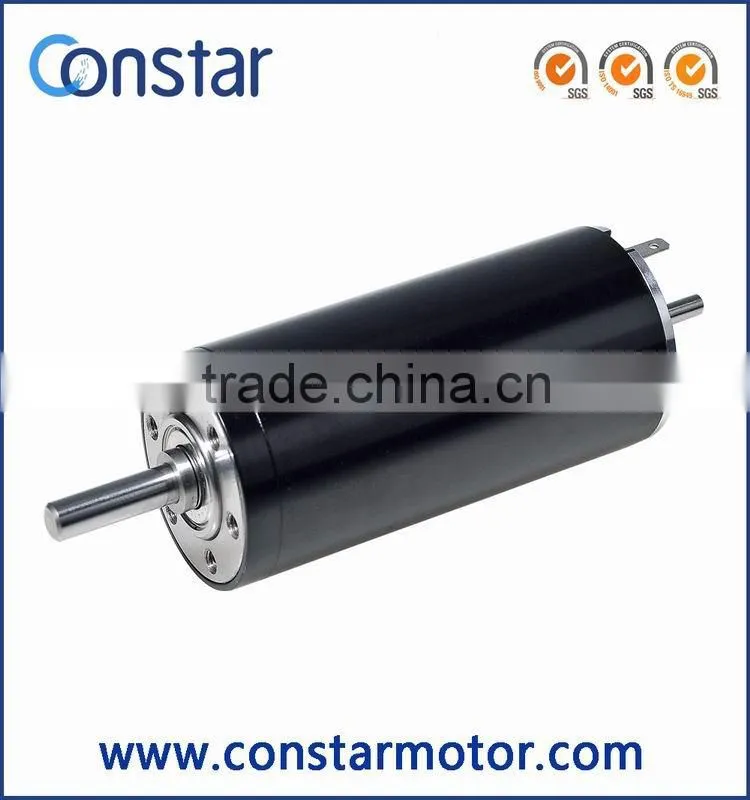

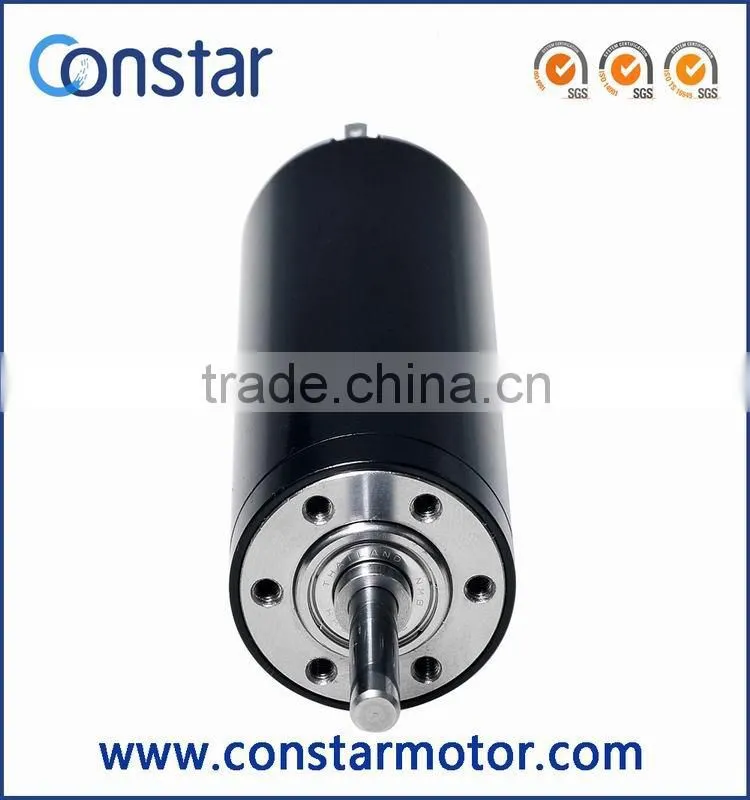

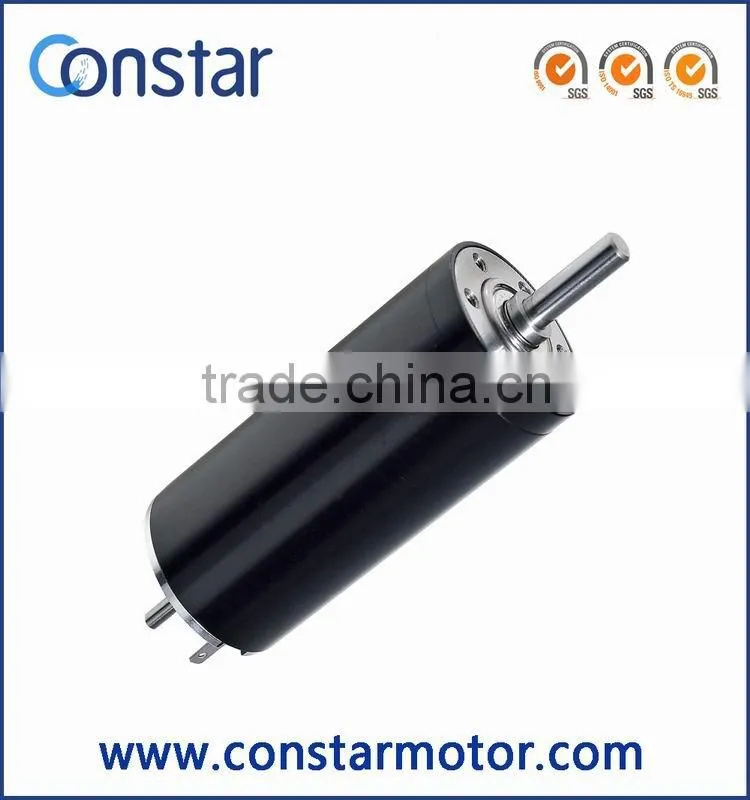

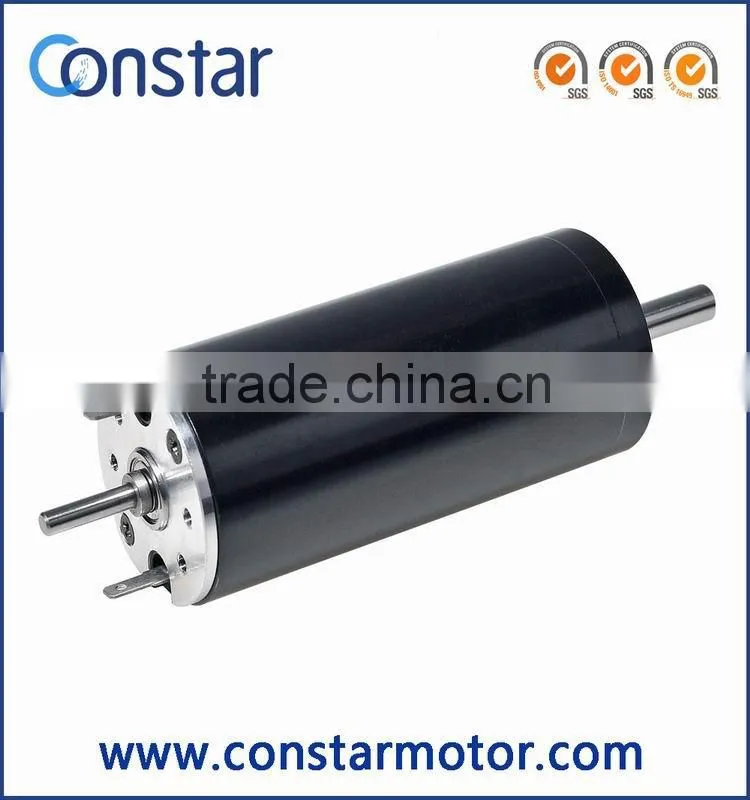

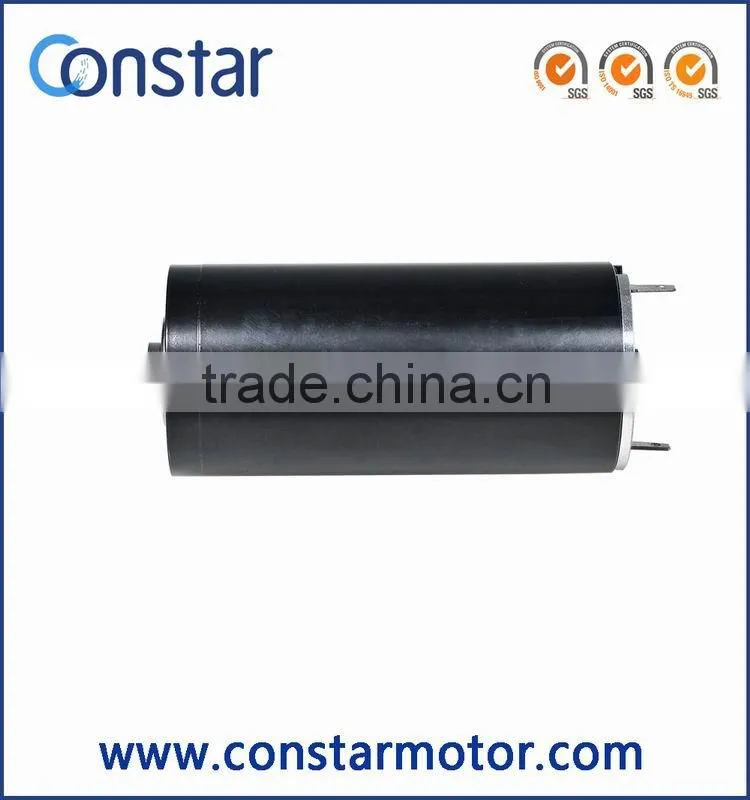

6.Photo:

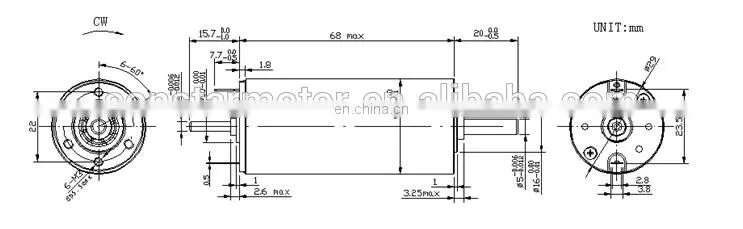

7.Outline Drawing:

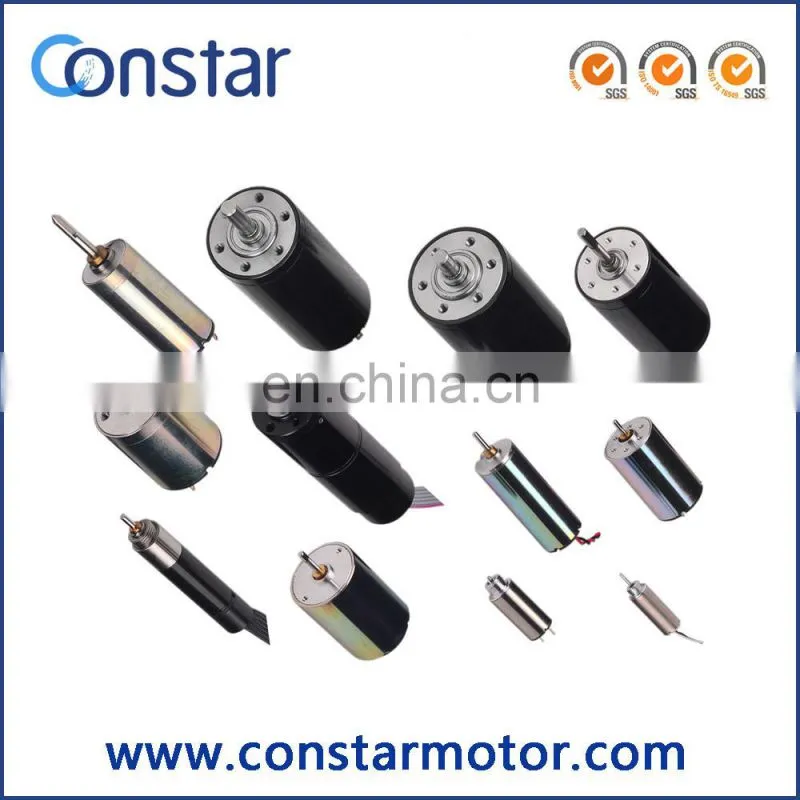

8.Other Item:
|
|
|
| 25mm 24v carbon brush motor | 22mm 6v 9v 12v dc motor | 32mm 24v 5000rpm |
| Series | Dimension
(mm) |
Voltage
(V) |
Termanal resistence
(Ω) |
No-load Speed
(rpm) |
No-Load Current
(mA) |
Torque Constant
(mNm/A) |
|---|---|---|---|---|---|---|
| 1625RCG | Φ16*25 | 12 | 13 | 15000 | 25 | 7.4 |
| 1630RCG | Φ16*30 | 24 | 52.5 | 9500 | 15 | 23.5 |
| 1640RCG | Φ16*40 | 24 | 10.7 | 13700 | 60 | 16.3 |
| 2233RCG | Φ22*33 | 24 | 19.6 | 7600 | 20 | 29.7 |
| 2430RCG | Φ24*30 | 7.4 | 0.85 | 13700 | 180 | 5.1 |
| 2543RCG | Φ25*43 | 24 | 6.3 | 6300 | 25 | 36.1 |
| 3068RCG | Φ30*68 | 24 | 0.7 | 8500 | 150 | 26.9 |
| Φ30*68 | 36 | 1.5 | 8600 | 130 | 39.8 | |
| 3257RCG | Φ32*57 | 24 | 2.2 | 5900 | 130 | 38.4 |
