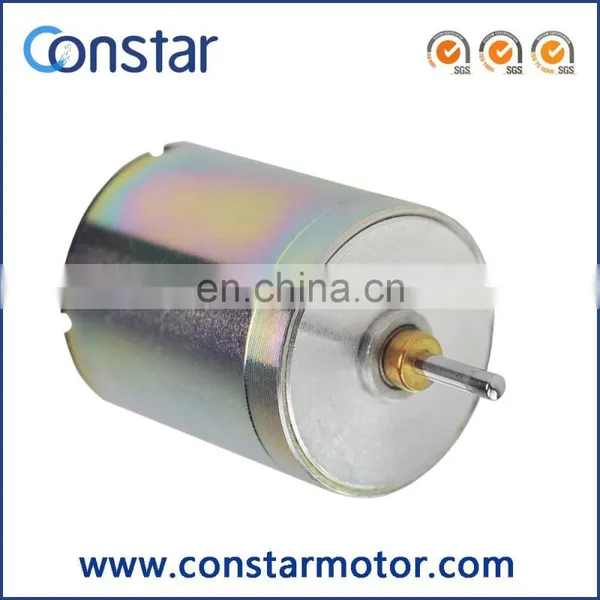

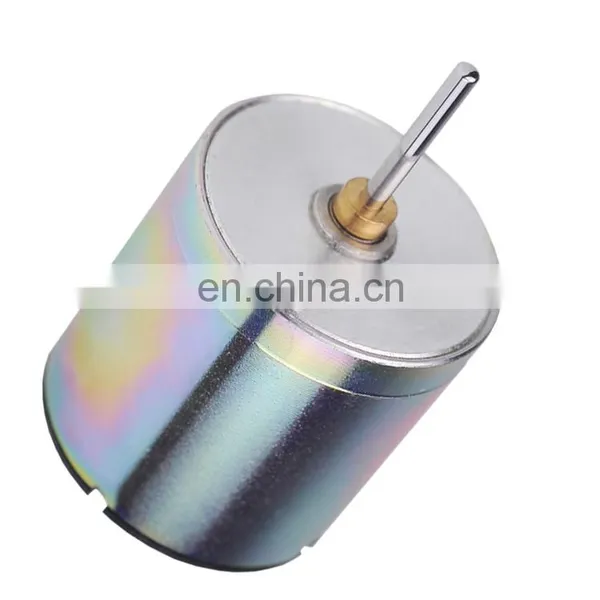

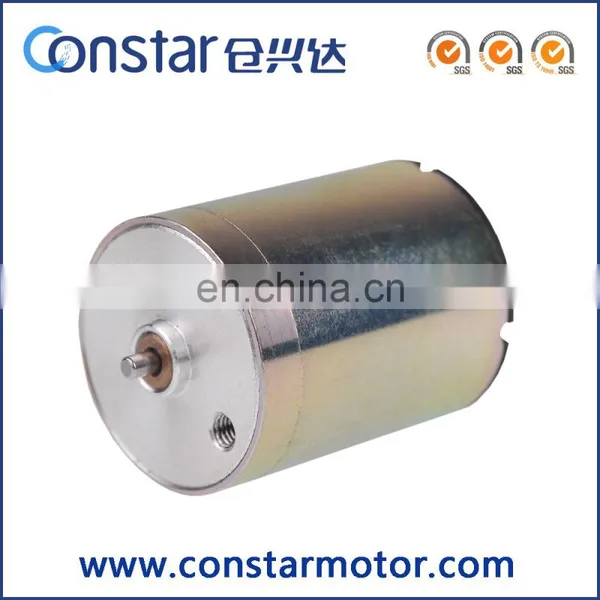

20mm Power High Rpm Electric Motors,dc Replacement Maxon Motor
US$ 5 - 50
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Brand Name:
CONSTAR
Place of Origin:
Guangdong, China
Model Number:
2018RCN
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8mm 8V Micro DC Coreless Motor With 0.15mNm Rated Torque Used in Industrial AutomationUS$ 5 - 20MOQ: 2 Pieces -
3.5v 4mm Micro DC Coreless Toy MotorUS$ 0.5 - 8MOQ: 1 Piece
-
4mm 3.4V High Rpm Mini Motor Used for Toy AirplanesUS$ 0.8 - 10MOQ: 10 Pieces
-
Small Electric Toy Motors,6mm Precision Coreless MotorUS$ 0.8 - 10MOQ: 2 Pieces
-
Small High Speed Motors,6V Dc Electric Motor For Model AircraftUS$ 0.8 - 8MOQ: 5 Pieces
Brand Name
CONSTAR
Place of Origin
Guangdong, China
Model Number
2018RCN
Type
Micro Motor
Certification
CE, ROHS
Torque
4.5mNm
Usage
Car, Home Appliance
Construction
Permanent Magnet
Voltage(V)
6V
Output Power
12.7W
Continuous Current(A)
760mA
Speed(RPM)
9350pm
Commutation
Brush
20mm power high rpm electric motors,dc replacement maxon motor
| CONSTAR MICROMOTOR | ||
|
|
|
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
|
|
|
| GEARMOTOR | STEP MOTOR |
MINI CORELESS MOTOR
|
Applications
Precision driving field in medical, health care, automobile, industrial automation, etc
Specifications
| /Characteristics | ||||
| -1P-7.4 | -6P-12.0 | |||
| 1 | Voltage | V | 6.0 | 12.0 |
| 2 | Terminal resistance | Ω | 1.8 | 11.7 |
| 3 | No-load speed | rpm | 9350 | 10000 |
| 4 | No-load current | mA | 30 | 15 |
| 5 | Stall torque | mNm | 20.7 | 11.3 |
| 6 | Stall current | mA | 3400 | 1000 |
| 7 | Nominal torque | mNm | 4.5 | 4.0 |
| 8 | Nominal speed | rpm | 7290 | 6550 |
| 9 | Nominal current | mA | 760 | 360 |
| 10 | Max. output power | W | 5.1 | 3.0 |
Options
Lead wires length, shaft length, special coils, gearheads, encoder
Customized Motor
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
Outline Drawing

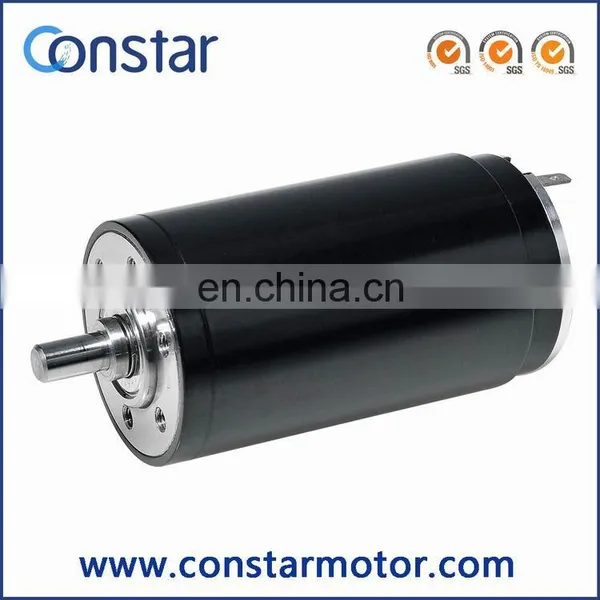

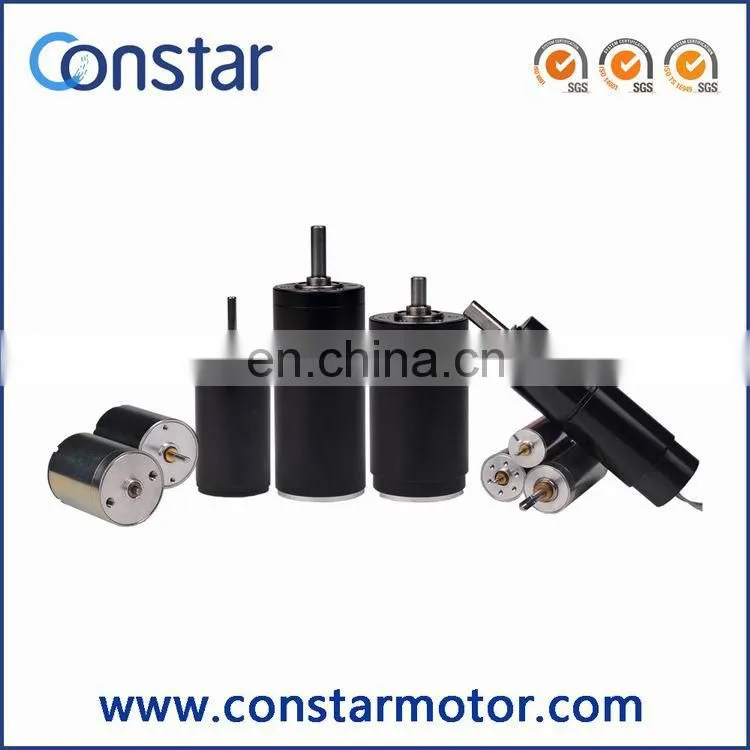

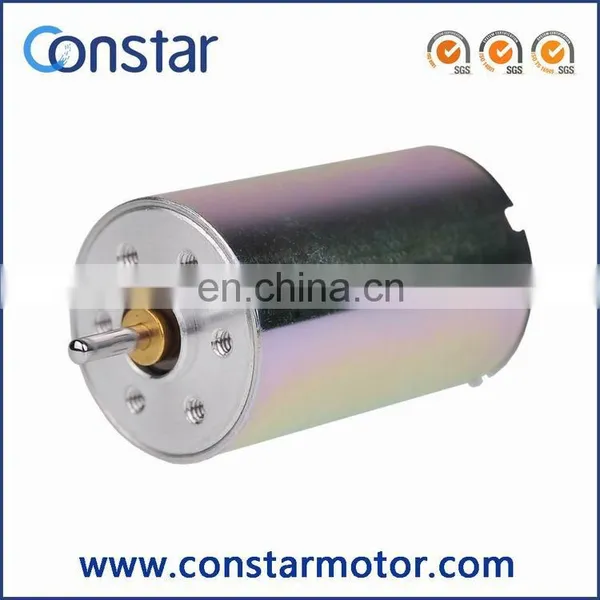

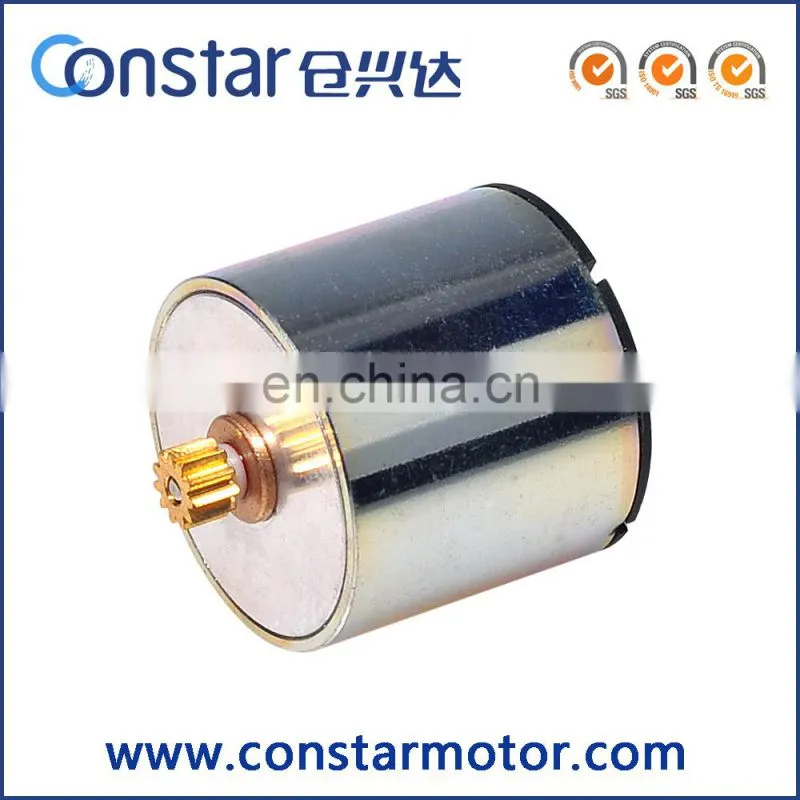

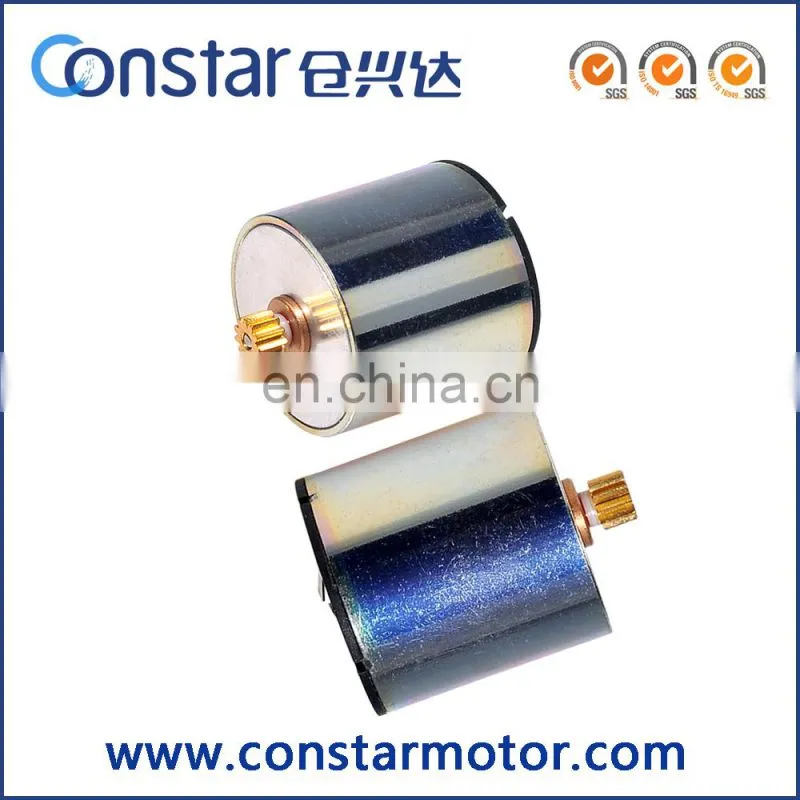

Product Show
Other Item
| Series | Dimension | Voltage | Terminal resistance | Speed | Current | Load Current |
| (mm) | (V) | (Ω) | (rpm) | (mA) | (mA) | |
| 0615RCN | Φ6*15 | 3 | 19 | 12200 | 10 | 1.1 |
| 0816RCN | Φ8*16 | 8 | 60 | 15500 | 6 | 4.7 |
| Φ8*16 | 4.2 | 12.4 | 13700 | 15 | 2.8 | |
| 1025RCN | Φ10*25 | 12 | 28 | 11500 | 10 | 9.7 |
| 1220RCN | Φ12*20 | 3.3 | 6.9 | 7900 | 12 | 3.9 |
| Φ12*20 | 6 | 5.2 | 12000 | 30 | 4.7 | |
| 1230RCN | Φ12*30 | 24 | 59 | 10800 | 5 | 21 |
| Φ12*30 | 5.3 | 12.9 | 4450 | 10 | 11.1 | |
| 1331RCN | Φ13*31 | 9 | 17.7 | 6730 | 7 | 12.59 |
| 1416RCN | Φ14*16 | 3 | 2.6 | 11600 | 20 | 2.4 |
| 1515RCN | Φ15*15 | 3 | 6.1 | 6200 | 10 | 4.5 |
| 1620RCN | Φ16*20 | 5 | 4.7 | 10300 | 25 | 4.5 |
| 1625RCN | Φ16*25 | 12 | 16.5 | 8100 | 10 | 14 |
| Φ16*25 | 3.7 | 7.6 | 6000 | 15 | 5.7 | |
| Φ16*25 | 6 | 3.1 | 9800 | 20 | 5.8 | |
| 1627RCN | Φ16*27 | 4.5 | 1.5 | 10100 | 45 | 4.2 |
| Φ16*27 | 6 | 2 | 10000 | 35 | 5.7 | |
| Φ16*27 | 12 | 8.5 | 10000 | 35 | 11.2 | |
| 1630RCN | Φ16*30 | 6 | 3.2 | 8700 | 20 | 6.5 |
| Φ16*30 | 12 | 15.4 | 10900 | 20 | 10.2 | |
| 2018RCN | Φ20*18.2 | 6 | 1.8 | 9350 | 30 | 6.1 |
| Φ20*18.2 | 12 | 11.7 | 10000 | 15 | 11.3 | |
| 2224RCN | Φ22*24.2 | 6 | 2.2 | 7650 | 35 | 7.4 |
| 2225RCN | Φ22*25 | 7.2 | 1.9 | 16100 | 130 | 4.1 |
| 2232RCN | Φ22*32 | 6 | 2 | 8100 | 20 | 7 |
| Φ22*32 | 9 | 2.9 | 9400 | 17 | 9.1 | |
| Φ22*32 | 12 | 4.4 | 10100 | 20 | 11.3 | |
| Φ22*32 | 24 | 18 | 10200 | 15 | 22.2 | |
| 2233RCN | Φ22*33 | 3 | 0.5 | 9000 | 35 | 3.2 |
20mm power high rpm electric motors,dc replacement maxon motor
