Help Center8520 DC Mini Drone Motor
US$ 0.7 - 10
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
0820RN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacture High Speed Electric Coreless Dc Motor 50000 RpmUS$ 0.65 - 5MOQ: 1 Piece -
24v dc Coreless Replacement Maxon MotorUS$ 10 - 50MOQ: 2 Pieces
-
4-8mm High Speed Micro dc Coreless Motor Toy Airplane MotorUS$ 0.7 - 10MOQ: 10 Pieces
-
New 6*10mm DC1.3-3V Micro Coreless Vibrating Vibrator Vibration DC MotorUS$ 0.5 - 8MOQ: 10 Pieces
-
Electric Toy Boat Motor,Rc Toys MotorUS$ 0.8 - 8MOQ: 5 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
0820RN
Type
Micro Motor
Certification
CE, ROHS
Torque
1.0mNm
Efficiency
IE 1
Protect Feature
Other
Continuous Current(A)
1771mA
Speed(RPM)
51000rpm
Commutation
Brush

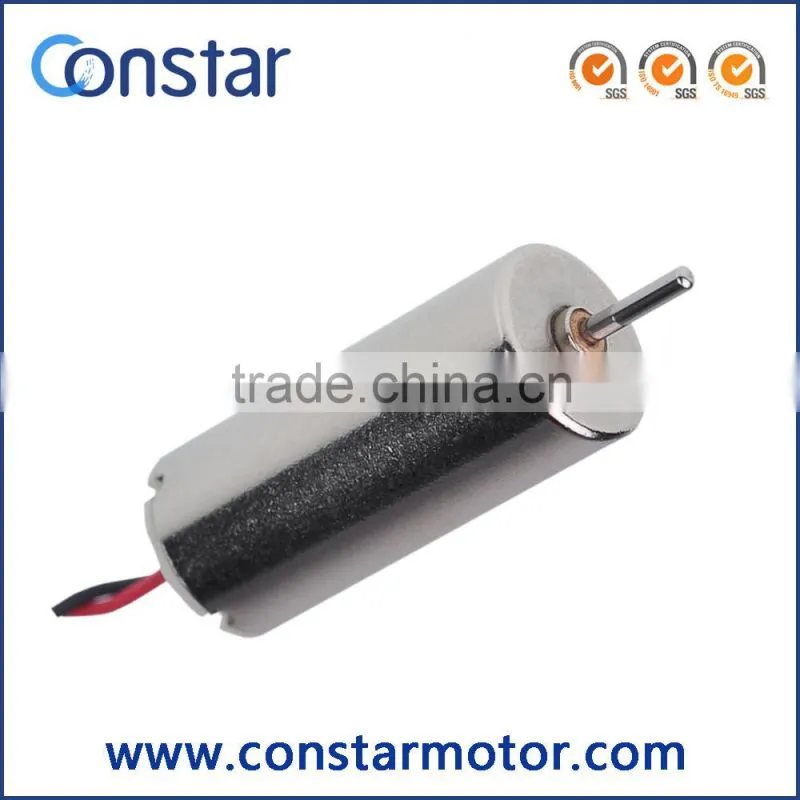

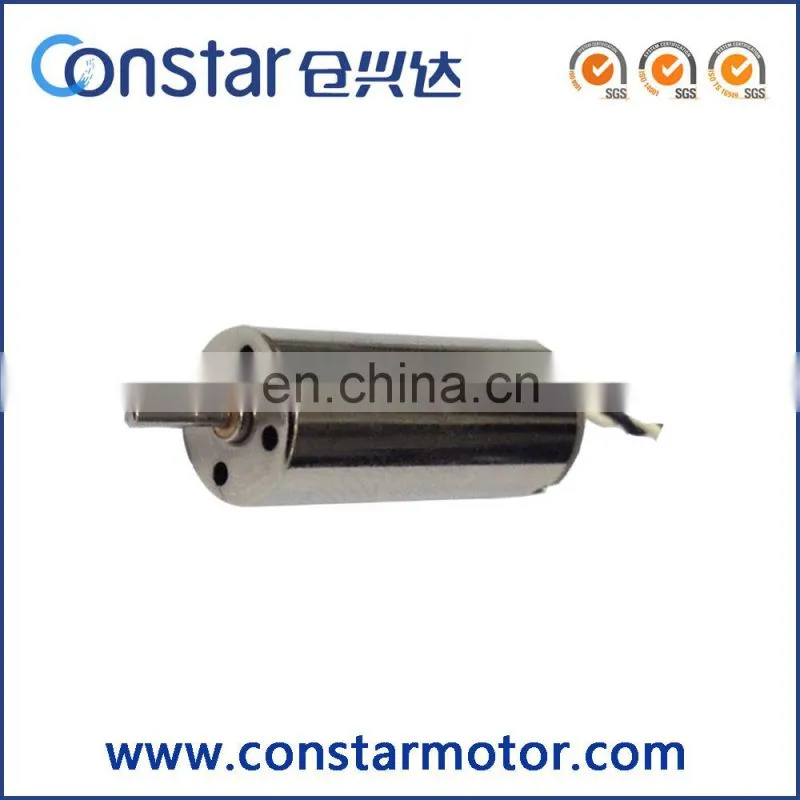

8520 DC Mini Drone Motor
| CONSTAR MICROMOTOR | ||
|
|
|

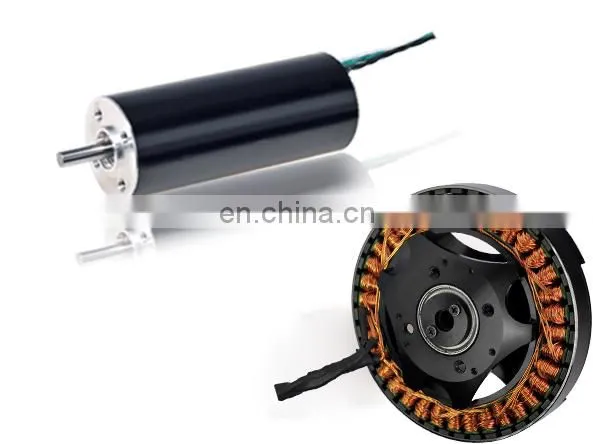

| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
|
|
|
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
Mini UAV, remote control toys, aerocrafts, mini household appliances and so on
The following are our standard products, we also provide customized products and service.
| -10-3.0 | -14-3.0 | -1-3.4 | -59-3.0 | -45-3.0 | |||
| 1 | Voltage | V | 3 | 3 | 3.4 | 3 | 3 |
| 2 | Terminal resistance | Ω | 0.53 | 0.67 | 0.35 | 0.45 | 0.38 |
| 3 | No-load speed | rpm | 37000 | 32500 | 51000 | 36700 | 45700 |
| 4 | No-load current | mA | 130 | 90 | 200 | 130 | 170 |
| 5 | Stall torque | mNm | 4.28 | 3.87 | 6.06 | 5.10 | 4.84 |
| 6 | Stall current | mA | 5660 | 4478 | 9714 | 6667 | 7895 |
| 7 | Load torque | mNm | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| 8 | Load speed | rpm | 28360 | 24100 | 42580 | 29510 | 36260 |
| 9 | Load current | mA | 1422 | 1224 | 1771 | 1411 | 1765 |
| 10 | Max. output power | W | 4.15 | 3.29 | 8.10 | 4.91 | 5.80 |
| 11 | Max. efficiency | % | 73.75 | 75.24 | 74.98 | 75.57 | 74.48 |
Lead wires length, shaft length, special coils, gearheads, encoder

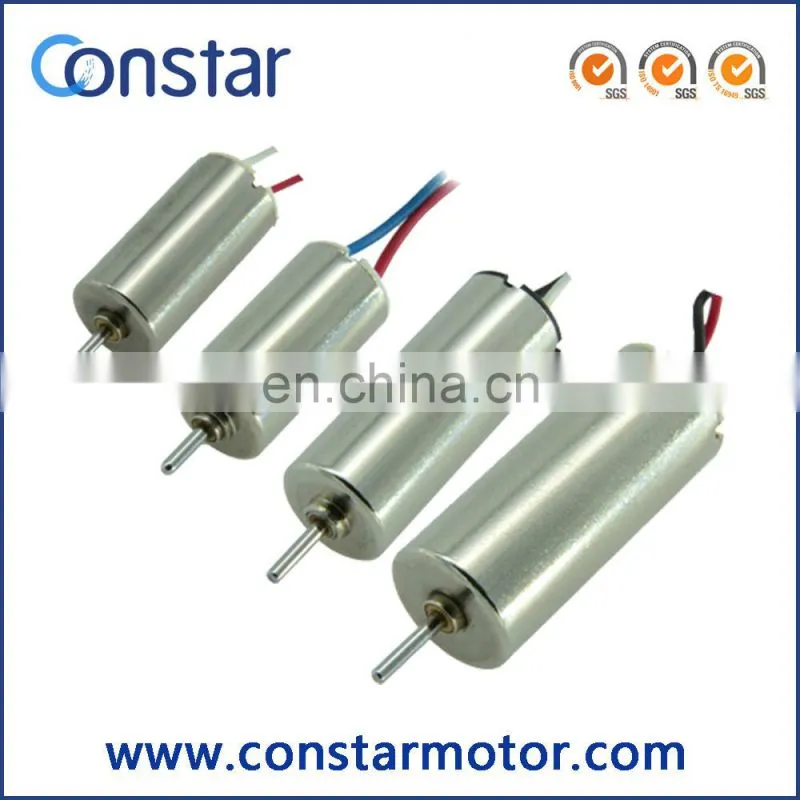

| Series | Dimension (mm) |
Voltage (V) |
Termanal resistence (Ω) |
No-load Speed (rpm) |
No-Load Current (mA) |
Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 0408RN | Φ4*8 | 3.4 | 22 | 58000 | 40 | 0.41 |
| Φ4*8 | 5 | 25 | 78500 | 50 | 0.46 | |
| Φ4*8 | 3.4 | 11 | 75000 | 70 | 0.33 | |
| 0410RN | Φ4*10 | 3 | 45 | 32000 | 15 | 0.69 |
| 0412RN | Φ4*12 | 3.4 | 7 | 68000 | 60 | 0.42 |
| Φ4*12 | 3.4 | 8.3 | 65000 | 55 | 0.43 | |
| 0510RN | Φ5*10 | 3.5 | 15 | 5000 | 30 | 0.58 |
| Φ5*10 | 4.2 | 15 | 55000 | 40 | 0.63 | |
| 0609RN | Φ6*9 | 3 | 14.2 | 34000 | 40 | 0.68 |
| Φ6*9 | 3 | 7.8 | 49000 | 50 | 0.51 | |
| 0610RN | Φ6*10 | 3.5 | 8.9 | 37550 | 28 | 0.83 |
| Φ6*10 | 5 | 7.1 | 58500 | 45 | 0.76 | |
| Φ6*10 | 3.4 | 2.7 | 66500 | 100 | 0.45 | |
| 0612RN | Φ6*12 | 4.5 | 6.5 | 55000 | 60 | 0.71 |
| Φ6*12 | 3 | 39 | 16030 | 8 | 1.6 | |
| 0612RN52 | Φ6*12 | 3.7 | 1.7 | 76400 | 110 | 0.44 |
| Φ6*12 | 3.2 | 2.2 | 50000 | 80 | 0.58 | |
| Φ6*12 | 3.7 | 2 | 73000 | 90 | 0.46 | |
| 0614RN51 | Φ6*14 | 3.4 | 3.7 | 33280 | 37 | 0.94 |
| Φ6*14 | 3.4 | 2.6 | 40850 | 50 | 0.76 | |
| 0615RN55 | Φ6*15 | 3.1 | 2.5 | 36500 | 50 | 0.78 |
| Φ6*15 | 3.1 | 2.2 | 38000 | 52 | 0.75 | |
| Φ6*15 | 3.1 | 1.5 | 47500 | 75 | 0.6 | |
| 0710RN | Φ7*10 | 8 | 7.2 | 78000 | 95 | 0.9 |
| Φ7*10 | 8 | 8.1 | 74000 | 80 | 0.95 | |
| 0714RN | Φ7*14 | 6 | 5.65 | 43300 | 50 | 1.26 |
| Φ7*14 | 7.4 | 6.44 | 42600 | 40 | 1.6 | |
| Φ7*14 | 7.4 | 12.1 | 30450 | 30 | 2.21 | |
| 0716RN | Φ7*16 | 3.4 | 0.8 | 50500 | 110 | 0.63 |
| Φ7*16 | 3.4 | 0.9 | 48000 | 100 | 0.66 | |
| Φ7*16 | 3.2 | 1.1 | 43000 | 90 | 0.69 | |
| 0720RN | Φ7*20 | 3.2 | 0.97 | 34300 | 80 | 0.87 |
| Φ7*20 | 3.4 | 0.73 | 37160 | 100 | 0.85 | |
| Φ7*20 | 3 | 0.67 | 42370 | 100 | 0.66 | |
| 0820RN | Φ8*20 | 3 | 0.53 | 37000 | 130 | 0.76 |
| Φ8*20 | 3 | 0.67 | 32500 | 90 | 0.86 | |
| Φ8*20 | 3.4 | 0.35 | 51000 | 200 | 0.62 | |
| 0823RN | Φ8*23 | 3 | 0.47 | 34400 | 140 | 0.81 |
| Φ8*23 | 3 | 0.45 | 36700 | 160 | 0.76 | |
| 1013RN | Φ10*13 | 4.5 | 3.6 | 35000 | 70 | 1.2 |
| Φ10*13 | 3 | 20 | 11800 | 15 | 2.2 | |
| 1015RN | Φ10*15 | 4.5 | 4.7 | 26000 | 45 | 1.6 |
| 1020RN | Φ10*20 | 3.2 | 0.4 | 40000 | 170 | 0.7 |
| 1215RN | Φ12*15 | 4.5 | 1.9 | 25000 | 45 | 1.7 |
| Φ12*15 | 4.5 | 5 | 16200 | 30 | 2.6 | |
| Φ12*15 | 4.5 | 2.5 | 21000 | 40 | 2.0 | |
| 1620RN | Φ16*20 | 4.5 | 2.2 | 18500 | 35 | 2.3 |
| 1625RN | Φ16*25 | 6 | 3.1 | 8800 | 25 | 0.7 |
| 1630RN | Φ16*30 | 5 | 3.1 | 7600 | 25 | 6.2 |
| 1718RN | Φ17*18 | 6 | 2 | 19000 | 75 | 2.9 |
| 2233RN | Φ22*33 | 12 | 5 | 10500 | 40 | 10.7 |
| Φ22*33 | 12 | 34 | 5200 | 20 | 20.8 | |
| X0816RN | Φ8*16 | 6 | 5.1 | 43000 | 60 | 1.26 |
| Φ8*16 | 5 | 2.65 | 35700 | 40 | 1.31 | |
| X0820RN | Φ8*20 | 3.2 | 0.63 | 37850 | 130 | 0.79 |
| Φ8*20 | 3.4 | 0.5 | 49000 | 180 | 0.65 | |
| Φ8*20 | 3 | 0.45 | 46500 | 200 | 0.6 |
